Please follow the installation steps below to set up your F7110 / F7115 Box IP Camera.
Check the package contents against the list below. See P.1
Physical overview. See P.1
Use the software CD to install Intelligent IP Installer.
Access to Internet via Static IP, Dynamic IP or both. See P.11
For more information, please check the User Manual available in the Software CD or you can download the latest
software from
http://www.zavio.com

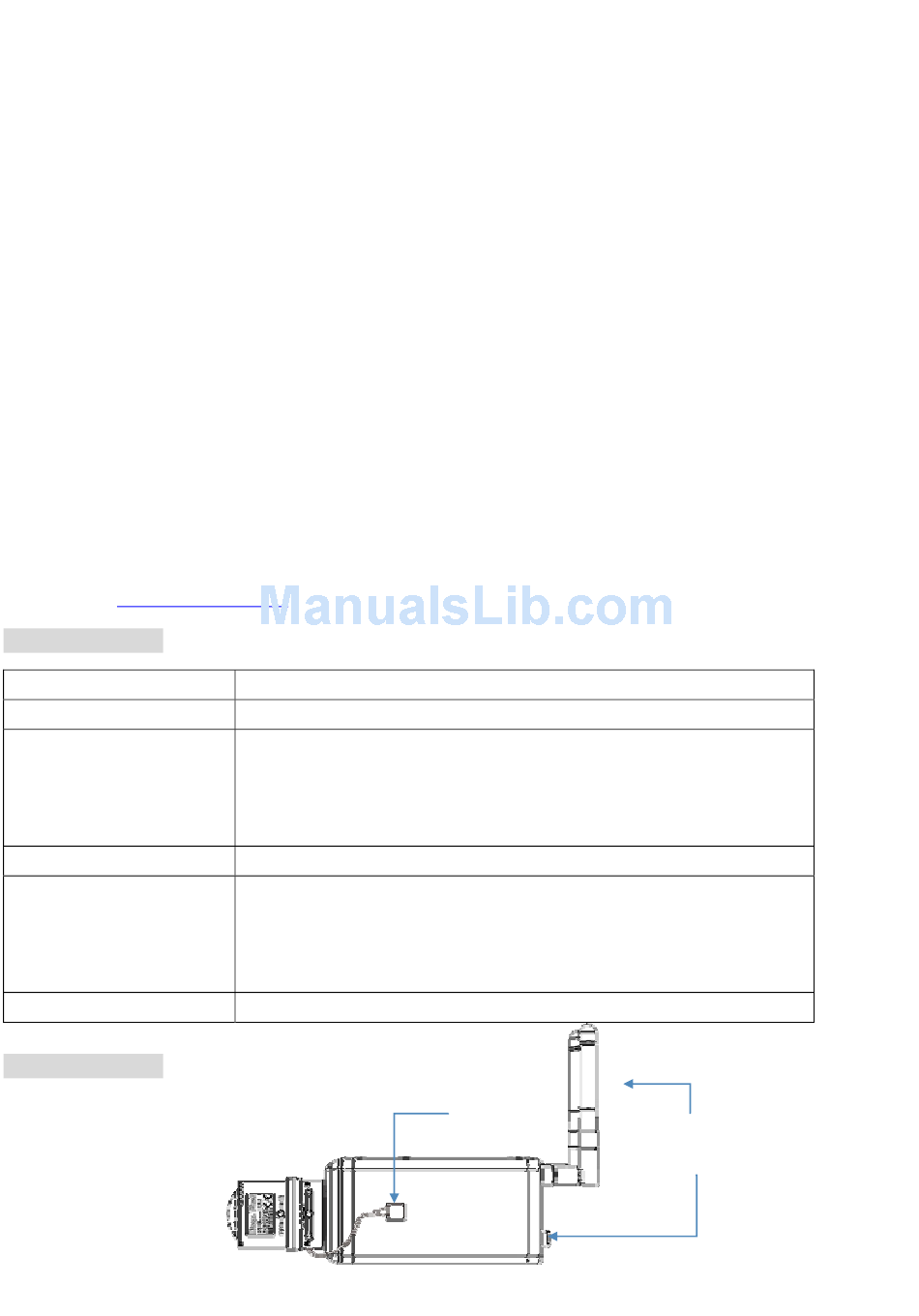

Package Contents
Camera
Quick Installation Guide
Software CD
Mounting Bracket
Accessory
Adaptor

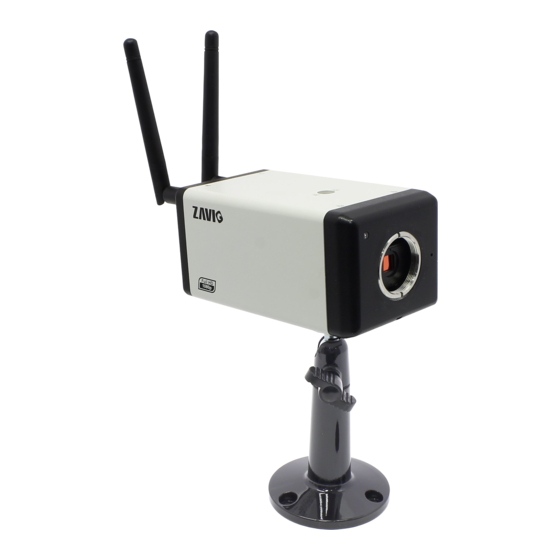

Physical overview
Zavio F7110 / F7115 Quick Installation Guide
F7110 / F7115 IP Camera
Brief product information and quick installation
IP Surveillance Software
Intelligent IP Installer
User Manual
Language Packs
Three screw, Lock ring, and one bracket
BNC female to RCA male adapter
8 pin terminal block for DI/DO and RS-485
Dual antenna for connection of IEEE 802.11b/g/n wireless network
(F7115 only)
12V DC, max 12W
See P.5
Auto Iris
1
Dual Antenna (F7115)
Analog Video Out

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F7110 and is the answer not in the manual?

Questions and answers

Related Manuals for Zavio F7110

Summary of Contents for Zavio F7110

  • Page 1: Table Of Contents

    Zavio F7110 / F7115 Quick Installation Guide Please follow the installation steps below to set up your F7110 / F7115 Box IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.1 I/O Terminal Block Pin Definition. See P.2 LED Indicator Definition.

  • Page 2: I/O Terminal Block Pin Definition. See

    WLAN LED Indicator (F7115) SD Card LED Indicator Power LED Indicator WPS: Push WPS button to configure wireless connection automatically. This function is only available in F7115. Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 10 seconds to set the settings back to factory default.

  • Page 3: Led Indicator Definition. See

    LED Indicator Definition POWER LED Steady Red Boot up process Steady Green Boot up complete Steady Green → Flash Orange Push WPS button and ready for connecting wireless router / AP Flash Orange → Steady Green WPS configuration successful Flash Orange → Steady Red 30 Secs WPS configuration failed Steady Green →...

  • Page 4: Install The Hardware And Connect All Cables. See

    3. Tighten the lock ring. c. Connect all cables c1. Without Power over Ethernet (PoE) connection ( F7110 / F7115 ) 1. Connect the power adaptor to the IP Camera. 2. Using a standard RJ-45 network cable, connect the IP Camera to a normal Hub / Switch / Router.

  • Page 5: Microsoft Os

    Use the software CD to install Intelligent IP Installer Microsoft OS: Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow those steps to install the firmware. Select “Intelligent IP Installer” and follow the installation process to complete the installation. Access the IP Camera using Intelligent IP Installer 1.
  • Page 6 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.

  • Page 7: Mac Os Using Safari Browser. See

    7. Live video displays in the centre of your web browser. Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4.

  • Page 8: Change Lighting Environment Setting. See

    Select Safari function → Enter IP address in the web link → enter username and password (default value admin/admin) → The Zavio user interface and Live Image will show up in the middle of the screen. 2. Mobile phone viewing a.

  • Page 9: Wireless Setting (F7115 Model). See

    Wireless Setting ( F7115 model ) Power the IP Camera and connect an Ethernet network cable to the IP Camera’s LAN port. Using Intelligent IP Installer and entering the camera’s setting page. Please go to “Setting → Basic → System → Network → Wireless”, set the wireless option to “On” 1.

  • Page 10: Image Setup

    9. The IP Camera will send you a message with its Public IP and Private IP if the IP Notification Option is enabled. 10. Click on the small camera icon. Then, choose “View a new contact's webcam”. Camera at home says: 12.
  • Page 11 Access to the Internet a. Internet connectivity of the IP camera can be established by inputting the cameras IP information within the Information section. (Please go to Setting → Basic → Network→ Information) Internet Connectivity of the IP Camera can be established through PPPoE (Point-to-Point Protocol over the Ethernet) by inputting the username and password from your Internet Service Provider (ISP) within the PPPoE section (Please go to Setting →...
  • Page 12 c. Internet Connectivity of the IP Camera can be established if your router is UPnP (Universal Plug and Play) enabled. The IP camera is automatically detected and added to “My Network Places” on your computer. Please note that only Home Routers manufactured after 2006 support the UPnP function. c1.

  • Page 13: Application Of Ip Camera. See

    Application of IP Camera...
