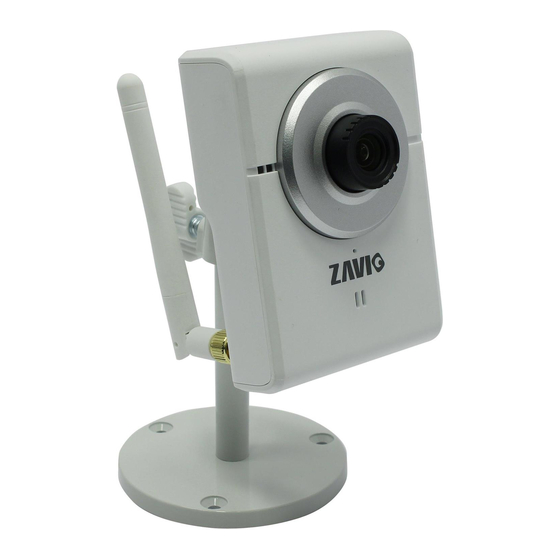

Zavio F3102/F3107/F3110/F3115 Quick Installation Guide Please follow the installation steps below to set up F3102 / F3107 / F3110 /F3115 IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.1 Install the hardware and connect all cables. See P.3 Use the software CD to install Intelligent IP Installer. -
Page 4: Led Indicator Definition
Focus Adjustment Ring: Adjust the focus ring to get a clear image. Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 5 seconds to set the settings back to factory default. WPS: Push WPS button to configure wireless connection automatically. -
Page 5: Default Level
Install the hardware and connect all cables a. Wall mounting and Ceiling mounting 1. Use the 3 supplied screws to fix the base plate to a flat surface. 2. Loosen the lock ring to adjust the desired angle of the camera. 3. - Page 6 2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active camera and video server devices. Select the relevant IP camera from the list and click Link to IE. 3. Enter your Username and Password to login to the IP Camera.
- Page 7 7. Live video displays in the centre of your web browser. Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4.
- Page 8 Lighting environment setting The default setting of lighting environment is Auto. However, you may also select 50 or 60 Hz upon the lighting environment of your country. Go to “Setting > Live View > Camera Setting > Image Setting”, select the environment setting you wish. Change the Web Interface into your preferred language Use the settings screen to set the language of the Web Interface.
- Page 9 Note: The wireless private IP address can be found in Intelligent IP Installer. Application of IP Camera...
