- Page 1 F7210 86085F6000010...
-
Page 2: Package Contents

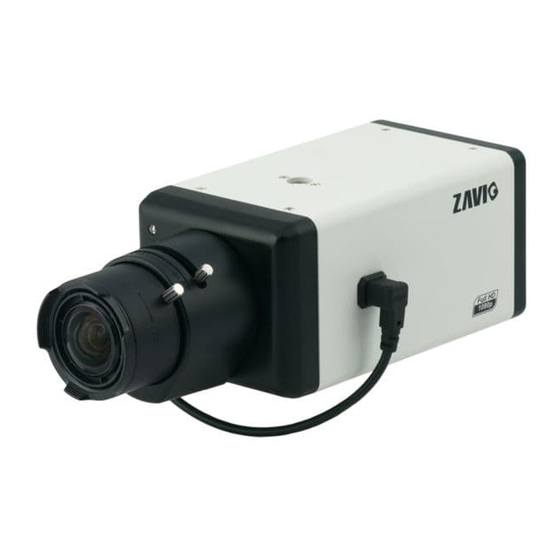

Zavio F7210 Quick Installation Guide Please follow the installation steps below to set up your F7210 Box IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.1 I/O Terminal Block Pin Definition. See P.2 I/O Terminal Block Circuit. -
Page 3: I/O Terminal Block Pin Definition
SD Card LED Indicator Power LED Indicator Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 5 seconds to set the settings back to factory default. I/O Terminal Block Pin Definition Definition Description Max. - Page 4 I/O Terminal Block Circuit LED Indicator Definition Color Indication Steady Red Power on Steady Green Start up completed Steady Green-->Unlit Push reset button: reset to reboot Power Steady Green-->Unlit-->Steady Push reset button for at least 5 secs: reset to factory Green default Steady Green-->Flash Amber...
- Page 5 Install the hardware and connect all cables a. Mounting the Lens to the Camera 1. Mount the lens by turning it clockwise on the camera until it stops. 2. Unscrew the focus controller to adjust to the desired focus. 3. Tighten the focus controller when completing. b.
-
Page 6: Microsoft Os:use The Software Cd To Install Intelligent Ip Installer
Microsoft OS:Use the software CD to install Intelligent IP Installer Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow these steps to install the firmware. Select “Intelligent IP Installer” and follow the installation process to complete the installation. Access the IP Camera using Intelligent IP Installer 1. - Page 7 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.
- Page 8 Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4. The monitor image will be displayed in your browser. camera.
-
Page 9: Change The Web Interface Into Your Preferred Language
Change the Web Interface into your preferred language Use the settings screen to set the language of the Web Interface. Go to “Setting > System > Maintenance ”. 1. Insert Software CD into your CD-ROM. 2. Browse and select the preferred language from language pack in the Software CD and then click OK. 3. -
