Liberty Premium 8 User Instructions Contents 1. INTRODUCTION ..............2 2. WARNINGS AND CAUTIONS..........2 3. SPECIFICATIONS ..............3 3.1. Robot specifiactions ............3 3.2. Charger specifications ............3 3.3. Battery specifications ............3 4. WHAT YOU’LL FIND INSIDE THE BOX ........4 5. -
Page 4: Introduction

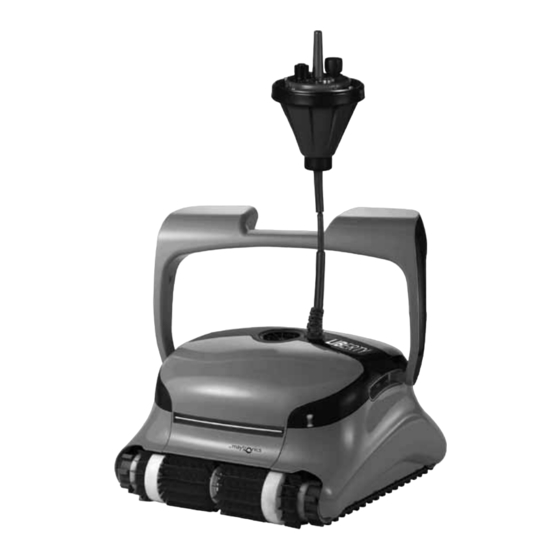

2. The Liberty Premium 8 is a wall-climbing model; it cleans the pool floor, walls, and waterline without intervention. -
Page 5: Specifications
• Safety Device: Each cell is equipped with a safety vent system. Each pack is equipped with a protection circuit against over-voltage, over-discharge and over-current. • Safety Regulation: UL1642, (UL file no.: MH21015), UN38.3 Liberty Premium 8 User Instructions Liberty_Premium_English.indd 3 Liberty_Premium_English.indd 3... -
Page 6: What You'll Find Inside The Box
4. WHAT YOU’LL FIND INSIDE THE BOX Liberty Premium 8 Caddy Remote Control Unit Filteration Charger Brushes - options Cartridge with Spring net filter Ultra-fine filters Combined Brush For rough ceramic surface and mosiac tiles. Charging Cable PVC Brush Wonder Brush For concrete, PVC, For smooth ceramics. -
Page 7: Using The Pool Cleaner
To adjust the handle angle: A. Press the latch down and hold it in position. B. Move the handle to the desired position and release the latch to hold the handle in place. Liberty Premium 8 User Instructions Liberty_Premium_English.indd 5 Liberty_Premium_English.indd 5... - Page 8 Charging Cable connector to Cahrger 1. Plug the charging cable into the charger. 2. Plug the electrical cable from the charger into the mains. 3. Open the charging connector cover of the charging cable. Liberty Premium 8 User Instructions Liberty_Premium_English.indd 6 Liberty_Premium_English.indd 6...
-
Page 9: The Interactive Float
Connect the charging connector to the charging socket on the float (1) with a slight rotation until in position, push down and turn to secure in place (2). Liberty Premium 8 User Instructions Liberty_Premium_English.indd 7 Liberty_Premium_English.indd 7 4/2/12 6:19 PM... -
Page 10: Placing The Robot In The Water
1. Before operation, disconnect the charging cable from the float and close the charging socket cover. 2. Put the robot into the water while holding the float. Let the robot descend to the bottom of the pool. Liberty Premium 8 User Instructions Liberty_Premium_English.indd 8 Liberty_Premium_English.indd 8... -
Page 11: Taking The Robot Out Of The Water
Bring the robot to the surface by gently pulling the float and cable. Liberty Premium 8 User Instructions Liberty_Premium_English.indd 9 Liberty_Premium_English.indd 9 4/2/12 6:19 PM... - Page 12 Pull the floating cable gently until the robot has risen to the surface. Lift the robot out of the water by its handle. Important: Do NOT lift the robot from the water by its cable. CAUTION Liberty Premium 8 User Instructions Liberty_Premium_English.indd 10 Liberty_Premium_English.indd 10...
-
Page 13: Routine Maintenance
CAUTION 1. Open the filter covers and remove the cartridges from both sides of the robot. 2. Open the clips and remove the filters. 3. Clean the filters with a hose. Liberty Premium 8 User Instructions Liberty_Premium_English.indd 11 Liberty_Premium_English.indd 11... -
Page 14: Dismantling And Cleaning The Impeller
The LEDs will blink for several seconds before shutting down. If you notice debris trapped in the impeller, open the impeller and remove the debris, then reassemble. Liberty Premium 8 User Instructions Liberty_Premium_English.indd 12 Liberty_Premium_English.indd 12 4/2/12 6:19 PM 4/2/12 6:19 PM... -
Page 15: Storing The Robot
• Do NOT store the robot where it will be exposed to direct sunlight. • Do NOT store the robot where it will be exposed to excessive heat. • Do NOT store the robot where it will be exposed to frost. Liberty Premium 8 User Instructions Liberty_Premium_English.indd 13 Liberty_Premium_English.indd 13... -
Page 16: Using The Remote Control
REMOTE CONTROL UNIT The Control Panel Radio reception meter When no black lines are showing, move closer to the power supply unit Battery level meter When flashing, change the batteries The remote control unit Manual control indicator offers two operation modes – When flashing, you are in manual direction Automatic mode and manual control mode... - Page 17 Press the Manual/Automatic select button and then choose the desired parameters according to the following table: Cleaning cycle Fast Efficient Extra indicator (Default setting) This determines the length of the cleaning cycle. Supreme / 1.5-hour cycle 2.5-hour cycle for 3.5-hour cycle M family everyday use.
-
Page 18: Automatic Mode Settings
When the on button on the float is The battery is empty. Recharge the battery. pressed the robot does not begin to work and the red LED flashes. Liberty Premium 8 User Instructions Liberty_Premium_English.indd 17 Liberty_Premium_English.indd 17 4/2/12 6:19 PM... -
Page 19: Caddy Assembly Instructions
11. CADDY ASSEMBLY INSTRUCTIONS Liberty Premium 8 User Instructions Liberty_Premium_English.indd 18 Liberty_Premium_English.indd 18 4/2/12 6:19 PM 4/2/12 6:19 PM... - Page 20 8mm ( ”) Liberty Premium 8 User Instructions Liberty_Premium_English.indd 19 Liberty_Premium_English.indd 19 4/2/12 6:19 PM 4/2/12 6:19 PM...
- Page 21 Liberty_Premium_English.indd 20 Liberty_Premium_English.indd 20 4/2/12 6:19 PM 4/2/12 6:19 PM...
- Page 22 Liberty_Premium_cover_English.indd 3 Liberty_Premium_cover_English.indd 3 4/2/12 6:15 PM 4/2/12 6:15 PM...
- Page 23 Liberty Premium 8 www.maytronics.com Liberty_Premium_cover_English.indd 4 Liberty_Premium_cover_English.indd 4 4/2/12 6:15 PM 4/2/12 6:15 PM...
