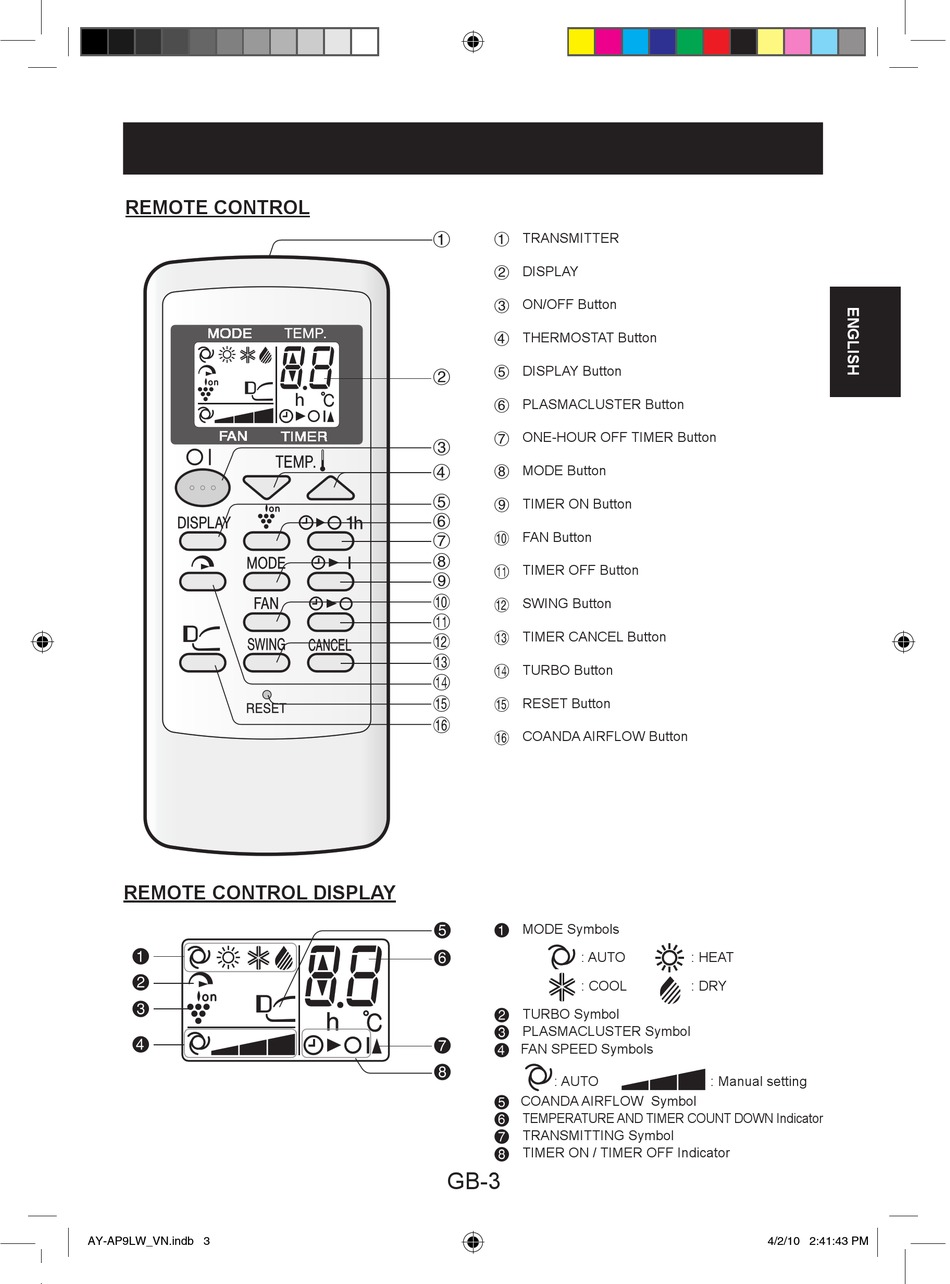

REMOTE CONTROL

REMOTE CONTROL DISPLAY

!
@
#
$
AY-AP9LW_VN.indb 3
1
1 TRANSMITTER
2 DISPLAY
3 ON/OFF Button
4 THERMOSTAT Button
5 DISPLAY Button
2
6 PLASMACLUSTER Button
7 ONE-HOUR OFF TIMER Button
3
4
8 MODE Button
5
9 TIMER ON Button
6
0 FAN Button
7
8
q TIMER OFF Button
9
0
w SWING Button
q
e TIMER CANCEL Button
w
e
r TURBO Button
r
t
t RESET Button
y
y COANDA AIRFLOW Button
%
! MODE Symbols
^
: AUTO
: COOL
@ TURBO Symbol
# PLASMACLUSTER Symbol
&
$ FAN SPEED Symbols
*
: AUTO
% COANDA AIRFLOW Symbol
^ TEMPERATURE AND TIMER COUNT DOWN Indicator
& TRANSMITTING Symbol
* TIMER ON / TIMER OFF Indicator
GB-3
: HEAT
: DRY
: Manual setting
