Page 3
Configuration Configuration - - - - Record Record --------------------------------- ----------------- Configuration Configuration Record Record Record mode --------------------------------------------------------- No r ma l r ec o r d - -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- - Intensive record ----------------------------------------------------- P a n i c r e c o r d - -- - - - - - - -- - - - - -- -- - - - - - - -- - - - - -- - - - - - - - - -- - - - - -- -- - - S e q u e n c e...
Page 4
This manual applies to the DR8NRT/DR16NRT only. This manual describes the external features of GANZ DIGIMASTER, part names, correct connection methods for supported domes or pan/tilt receivers, control devices, peripheral devices and the system setup instructions. It is important to note here that some features, figures, pictures and references can only be applied to just one model.
Page 5
CBC reserves all copyrights of registered trademarks in this manual. Please be aware of the following precautions before installing the DVR. Avoid positioning the GANZ DIGIMASTER in any place where the unit may come into contact with moisture, dust, or soot.
Page 6
The following are warnings and cautions to ensure user safety and prevent property damage. Please read the information below thoroughly.
Page 10
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Read all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a dry cloth. 7) Do not block any of the ventilation openings.
Product Contents List ts List ts List ts List Please check if all the product contents are present after opening the package. ① ① ① ① Basic Contents DR8NRT,16NRT Unit DR8NRT,16NRT Unit AC Power Cable DR8NRT,16NRT Unit DR8NRT,16NRT Unit Instruction Manual...
SPECIFICATION&ORIGANIZATION SPECIFICATION&ORIGANIZATION SPECIFICATION&ORIGANIZATION SPECIFICATION&ORIGANIZATION System Organization System Organization System Organization System Organization Alarm Sensor Relay Out Remote Client PC Image Printer Camera Alarm Input/Out TCP/IP NETWORK AVI Backup Video In WEB Client Video Out Backup Remote Controller USB Mouse DVD-RW A/V Monitor Monitor...
PRODUCT DESCRIPTION PRODUCT DESCRIPTION PRODUCT DESCRIPTION PRODUCT DESCRIPTION Front Panel Front Panel Front Panel Front Panel ① Power : System Power On/Off ② DISPLAY : Select Screen Division Mode or Rotation Mode ③ SEQUENCE : Select Sequence Screen Mode ④ PANIC : Trigger Panic Recording Mode and Panic Relay Output ⑤...
REMOTE CONTROLLER REMOTE CONTROLLER REMOTE CONTROLLER REMOTE CONTROLLER POWER MENU : Open System Setup Menu System Channel Selection Buttons ON/OFF ID Button Select DVR ID ENTER : Mouse right Click RETURN Mouse Left Click Navigation Buttons: Used for Playback Control, Menu Navigation, and PTZ/Focus Control ※...
Page 18
HDD, DVD HDD, DVD HDD, DVD HDD, DVD- - - - RW CONNECTION RW CONNECTION RW CONNECTION RW CONNECTION Above is the mainboard picture after opening the top cover. The connection board is in red box (1) is the port for system disk(master disk). Install the first HDD at this port. (HDD jumper location should be “Master”).
POWER ON POWER ON POWER ON POWER ON Press the power button. The DVR startup screen detects and checks the HDD and DVD-RW. After startup process is completed, “logon” display appears for inputting the Password. (Default password is just leaving is as empty column.
Alarm Detection channel show each channel. When the operator drags the mouse to the bottom left of the screen, this pop-up screen will appear. By pressing each button, the operator can turn (On/Off) the functions of the above pop-up screens. LIVE DISPLAY LIVE DISPLAY LIVE DISPLAY...
Click the right mouse button on the Live Display screen to click the menu. • PTZ controls appear like above. 1) Select the camera. 2) Control the camera direction. Press this button. The operator can control the PTZ detailed configuration with pop-up screen. 4) Control the Zoom, Focus, Iris.
SEARCH SEARCH SEARCH SEARCH The operator can search the recorded data from Normal, Sequence, Thumbnail or Smart search folder. Normal Search Normal Search Normal Search Normal Search Click right mouse button on the Live Display screen and click the SEARCH SEARCH menu.
Page 23
Input the snapshot tag. Select the channel. Select the screen. Input the Memo. To save the image, click the [RESERVE] button. (The operator can check the saved image from backup Data Management of backup menu). START BURNING: snapshot image can be burned with USB device or DVD-RW.
Page 24
Backup data information would be shown in this screen. How to burn the backup and reserve is same with how to save the snapshot. (The operator can check the saved image from backup Data Management of backup menu). : Click the button for full screen from (D). Then below screen would be shown. For returning, drag the mouse to the bottom of screen.
Page 25
: Click the button for viewing the log from (D). Then below screen would be shown. Current log would appear. For returning, click the same button again. : Click the button for changing the playback display from (D). The operator can select the playback display mode. The display color for the recorded data at Timeline from (E), appears differently for each type like above •...
Page 26
• Playback-> Log Click the “log”. Then it shows left screen. Select the date to see the log from calendar. Select the event section to see the what the operator desires. Click to start the “search”. Click the button to view with timeline. The option to search each channel can be selected.
Sequence Search Sequence Search Sequence Search Sequence Search - The operator can search frame by frame. • Select the channel. • Select the date. • Select the time. • The operator can select the time from timer or by dragging the timeline bar. •...
Thumbnail Search Thumbnail Search Thumbnail Search Thumbnail Search - The operator can search with divided screens in each time range. Channel selection Snapshot backup Start time selection Total time Range selection The operator can select the playback location by Drag and drop Timeline bar. •...
Smart Search Smart Search Smart Search Smart Search -The operator can search by Museum search or Motion search. - Select the camera. - Select the area that requires to be search by dragging the mouse. - Select the search method. (Museum or Motion) - Museum search This search indicates or generates event (consistent/inconsistency) when search is compare with the starting image and also when the image continuous to occur more than Designated Time on the...
BACKUP BACKUP BACKUP BACKUP Backup Backup Backup Backup Click right mouse button on the Live Display screen and Click the BACKUP BACKUP menu. BACKUP BACKUP • Select the “BACKUP” icon and press the “BACKUP” button. • Logon display shows and input the password. It shows the backup display. •...
Backup Data Management Backup Data Management Backup Data Management Backup Data Management • The operator can see the saved snapshot image and AVI file form Backup menu and search menu. : Detailed information : Delete : Burning...
CONFIGURATION CONFIGURATION - - - - SYSTEM CONFIGURATION CONFIGURATION SYSTEM SYSTEM SYSTEM Click the right mouse button on the Live Display screen and Click the CONFIGURATION CONFIGURATION CONFIGURATION CONFIGURATION menu and Click the “SYSTEM SYSTEM”. SYSTEM SYSTEM Camera Camera - - - - > Title >...
Page 33
Camera Camera - - - - > Color > Color Camera Camera > Color > Color • Camera color setup: Select the Brightness, Contrast, Tint and Color. The operator can control the color of the live display by clicking the button.
Page 34
Camera Camera - - - - > OSD Camera Camera > OSD > OSD > OSD • Select the COVERT for each channel, MAIN DISPLAY OSD, SPOT OSD setup ※ ※ ※ ※ How to use the virtual keyboard How to use the virtual keyboard How to use the virtual keyboard How to use the virtual keyboard Double Click the left mouse button to enter data.
Alarm/Event Alarm/Event - - - - > Sensor > Sensor Alarm/Event Alarm/Event > Sensor > Sensor Select the Activation, Normal State (High/Low-It is related with sensor type) and input the description. Alarm/Event Alarm/Event - - - - > Video Loss >...
Page 36
Alarm/Event Alarm/Event - - - - > Motion Detection > Motion Detection Alarm/Event Alarm/Event > Motion Detection > Motion Detection Select the Motion Detection, Activation, Sensitivity (1~10) and Motion Area. The operator can select the motion area from above screen after clicking the button.
Page 37
Alarm/Event Alarm/Event - - - - > Storage > Storage Alarm/Event Alarm/Event > Storage > Storage • File system Event - Disk Full: To check if the disk is full, turn on/off Activation. • Smart Event - Smart Warning: To check the HDD trouble, turn on/off Activation. - Smart Check Period: Select from 1 to 24 hour.
Page 38
Select the Activation of each channel. Setup the detail configuration after entering the “EDITER” by clicking the button or double click the selected channel. Select the sensor, motion, Video loss, Storage Event and User defined Event as user requires. After selecting it, action type can setup from Event Action Setup. Alarm/Event Alarm/Event - - - - >...
Page 39
Alarm/Event Alarm/Event - - - - > Event Action > Event Action - - - - > E > E- - - - mail Notification mail Notification Alarm/Event Alarm/Event > Event Action > Event Action > E > E mail Notification mail Notification - When a selected event occurs, an E-mail notification will be sent.
Page 40
Alarm/Event Alarm/Event - - - - > Event Action > Event Action - - - - > Video Popup > Video Popup Alarm/Event Alarm/Event > Event Action > Event Action > Video Popup > Video Popup - When the selected event happens, the screen pop-up at the selected monitor. - After selecting the event (Alarm, motion, User Defined Event) for pop-up, tick on/off activation.
Display Display - - - - > Screen Templ > Screen Template Display Display > Screen Templ > Screen Templ Setup the display configuration. It is used when the operator wants to see live display with sequence mode. This menu should be setup before setting the Main Display Sequence. The operator could select the screen mode with 1, 4, 8,9,16 division by clicking above icon.
Page 42
Display Display - - - - > Main Display S > Main Display Sequence equence Display Display > Main Display S > Main Display S equence equence • Main Display Sequence: To start the sequence, the operator selects and makeup the working sequence type.
Page 43
Display Display - - - - > Spot#1 > Spot#1- - - - 4 Display Sequence 4 Display Sequence Display Display > Spot#1 > Spot#1 4 Display Sequence 4 Display Sequence In case of advance spot, setup method is almost the same with main display sequence. There is only one difference.
Audio Audio Audio Audio • Setup the audio configuration. - Live Audio: Select the Live audio channel. - Network Audio: Select the audio transmitter and receiver. - Buzzer: To press the key of front panel and remote controller. Turn the Sound on/ off.
Page 45
User User - - - - > User group > User group User User > User group > User group Default user group (administrator, manager, and user) cannot be deleted or edit. After selecting “ADD” button, the operator can make the new user group with new authority. Select “ADD”...
Page 46
User User - - - - > User > User User User > User > User The operator can add, delete or edit the new user. Select the “ADD” button and “ADD USER” screen would appear. After inputting the ID, PW and E-mail with virtual keyboard, click “OK” button. : ADD : DELETE : EDIT...
Page 47
Network Network - - - - > Configuration > Configuration Network Network > Configuration > Configuration DHCP: In case of “Dynamic IP”, select the “DHCP” Click the “apply” button and the DVR gets the IP address automatically, after selecting the “DHCP”.
Page 48
Network Network - - - - > E > E- - - - Mail Server Mail Server Network Network > E > E Mail Server Mail Server USER Account : Enter a username to identify the DVR in email messages. PASSWORD : If SECURITY is set to ON, enter the password here.
Page 49
System System - - - - > Information > Information System System > Information > Information Information - Site Description: Input the name by virtual keyboard - H/W version: DVR’s H/W version - S/W version: DVR’s FW version - Mac address; DVR’s Mac address Controller connecting - Setup to control by the keyboard controller.
Page 50
S S S S ystem ystem - - - - > Update > Update ystem ystem > Update > Update - Firmware Upgrade The operator can update the F/W by USB device or DVD. After saving the F/W in the USB and DVD, insert it to the DVR. Select the F/W upgrade button and the above “Firmware Upgrade”...
Storage Storage - - - - > Ope > Operation ration Storage Storage > Ope > Ope ration ration - Operation mode: Select either overwrite/write once (no overwrite) - Internal recording: It shows the internal HDD recording information which had been installed - DVD Media: It shows the internal DVD-RW which was installed.
CONFIGURATION CONFIGURATION - - - - RECORD CONFIGURATION CONFIGURATION RECORD RECORD RECORD Click the right mouse button on the Live Display screen and click the CONFIGURATION CONFIGURATION CONFIGURATION CONFIGURATION menu and Click “RECORD RECORD”. RECORD RECORD Record Mode Record Mode Record Mode Record Mode...
- Record Mode In case “Normal Record” is selected from record mode, the operator cannot enter “Intensive Record” setup. Also, the operator cannot enter “Normal Record” incase “Intensive Record” is selected. - Weekly/Daily The operator can select the “Weekly” or “Daily” record setup from ‘Normal Record” and ‘Intensive Record”...
Normal Record Normal Record Normal Record Normal Record Parameter -Drag the time to setup with mouse. The setup is different for each time range, also according to different color. In case of recording setup, the operator should setup as 4 divided parts. The operator can setup Max.CIF, 120FPS each divided part.
Page 55
Schedule The operator can select recording type (Timer, Motion, Alarm, User Defined, Alarm or Motion and Record off) each time, channel. Drag the desired section for selection and click the mouse right button. Then, recording option would appear. The operator can select the recording option for each time and channel.
Inten Intensive Record sive Record Inten Inten sive Record sive Record In case of intensive record, record will be centralized at channel with events happening, as event priority. Parameter -Drag the time desired time for setup by mouse. In case of setup, for each different time, the color is is different.
Schedule The operator can select the record on/ off each time and channel. Drag the desired section for selection and click the mouse right button. Then, recording option will appear. The operator can select the recording on/off each time and channel. - Recording setup Load, Save and Delete The operator can make the various recording setup in DVR.
Page 58
Panic Panic Record Record Panic Panic Record Record The recording condition is changed according to the panic record setup when the panic button is pressed or detecting the panic alarm. In case of recording setup, the operator should setup as 4 divided parts. The default setup is CIF, 30FPS.
SEQUENCE SEQUENCE SEQUENCE SEQUENCE Click the right mouse button on the Live Display screen and click the “S “SEQUENCE PLAY” EQUENCE PLAY” “SEQUENCE STOP”. “SEQUENCE STOP”. “S “S EQUENCE PLAY” EQUENCE PLAY” “SEQUENCE STOP”. “SEQUENCE STOP”. • Select the “SEQUENCE PLAY” icon and press the “SEQ” button. Then, it shows sequence display which is installed.
Page 60
DIGITAL ZOOM DIGITAL ZOOM DIGITAL ZOOM DIGITAL ZOOM Click the right mouse button on the Live Display screen and click the “DIGITIAL ZOOM”. “DIGITIAL ZOOM”. “DIGITIAL ZOOM”. “DIGITIAL ZOOM”. Click button for returning to live display. Click the mouse right button for changing the channel. Then, it would show the channel list. Select the channel which is required to be changed.
KEYLOCK KEYLOCK KEYLOCK KEYLOCK Click the right mouse button on the Live Display screen and click the “KEYLOCK”. “KEYLOCK”. “KEYLOCK”. “KEYLOCK”. Select the “Keylock” by menu or press “Lock” button from Remote controller or Front panel, then the system is locked. If any button is pressed under keylock condition, below would appeared.
Page 62
PANIC PANIC PANIC PANIC Click the right mouse button on the Live Display screen and click the “PANIC “PANIC START/STOP”. START/STOP”. “PANIC “PANIC START/STOP”. START/STOP”. Press the “PANIC START,” it starts panic record. Please press the “PANIC STOP” to stop the panic record.
SHUTDOWN SHUTDOWN SHUTDOWN SHUTDOWN Click the right mouse button on the Live Display screen and click the “SHUTDOWN”. “SHUTDOWN”. “SHUTDOWN”. “SHUTDOWN”. Press the SHUTDOWN” and below would appear. Pressing “OK” after inputting the Password and he system would be power off. ERROR CODE LIST ERROR CODE LIST ERROR CODE LIST...
REMOTE SW INSTALLATION REMOTE SW INSTALLATION REMOTE SW INSTALLATION REMOTE SW INSTALLATION System Requirement System Requirement System Requirement System Requirement ① Main Board (CPU): Pentium-500(Minimum), Pentium 4 recommended ② OS: Higher than Windows 2000,DirectX 7.0A ③ Memory (RAM): More than 128 M ④...
Page 65
Introduction Introduction Introduction Introduction ① Main Display : Shows single or multi-channel view of cameras connected to the DVR. ② Camera Selection Buttons : Indicates Camera #; click button to display a selected camera. ③ Minimize / Exit: Minimize DVR Client Window (to taskbar) or exit Remote Agent. ④...
REMOTE SW LOCAL SETUP REMOTE SW LOCAL SETUP REMOTE SW LOCAL SETUP REMOTE SW LOCAL SETUP Local Setup ② ② ② ② ① Group & DVR list. ① ① ① ① ② DVR Information. ③ Camera Assignment : Setup camera. ③...
Page 67
③ Input DVR information. (Name, IP, port, ID, PW) ④ Set camera position, tick on/off option and press ‘ADD’ button. ⑤ New DVR list is shown on the left upper side. Configuration Configuration Configuration Configuration ① Video OSD : Select screen information. (Title, name, date, time) ②...
Page 68
Selection Network ID Selection Network ID Selection Network ID Selection Network ID • Select I/D to Connect Server. • I/D can be Add, Change or delete at Setup. TIP ※ Multi DVR Client: 4EA DVRs can control the live view, search or backup data and setup each channel at the same time.
Page 69
AVI File Conversion AVI File Conversion AVI File Conversion AVI File Conversion • Click AVI Conversion Button to start AVI File Conversion. • A message would be shown during AVI Conversion, then click “Stop” to save the AVI File continuously. •...
REMOTE SW SEARCH REMOTE SW SEARCH REMOTE SW SEARCH REMOTE SW SEARCH Search Function Introdu Search Function Introduction ction Search Function Introdu Search Function Introdu ction ction ① ③ ④ ⑤ ⑥ ⑦ ② ⑧ ① Search Screen to play the Selected Video ②...
Search Method Search Method Search Method Search Method ⑥ ⑤ ④ ③ ② ⑦ ① Indicates the Time of Day (0 ~ 24 hours) on Search Timeline. ② Indicates Recording Mode (Blue: No Recording, Red: Recorded Images Present) ③ Search Bar: Drag bar with the mouse to search through recorded video on the timeline. ④...
Search Option Search Option Search Option Search Option ③ ③ ③ ③ Save Image ① ① ① ① Archive ⑤ ⑤ ⑤ ⑤ Log Viewer ② ② ② ② Backup ⑥ ⑥ ⑥ ⑥ Event Viewer Play ④ ④ ④ ④ Print - - - - Archive Archive –...
Page 73
- - - - Backup Play (DVR Player) Backup Play (DVR Player) – – – – Transfer to DVR Player Backup Play (DVR Player) Backup Play (DVR Player) ① ② ④ ③ ⑤ ① Showing Image (Possible to Only 1*1View Mode). ②...
Page 74
- - - - Save Image Save Image – – – – Capture Image and save to local PC. Save Image Save Image • Click ‘Save Image’ Icon During Playing Video. • Designate File name, File Type (JPG, BMP), and Location and press Save. •...
Page 75
- - - - Log Viewer Log Viewer – – – – Find Video from the DVR Event Log. Log Viewer Log Viewer ① Select Starting Date/Time and Ending Date/Time to search for Event Log events. - Press Search Button to search and view search results. ②...
Page 76
- - - - Event Viewer Event Viewer - - - - Show present event in server & find the image. Event Viewer Event Viewer ① Indicates the order in which events occurred. ② Indicates the DVR # on which an event occurred. ③...
REMOTE SW DVR SYSTEM SETUP REMOTE SW DVR SYSTEM SETUP REMOTE SW DVR SYSTEM SETUP REMOTE SW DVR SYSTEM SETUP Press button and it shows left screen. Select the System setup or Record setup. Click the “System” icon. Input the Password. (Current default password is none.) So click the “OK”...
Camera Camera Camera Camera Title: Input the name and description after selecting the channel with mouse. Color: Select the Brightness, Contrast, Tint, Color of each channel. PTZ: Select the Address, Protocol, Baud Rate of each channel. Covert/OSD: Select the Convert, Main Display and Spot OSD setup.
Alarm/Event Alarm/Event Alarm/Event Alarm/Event Sensor Event: Select the Activation, Active State (N/C, N/O-It is related with sensor type) and input the description. Video Loss Event: Select the video loss Activation. Motion Detection Event: Select the Motion Detection Activation, Sensitivity (1~10) and Motion Area. Click the “AREA”...
Page 80
Disk Full: When disk is full, on/off activation. - User Event Select the user event Activation Click the “Edit” then it shows above screen. The operator can make the User Defined Event with current event’s mixing. Two events could happen at the same time thus the operator could setup how it could work. (Mixing condition is “AND”...
Page 81
- Event Action * Relay out - Select the event to assign the action. - Select the Activation on/off. - Active state: Select the operation type (High / Low) - Dwell: Select the type and action Time. Transparent: It work from event’s starting time to event ending time.
* Buzzer - Select buzzer on/off for selected event. . - After selecting the event (Alarm, motion, video loss, User Defined Event) that want to buzzer, select the activation on/off. - Select the buzzer type (Latched, Transparent) DISPLAY DISPLAY DISPLAY DISPLAY - Screen Template Select the screen division (typeA,B,C,D,E)
Page 83
- Main Display Setup - Press the “ADD” button or select the current list. - Select the name and dwell time. - Select the new list. - Select the screen template that requires to do the sequencing for each channel. - The operator can add Max.16EA screen template by same method.
AUDIO AUDIO AUDIO AUDIO - Live Audio Select the Live audio channel. - Network Audio Select the audio transmitter and receiver USER USER USER USER - User group Default user group (ADMINISTRATOR, MANAGER, USER) can not be deleted. After selecting “ADD” button, the operator can make the new user group with new authority.
REMOTE SW DVR RECORD SETUP REMOTE SW DVR RECORD SETUP REMOTE SW DVR RECORD SETUP REMOTE SW DVR RECORD SETUP Input the Password. (Current default password is none. So click the “OK” without inputting the password) Record Mode Record Mode Record Mode Record Mode - Select the “Record Mode”...
Page 86
- Weekly/Daily The operator can select the ‘Weekly” and “Daily” record setup from ‘Normal Record” and ‘Intensive Record” setup. So the DVR will record as daily and weekly setup configuration of “Normal and Intensive record” setup mode. - Pre-Event Recording Time: When the DVR is not in continuous recording mode, this setting determines the amount of footage to be recorded before an event occurs.
Normal Record Normal Record Normal Record Normal Record - Select the Daily/Weekly. - Select the Parameter/Schedule - Parameter - Drag the time that requires being setup by mouse. Incase the setup is different for each time; the color would be indicated differently. - Click the “SET”...
Page 88
It can setup each date. - Schedule The operator can select recording type (Timer, Motion, Alarm, User Defined, Alarm or Motion and Record off) each time, channel. Drag the section that requires to be selected and then click the mouse right button. Then recording option will appeared.
In In In Intensive Record tensive Record tensive Record tensive Record In case of Intensive record, it will be centralized at channel which event is arising as event priority. - Parameter Drag the time that requires being setup by mouse. Incase the setup is different for each time; the color would be indicated differently.
- Schedule The operator can select the record on/ off each time and channel. Drag the desired section for selection and click the mouse right button. Then, recording option will appear. The operator can select the recording on/off each time and channel. Panic Record Panic Record Panic Record...
Page 91
WEB Client Client Client Client INSTALLATION INSTALLATION INSTALLATION INSTALLATION WEB Client Connection WEB Client Connection WEB Client Connection WEB Client Connection Input the IP Address or URL of the DVR in the Internet Explorer Address Bar. If when user use the DDNS, input the URL with default port number (8080) like below. http://macaddress.dvrlink.net:8080 http://macaddress.dvrlink.net:8080 http://macaddress.dvrlink.net:8080...
Page 92
Click the right button of mouse on the Site in Group and click the Add Group menu like below. Input the Group Name.
Page 93
Click the Grout name and input the DVR information. * Input the default Port and User ID correctly. (6400, ADMINISTRATOR with NO PASSWORD) Then click the ADD button and OK button. Select the site name and click the connection button then input the password. (Default : No password)
Page 94
If the DVR information is correct, can see the connected screen like below.
Need help?
Do you have a question about the DR8NRT and is the answer not in the manual?
Questions and answers

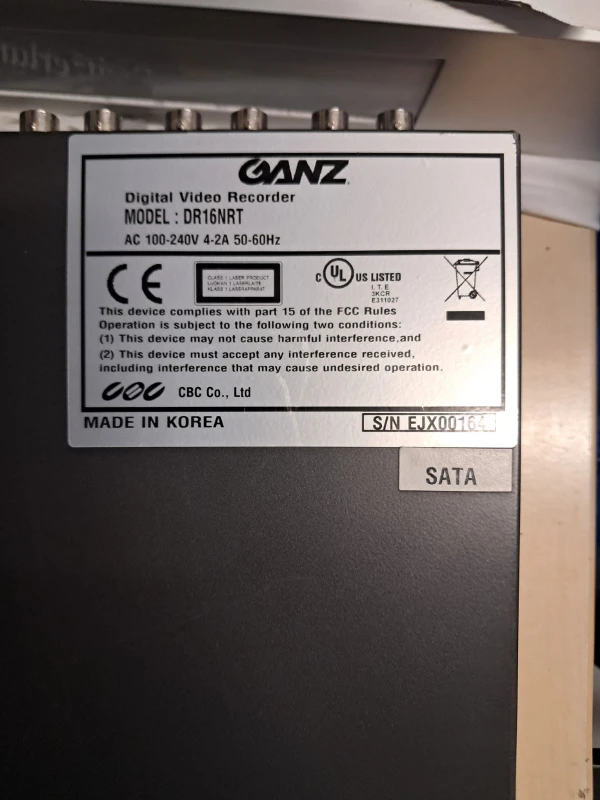

**** **** reseta parola de administrator la un DVR 16 NVR GANZ?
