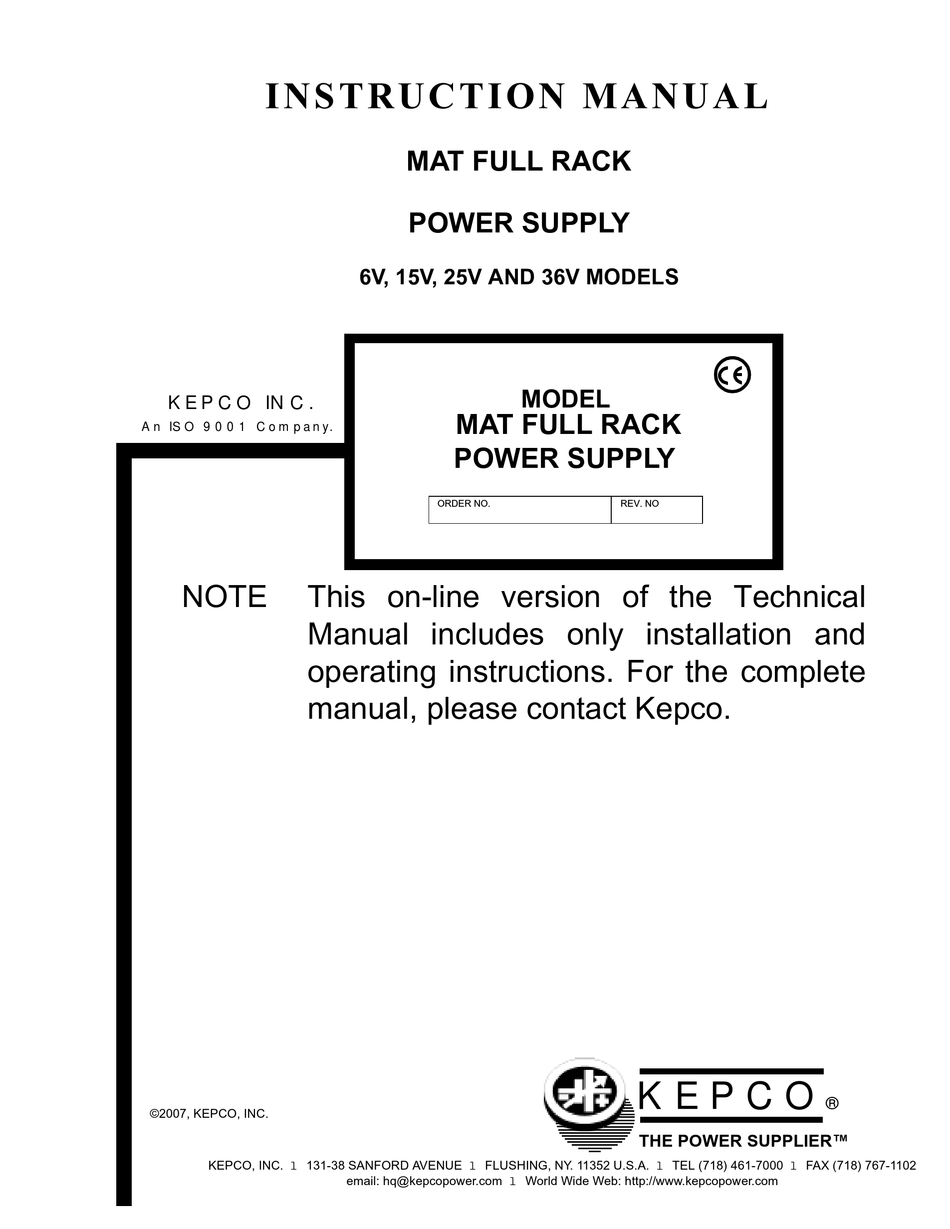

INS TRUCTION MANUAL
KEPCO INC.
An ISO 9001 Company.
NOTE
This on-line version of the Technical
IMPORTANT NOTES:
Manual includes only installation and
1)
This manual is valid for the following Model and associated serial numbers:
operating instructions. For the complete
MODEL
ATE 100-0.5M
manual, please contact Kepco.
2)
A Change Page may be included at the end of the manual. All applicable changes and
revision number changes are documented with reference to the equipment serial num-
bers. Before using this Instruction Manual, check your equipment serial number to identify
your model. If in doubt, contact your nearest Kepco Representative, or the Kepco Docu-
mentation Office in New York, (718) 461-7000, requesting the correct revision for your par-
ticular model and serial number.
3)
The contents of this manual are protected by copyright. Reproduction of any part can be
made only with the specific written permission of Kepco, Inc.
Data subject to change without notice.
©2007, KEPCO, INC.
KEPCO, INC. l 131-38 SANFORD AVENUE l FLUSHING, NY. 11352 U.S.A. l TEL (718) 461-7000 l FAX (718) 767-1102
MAT FULL RACK
POWER SUPPLY
6V, 15V, 25V AND 36V MODELS
MODEL
MAT FULL RACK
POWER SUPPLY
ORDER NO.
SERIAL NO.
F19688
email: hq@kepcopower.com l World Wide Web: http://www.kepcopower.com
REV. NO.
REV. NO.
9
KEPCO
THE POWER SUPPLIER™
®
