KEPCO BOP-MG/ME 1KW Operator's Manual
  1. Manuals
  2. Brands
  3. KEPCO Manuals
  4. Power Supply
  5. BOP-MG/ME 1KW
  6. Operator's manual

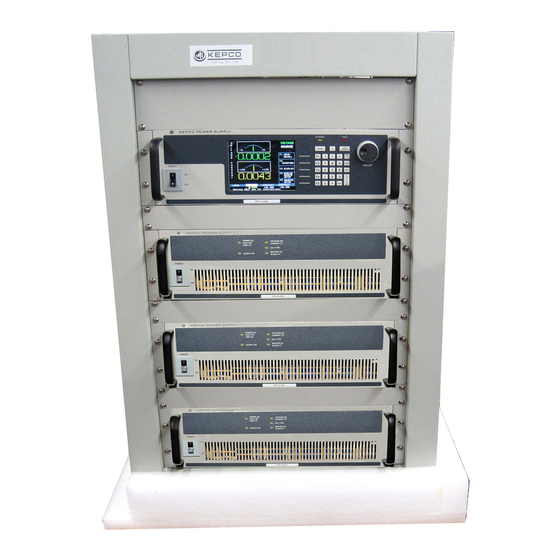

KEPCO BOP-MG/ME 1KW Operator's Manual

High power bipolar power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

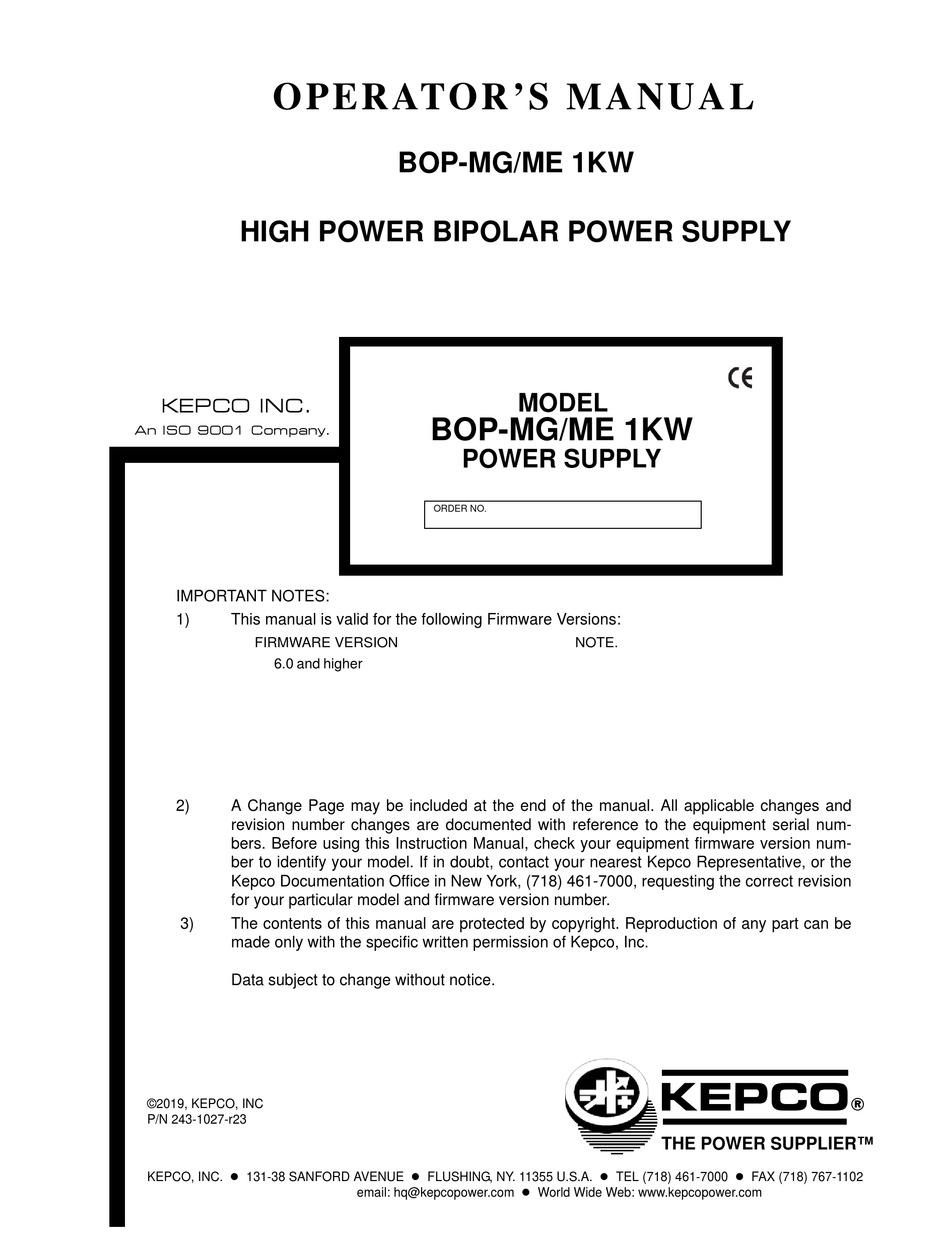

OPERATOR'S MANUAL
HIGH POWER BIPOLAR POWER SUPPLY
KEPCO INC.
An ISO 9001 Company.
IMPORTANT NOTES:
1)
This manual is valid for the following Firmware Versions:
FIRMWARE VERSION
6.0 and higher
2)
A Change Page may be included at the end of the manual. All applicable changes and
revision number changes are documented with reference to the equipment serial num-
bers. Before using this Instruction Manual, check your equipment firmware version num-
ber to identify your model. If in doubt, contact your nearest Kepco Representative, or the
Kepco Documentation Office in New York, (718) 461-7000, requesting the correct revision
for your particular model and firmware version number.
3)
The contents of this manual are protected by copyright. Reproduction of any part can be
made only with the specific written permission of Kepco, Inc.
Data subject to change without notice.
©2019, KEPCO, INC
P/N 243-1027-r23
KEPCO, INC.  131-38 SANFORD AVENUE  FLUSHING, NY. 11355 U.S.A.  TEL (718) 461-7000  FAX (718) 767-1102
BOP-MG/ME 1KW
MODEL
BOP-MG/ME 1KW
POWER SUPPLY
ORDER NO.
email: hq@kepcopower.com  World Wide Web: www.kepcopower.com
NOTE.
KEPCO
THE POWER SUPPLIER™
®

Advertisement

Table of Contents
loading

Related Manuals for KEPCO BOP-MG/ME 1KW

Summary of Contents for KEPCO BOP-MG/ME 1KW

  • Page 1 Data subject to change without notice. KEPCO ® ©2019, KEPCO, INC P/N 243-1027-r23 THE POWER SUPPLIER™ KEPCO, INC.  131-38 SANFORD AVENUE  FLUSHING, NY. 11355 U.S.A.  TEL (718) 461-7000  FAX (718) 767-1102 email: hq@kepcopower.com  World Wide Web: www.kepcopower.com...
  • Page 3 There are no user or operator serviceable parts within the product enclosure. Refer all servicing to qualified and trained Kepco service technicians. 228-1529 COND/CONFORM 091719...
  • Page 4 SAFETY INSTRUCTIONS 1. Installation, Operation and Service Precautions This product is designed for use in accordance with EN 61010-1 and UL 3101 for Installation Category 2, Pollution Degree 2. Hazardous voltages are present within this product during normal operation. The prod- uct should never be operated with the cover removed unless equivalent protection of the operator from accidental contact with hazardous internal voltages is provided: There are no operator serviceable parts or adjustments within the product enclosure.
  • Page 5 Service must be referred to authorized personnel. Using the power supply in a manner not specified by Kepco. Inc. may impair the protection provided by the power supply. Observe all safety precautions noted throughout this manual. The following table lists symbols used on the power supply or in this manual where applicable.
  • Page 6 LIST OF WARNINGS AND CAUTIONS PAGE WARNING/CAUTION WARNING: 2-14 This feature requires disassembly and modification of the unit and imple- mentation is permitted only by authorized service personnel. WARNING: 3-23 For inductive loads, and especially superconducting magnet type loads, the inherent offset of the BOP in the OFF state may generate significant current in the circuit.
  • Page 7 “#n” appended to the end, where n = slave number + 4. So for example an *IDN? query to slave 1 will have #5 appended to the end of the response: KEPCO,BOP 20-50 AUG 10 2016,A123456,6.43#5 BOP 1KW OPR 9/17/19...
  • Page 8 LIST OF WARNINGS AND CAUTIONS PAGE WARNING/CAUTION CAUTION: Pressing RESET will cause voltage transients to appear at the output which may damage a connected load. CAUTION: DO NOT repeatedly toggle the circuit breaker/switch as this may damage the unit. 3-15 CAUTION: When the ADJUST control is rotated, the active parameter is immediately effective if the output is enabled (on = STANDBY indicator not lit).

  • Page 9: Table Of Contents

    2.7.5 Setup for Remote Operation via RS 232C..................2-15 2.7.6 Setup for Remote Operation via LAN (ME Models Only) ..............2-16 2.7.6.1 Finding Kepco Power Supplies on the LAN................. 2-16 2.7.6.2 Bonjour-enabled Discovery......................2-16 2.7.6.3 LXI Discovery..........................2-17 2.7.6.4 Launch Web Interface........................
  • Page 10 TABLE OF CONTENTS SECTION PAGE 2.8.5 Powering up Series/Parallel Combinations..................2-28 2.8.6 Operating Instructions for Multiple Unit Combinations..............2-32 2.8.7 Restoring a Unit to Standalone Operation ..................2-32 2.8.8 Changing Multiple Unit configurations ....................2-32 SECTION 3 - OPERATION General ..............................3-1 Power Supply Basics ..........................
  • Page 11 TABLE OF CONTENTS SECTION PAGE 3.3.10.10 Copying a Waveform ........................3-42 3.3.11 Reset ..............................3-42 3.3.12 Operator Testing..........................3-42 3.3.13 Error Message Explanations......................3-44 Analog Remote Mode Programming ....................... 3-45 3.4.1 Suppressing Noise at the Output....................... 3-45 3.4.2 Remote Output off ..........................3-45 3.4.2.1 Remote Shutdown ........................
  • Page 12 TABLE OF CONTENTS SECTION PAGE 3.5.6.4 Isolating RS 232 Communication Problems................3-67 3.5.7 LAN Operation (ME Models Only) ....................3-67 3.5.7.1 LAN Factory Defaults ........................3-68 3.5.7.2 Remote Programming Using the Web Interface ................. 3-68 3.5.7.3 Troubleshooting LAN Communication Problems................ 3-68 3.5.7.4 Launch Web Interface .........................
  • Page 13 TABLE OF CONTENTS SECTION PAGE APPENDIX A - SCPI COMMON COMMAND/QUERY DEFINITIONS *CLS — Clear Status Command ......................A-1 *ESE — Standard Event Status Enable Command ................A-1 *ESE? — Standard Event Status Enable Query ..................A-2 *ESR? — Event Status Register Query ....................A-2 *IDN? —...
  • Page 14 TABLE OF CONTENTS SECTION PAGE B.35 [SOURce:]CURRent:MODE Command....................B-12 B.36 [SOURce:]CURRent:MODe? Query ....................... B-13 B.37 [SOURce:]CURRent[:LEVel]:PROTect[:BOTH] Command ..............B-13 B.38 [SOURce:]CURRent[:LEVel]:PROTect[:BOTH] Query ................B-14 B.39 [SOURce:]CURRent[:LEVel]:PROTect:MODE Command ..............B-14 B.40 [SOURce:]CURRent[:LEVel]:PROTect:MODE? Query ................B-14 B.41 [SOURce:]CURRent[:LEVel]:PROTect:NeGative Command ..............B-14 B.42 [SOURce:]CURRent[:LEVel]:PROTect:NeGative? Query ..............
  • Page 15 TABLE OF CONTENTS SECTION PAGE B.92 [SOURce:]LIST:SET:WAIT? QUERY ..................... B-27 B.93 [SOURce:]LIST:TRIGger Command ...................... B-27 B.94 [SOURce:]LIST VOLTage Command ..................... B-28 B.95 [SOURce:]LIST VOLTage? Query......................B-28 B.96 [SOURce:]LIST VOLTage:APPLy Command ..................B-28 B.97 [SOURce:]LIST VOLTage:APPLy:SWEep Command................B-28 B.98 [SOURce:]LIST VOLTage:APPLy:SWEep? Query................. B-28 B.99 [SOURce:]LIST VOLTage:POINts? Query .....................
  • Page 16 TABLE OF CONTENTS SECTION PAGE B.149 SYSTem:COMMunication:LAN:MASK? Query..................B-39 B.150 SYSTem:COMMunication:LAN:LRST Command................... B-39 B.151 SYSTem:COMMunication:SERial:BAUD Command ................B-39 B.152 SYSTem:COMMunication:SERial:BAUD? Query................... B-39 B.153 SYSTem:COMMunication:SERial:ECHO Command................B-40 B.154 SYSTem:COMMunication:SERial:ECHO? Query .................. B-40 B.155 SYSTem:COMMunication:SERial:PACE Command ................B-40 B.156 SYSTem:COMMunication:SERial:PACE? Query ................... B-40 B.157 SYSTem:COMMunication:SERial:PROMpt CommanD................
  • Page 17 LIST OF FIGURES FIGURE TITLE PAGE High Power BOP Series Power Supply ....................... xii 1000W BOP Power Supply, Outline Drawing ..................... 1-15 BOP Output Characteristics ........................1-21 BOP Series Rear Panel ..........................2-1 Earth Ground Connection Recommendations .................... 2-11 Load Connections, Local Sensing ......................2-13 Load Connections, Remote Sensing ......................
  • Page 18 LIST OF FIGURES FIGURE TITLE PAGE Programming the Output ..........................B-4 Using MEMory LOCation Commands and Queries..................B-8 Using List Commands to measure sample at End of Pulse ............... B-9 Using List Commands to measure sample at Start of Pulse ..............B-10 Setting Limits..............................
  • Page 19 LIST OF TABLES TABLE TITLE PAGE BOP 1000 Watt Model Parameters ......................1-2 BOP General Specifications ........................1-3 Equipment Supplied ............................1-18 Accessories ..............................1-19 Safety Symbols ............................1-20 Rear Panel Connector Functions ........................2-2 IEEE 1118 Connector Input/Output Pin Assignments .................2-3 Trigger Port Pin Assignments ........................2-3 External Protection Connector Input/Output Pin Assignments ..............2-4 RS232C PORT Input/Output Pin Assignments ...................2-4 Parallel/Serial Control Out Port Pin Assignments ..................2-4...
  • Page 20 FIGURE 1-1. HIGH POWER BOP SERIES POWER SUPPLY BOP-1K 091719...

  • Page 21: Section 1 - Introduction

    1000 Watt rack-mounted, 4-quadrant bipolar, programmable, voltage and current stabilized d- c power supplies manufactured by Kepco, Inc., Flushing, New York, U.S.A. This manual applies to both MG models with a GPIB digital interface and ME models with a LAN digital interface.

  • Page 22: Lxi Compatibility (Me Models)

    1.2.1 LXI COMPATIBILITY (ME MODELS) BOP with the ME suffix are designed to meet the LXI Version 1.4 standard, providing the follow- ing standardized web interface capabilities for the user: Discovery: - MDNS (Bonjour - like the printer discovery) - VXI-11 (National Instruments Ni Max, Agilent Io controller) IP address support: - DHCP - AUTOIP...

  • Page 23: Bop General Specifications

    TABLE 1-2. BOP GENERAL SPECIFICATIONS SPECIFICATION RATING/DESCRIPTION CONDITION INPUT CHARACTERISTICS a-c voltage nominal 200/220/230/240Va-c No setting required. Single phase or between (200-240 Va-c) 2 phases of a 3-phase system within 200- 240Va-c. range 176 - 264 Va-c Continuous; Input voltage outside range causes protection fault.
  • Page 24 TABLE 1-2. BOP GENERAL SPECIFICATIONS (Continued) SPECIFICATION RATING/DESCRIPTION CONDITION OUTPUT CHARACTERISTICS (Continued) Digital Programming Voltage 14 bits / 0.03% 3% accuracy for Ext Ref Level (see PAR. resolution / accuracy 3.4.4.2). Unit gain adjustable between 0 and Current 14 bits / 0.1% (voltage) or I O (current).
  • Page 25 TABLE 1-2. BOP GENERAL SPECIFICATIONS (Continued) SPECIFICATION RATING/DESCRIPTION CONDITION OUTPUT CHARACTERISTICS (Continued) Voltage stabilization in source effect 0.05% of rating min-max input voltage, 230V a-c reference voltage mode load effect 0.1% of rating 0-100% load current time effect (drift) 0.02% of rating 0.5 through 8 hours temperature effect 0.02%/deg C of rating...
  • Page 26 TABLE 1-2. BOP GENERAL SPECIFICATIONS (Continued) SPECIFICATION RATING/DESCRIPTION CONDITION OUTPUT CHARACTERISTICS (Continued) Output overvoltage/overcurrent Triggers latched shutdown protection of the Output Stage Protection Heatsink overtemperature, output module and PFC stage. Recover by switchers overcurrent cycling power off, then on or by pressing RESET at the front panel.
  • Page 27 TABLE 1-2. BOP GENERAL SPECIFICATIONS (Continued) SPECIFICATION RATING/DESCRIPTION CONDITION PROGRAMMING/DISPLAY CHARACTERISTICS (Continued) Trigger Port (See Table 2-3) Shutdown (pin 2): Operation of pin 2 is controlled by OUTP:CONT command (see Par. B.23). Settings are LPLS (default), HON, LON, HOFF, LOFF, OFF. Either OFF, LPLS, LOFF or HOFF is required if using OUTP ON and OUTP OFF commands to control the out- put.
  • Page 28 TABLE 1-2. BOP GENERAL SPECIFICATIONS (Continued) SPECIFICATION RATING/DESCRIPTION CONDITION FUNCTION GENERATOR CHARACTERISTICS (Continued) Maximum number of segments or basic wave- Local: 10 Or maximum number of points (whichever forms per waveform Remote: 126 comes first) • The time interval for each segment depends on the type of waveform: period for ramp and square waveforms, period or fraction of period for sine and triangular...
  • Page 29 TABLE 1-2. BOP GENERAL SPECIFICATIONS (Continued) SPECIFICATION RATING/DESCRIPTION CONDITION FUNCTION GENERATOR CHARACTERISTICS (Continued) Basic waveform parameters Sine: Frequency (Hz), Amplitude (Vp-p or Ap-p), Offset (Vd-c or Ad-c), Start Phase (°), Stop Phase (°). Triangular: Frequency (Hz), Amplitude (Vp-p or Ap-p), Offset (Vd-c or Ad-c), Start Phase (°), Stop Phase (°).
  • Page 30 TABLE 1-2. BOP GENERAL SPECIFICATIONS (Continued) SPECIFICATION RATING/DESCRIPTION CONDITION FUNCTION GENERATOR CHARACTERISTICS (Continued) Waveform graphics displayed on LCD for both Local: The LCD represents the programming waveform graph of the main channel, Local and Remote operation voltage for voltage mode or current for current mode. •...
  • Page 31 TABLE 1-2. BOP GENERAL SPECIFICATIONS (Continued) SPECIFICATION RATING/DESCRIPTION CONDITION FUNCTION GENERATOR CHARACTERISTICS (Continued) Amplitude Resolution (Programming) Main Channel Voltage Sine and Offset (millivolts a-c) (millivolts d-c) Triangle, Square, ±Ramp, Level Current Sine (milliamperes a-c) (milliamperes d-c) Triangle, Square, ±Ramp, Level: Protection Limit Current, bipolar Channel .
  • Page 32 Output status On (default) or Off Types Factory defaults: Main: DEFAULT, Password Main, Admin1, Admin2 Admin1: 0, Admin2: KEPCO Protection Choices Unprotected, Main, Admin1, Admin2 Password menu always protected by Admin2 Items Protected Interface, max/min , Load type, Test, Multiple unit configurations are protected by Calibration, Power-up, Keypad @ Admin2 password.
  • Page 33 TABLE 1-2. BOP GENERAL SPECIFICATIONS (Continued) SPECIFICATION RATING/DESCRIPTION CONDITION GENERAL (ENVIRONMENTAL) CHARACTERISTICS Temperature operating 0 to +50 deg C Full rated load storage -20 to +85 deg C Cooling Two internal fans exhaust to the rear Humidity 0 to 95% RH non-condensing Shock 20g.

  • Page 34: Local Control

    LOCAL CONTROL Either the front panel keypad or the adjust control can set and adjust output voltage and current under local control. The display provides a digital display of output voltage and current as well as a pictorial display of real-time analog voltage and current meters. The keypad includes five function keys which provide access to the menu-driven functions of the unit.

  • Page 35: W Bop Power Supply, Outline Drawing

    18.805 [477.63] 18.018 [457.64] 17.675 [448.93] 16.835 [427.60] OBROUND 0.25x0.453 (4 LOC.) 18.235 [463.16] 18.985 [482.21] FIGURE 1-2. 1000W BOP POWER SUPPLY, OUTLINE DRAWING (SHEET 1 OF 2) 1-15 BOP HIPWR 091719...
  • Page 36 REAR VIEW REMOVE FEET FOR RACK MOUNTING. 22.000 [558.79] SLIDES TRAVEL DISTANCE: 23.000 [584.2] SEE NOTE 6. FIGURE 1-2. BOP POWER SUPPLY, OUTLINE DRAWING (SHEET 2 OF 2) 1-16 BOP HIPWR 091719...

  • Page 37: Features

    FEATURES 1.6.1 DIGITAL CALIBRATION The BOP Power Supply contains no internal adjustments. Calibration is done entirely via the keypad or remotely via the GPIB (for MG models), LAN (for ME models) or RS 232 interface using digital entries and a calibrated DVM, a precision d-c reference voltage source and preci- sion shunt resistor.

  • Page 38: External Limits

    ITEM FUNCTION PART NUMBER Source Power Entry mating connector Mates with source power entry connector 142-0381 (Kepco) (IEC 320) PAR/SER CONTROL - IN Mates with PAR/SER CONTROL - IN port to allow 142-0488 (Kepco) mating connector access to pins required for calibration ACCESSORIES Accessories for the BOP Power Supply are listed in Table 1-4.

  • Page 39: Accessories

    TABLE 1-4. ACCESSORIES ITEM FUNCTION PART NUMBER Mating Connector, Trigger Mates with Trigger port. 142-0527 (Kepco) SP2501 (CUI Stack) IEEE 1118 (BITBUS) Allows connection to IEEE 1118 (BITBUS) port. 142-0485 (Kepco) Mating connector KMDLA-5P (Kycon Inc.) IEEE 488 Cable, (1 meter long) Connects BOP power supply to GPIB bus.

  • Page 40: Safety

    Service must be referred to authorized personnel. Using the power supply in a manner not specified by Kepco. Inc. may impair the protection provided by the power supply. Observe all safety precautions noted throughout this manual (see listing on page D, preceding the Table of Contents).

  • Page 41: Bop Output Characteristics

    NOTE 3. The concept of “box value” is illustrated above. It is an area around the origin, where the limits of the unit (voltage or current) cannot be programmed. This minimum (box) value for the positive limits or maxi- mum (box) value for the negative limits, is a model dependent constant of approximately 0.2% of the nominal values for voltage and current.

  • Page 43: Section 2 - Installation

    SECTION 2 - INSTALLATION UNPACKING AND INSPECTION This instrument has been thoroughly inspected and tested prior to packing and is ready for operation. After careful unpacking, inspect for shipping damage before attempting to operate. Perform the preliminary operational check as outlined in PAR. 2.3. If any indication of damage is found, file an immediate claim with the responsible transport service.

  • Page 44: Rear Panel Connector Functions

    TABLE 2-1. REAR PANEL CONNECTOR FUNCTIONS NUMBER CONNECTOR/TERMINAL FUNCTION (FIGURE 2-1) (REFERENCE DESIGNATOR) IEEE 1118 (BITBUS) PORT Used for multiple identical BOP master/slave parallel, and series and series-parallel (connector A1J4) configurations (refer to PAR. 2.7.6.2, see Table 2-2). TRIGGER May be used to initiate BOP output. (See Table 2-3.) (connector A1J3) IEEE 488 (GPIB) PORT Installed on MG models only.

  • Page 45: Ieee 1118 Connector Input/Output Pin Assignments

    TABLE 2-2. IEEE 1118 CONNECTOR INPUT/OUTPUT PIN ASSIGNMENTS CONNECTOR SIGNAL NAME FUNCTION IEEE 1118, referenced to pins 5, 8 1, 3 (shorted) CONTROL BUS “A” (2-Wire Differential Interface) IEEE 1118 (BITBUS) IEEE 1118, referenced to pins 1, 3 PORT 5, 8 (shorted) CONTROL BUS “B”...

  • Page 46: External Protection Connector Input/Output Pin Assignments

    TABLE 2-4. EXTERNAL PROTECTION CONNECTOR INPUT/OUTPUT PIN ASSIGNMENTS CONNECTOR SIGNAL NAME FUNCTION Cathode of LED optocoupler (through a 510 ohm resistor) which is used for external isolated shutdown. Anode of LED is connected to (A2A5J7) pin 2. A positive voltage (3.5 to 15V) at pin 2 (referenced to pin 1) shuts down the unit functionality.

  • Page 47: Parallel/Serial Control In Port Pin Assignments

    TABLE 2-7. PARALLEL/SERIAL CONTROL IN PORT PIN ASSIGNMENTS CONNECTOR SIGNAL NAME FUNCTION SGND Local signal ground No connection S_IN_PARALLEL Input for programming output current of a parallel-connected slave. Pro- vided by master unit. Level: –10V to +10V controls the current between –I Onom to +I Onom . No connection PARALLEL/SERIAL No connection...

  • Page 48: Analog I/O Port Input/Output Pin Assignments

    TABLE 2-10. ANALOG I/O PORT INPUT/OUTPUT PIN ASSIGNMENTS CONNECTOR SIGNAL NAME FUNCTION CAUTION: it is recommended that source power of external equipment connected to the Analog Port be applied through an isolating transformer To avoid ground loops or possible damage to the BOP due to incorrect equipment a-c wiring (e.g., defeating of ground connection).

  • Page 49: Preliminary Operational Check

    TABLE 2-11. IEEE 488 PORT INPUT/OUTPUT PIN ASSIGNMENTS CONNECTOR SIGNAL NAME FUNCTION I/O Line I/O Line I/O Line I/O Line End or Identify Data Valid NRFD Not Ready for Data NDAC Not Data Accepted Interface Clear Service Request Attention IEEE 488 SHIELD Shield PORT...

  • Page 50: Installation

    3. Connect a digital voltmeter (DVM) (resolution and accuracy of 0.01% or better) to the OUTPS and COMS terminals at the rear panel terminal block. 4. Use the keypad to enter the rated maximum voltage of the power supply (e.g., enter 36 for a model BOP 36-28MG) and press ENTER.

  • Page 51: D-C Output Grounding

    The user must provide a properly sized and rated mains lead (line cord) and service with a current rating compatible with the anticipated input current. Line cords available as accessories are listed in Table 1-4. Kepco recommends #12 AWG (2,0 mm diameter) for input line cord.

  • Page 52: Earth-Ground Configuration

    2.5.3.1 EARTH-GROUND CONFIGURATION When connecting a programming device to the BOP it is critical that only a single earth-ground point is connected. Figure 2-2 shows proper earth-ground connections for typical configurations, as well as an illustration of the consequences of multiple earth ground points. IF THE FOLLOW- ING CAUTION IS NOT OBSERVED, ANY DAMAGE TO THE UNIT IS THE USER’S RESPON- SIBILITY AND IS NOT COVERED UNDER THE WARRANTY.

  • Page 53: Earth Ground Connection Recommendations

    ANALOG I/O PORT BOP 1KW PROGRAMMING DEVICE LOAD SGND ANALOG I/O PORT BOP 1KW PROGRAMMING DEVICE LOAD CORRECT! SGND ANALOG I/O PORT BOP 1KW PROGRAMMING DEVICE LOAD SGND ANALOG I/O PORT BOP 1KW With two earth-ground points as PROGRAMMING DEVICE shown, a ground loop allows return current to flow through the internal LOAD...

  • Page 54: Load Connection - General

    2.5.5 LOAD CONNECTION - GENERAL Load connections require wires that are properly rated for the nominal output current of the unit. Load connections to the BOP power supply are achieved via the OUTPUT and COMMON bus bar-type terminals located on the rear panel. A barrier strip is provided at the rear panel for con- nection of the sense wires to the load (for remote sensing or multiple unit applications).

  • Page 55: Setting Up The Unit

    SETTING UP THE UNIT The following paragraphs describe the connections and initial BOP setup needed to operate in the desired mode. 2.7.1 CONSIDER THE LOAD TYPE The BOP can be configured to respond differently to the Output OFF command, depending on whether the load is defined as Active, Resistive or Battery.

  • Page 56: Setup For Fail Safe/Interlock Protection

    N / C FIGURE 2-4. LOAD CONNECTIONS, REMOTE SENSING 2.7.3 SETUP FOR FAIL SAFE/INTERLOCK PROTECTION WARNING This feature requires disassembly and modification of the unit and implementation is permitted only by authorized service personnel. To enable the Fail Safe/Interlock Protection feature, refer to the Service Manual for component locations and remove the cover of the unit.

  • Page 57: Setup For Remote Operation Via Gpib (Mg Models Only)

    Another example is to apply the short via a remote NC relay contact closure so that if either the remote relay deenergizes, or the Parallel/Serial Protect In Port mating connector becomes unplugged, the unit shuts down and the red FAULT LED will be lit. FIGURE 2-5.

  • Page 58: Setup For Remote Operation Via Lan (Me Models Only)

    The PSfind utility can be downloaded from the Kepco web site at www.kepcopower.com/drivers/drivers-dl3.htm#bop1k This utility finds all operational Kepco power supplies connected to the LAN and then shows the MAC and IP addresses of the models found. To run the utility from your PC download the psfind.zip file to your computer. Extract psfind.exe from the zip file to a location of your choice, then double-click psfind.exe to run the application.

  • Page 59: Lxi Discovery

    FIGURE 2-7. DISCOVERY USING SAFARI BROWSER WITH BONJOUR INSTALLED 2.7.6.3 LXI DISCOVERY Figure 2-8 shows a Kepco BOP 10-100ME power supply found on the LAN using the LXI Dis- covery Tool. FIGURE 2-8. TYPICAL SCREEN USING LXI DISCOVERY TOOL 2.7.6.4 LAUNCH WEB INTERFACE After finding the unit and selecting the desired unit on the LAN (see PAR.

  • Page 60: Lan Configuration Using Web Interface

    Although most current browsers will work, Kepco recommends the following as fully supported: Safari, IE 8.0 and higher and Firefox 1.0 and higher. Popup blocking must be disabled and Javascript must be enabled for proper operation.

  • Page 61: Web Interface Configure Lan Page

    data entry fault condition exists, an alert window indicates the type of fault. Click OK to close the window; the SUBMIT button is disabled until the fault is corrected. There are three passwords shown on this page which control access to the unit . All three web passwords described below are case sensitive.

  • Page 62: Multiple Unit Configurations (Mg Models Only)

    NOTE: Multiple unit configurations require that all individual units be properly calibrated. (Units shipped from Kepco have been factory-calibrated.) If not, refer to Section 4 to calibrate the individual units prior to connecting them in parallel or series. Using calibrated units ensures that the multiple unit configuration is calibrated;...

  • Page 63: Multiple Unit Connections

    2.8.1 MULTIPLE UNIT CONNECTIONS Before connecting the units in parallel or in series, configure each for master or slave (see PAR. 2.8.4), and save for power up. Then turn off the units and proceed with the parallel or series con- nection.

  • Page 64: Parallel Configuration, Local Sensing, Typical

    FIGURE 2-11. PARALLEL CONFIGURATION, LOCAL SENSING, TYPICAL 2-22 BOP HIPWR 091719...

  • Page 65: Parallel Configuration, Remote Sensing, Typical

    FIGURE 2-12. PARALLEL CONFIGURATION, REMOTE SENSING, TYPICAL 2-23 BOP HIPWR 091719...

  • Page 66: Series Configuration, Local Sensing, Typical

    N / C N / C FIGURE 2-13. SERIES CONFIGURATION, LOCAL SENSING, TYPICAL 2-24 BOP HIPWR 091719...

  • Page 67: Series Configuration, Remote Sensing, Typical

    N / C N / C FIGURE 2-14. SERIES CONFIGURATION, REMOTE SENSING, TYPICAL 2-25 BOP HIPWR 091719...

  • Page 68: Multiple Unit Protection

    2.8.2 MULTIPLE UNIT PROTECTION For multiple unit configurations it is necessary to configure the protection so that a fault will shut down all the interconnected power supplies. Figure 2-15 is a simplified diagram showing typical interconnections for master/slave configurations. 2.8.3 MULTIPLE UNIT SOURCE POWER When multiple units are connected in series or parallel, the individual power supplies of the sys- tem may be connected to different phases of a 3-phase a-c power source.

  • Page 69: Configuring Parallel, Series, 2 X 2 Or 3 X 2 Combinations

    2.8.4 CONFIGURING PARALLEL, SERIES, 2 X 2 OR 3 X 2 COMBINATIONS NOTE: Successfully configuring the unit from Standalone to Parallel, Series, 2 X 2 or 3 X 2 will reset all NVRAM variables to factory defaults and delete all saved setups and saved waveforms.

  • Page 70: Powering Up Series/Parallel Combinations

    = slave number + 4. So for example an *IDN? query to slave 1 will have #5 appended to the end of the response: KEPCO,BOP 20-50 AUG 10 2016,A123456,6.43#5 2. Repeat step 1 as necessary to configure all slaves, but at step d highlight applicable SLAVE # as appropriate.
  • Page 71 a. Initialization. During the initialization stage, the power-up master unit screen (Figure 2-16) should show the status of all slaves as “Faulted.” See Table 2-13 for an explanation of slave sta- tus messages during power-up. b. Protection. The Protection stage is active when the message “Checking Protection Connec- tions”...

  • Page 72: Master Power Up Screen

    The power-up sequence continues as “Enabling External Protections” and “Checking for Faults in System” is displayed. When power-up is complete Slave status changes to “Ready” and the yellow Standby LED on slaves goes out, indicating the slave is online. If the status of a slave stays at “Standby”...

  • Page 73: Power On Default Screen For Master Unit

    1. Adjust the limits to reflect the increased power capacity of the multiple unit combination as follows: a. From the main screen, press to enter the General Setup Menu. b. From the General Setup menu, Highlight Max/Min Settings and press .

  • Page 74: Operating Instructions For Multiple Unit Combinations

    2.8.6 OPERATING INSTRUCTIONS FOR MULTIPLE UNIT COMBINATIONS 1. Apply power to the multiple units. If the master is in STANDBY, depress STANDBY key on the master to apply power to the output terminals. (To power down the combination, first press STANDBY key on the master to disable the output, then turn off the slaves, followed by the master.

  • Page 75: X 2 (3 Series X 2 Parallel) Configuration, Local Sensing, Typical

    N / C N / C N / C N / C N / C N / C FIGURE 2-19. 3 X 2 (3 SERIES X 2 PARALLEL) CONFIGURATION, LOCAL SENSING, TYPICAL 2-33/(2-34 Blank) BOP HIPWR 091719...

  • Page 77: Section 3 - Operation

    BOP (see PAR. 3.6, Appendix A and Appendix B) or 2) CIIL commands (for compatibility with older Kepco products). MG model operation in remote mode can be simplified by the use of the VISA driver (see PAR.

  • Page 78: Bop Series Front Panel

    FIGURE 3-1. BOP SERIES FRONT PANEL TABLE 3-1. FRONT PANEL CONTROLS AND INDICATORS NUMBER CONTROL/INDICATOR FUNCTION (FIGURE 3-1) POWER ON/OFF Applies source power to unit circuit breaker A7CB1 Displays output voltage and current as well as information in response to Alphanumeric/graphic Display ( keypad and ADJUST control entries.

  • Page 79: Keypad Description

    3.2.1 KEYPAD DESCRIPTION (SEE FIGURE 3-2) The front panel keypad is comprised of 27 keys, eleven for 10 digits (0 - 9) plus decimal point, five dedicated to software functions ( ) indicated by the display, four direction keys ) that work with the display to select a parameter/field and highlight a numerical digit, and seven dedicated function keys (STANDBY, MODE, RESET, CLEAR, +/–, ENTER and HELP) that are defined in Table 3-2.

  • Page 80: Lcd And Power-Up Screen Description

    3.2.2 LCD AND POWER-UP SCREEN DESCRIPTION The LCD display is a 320 x 240 pixel color window that displays various menus depending on the state of the power supply and operator input. Upon turning the unit on, the start-up screen (Figure 3-3) is displayed briefly, showing the firm- ware versions of the BOP processors and the results of the start-up self test.

  • Page 81: Power-Up Screen Showing Graphic Meters

    ANALOG VOLTMETER OPERATING VOLTAGE INFO SOURCE DIGITAL VOLTMETER 0.0000 ANALOG AMMETER SOFTWARE FUNCTION DIGITAL AMMETER KEYS 0.0402 HIGHLIGHT TO CHANGE LOCAL/REMOTE STATUS VOLTAGE 0000 ACTIVE SETTINGS LAN OK MESSAGES NOTE: WHEN SET TO BIPOLAR, ONLY ONE PROTECTION FIELD IS DISPLAYED. WHEN SET TO INDEPENDENT, TWO PROTECTION FIELDS ARE DISPLAYED AS SHOWN HERE.

  • Page 82: Turning The Power Supply On

    When in Current mode, the power supply will (within the configured and rated limits) provide the programmed output current. Mode displayed at the upper right is CURRENT. Voltage is deter- mined by the load, and cannot exceed the Voltage Protect limits. Either SOURCE or SINK is displayed below the mode of operation.

  • Page 83: How To Access The Menus

    When the power supply is turned on, it performs a brief self-test that includes testing the three processors (analog, interface and display), then displays the power-up screen (see Figure 3-4 or 3-5). If an error is detected, the FAULT indicator will light, information about the error will be briefly displayed on the LCD.

  • Page 84: How To Modify A Parameter

    Power-up Screen (Power up menu) • - Save/Recall • • Saved Setups (Figure 3-10): Recall one of 99 saved setups. • • • Saved Setup Details (Table 3-9): Mode (voltage/current/External), main channel reference (inter- nal/external/external reference level) and setting, Protection Type (internal/external/LesserLimit) and setting(s), output status (on/off) •...

  • Page 85: Password Setup

    To change any password you must enter the Admin 2 password to access the Password Menu. The unit is shipped with the Admin 2 password set to “KEPCO,” the Main Unit password set to ”DEFAULT,” and the Admin 1 password is not assigned. To change the password or to protect one of the protected menus, proceed as follows: 1.

  • Page 86: How To Access A Password Protected Menu

    2. Enter the Admin 2 password (see PAR. 3.2.4.3 for details), then press to verify. The Password Protection menu (see Figure 3-6) is now displayed. 3. To change a password, highlight the Main Unit, Admin 1 or Admin 2 password and press to modify.

  • Page 87: Display Settings (Operator Convenience) Menu

    VOLTAGE CURRENT VOLTAGE 0.0000 0.0000 SOURCE Admin 2 Admin 2 FIGURE 3-6. PASSWORD PROTECTION MENU, FACTORY DEFAULTS 3.2.5 DISPLAY SETTINGS (OPERATOR CONVENIENCE) MENU From the power-up screen (Figure 3-4), pressing opens the Display Settings Menu (see Fig- ure 3-7 and Table 3-3). The functions listed can be modified using the techniques described in PAR.3.2.4).

  • Page 88: Displaying Meters Or Graph (Time Line)

    3.2.5.1 DISPLAYING METERS OR GRAPH (TIME LINE) The top screen can be configured to either display graphical analog meters (Figure 3-4) show- ing a coarse representation of voltage and current in addition to the digital readout, or a graphi- cal time line (Figure 3-5). The graphical time line is not an oscilloscope type display. Instead, it samples the output and refreshes the screen at a specified interval: 75, 30, 15, 7.5, 3.8, 1.5, 0.8, 0.3, or 0.15 Seconds.

  • Page 89: Display Settings (Operator Convenience) Menu

    TABLE 3-3. DISPLAY SETTINGS (OPERATOR CONVENIENCE) MENU CHOICES SETTING (BOLD = Factory FUNCTION Default) NOTE: To save any of the functions listed below for power-up it is necessary to first change SAVE DISPLAY CHG at the password setup (see PAR. 3.2.4.2and Figure 3-6) from DISABLE to ENABLE. Graphic Display Meters Meters - Output voltage and current are displayed on representations of analog...

  • Page 90: Local Mode Operation

    LOCAL MODE OPERATION Local operation of the BOP power supply can be accomplished from the front panel via the 27 key keypad, and the ADJUST knob. All indications are provided by the 4.7-inch color graphical display (LCD). 3.3.1 SETTING LOCAL MODE When the power supply is turned on, it is automatically set to Local mode.

  • Page 91: Programming Voltage Or Current And Associated Protect Limits

    3.3.3 PROGRAMMING VOLTAGE OR CURRENT AND ASSOCIATED PROTECT LIMITS From the power-up screen the settable voltage/current parameters are displayed at the bottom of the LCD above the HELP message (see Figure 3-4). Use to highlight the main or protect channel. (For BOP protect limits refer to PAR. 3.3.4.2 and for external limits see PAR. 3.3.4.3.) 1.

  • Page 92: Voltage And Current Parameter Definitions

    TABLE 3-4. VOLTAGE AND CURRENT PARAMETER DEFINITIONS To modify refer to PAR. Term Definition Local Remote The nominal (rated) output voltage of the unit determined by model; e.g. for Onom –E a BOP 36-28MG, ±E is 36V. Onom Onom The nominal (rated) output current of the unit determined by model; e.g. for Onom –I a BOP 36-28MG, ±I...

  • Page 93: Selecting Bipolar/Independent Protection Limits

    3.3.3.1 SELECTING BIPOLAR/INDEPENDENT PROTECTION LIMITS The BOP can be configured to allow the protection limits to be displayed and changed from the front panel as either a single value that applies to both protection channels or as individual set- tings for positive and negative protection limits. Selecting Independent protection limits means that the positive and negative limits are displayed (and can be modified) independently.

  • Page 94: Understanding Voltage And Current Protect Limits

    Selection of Bipolar does not immediately change the protect limit values; it changes how the protect settings are displayed and set from the power-up screen. So if maximum/minimum pro- tection limits were set to different values, (e.g, for BOP 36-28MG, current mode, no load, +V Protect Max = 25V and –V Protect Min = 7V) when Bipolar is selected, the previous protection values (+25, –7) will remain in place until a new value is entered in the Voltage Protection field.

  • Page 95: Max/Min Settings Menu

    The internal parameters +Current Protect Min and –Current Protect Max are displayed to com- pletely define the permissible window when operating in Voltage mode. Similarly, +Voltage Pro- tect Min, and –Voltage Protect Max are displayed to completely define the permissible window for voltage when operating in Current mode.

  • Page 96: Changing Maximum Accepted Voltage Or Current (Main Channel Software Limits)

    3.3.4.1 CHANGING MAXIMUM ACCEPTED VOLTAGE OR CURRENT (MAIN CHANNEL SOFT- WARE LIMITS) The software limits for the main channels (+Voltage Max, –Voltage Min, +Current Max and –Current Min) are the maximum (positive) and minimum (Maximum negative) values allow- able for voltage and current. The default software limits are determined by the model: the nom- inal (rated) values for voltage and current (e.g., 36V and 28A for the BOP 36-28MG).

  • Page 97: Changing Maximum/Minimum Protection Software-Controlled Limits

    VOLTAGE CURRENT VOLTAGE 0.0000 0.0000 SOURCE VOLTAGE MODE +Voltage Max.: 10.0 -Voltage Min.: 10.0 +C Protect Max.: 75.8 +C Protect Min.: 0.02126 -C Protect Min.: 0.02128 -C Protect Max.: 75.8 CURRENT MODE +Current Max.: 75.0 -Current Min.: 75.0 +V Protect Max.: 10.1 +V Protect Min.: 0.15584...

  • Page 98: External Limits

    3.3.4.3 EXTERNAL LIMITS These limits are external analog signals which are converted within the BOP to digital signals that program the protection channels only: current protect in voltage mode and voltage protect in current mode. The range of each analog input signal is +1V to +10V, corresponding to a range for clamping the output between minimum, 10% of nominal (positive and negative), to +max/–min of nominal rating.

  • Page 99: Power Supply Behavior When Output Is Set To Off

    TABLE 3-6. POWER SUPPLY BEHAVIOR WHEN OUTPUT IS SET TO OFF LOAD TYPE If unit was in Voltage Mode when output OFF If unit was in Current Mode when output OFF SETTING command issued. command issued. • Unit remains in voltage mode. •...
  • Page 100 RESISTIVE. This mode, as the name suggests, is useful for resistive loads. Table 3-6 indicates how the power supply responds to a command to go from Output ON to OFF. WARNING Accessing the BOP after the output is disabled in BATTERY mode is hazardous because (1) high current arcing is possible and (2) either the external battery voltage, or the voltage (±Voltage Protection max) on the BOP output terminals may be dangerous.

  • Page 101: Battery Charging/Discharging Using The Bop

    3.3.7.1 BATTERY CHARGING/DISCHARGING USING THE BOP The BOP can charge/discharge batteries using either voltage mode or current mode. The rec- ommended configuration is to use voltage mode with remote sense connections. 3.3.7.1.1 BATTERY OPERATIONS USING VOLTAGE MODE Using voltage mode with remote sensing connections provides more accurate voltage control of the battery, avoiding the effects of both parasitic voltage drops on the connection wiring and the battery’s internal resistance.

  • Page 102: Changing The Default Power Up Settings

    BOP current setpoint. As previously described, if not monitored and the process stopped, the discharge will completely deplete the battery. If current mode is needed, Kepco can modify the unit to establish the voltage limit feedback loop to use the Sense terminals, rather than the Monitor terminals. The modified unit behaves similar to that described for voltage mode except that voltage accuracy is 12-bit/ 0.3%, versus 14-bit/...

  • Page 103: Power Up Settings Menu

    TABLE 3-7. POWER UP SETTINGS MENU CHOICES PARAMETER FUNCTION (BOLD = Factory Default) NOTE: DEFAULT values for empty cells are the settings of the unit at the time the save/recall menu is entered. Mode of Operation Voltage Voltage - Selects voltage mode. Voltage value determined by SETTING. Current Current - Selects current mode.

  • Page 104: Storing/Recalling Power Supply Output Settings

    TABLE 3-8. EXAMPLES SHOWING HOW POWER-UP SETTINGS FUNCTION Main Power-up condition (output set to ON) Protection Mode of Channel (All referenced pins located on Analog I/O Port Operation see PAR. 3.4 and Figure 2-1) Reference Setting Type Levels Unit powers up in voltage mode, +5V, ±current protection set to Voltage: 10 25A.

  • Page 105: Understanding Abbreviations Used For Saved Settings

    3.3.9.1 UNDERSTANDING ABBREVIATIONS USED FOR SAVED SETTINGS The parameters listed in Table 3-9 are displayed, followed by a listing of the first 20 memory locations, displayed in two rows of ten. Use keys to display additional columns or navigate to the desired location. Locations that are not empty show an abbreviated representation of the saved settings.

  • Page 106: Viewing Saved Settings

    TABLE 3-9. SAVE/RECALL MENU CHOICES PARAMETER FUNCTION (BOLD = Factory Default) NOTE: DEFAULT values for empty cells are the settings of the unit at the time the save/recall menu is entered. Mode of Voltage Voltage - Selects voltage mode. Voltage value determined by SETTING. Operation Current Current - Selects current mode.

  • Page 107: Saved Setups Menu

    VOLTAGE CURRENT VOLTAGE 0.0000 0.0000 SOURCE FIGURE 3-10. SAVED SETUPS MENU 2. Use the keys to highlight the desired memory location; To erase a highlighted memory location, press . The list will show erased locations as Empty. 3. Press to see the details stored in the highlighted location. 4.

  • Page 108: Copying Previously Saved Settings To A New Location

    Waveforms may be programmed, stored and executed using LIST commands found in Appen- dix B. The interactive demo program portion of the Labview G driver for BOP 1KW (download- able from the Kepco web site at http://www.kepcopower.com/drivers/drivers-dl3.htm#bop1k) provides examples of generating waveforms remotely. Documentation for the demo program examples can be found in the Labview, VXI Plug&play Driver Manual for BOP-BIT available for...

  • Page 109: Understanding How Waveforms Are Generated

    A waveform is comprised of at least one, or as many as 10 segments. Each segment has an individually specified value for Type, Frequency or Period, Amplitude, Offset, Start angle, Stop angle, and Initial/Repeat; see Table 3-12 for details. To view a previously saved waveform Refer to PAR.

  • Page 110: Waveform Specifications

    TABLE 3-10. SINE, TRIANGLE AND RAMP WAVEFORM FREQUENCY VS. POINTS Frequency Frequency Total Points Total Points (See Notes 1, 2, and 3) (See Notes 1, 2, and 3) per segment per segment From From 0.01Hz 2.7Hz 3840 55.5Hz 66.5Hz 2.71Hz 3.6Hz 2880 66.6Hz...

  • Page 111: Viewing Stored Waveforms

    3.3.10.5 VIEWING STORED WAVEFORMS After observing the precautions of PAR. 3.3.10.1, press from the power-up screen to access the Saved Waveforms screen (Figure 3-11). Use or the encoder to highlight the name of a previously saved waveform, then press to view the Waveform Settings screen (see Fig- ure 3-12).

  • Page 112: New Waveform Menu

    VOLTAGE CURRENT VOLTAGE 0.0000 0.0000 SOURCE New Waveform Menu Waveform Name: Voltage Mode of Operation: Number of Cycles: 38.400 Posititve Protect: 126.300 Negative Protect: First Segment Sine Type: 1.0000 Frequency (Hz): 200.0000 PtoP Amplitude 0.0000 Offset: FIGURE 3-13. NEW WAVEFORM MENU 2.

  • Page 113: Waveform Segment Details Menu

    TABLE 3-12. WAVEFORM SEGMENT DETAILS MENU SETTING CHOICES FUNCTION Type Square Square - Square wave, bipolar, starts with positive excursion (see Note 1). + Ramp + Ramp - Increasing ramp, bipolar (see Note 1). - Ram - Ramp - Decreasing ramp, bipolar (see Note 1). Triangle Triangle - bipolar, starts with positive excursion, start/stop angle may be user controlled (see Note 1).

  • Page 114: Executing A Waveform

    TABLE 3-13. NEW WAVEFORM SETTINGS MENU SETTING CHOICES FUNCTION Name Alphanumeric characters Waveforms are assigned a number from 1 to 16. When a new waveform is (10 characters max.) programmed, a name must be assigned so it can be easily recognized and (Name Assigned by User) recalled.

  • Page 115: Modifying Previously Stored Waveforms

    To change the Waveform Stop setting, press from the power-up screen (Figure 3-4), High- light Waveform Stop (see Figure 3-7), then press , highlight Output OFF or User option. When output OFF is chosen, an executing waveform can be stopped by pressing STOP OUTPUT OFF.

  • Page 116: Using Segments To Build A Waveform

    between 2 and 3, highlight 3. To add a segment following 3, highlight End of Segments. After highlighting the segment, press to insert a new segment. The parameters applicable to the waveform type selected (see Table 3-12 for details) can then be modified as desired. 3.3.10.9 USING SEGMENTS TO BUILD A WAVEFORM The following steps provide detailed instructions to illustrate how a complex waveform, illus-...
  • Page 117 3. From the Waveform Settings screen, highlight segment NEG RAMP 50.0HZ 4.00 R and press to insert a new segment. Use to modify the following settings of the new seg- ment. For each parameter, use to save the setting. Type Level Period (Sec) 0.002...

  • Page 118: Copying A Waveform

    6. From the Waveform Settings screen, highlight End of Segments and press to insert the next segment. Use to modify the following settings for the next segment. For each parameter, use to save the setting Type Sine Frequency (Hz) Amplitude (p-p) Offset Start angle Stop angle...

  • Page 119: Revisions/Test Menu

    TABLE 3-14. REVISIONS/TEST MENU CHOICES SETTING FUNCTION (BOLD = Factory Default) (Cannot be highlighted) Serial Number nn = unit serial number, also found on nameplate at rear panel. (Cannot be highlighted) Displays rated output voltage and current of power supply. including all slaves Max Voltage XX.0 connected in parallel or series.

  • Page 120: Error Message Explanations

    3.3.13 ERROR MESSAGE EXPLANATIONS When a key press is not accepted, an error message is displayed at the bottom of the screen. Although recovery from most operator errors is obvious and simple, Table 3-15 lists all the error messages along with associated explanations as to why they occurred. TABLE 3-15.

  • Page 121: Analog Remote Mode Programming

    Noise sup- pression is accomplished by connecting a 100F ceramic capacitor, rated at 50V or 100V (e.g., Kepco P/N 117-1241), between GND and COM S terminals (see Figure 2-3 for local sensing or Figure 2-4 for remote sensing).

  • Page 122: Remote Shutdown

    3.4.2.1 REMOTE SHUTDOWN A standalone unit can be shut down using a remote signal applied to the PROTECTION EXT. PORT as shown in Figure 3-15 or 3-16 or by a remote control applied at PAR/SER PROTECT PORT IN as shown in Figure 3-17. A multiple unit configuration (parallel, series or series-paral- lel) can be disabled by applying a remote signal to the master PROTECTION EXT PORT as shown in Figure 3-15 or by applying a remote control to PAR/SER PROTECT PORT IN as shown in Figure 3-17.

  • Page 123: Remote Standby

    CAUTION: This configuration must be enabled before use. See PAR. 2.7.3 for details. FIGURE 3-17. REMOTE SHUTDOWN COMBINED WITH CABLE-DISCONNECT SHUTDOWN, FOR STANDALONE OR MULTIPLE UNITS, FIGURE 3-18. REMOTE SHUTDOWN USING INTERNAL POWER, FOR MULTIPLE UNITS, 3.4.2.2 REMOTE STANDBY A standalone unit or a multiple unit configuration (parallel, series or series-parallel) can be set to STANDBY status by applying a remote signal to the TRIGGER PORT as shown in Figure 3-19.

  • Page 124: Voltage/Current Mode Control

    3.4.3 VOLTAGE/CURRENT MODE CONTROL The mode of operation, voltage or current, can be programmed externally by applying a signal at pin 2, referenced to pin 9, of the Analog I/O port. Applying a TTL logic 1 (or open circuit) pro- grams the unit to voltage mode.

  • Page 125: Fixed Gain Using External Reference Control

    3.4.4.1 FIXED GAIN USING EXTERNAL REFERENCE CONTROL The main channel of the BOP, either voltage in voltage mode or current in current mode, can be controlled by an external reference voltage, 0 to ±10V applied at pin 11, referenced to pin 10, of the Analog I/O port.

  • Page 126: Variable Gain Using External Reference Level

    3.4.4.2 VARIABLE GAIN USING EXTERNAL REFERENCE LEVEL The BOP can function as a variable gain power amplifier for both voltage and current modes, similar to the fixed (inherent or nominal) gain amplifier as described in PAR. 3.4.4.1. The user can determine a new (lower) full scale output value for the ±10V reference level (applied at pin 11, referenced to pin 10, of the Analog I/O port) by configuring the Reference input as follows: 1.

  • Page 127: Using Both Local/Digital And External Protection Limits

    Only two signals are active, affecting the complementary protect channel, ±current protect limit for voltage mode and ±voltage protect limit for current mode. A voltage between +1V and +10V at the following pins (referenced to Ground, pin 12) will control the corresponding protec- tion parameter between 10% of the nominal value (see Figure 1-3) and the corresponding posi- tive or negative nominal full scale value.

  • Page 128: Monitoring Output Current Using An Analog Signal

    3.4.6 MONITORING OUTPUT CURRENT USING AN ANALOG SIGNAL The BOP provides an output analog signal, 0 to ±10V, that is proportional to the output current which is always available. For the master of a parallel or series configuration this signal is pro- portional to the output current of the parallel or series combination.

  • Page 129: Maximum Setpoint To Measurement Response

    3.5.1.2 MAXIMUM SETPOINT TO MEASUREMENT RESPONSE The maximum setpoint-to-measurement response specification has been added to the perfor- mance specifications. This specification defines the time between a voltage or current setpoint change to a valid measurement to be 50 milliseconds maximum. This specification assumes that he unit is in bipolar mode.

  • Page 130: Programming Techniques To Optimize Performance

    3.5.2.1 PROGRAMMING VOLTAGE/CURRENT LIMIT AND CURRENT/VOLTAGE LIMIT Kepco's auto-crossover digital supplies can operate in either voltage mode with current limit, or current mode with voltage limit. The operating mode is determined by the voltage and current commands received, as well as the load. Each time voltage and current commands are received, the unit must evaluate the commands and the load conditions to determine the neces- sary operating mode.

  • Page 131: Making Sure The Previous Command Is Complete

    3.5.2.2 MAKING SURE THE PREVIOUS COMMAND IS COMPLETE Some SCPI commands require a flash memory update and can take an indeterminate amount of time to complete. These commands are: • *SAV (**) • MEM:PACK (**) • MEM:UPD • CAL:COPY • CAL:SAVE •...

  • Page 132: Remote Mode Setup

    Kepco’s BIT cards, however there are differences in operation (see PAR. 3.5.3.5 and 3.5.3.6. The SYSTem:SET and SYSTem:LANGuage commands can be used to configure the BOP to operate in a manner similar to earlier models of Kepco’s 100W, 200W and 400W BOP power supplies. 3-56...

  • Page 133: Determining Whether *Rst Command Sets The Output Off Or On

    CIIL 3.6. and Appendix B. LAN, GPIB and Serial.) CIIL - Provides compatibility with early Kepco power supplies and con- trollers. GPIB Address 0 - 30 (06) Assigns address used by external GPIB controller to communicate with BOP.

  • Page 134: Changing The Gpib Address

    3.5.3.2.1 CHANGING THE GPIB ADDRESS The default address is 6. To change the GPIB address press from the power-up screen, then highlight Interface Settings and press to enter the submenu (see Table 3-17). Highlight GPIB Address and press , then use the number keys to enter the desired address and press to save.

  • Page 135: Configure Prompt Mode

    3.5.3.3.3 CONFIGURE PROMPT MODE Press from the power-up screen, then highlight Interface Settings and press to enter the submenu (see Table 3-17). Highlight Prompt and press , highlight the desired option and press to save, then press to apply the changes (without saving for power-up) and exit, or press to save for power-up.

  • Page 136: Set Ip Address

    3.5.3.4.1 SET IP ADDRESS To set an IP address, Press from the power-up screen, then highlight LAN Settings and press to enter the LAN Interface Setting submenu (see Table 3-18). To allow automatic gen- eration of an IP address set either DHCP (see PAR. 3.5.3.4.4) or AUTO IP (see PAR. 3.5.3.4.3) to ON.

  • Page 137: Configure Index

    3.5.3.4.6 CONFIGURE INDEX To configure the index number manually, press from the power-up screen, then use keys until the display shows the current LAN settings (LAN SETTINGS highlighted). To modify, press to enter the LAN Interface Setting submenu (see Table 3-18). Under Host, highlight Index value and press to modify the setting.

  • Page 138: Ieee 488 (Gpib) Bus Protocol (Mg Models Only)

    3.5.4 IEEE 488 (GPIB) BUS PROTOCOL (MG MODELS ONLY) Table 3-19 defines the interface capabilities of the BOP 1KW power supply (Talker/Listener) rel- ative to the IEEE 488 (GPIB) bus (reference document ANSI/IEEE Std 488: IEEE Standard Digital Interface for Programmable Instrumentation) communicating with a Host Computer—Controller (Talker/Listener).

  • Page 139: Bop Visa Instrument Driver

    Status Byte Sent 3.5.5 BOP VISA INSTRUMENT DRIVER The VISA instrument driver for the BOP power supply, available for download at www.kepco- power.com/drivers.htm, simplifies programming with a VISA compatible GPIB controller. Included are: • source code (C) for all VISA functions (kp_bophi.c) •...

  • Page 140: Rs232-C Operation

    3.5.6 RS232-C OPERATION The BOP may be operated via an RS232-C terminal, or from a PC using a terminal emulation program. The default settings are as follows: • Baud rate: • Parity: None • Data Bits • Stop Bits • Prompt DISABLE •...

  • Page 141: Rs 232 Implementation

    Referring to Figure 3-21, when a command string is sent it must be terminated by a CR or LF character. When the terminator character is received, the DSR line goes low and an optional XOFF character is sent to the host. The XON XOFF protocol can be disabled by the user. When disabled, the unit will not send XON XOFF characters via the serial port.

  • Page 142: Xon Xoff Method

    BS deletes the last character entered, with the exception of CR or LF characters. Either the CR or LF character acts as the line terminator, initiating parsing of the ASCII data sent to the BOP by the command originator. When the line is parsed and the commands are sent to the analog processor, the BOP sends the line terminator sequence CR LF to the command originator.

  • Page 143: Prompt Method

    If each of the above steps is completed successfully, the problem lies in the computer hard- ware and/or software. Refer to the Product Support area of the Kepco website for additional information regarding RS 232 communications problems: www.kepcopower.com/support.

  • Page 144: Lan Factory Defaults

    3.5.7.1 LAN FACTORY DEFAULTS The factory default LAN interface settings are listed below, however, actual unit settings may dif- fer from those shown below depending upon whether the LAN is active (or connected). • DHCP: • AUTOIP: • PING: ON (can only be changed through web interface) •...

  • Page 145: Launch Web Interface

    This feature allows for easy discovery through the MDNS or Bonjour common naming system. When using the unit with Kepco drivers, the user must add a 0 (or other number) to the VISA address string to represent the actual TCPIP connection on the computer. For example TCPIP0::192.168.1.111::5025::SOCKET is the correct VISA resource string to use with Kepco...

  • Page 146: Lan Configuration Using Web Interface

    FIGURE 3-22. WEB INTERFACE HOME PAGE (UNIT DESCRIPTION) 3.5.7.5 LAN CONFIGURATION USING WEB INTERFACE From the Web Interface Home Page (Figure 3-22) click on CONFIGURE LAN at the left to view the LAN Configuration page (Figure 3-23). The parameters that can be configured from this page are Host Name (DHCP), Description, IP Address, Subnet Mask address, Default Gateway Address, and DNS Server Address.

  • Page 147: Operating The Unit Using Web Interface

    FIGURE 3-23. WEB INTERFACE CONFIGURE LAN PAGE The factory default is that passwords are not needed to access password-protected areas and none of the three passwords are established. To set a password for the first time, leave the CURRENT field blank, enter the new password in the NEW and REPEAT fields, then click SUB- MIT.

  • Page 148: Changing The Output

    and 3) whether the output is on or off. An ON/OFF button can be clicked to turn the output on or off. The MODE button allows the user to change the BOP 1KW-ME operating mode (voltage or current). A small white “~” to the left of the voltage display flashes to indicate the web page is communi- cating with the unit.

  • Page 149: Resetting The Unit (*Rst)

    The Ref Input button allows selection of either an INTERNAL or EXTERNAL reference level to control the main channel output. When Ref Input is set to EXTERNAL, the unit uses an external reference to change the main channel, whether voltage or current. For example, in voltage mode a ±10V reference applied to analog port pin 11 (referenced to pin 10) produces ±E (rated).

  • Page 150: Scpi Programming

    3. Enter Wave Frequency (Hz). 4. Click Generate Wave Segment button to add a segment (the information displayed in the Voltage or Current dialog boxes). Repeat steps 1 through 3 above to add additional seg- ments as desired. 5. When all the segments have been completed, enter the Loop number to specify how many times the waveform will run.

  • Page 151: Scpi Messages

    3.6.1 SCPI MESSAGES There are two kinds of SCPI messages: program messages from controller to power supply, and response messages from the power supply to the controller. Program messages consist of one or more properly formatted commands/queries and instruct the power supply to perform an action;...

  • Page 152: Tree Diagram Of Scpi Commands Used With Bop Power Supply

    An optional offset can be added to the command to cause the BOP to generate a non-centered waveform. For example, a 5 volt 400 Hertz sine wave may be centered at -3 volts. The list sub- system has controls the allow the user to modify the unit's behavior to generate parts of wave- forms and to used specific dwell times as appropriate.

  • Page 153: Measure Subsystem

    ROOT : (colon) [SOURce:] subsystem LIST subsystem [SOURce:] [SOURce:] LIST CURRent VOLTage :CLEar [:LEVel] [:LEVel] :COUNt val [:IMMediate] [:IMMediate] :COUNt? [:AMPLitude] val [:AMPLitude] val :COUNt:SKIP int [:AMPLitude]? MIN, MAX [:AMPLitude]? MIN, MAX :COUNt:SKIP? :TRIGgered :TRIGgered :CURRent val,val [:AMPLitude] val [:AMPLitude] val APPLy type,val1,val2,val3 [:AMPLitude]? [:AMPLitude]?

  • Page 154: Memory Subsystem

    3.6.3.6 MEMORY SUBSYSTEM This subsystem controls the Flash Memory used by the BOP microprocessors and is used for storing setup parameters and for storing a list for later recall and execution. The unit’s configuration, voltage and current, saved setups (*SAV and *RCL command) and Cal- ibration values are stored in Flash Memory.

  • Page 155: Calibrate Subsystem

    3.6.3.10 CALIBRATE SUBSYSTEM The BOP series of power supplies support software calibration. A full calibration consist of a voltage calibration and a current calibration. These calibration procedures include steps that prepare the unit for series or parallel operation. Both voltage and current calibrations consist of a zero (performed on the main channels only) and positive and negative full scale calibrations with both internal and external references.

  • Page 156: Keyword

    mand must use the full syntax shown in Appendix B. CALibration, DIAGnostic and LIST commands must be sent as a single program message using multiple message units. KEYWORD DATA SEPARATOR ROOT SPECIFIER DATA MESSAGE UNIT SEPARATOR MESSAGE UNIT SEPARATOR DATA DATA SEPARATOR ROOT SPECIFIER KEYWORD...
  • Page 157 You must use the rules above when using keywords. Using an arbitrary short form such as ENABL for ENAB (ENABLE) or IMME for IMM (IMMEDIATE) will result in an error. Regardless of which form chosen, you must include all the letters required by that form. To identify the short form and long form in this manual, keywords are written in upper case let- ters to represent the short form, followed by lower case letters indicating the long form (e.g., IMMediate, EVENt, and OUTPut).

  • Page 158: Message Terminator

    • new line (<NL>), ASCII 10 (decimal) or 0A (hex) NOTE: Kepco power supplies require a message terminator at the end of each program mes- sage. The examples shown in this manual assume a message terminator will be added at the end of each message. Where a message terminator is shown it is represented as <NL>...

  • Page 159: Program Message Syntax Summary

    3.6.6 PROGRAM MESSAGE SYNTAX SUMMARY • Common commands begin with an asterisk (*). • Queries end with a question mark (?). • Program messages consist of a root keyword and, in some cases, one or more message units separated by a colon (:) followed by a message terminator. Several message units of a program message may be separated by a semicolon (;) without repeating the root keyword.

  • Page 160: Status Reporting Structure

    3.6.7.1 STATUS REPORTING STRUCTURE The status reporting of the BOP uses four status registers, illustrated in Figure 3-29. These reg- isters are the Questionable, Operation, Standard Event Status and Status Byte registers. The Questionable and Operation registers are 16 bit registers and the Standard Event Status and Status Byte registers are 8 bits.

  • Page 161: Status Reporting Structure

    FIGURE 3-29. STATUS REPORTING STRUCTURE 3-85 BOP HIPWR 091719...

  • Page 162: Questionable Status Register

    3.6.7.3 QUESTIONABLE STATUS REGISTER The QUEStionable condition register (see Figure 3-29) contains status bits representing data/signals which give an indication of the quality of various aspects of the signal. A bit set in the QUEStionable condition register indicates that the data currently being acquired or generated is of questionable quality due to some condition affecting the parameter associ- ated with that bit.

  • Page 163: Typical Example Of Bop Power Supply Program Using Scpi Commands

    /**************************************************************************/ /* Sample Program For KEPCO power supply, using National Instruments */ /* GPIB interface card and IBM PC or compatible computer /**************************************************************************/ #include <stdio.h> #include "decl.h" char rd_str[80]; // Input buffer char dat_str[80]; // Output buffer int bd,adr; main() { adr = ibfind("DEV6");...

  • Page 165: Section 4 - Calibration

    SECTION 4 - CALIBRATION GENERAL This section contains the calibration instructions for the Power Supply. It is recommended that the user be familiar with Local Mode operation (PAR. 3.2) before calibrating the unit. A full calibration consists of a voltage calibration and a current calibration. Both voltage and cur- rent calibrations consist of zero, max and min, and protection limit calibration.

  • Page 166: Test Equipment Requirements

    (together) TEST EQUIPMENT REQUIREMENTS Table 4-2 lists sense resistors recommended for measuring current and includes Kepco and Manufacturer’s part numbers. The value of the sense resistor chosen should be known with 0.001% accuracy. If other than a recommended sense resistor is to be used, it must be rated for at least 100W power dissipation (actual power dissipation will be approximately 10W).

  • Page 167: Suggested Sense Resistors

    NOTE: Selected sense resistor must be mounted on a heatsink with a minimum surface area of 36 square inches to maintain ther- mal stability during calibration; forced cooling is recommended. Kepco Heatsink P/N 136-0451 will provide adequate cool- ing for the sense resistor.

  • Page 168: Calibration Using Remote Scpi Commands Via Gpib Or Rs 232 Interface

    TABLE 4-4. CURRENT CALIBRATION MEASUREMENTS AND TOLERANCES SENSE ±FULL SCALE ±FULL SCALE RESISTOR CURRENT CURRENT CPR LIMIT MODEL VALUE ZERO (SEE NOTE (TOLERANCE) MAX. MIN. TOLERANCE MAX. MIN. TOLERANCE AND TABLE 4-2) BOP 6-125MG 0.001 Ohm 0.125V –0.125V ±0.013mV 0.125V –0.125V ±0.063mV (±0.0013mV)

  • Page 169: Calibration Procedure Using Scpi Commands

    a. ZERO Calibrations (always done first). The only means of adjustment is the CAL:DATA <VALUE> command which provides a total of 4095 increments of adjustment start- ing at 0, with 2047 increments in either direction to achieve maximum output levels of ±2.5% of .
  • Page 170 1. Initiate calibration by sending the SCPI command SYSTem:PASSword:CENable DEFAULT and then send CAL:STATe 1. The password DEFAULT has been set at the factory. If the password has been changed from DEFAULT, substitute the correct password for the unit in the SYST:PASS:CEN command.
  • Page 171 10.Replace 0V reference at pin 11 (EXT_REF) of the Analog I/O Port connector (A2A5J6) with a +10V d-c reference. Set the BOP to maximum positive output voltage by sending CAL:VGA MAX. Measure the output voltage using the DVM. To adjust, send CAL:DATA commands as needed (see PAR.

  • Page 172: Calibration Setup For Current Mode

    BOP current outputs, as well as the formula for calculating expected measured values and tolerances for any sense resistor other than those recom- mended. Table 4-2 lists Kepco and Manufacturer part numbers for those sense resistors rec- ommended.
  • Page 173 22.Set the BOP to maximum negative output current by sending CAL:CURR MIN. Continue to measure the output current of the supply using the DVM connected to the sense resistor. To adjust, send CAL:DATA commands as needed (see PAR. 4.3b) to adjust the BOP output until the DVM reads as close as possible above (absolute value) the nominal full scale value within tolerance specified in Table 4-4 for –FULL SCALE CURRENT.

  • Page 174: Calibration Using Front Panel Keypad In Local Mode

    31.Send CAL:ZERO to prepare for calibration of S_IN_PARALLEL (slave input) control signal. Connect a 0V ±0.1mV d-c reference to pin 3 (S_IN_PARALLEL) referenced to pin 1 (SGND) of the PAR/SER CONTROL IN connector (A2A5J3). Set the BOP to zero output current by sending CAL:PAR ZERO.

  • Page 175: Main Calibration Screen

    VOLTAGE*Ref Only* CURRENT VOLTAGE 0.0000 0.0000 SOURCE CALIBRATION MODE DATE FIELD FIGURE 4-3. MAIN CALIBRATION SCREEN 3. Press either to initiate Voltage or Current calibration, respectively. To calibrate multiple units refer to the Instruction Manual Included with the associated parallel or series connection cable kit.

  • Page 176: Calibration Procedure Using Local Mode

    5. Selecting one of the above options begins calibrating the output. The screen describes the function of the active keys: • - or clockwise rotation of the ADJUST control adjust the output by approximately 10 increments in the positive direction. •...
  • Page 177 5. Press - PROTECT, - POSITIVE to adjust the maximum positive voltage protection limit of the power supply while working in current mode. Adjust as needed until the reading is as close as possible above the nominal full scale value within the limits specified in Table 4-3 for +FULL SCALE VPR LIMIT.
  • Page 178 P terminal). Table 4-4 provides recommended sense resistor values for various BOP current outputs, as well as the formula for calculating expected measured values and tolerances for any sense resistor other than those recommended. Table 4-2 lists Kepco and Manufacturer part numbers for those sense resistors recommended.
  • Page 179 24.Press - GAIN, - ZERO to set the BOP to zero volts across the sense resistor (corre- sponding to zero current). Adjust as needed until the DVM reads as close to zero as possible within the limits specified in Table 4-4 for CURRENT ZERO. Press twice.

  • Page 180: Calibration Storage

    CALIBRATION STORAGE The BOP maintains the calibration tables in Flash Memory until a PACK is executed. There are six calibration areas maintained in Flash Memory: Working, Prior, Oldest, Factory, Master, and First. The calibration can be copied to another area using the CAL:DUMP? and CAL:COPY com- mand.

  • Page 181: A.2 *Cls — Clear Status Command

    APPENDIX A - SCPI COMMON COMMAND/QUERY DEFINITIONS INTRODUCTION This appendix defines the SCPI common commands and queries used with the BOP power supply. Common commands and queries are preceded by an asterisk (*) and are defined and explained in paragraphs A.2 through A.18, arranged in alphabetical order. Table A-1 provides a quick reference of all SCPI common commands and queries used in the Interface Card.

  • Page 182: A.4 *Ese? — Standard Event Status Enable Query

    The character string contains the following fields separated by commas: <MFR>,<MODEL VOLT- CURR CALDATE>,<SER_NO.>,<FIRMWARE REV> where <MFR> (manufacturer) = Kepco, <MODEL VOLT-CURR CALDATE> has three subfields: MODEL = BOP1KW, VOLT-CURR = rated voltage and current, and CALDATE = factory calibration date formatted as MM/DD/YYYY (month/day/ year).

  • Page 183: A.8 *Opc? — Operation Complete Query

    Returns 33 (bit 5 set), indicating Command Error has occurred since the last time the register was read. Bit 1 indicates operation complete (OPC). *IDN? Power supply returns: KEPCO,BOP1KW 36-28 09/30/2001,123456,4.01 *OPC Allows status bit 0 to be set when pending operations complete.

  • Page 184: A.9 *Opt? — Options Query

    *OPT? *OPT? — OPTIONS QUERY Syntax: *OPT? Returns string determined by power supply model. Description: Causes the power supply to return an ASCII string which defines the functionality of the power supply. The functionality is defined as follows: STRING DATA MEANING CCAL Support for limit calibrations is present.

  • Page 185: A.12 *Sav — Save Command

    *SAV A.12 *SAV — SAVE COMMAND Syntax: *SAV <integer> (1 to 99) Description: Saves the present state of output voltage and output current to the specified memory location. This command stores the present state of the power supply to one of 99 memory locations in Flash Memory (see PAR.

  • Page 186: A.16 *Trg — Trigger Command

    *TRG A.16 *TRG — TRIGGER COMMAND Syntax: *TRG Description: Triggers the power supply to be commanded to preprogrammed values of output current and voltage. When the trigger is armed, *TRG generates a trigger signal if TRIG:SOUR is set to BUS and the WTG bit in Status Operational Condition register (bit 5, Table B-4) is asserted.

  • Page 187: B.1 Introduction

    APPENDIX B - SCPI COMMAND/QUERY DEFINITIONS INTRODUCTION This appendix defines the SCPI subsystem commands and queries used with the BOP power sup- ply. Subsystem commands are defined in PAR. B.3 through B.182, arranged in groups as they appear in the tree diagram, Figure 3-26. Table B-1 provides a quick reference of all SCPI subsys- tem commands and queries used in the BOP.
  • Page 188 TABLE B-1. SCPI SUBSYSTEM COMMAND/QUERY INDEX (CONTINUED) COMMAND PAR. COMMAND PAR. [SOUR:]LIST:WAIT:HIGH B.100 [SOUR:]LIST:VOLT:POIN? B.99 [SOUR:]LIST:WAIT:LEDG B.101 SYST:COMM:LAN:DHCP, ? B.143, B.144 [SOUR:]LIST:WAIT:LOW B.102 SYST:COMM:LAN:IP, ? B.145, B.146 [SOUR:]VOLT, ? B.103, B.104 SYST:COMM:LAN:MAC? B.147 [SOUR:]VOLT:LIM[:BOTH], ? B.105, B.106 SYST:COMM:LAN:MASK, ? B.148, B.149 [SOUR:]VOLT:LIM:NEG, ? B.107, B.108 SYST:COMM:LAN:LRST...

  • Page 189: B.2 Numerical Values

    To use these commands, refer to Kepco’s website (www.kepcopower.com/drivers) and download the LabWindows/ CVI Version 5 driver for BOP or refer to PAR. 4.3. This file provides remote calibration capability and...

  • Page 190: B.6 Initiate:continuous Command

    NOTES: 1. The power supply is assumed to be operating in constant voltage mode. 2 Examples below are intended only to illustrate command functions. Refer to PAR. 3.5.2 for pro- gramming techniques to optimize performance. OUTP ON Turns the output on. VOLT 21;...

  • Page 191: B.8 Measure? Query

    MEAS? MEASure? QUERY Syntax: Short Form: MEAS? Long Form: MEASure? Return Value: <exp_value> = digits with decimal point and Exponent, e.g., 2.71E1 for 27.1 VVVV,CCCC,STAT where VVVV = measured voltage CCCC = measured current STAT = status (see Table B-2) Description: Measures actual voltage and current without sending separate MEAS:VOLT? and MEAS:CURR? queries.

  • Page 192: B.13 Measure:rate? Query

    MEAS:RATE? B.13 MEASure:RATE? QUERY Syntax: Short Form: MEAS:RATE? Long Form: MEASure:RATE? Return Value:50, 60 or 100) Description: Indicates measuring rate. This query returns the sampling rate established by MEAS:RATE com- mand, either 50, 60 or 100 Hz. MEAS:VOLT? B.14 MEASure:VOLTage? QUERY Syntax: Short Form: MEAS:VOLT? Long Form: MEASure:VOLTage?

  • Page 193: B.18 Memory:location? Query

    Description: Populates a memory location with operating parameters that can be loaded quickly. The actual output of power supply does not change when this command is executed. Implementing the stored parameters requires the use of the *RCL command (PAR. A.10). Following the 2-digit memory location are eight comma-separated parameters.

  • Page 194: Using Memory Location Commands And Queries

    VOLT 5;CURR .5 Voltage/current setpoints set to 5 Volts/0.5 Amperes, respectively curr:prot 1;:volt:prot 14 Current protect set to 1 Ampere. Voltage protect set to 14 Volts. MODE VOLT;:outp on Causes the BOP/BIT to output 5 Volts at up to 1 Ampere in voltage mode.

  • Page 195: Using List Commands To Measure Sample At End Of Pulse

    NOTES: 1. The power supply is assumed to be operating in constant voltage mode. 2. This example creates a 5 Ampere, 100mS current pulse and performs a current measurement during the last five mS of the pulse. LIST:CLE Clear list. LIST:SET:SAMPLE .0003125 establishes the sample timing.

  • Page 196: Using List Commands To Measure Sample At Start Of Pulse

    NOTES: 1. The power supply is assumed to be operating in constant voltage mode. 2. This example creates a 3 Ampere, 100mS current pulse and performs a current measurement dur- ing the first five mS of the pulse. LIST:CLE Clear list. LIST:SET:SAMPLE .0003125 Establishes the sample timing.

  • Page 197: B.24 Output:control? Query

    OUTP:CONT? B.24 OUTPut:CONTrol? QUERY Syntax: Short Form: OUTP:CONT? Long Form: OUTPut:CONTrol]? Return Value: {HON | LON | HOFF | LOFF | LPOFF | OFF} Description: Indicates operation of Remote on/off pin 2 of Trigger Port. Returns HON, LON, HOFF, LOFF or LPOFF, OFF to indicate how Trigger port pin 2 has been configured.

  • Page 198: B.31 [Source:]Current[:Level]:Limit:neg Command

    CURR:LIM:NEG B.31 [SOURce:]CURRent[:LEVel]:LIMit:NEG COMMAND Syntax: Short Form: [SOUR:]CURR[:LEV]:LIM:NEG <value> Long Form: [SOURce:]CURRent[:LEVel]:LIMit:NEGative <value> Description: Establishes the negative software limit <value> for output current, i.e., sets the maximum value of out- put current that the unit will be allowed to source (quadrant 3, Figure 1-3) or sink (quadrant 2) to the value specified by the user.

  • Page 199: B.36 [Source:]Current:mode? Query

    CURR:MODE? B.36 [SOURce:]CURRent:MODE? QUERY Syntax: Short Form: [SOUR:]CURR[:LEV]:MODE? Long Form: [SOURce:]CURRent[:LEVel]:MODE? Return value: FIXED, LIST, TRANSIENT, EXTERNAL or GAIN Description: Identifies active current mode. Returns LIST while list is being executed. Returns TRANSIENT after CURR:MODE:TRAN command has been issued, but before CURR: or *TRG command executes the transient.

  • Page 200: B.38 [Source:]Current[:Level]:Protect[:Both] Query

    CURR:PROT[:BOTH]? B.38 [SOURce:]CURRent[:LEVel]:PROTect[:BOTH] QUERY Syntax: Short Form: [SOUR:]CURR[:LEV]:PROT[:BOTH]? Long Form: [SOURce:]CURRent[:LEVel]:PROTect[:BOTH]? Returns <value>, <value> Description: Identifies the protection limits for current (source, sink), the maximum current the unit will source.or sink CURR:PROT:MODE B.39 [SOURce:]CURRent[:LEVel]:PROTect:MODE COMMAND Syntax: Short Form: [SOUR:]CURR[:LEV]:PROT:MODE (EXT | FIX | LESS |) Long Form: [SOURce:]CURRent[:LEVel]:PROTect:MODE (EXTernal | FIXed | LESSer |) Description: Determines how current protection limits are controlled in voltage or current mode of operation.

  • Page 201: B.45 [Source:]Current[:Level]:Protect:limit[:Both] Command

    B.45 [SOURce:]CURRent[:LEVel]:PROTect:LIMit[:BOTH] COMMAND CURR:PROT:LIM[:BOTH] Syntax: Short Form: [SOUR:]CURR[:LEV]:PROT:LIM[:BOTH] <value> Long Form: [SOURce:]CURRent[:LEVel]:PROTect:LIMit:[BOTH <value> where <value> is between minimum (box) value (Figure 1-3) and 1% above rated (nominal) output current. Description: Establishes the maximum value possible for both the positive and negative protection limits for cur- rent.

  • Page 202: B.51 [Source:]Current[:Level]:Triggered[:Amplitude] Command

    CURR:TRIG B.51 [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPlitude] COMMAND Syntax: Short Form: [SOUR:]CURR[:LEV]:TRIG[:AMP] <exp_value> Long Form: [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPlitude] <exp_value> <exp_value> = digits with decimal point and Exponent, e.g., 2.71E1 for 27.1 Description: Programs current value to be transferred to output by *TRG (trigger) commands. This command can be used to reset many power supplies to preselected parameters by issuing a single *TRG com- mand.

  • Page 203: B.58 [Source:]List:copy Command

    LIST:COPY B.58 [SOURce:]LIST:COPY COMMAND Syntax: Short Form: LIST:COPY <x>, <y> Long Form: LIST:ERASe <x>, <y> Where <x> = location of waveform to be copied (1 to 16). <y> = empty location where waveform is to be copied (1 to 16). Description: Used to copy waveform location specified by <x>...

  • Page 204: Using List Commands And Queries

    VOLT:MODE LIST Executes the list. For 240 mS the BOP outputs a staircase triangle wave from -20V to +20V and back down to -20V. This staircase will have a uni- form spacing between voltage changes of 10 mS and will repeat 100 times. VOLT? Returns +20 (the last step in the list set the unit to +20V.

  • Page 205: Creating And Executing A Complex Waveform Using List Commands

    LIST:COUN:SKIP? B.62 [SOURce:]LIST:COUNt:SKIP? QUERY Syntax: Short Form: LIST:COUN:SKIP? Long Form: LIST:COUNt:SKIP? Return Value: <int_value> Description: Identifies how many steps will skipped the first time the list is executed. Returns value set by LIST:COUN:SKIP command. (See example, Figure B-6.) NOTE: The example below assumes that unit is in voltage mode (FUNC:MODE VOLT) and output is on (OUTP ON).

  • Page 206: B-3 List Data Table

    LIST:CURR B.63 [SOURce:]LIST:CURRent COMMAND Syntax: Short Form: LIST:CURR <exp_value>, <exp_value>, . . . (to max of 5900 data points for global dwell time) Long Form: LIST:CURRent <exp_value>, <exp_value>, . . . (to max of 5900 data points for global dwell time) <exp_value>...

  • Page 207: B.68 [Source:]List:current:points? Query

    LIST:CURR:POIN? B.68 [SOURce:]LIST:CURRent:POINts? QUERY Syntax: Short Form: LIST:CURR:POIN? Long Form: LIST:CURRent:POINts? Return Value: <n> where n = number of points Description: Identifies the total number of points present in a list and the next location to be filled by LIST:CURR command. The LIST:CURR pointer is initially at 0 via LIST:CLE. For each data point entered by a LIST:CURR command the list pointer is incremented If LIST:CURR:POIN? returns 5, the LIST:CURR pointer is at 5 indicating there are 6 data points comprising the list.

  • Page 208: B.73 [Source:]List:dwell? Query

    LIST:DWEL? B.73 [SOURce:]LIST:DWELl? QUERY Syntax: Short Form: LIST:DWEL? Long Form: LIST:DWELl? Return Value: <value> Description: Identifies the dwell times entered for the list. Starting at location established by LIST:QUERy, returns comma-separated list of up to 16 values indicating the dwell time parameters entered. i.e., the contents of LIST:DWEL locations of Table B-3.

  • Page 209: B.80 [Source:]List:resolution? Query

    LIST:RES? B.80 [SOURce:]LIST:RESolution? QUERY Syntax: Short Form: LIST:RES? Long Form: LIST:RESolution? Return Value: <value1>,<value2>,<value3> (where <value1> and <value2> = clock period, <value3> = number of points to be used) Description: Identifies whether resolution is set to minimum (3933) or maximum (5900) and indicates the clock period.

  • Page 210: Multiple External Devices Using A Single External Pulse

    NOTES: 1. The power supply is assumed to be operating in constant voltage mode. 2. The WAIT commands provide a method to synchronize multiple instruments to a common control pulse. This example assumes BOP and a number of switching DVMs are connected to a Unit Under Test (UUT).

  • Page 211: Using List:wait Commands To Allow An External Device Time To Function While Imposing A Maximum Wait Time

    NOTES: 1. The power supply is assumed to be operating in constant voltage mode. 2. This example assumes a BOP and a DVM is connected to a Unit Under Test (UUT). The DVM is connected to EXT_E/ EXT_C (pins 5/6 of the BOP External Protection port). When the BOP out- puts a low EXT_E/ EXT_C, The DVM takes a series of measurements and places its wait line low.

  • Page 212: B.83 [Source:]List:sample? Query

    LIST:SAMP? B.83 [SOURce:]LIST:SAMPle? QUERY Syntax: Short Form: LIST:SAMP? Long Form: LIST:SAMPle? Returns:<INT_VALUE>,<INT_VALUE>..<INT_VALUE>[V|C] Description: Returns a comma-separated list of numbers representing points, followed by V or C. The point listings are determined by the settings of LIST:SAMP:CURR and LIST:SAMP:VOLT commands. The sample(s) occur after the points indicated.

  • Page 213: B.92 [Source:]List:set:wait? Query

    LIST:SET:TRIG B.89 [SOURce:]LIST:SET:TRIGger COMMAND Syntax: Short Form: LIST:SET:TRIG <time>,<transistor> Long Form: LIST:SET:TRIGger <time>,<transistor> <time> = 0.00025 to 0.034 (Seconds) <transistor> = ON or OFF Description: Enables the output trigger and establishes pulse-width. Used to establish EXT_C (pin 5) and EXT_E (pin 6) of External Protection port as an output trigger instead of an output off flag. Once LIST:SET:TRIG is sent, these pins function as an output trigger (see Table 2-4) until LIST:CLE (PAR.

  • Page 214: B.94 [Source:]List : Voltage Command

    LIST:VOLT B.94 [SOURce:]LIST:VOLTage COMMAND Short Form: LIST:VOLT[:LEV] <exp_value>, <exp_value>, . . . (to max of 5900 data points) Long Form: LIST:VOLTage[:LEVel] <exp_value>, <exp_value>, . . . (to max of 5900 data points) <exp_value> = digits with decimal point and Exponent, e.g., 2.71E1 for 27.1 Description: Adds the voltage value (in Volts) to list.

  • Page 215: B.99 [Source:]List : Voltage:points? Query

    LIST:VOLT:POIN? B.99 [SOURce:]LIST:VOLTage:POINts? QUERY Syntax: Short Form: LIST:VOLT:POIN? Long Form: LIST:VOLTage:POINts? Return Value: <n> where n = number of points used Description: Identifies the total number of points in a list and the next location to be filled by LIST:VOLT command.

  • Page 216: Using List:wait Commands To Control Generation Of A Waveform Measured

    NOTES: 1. The power supply is assumed to be operating in constant voltage mode. 2. The WAIT commands provide a method to synchronize multiple instruments to a common con- trol pulse. This example assumes BOP and a number of switching DVMs are connected to a Unit Under Test (UUT).

  • Page 217: B.103 [Source:]Voltage[:Level][:Immediate][:Amplitude] Command

      In all cases, the trigger input must be high or low for at least 2 to be considered stable. This 2 delay provides a noise filter to insure only a level causes the output change. This command must be preceded by LIST:CURR or LIST:VOLT command, otherwise a -221 “Settings Conflict”...

  • Page 218: B.110 [Source:]Voltage[:Level]:Limit:positive? Query

    VOLT:LIM:POS? B.110 [SOURce:]VOLTage[:LEVel]:LIMit:POSitive? QUERY Syntax: Short Form: [SOUR:]VOLT[:LEV]:LIM:POS? <value> Long Form: [SOURce:]VOLTage[:LEVel]:LIMit:POSitive? <value> Description: Identifies the software limit value for positive output voltage specified by the user. VOLT:MODE B.111 [SOURce:]VOLTage:MODE COMMAND Syntax: Short Form: [SOUR:]VOLT:MODE (FIX | LIST | TRAN <nn> | EXT | GAIN | PROT | HALT) Long Form: [SOURce:]VOLTage:MODE (FIXed | LIST | TRANsient <nn>...

  • Page 219: Using Prot:lim:pos And Prot:lim:pos Commands To Set Asymmetrical Limits

    VOLT:PROT[:BOTH]? B.114 [SOURce:]VOLTage[:LEVel]:PROTect[:BOTH]? QUERY Syntax: Short Form: [SOUR:]VOLT[:LEV]:PROT[:BOTH]? Long Form: [SOURce:]VOLTage[:LEVel]:PROTect[:BOTH]? Returns <exp_value>,<exp_value> Description: Identifies the protection limits for voltage (positive, negative); maximum is 1% greater than rated out- put voltage. NOTE: The power supply is assumed to be operating in constant voltage mode. VOLT:PROTECT:LIMIT:POS 5 Sets positive voltage protection limit to +5V.

  • Page 220: B.119 [Source:]Voltage[:Level]:Protect:positive Command

    VOLT:PROT:POS B.119 [SOURce:]VOLTage[:LEVel]:PROTect:POSitive COMMAND Syntax: Short Form: [SOUR:]VOLT[:LEV]:PROT:POS <exp_value> Long Form: [SOURce:]VOLTage[:LEVel]:PROTect:POSitive <exp_value> where <value> is between minimum (box) value (Figure 1-3) and 1% above rated (nominal) output voltage. Description: Establishes the positive protection limit for voltage; maximum is 1% greater than rated output voltage. VOLT:PROT:POS? B.120 [SOURce:]VOLTage[:LEVel]:PROTect:POSitive? QUERY Syntax:...

  • Page 221: B.126 [Source:]Voltage[:Level]:Protect:limit:positive? Query

    B.126 [SOURce:]VOLTage[:LEVel]:PROTect:LIMit:POSitive? QUERY VOLT:PROT:LIM:POS? Syntax: Short Form: [SOUR:]VOLT[:LEV]:PROT:LIM:POS? Long Form: [SOURce:]VOLTage[:LEVel]:PROTect:LIMit:POSitive? Returns: <exp_value> Description:Identifies the maximum value possible for the positive protection limit for voltage. VOLT:TRIG B.127 [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPlitude] COMMAND Syntax: Short Form: [SOUR:]VOLT[:LEV]:TRIG[:AMP] <exp_value> Long Form: [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPlitude] <exp_value> <exp_value> = digits with decimal point and Exponent, e.g., 2.71E1 for 27.1 Description: Programs voltage value to be transferred to output by *TRG command.

  • Page 222: B.132 Status:operation[:Eventi ] Query

    STAT:OPER? B.132 STATus:OPERation[:EVENti] QUERY Syntax: Short Form: STAT:OPER[:EVEN]? Long Form: STATus:OPERation[:EVENt]? Return Value: <int_value> Description: Indicates changes in conditions monitored by Operational Event Register (see Table B-4). Returns the value of the Operation Event register. The Operation Event register is a read-only register which holds (latches) all events that occur.

  • Page 223: Using Status Commands And Queries

    NOTES: 1. The power supply is assumed to be operating in constant voltage (CV) mode. 2 Examples below are intended only to illustrate command functions. Refer to PAR. 3.5.2 for programming techniques to optimize performance. OUTP:ON Sets output on. STAT:PRES Operation Condition and Questionable Condition registers are reset.

  • Page 224: B.138 System:beep Command

    SYST:BEEP B.138 SYSTem:BEEP COMMAND Syntax: Short Form: SYST:BEEP Long Form: SYSTem:BEEP Description:Causes the unit to emit a brief audible tone SYST:COMM:GPIB:ADDR COMMAND  B.139 COMMunication SYST :GPIB:ADDR [MG MODELS ONLY] Syntax: Short Form: SYST:COMM:GPIB:ADDR<INT VAL> 0 to 30 Long Form: SYSTem:COMMunication:GPIB:ADDRess<INT VAL> 0 to 30 Description:Sets selected power supply GPIB address.

  • Page 225: B.146 System:communication:lan:ip? Query

    SYST:COMM:LAN:IP?  B.146 SYS COMMunication:LAN:IP? QUERY [ME MODELS ONLY] Syntax: Short Form: SYST:COMM:LAN:IP? Long Form: SYSTem:COMMunication:LAN:IP? Return Value: <int_value> {w,x,y,z} where w, x, y, and z are numbers from 0 to 255 Description: Indicates the static IP address (comma separated). SYST:COMM:LAN:MAC? ...

  • Page 226: B.153 System:communication:serial:echo Command

    SYST:COMM:SER:ECHO B.153 SYS COMMunication:SERial:ECHO COMMAND Syntax: Short Form: SYST:COMM:SER:ECHO {ON | OFF} or {01 | 00} Long Form: SYSTem:COMMunication:SERial:ECHO {ON | OFF} or {01 | 00} Description: Enables (ON) or disables (OFF) echo mode (see PAR. 3.5.6.2.2). Sending ON or 01 causes all sub- sequent characters to be echoed back.

  • Page 227: B.160 System:error:code? Query

    SYST:ERR:CODE? B.160 SYSTem:ERRor:CODE? QUERY Syntax: Short Form: SYST:ERR:CODE? Long Form: SYSTem:ERRor:CODE? Description: Returns the three character error code without the ASCII definition string. The error codes are defined in table B-6 (See example, Figure B-14.) SYST:ERR:CODE:ALL? B.161 SYSTem:ERRor:CODE:ALL? QUERY Syntax: Short Form: SYST:ERR:CODE:ALL? Long Form: SYSTem:ERRor:CODE:ALL? Return Value:...

  • Page 228: B.168 System:mdns:name? Query

    SYST:MDNS:NAME? B.168 SYSTem:MDNS:NAME? QUERY [ME MODELS ONLY] Syntax: Short Form: SYST:MDNS:NAME? Long Form: SYSTem:MDNS:NAME? Returns: string up to 12 ASCII characters Description: Returns MDNS host name. May be up to 12 ASCII characters. SYST:MODE B.169 SYSTem:MODE COMMAND Syntax: Short Form: SYST:MODE {BIP | UNIP} Long Form: SYSTem:MODE {BIPolar | UNIPolar} Description: Used to set mode to Bipolar (default) or Unipolar.

  • Page 229: B.176 System:remote? Query

    Description: Identifies whether unit is in remote mode (1) or local mode (0) during serial (RS 232) communi- cation. See PAR. 3.5.6.3 and Figure B-13. *IDN? Unit responds with KEPCO,BOP 50-20,E1234,1.66 (typical). OUTP? Unit responds with 0 indicating output is off SYST:REM? Unit responds with 0 indicating unit is in local mode.

  • Page 230: Using System Commands And Queries

    SYST:VERS? B.180 SYSTem:VERSion? QUERY Syntax: Short Form: SYST:VERS? Long Form: SYSTem:VERSion? Return Value: <int_value>.<int_value> (YYYY.V) Description: Identifies SCPI Version implemented. Returns SCPI Version number YYYY = year, V = Revision number for specified year. (See example, Figure B-14. SYST:VERS? Unit returns 1997 SYST:SET? Unit returns DC0,LF0,RL0,OUT0 SYST:PASS:NEW DEFAULT,OKAY...
  • Page 231 2yy02,”CROWBAR ACTIVE” in either the BOP power supply or an auxiliary 2yy03,”DEVICE TURNED OFF” power supply, such as Kepco’s MST, MAT, MBT or low power (under 1KW) BOP, connected to the 2yy04,\”CURRENT FAULT” BITBUS. The last two digits of the error code indi- 2yy05,”POWER LOSS”...
  • Page 232 TABLE B-6. ERROR MESSAGES (CONTINUED) ESR ERROR BIT SET ERROR MESSAGE EXPLANATION (SEE PAR. A.5) -240,“Hardware error” Execution error bit 4 Power supply did not respond to command. Execution error bit 4 External Reference not supported. -241,”Hardware missing; External Reference not supported”...
  • Page 233 . Repeat for all parameters, then to exit or to save for power-up (see PAR. 3.3.8). KEPCO, INC.  131-38 SANFORD AVENUE  FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000  FAX (718) 767-1102 http://www.kepcopower.com   email: hq@kepcopower.com ©2005, KEPCO, INC...
  • Page 234 +Voltage Max, -Voltage Min, +Current Max or -Current Min as desired, , press CLEAR to set to zero, then to exit or to save for power-up (see PAR. 3.3.3.1). Can I further customize the configuration? Yes, contact Kepco for further information.
