- Page 1 MANUAL ENGLISH Infinity iB-16R Ordercode: 41532 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Installing the Lamp ..............................10 Lamp Adjustment ...............................11 Lock / Unlock the Moving-head ..........................11 Set Up and Operation ..............................11 Control Modes ................................12 One Infinity (Stand-alone) ............................12 Multiple Infinitys (Master/Slave control) .......................12 Multiple Infinitys (DMX control) ..........................13 Fixture Linking ................................14 Data Cabling ................................14 Control Panel ................................15... -
Page 3: Ordercode: 41532
Infinity iB-16R Product Specifications ..............................39 Dimensions ..................................40 Notes ....................................41 Ordercode: 41532... -
Page 4: Warning
Infinity iB-16R Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 For replacement use fuses of same type and rating only. The user is responsible for correct positioning and operating of the iB-16R. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 6: Operating Determinations
Infinity iB-16R Operating Determinations This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light output and the illuminated surface must be bigger than 23 meters. -
Page 7: Connection With The Mains
Infinity iB-16R The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a mounting bracket and a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 8: Return Procedure
Infinity iB-16R Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 9: Description Of The Device

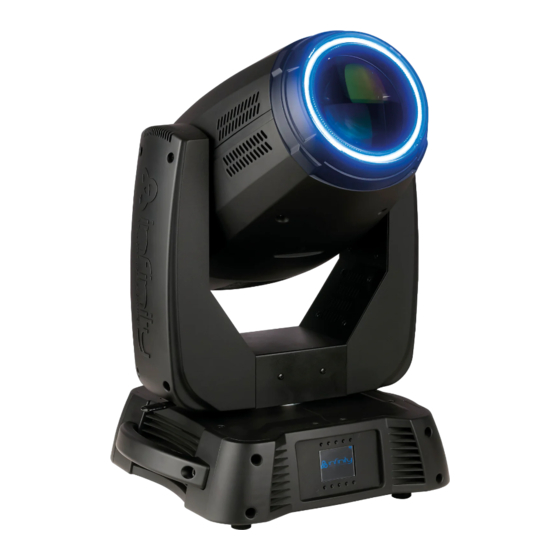

Infinity iB-16R Description of the device Features The Infinity iB-16R is a moving head effect with high output and great effects. Input voltage: 100-240V, 60/50Hz Power consumption: 520W DMX channels: 26, 31 channels Light source: Osram Sirius 330W, X8, 8000K ... -
Page 10: Backside
Infinity iB-16R Backside Fig. 02 03) 5-pin DMX signal connector IN 04) 5-pin DMX signal connector OUT 05) Power switch ON/OFF 06) Ground/earth connection 07) Fuse F10AL/250V 08) PowerCON power connector 100-240V IN 09) 3-pin DMX signal connector OUT 10) 3-pin DMX signal connector IN... -
Page 11: Installation
Infinity iB-16R Installation Remove all packing materials from the Infinity iB-16R. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 12: Lamp Adjustment
Infinity iB-16R Lamp Adjustment You can adjust the lamp’s position by turning the 2 screws G, H. The lamp position is set in the factory. As the lamps, which can be used, differ from manufacturer to manufacturer, it can be necessary to readjust the position. -
Page 13: Control Modes
02) Plug the end of the electric mains power cord into a proper electric power supply socket. 03) When the Infinity is not connected with a DMX cable, it functions as a stand-alone device. Please see pages 18-23 for more information about the Stand-alone mode. -
Page 14: Multiple Infinitys (Dmx Control)
02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin/5-pin XLR cable to connect the Infinity and other devices. 04) Link the units as shown in fig. 07. Connect the first unit's DMX "out" socket with the second unit's "in"... -
Page 15: Fixture Linking
Infinity iB-16R Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 16: Control Panel
When using multiple Infinitys, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity should be 1+31=32 (032); the DMX address of the third Infinity should be 32+31=63 (063), etc. -
Page 17: Menu Overview
Infinity iB-16R Menu Overview Ordercode: 41532... - Page 18 Infinity iB-16R Ordercode: 41532...
-
Page 19: Main Menu Options
Infinity iB-16R Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Setting Mode Address Setting Left Infinity Logo Right 1. DMX Addressing With this menu you can set the DMX address. -
Page 20: Edit Mode
Infinity iB-16R 2. Edit Mode With this menu you can set your desired mode. 01) Press the button or press the buttons to select 02) Press the button, to confirm. You can choose one of the 3 available modes. 03) Press the... -
Page 21: Lamp Settings
Infinity iB-16R 04) Once you have selected the desired mode, press the button to proceed to edition. 05) Press the buttons to change the value from NO to YES. 06) Two menus have different options to the regular, YES or NO function: ... -
Page 22: Reset
Infinity iB-16R 3.3. Reset With this menu you can reset the device’s settings. 01) In SETTINGS menu, press the buttons to select RESET FUNCTION and press the button to open the menu. 02) Press the buttons to choose one of the 6 options: ... -
Page 23: Test Menu
Infinity iB-16R 5. Test Menu With this menu you can set your desired mode. 01) Press the button or press the buttons to select 02) Press the button to enter the menu. 03) Press the buttons to choose one of the 2 modes: ... -
Page 24: System Information
Infinity iB-16R 6. System information With this menu you can set your desired mode. 01) Press the button or press the buttons to select 02) Press the button to enter the menu. 03) The following screen will pop up: 04) You can now monitor the device’s current software version, current active mode, current DMX starting address, current temperature, total operation time counter and time counter. - Page 25 Infinity iB-16R Channel 8 – Ring Red CH6-7 must be open 0-255 Gradual adjustment Red, from dark to brightest Channel 9 – Ring Green CH6-7 must be open 0-255 Gradual adjustment Green, from dark to brightest Channel 10 – Ring Blue...
- Page 26 Infinity iB-16R Channel 14 – Static Gobo wheel CH11 and CH12 must be open Open Gobo 1 Gobo 2 10-12 Gobo 3 13-15 Gobo 4 16-18 Gobo 5 19-21 Gobo 6 22-24 Gobo 7 25-27 Gobo 8 28-30 Gobo 9...
- Page 27 Infinity iB-16R 192-255 Counterclockwise gobo flow, from slow to fast Channel 16 – Gobo rotation 0-63 Gradual gobo rotation 64-147 Clockwise gobo rotation, from slow to fast 148-231 Counterclockwise gobo rotation, from slow to fast 232-255 Gobo bounce effect Channel 17 – Focus...
-
Page 28: Channels
Infinity iB-16R Channel 26 – Functions 0-29 Not functional 30-39 Regular dimmer mode 40-49 Linear dimmer mode 50-59 P/T fast mode 60-69 P/T regular 70-79 P/T blackout ON 80-89 P/T blackout OFF 90-99 Color wheel blackout ON 100-109 Color wheel blackout OFF... - Page 29 Infinity iB-16R Channel 8 – Ring Red CH6-7 must be open 0-255 Gradual adjustment Red, from dark to brightest Channel 9 – Ring Green CH6-7 must be open 0-255 Gradual adjustment Green, from dark to brightest Channel 10 – Ring Blue...
- Page 30 Infinity iB-16R Channel 15 – Static Gobo wheel CH11 and CH13 must be open Open Gobo 1 Gobo 2 10-12 Gobo 3 13-15 Gobo 4 16-18 Gobo 5 19-21 Gobo 6 22-24 Gobo 7 25-27 Gobo 8 28-30 Gobo 9...
- Page 31 Infinity iB-16R 192-255 Counterclockwise gobo flow, from slow to fast Channel 17 – Gobo rotation 0-63 Gradual gobo rotation 64-147 Clockwise gobo rotation, from slow to fast 148-231 Counterclockwise gobo rotation, from slow to fast 232-255 Gobo bounce effect Channel 18 – Focus...
- Page 32 Infinity iB-16R Channel 28 – Beam diffraction Not functional 8-255 Beam diffraction ON Channel 29 – Functions 0-29 Not functional 30-39 Regular dimmer mode 40-49 Linear dimmer mode 50-59 P/T fast mode 60-69 P/T regular 70-79 P/T blackout ON 80-89...
-
Page 33: Channel Settings
Infinity iB-16R 216-223 Program 27 224-231 Program 28 232-239 Program 29 240-247 Program 30 248-255 Program 31 Channel 31 – Built-in program speed CH30 must be open 0-255 From fast to slow Channel Settings Ordercode: 41532... -
Page 34: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The iB-16R requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 35: Gobo Size
Infinity iB-16R Gobo Size 01) Disconnect mains power supply and set the switch to OFF. 02) Make sure that the gobo which you want to insert has the same size. For the right size, see below. Fig. 09 Replacing a gobo from the rotating gobo wheel Fig. -
Page 36: Glass Gobo Orientation
Infinity iB-16R 05) Gently lift up the gobo holder 10º and then gently pull out the gobo from its position. Fig. 11 06) Very carefully take the gobo out of the gobo holder with a pair of pliers. 07) Place the new gobo in the gobo holder. Carefully put the pinchcock back, gently press the pinchcock a little bit together. -
Page 37: Rotating/Static Gobo Wheels And Color Wheel
Infinity iB-16R Rotating/Static Gobo wheels and Color wheel Static Gobo wheel Rotating Gobo wheel Color wheel Ordercode: 41532... -
Page 38: Troubleshooting
04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Infinity, as this may damage the unit and the warranty will become void. - Page 39 Infinity iB-16R Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 40: Product Specifications
Infinity iB-16R Product Specifications Model: Infinity iB-16R Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 520W (full output) DMX linking: 30pcs Fuse: F10AL/250V Dimensions: 430 x 405 x 640 mm (LxWxH) Weight: 26 kg Operating and Programming: Signal pin OUT: Pin 1 (earth), pin 2 (-), pin 3 (+) -
Page 41: Dimensions
Infinity iB-16R Dimensions Ordercode: 41532... -
Page 42: Notes
Infinity iB-16R Notes Ordercode: 41532... - Page 43 Infinity iB-16R Ordercode: 41532...
- Page 44 ©2015 Infinity...
