Infinity iB-16R

Lamp Adjustment

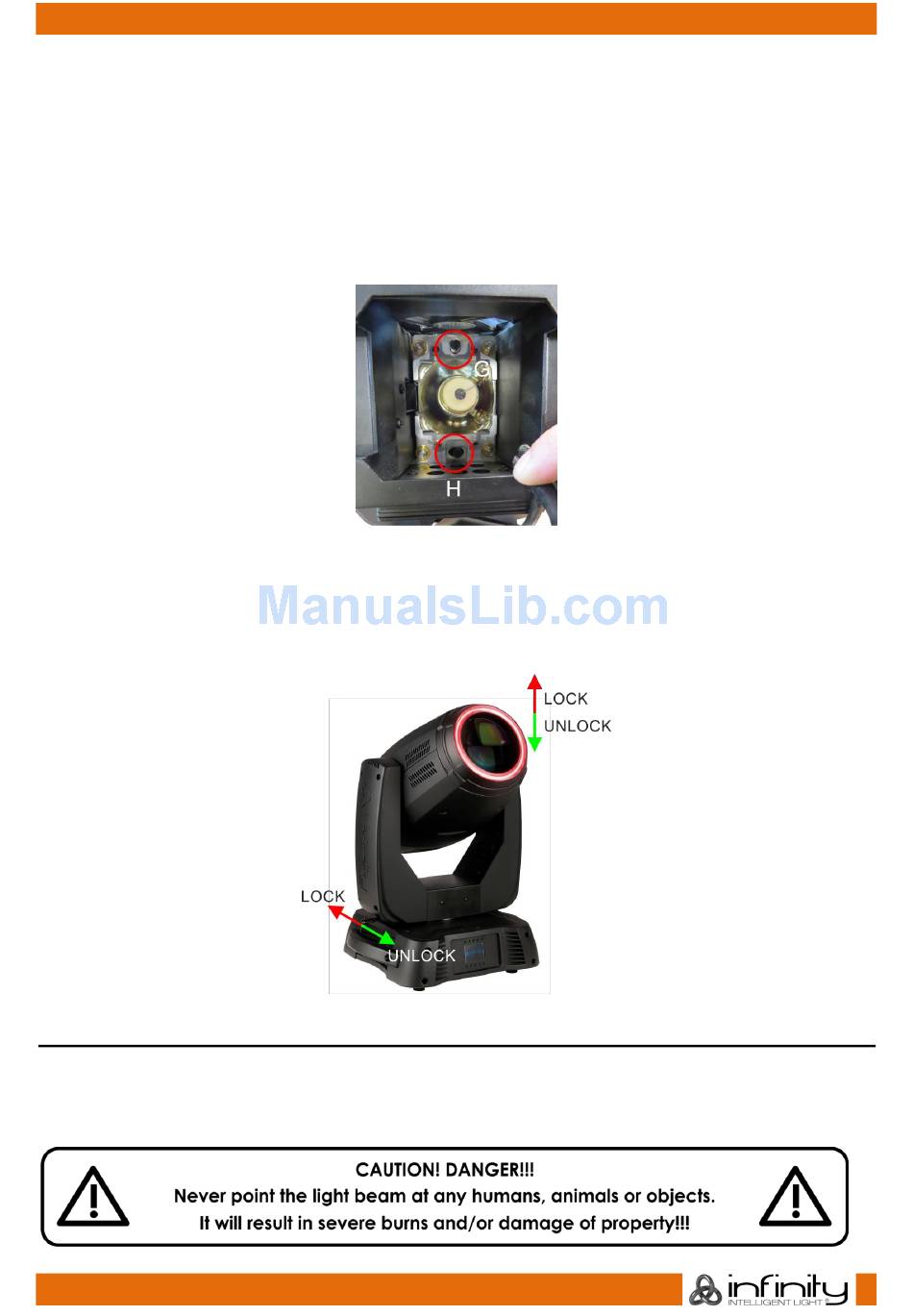

You can adjust the lamp's position by turning the 2 screws G, H. The lamp position is set in the factory. As
the lamps, which can be used, differ from manufacturer to manufacturer, it can be necessary to readjust
the position. The lamp must be readjusted e.g., if the light does not seem to be evenly distributed within
the ray of light. Ignite the lamp and focus the ray of light on an even surface (wall). As the optimal
distance between the lamp and the lens was already set during the installation. Only the "Hot Spot" ( the
brightest part of the ray of light) must be centered. If the Hot Spot appears too bright, you can weaken its
intensity, by moving the lamp closer to the reflector. Turn in addition all screws, until the light is evenly
distributed. If the light at the outside edge of the ray of light appears brighter as in the center, the lamp is
too close to the reflector. In this case move the lamp away from the reflector, until the light is evenly
distributed and the ray of light appears bright enough.

Lock / Unlock the Moving-head

You can lock the moving head by sliding the lock pin to the left (horizontally) for Pan or up ( vertically) for
Tilt (Red arrows). You can unlock the moving head by sliding the lock pin to the right (horizontally) for Pan
or down ( vertically) for Tilt (Green arrows).

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply.
Ordercode: 41532
11
Fig. 04
Fig. 05
