Infinity iB-16R
Backside

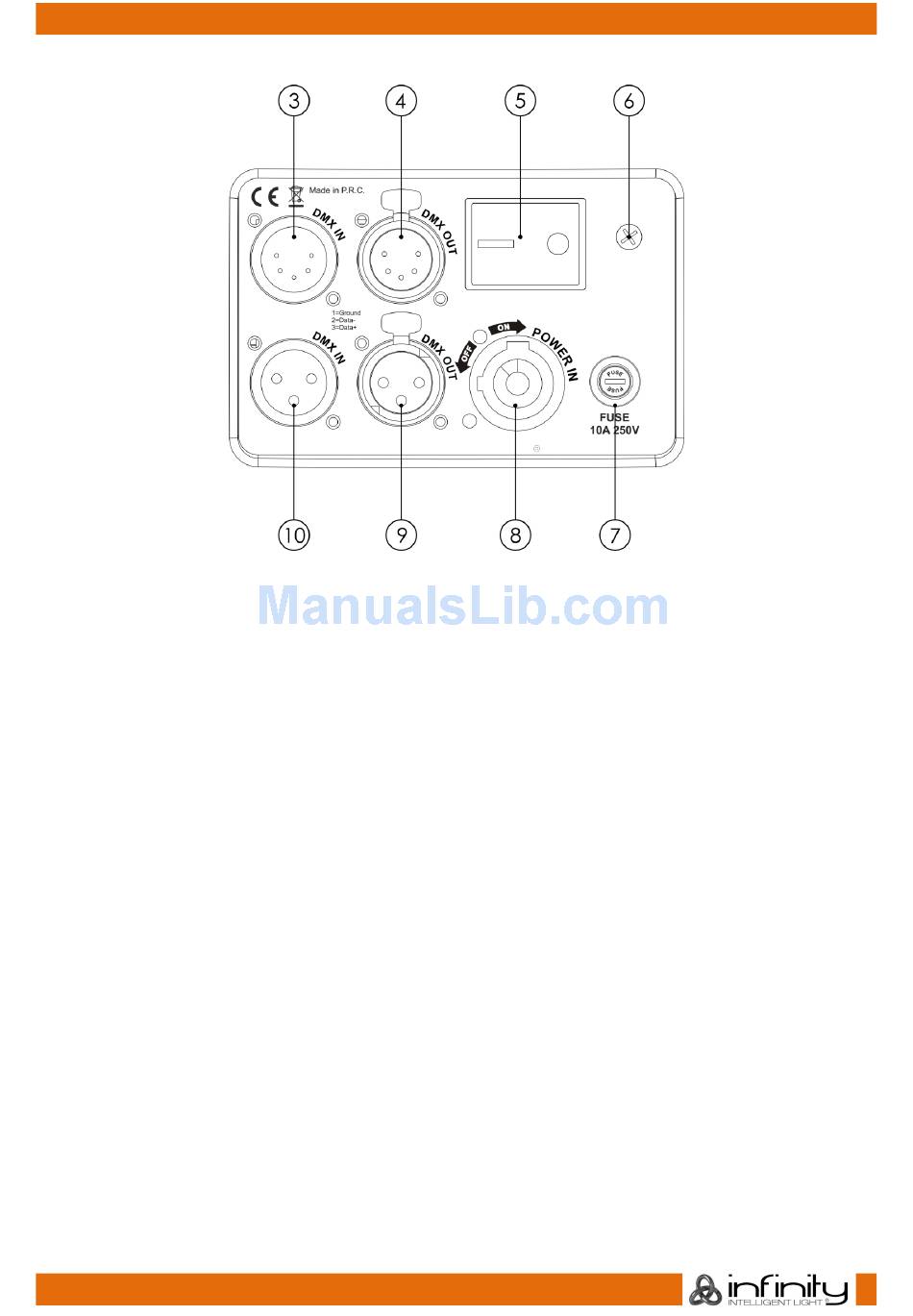

Fig. 02
03) 5-pin DMX signal connector IN
04) 5-pin DMX signal connector OUT
05) Power switch ON/OFF
06) Ground/earth connection
07) Fuse F10AL/250V
08) PowerCON power connector 100-240V IN
09) 3-pin DMX signal connector OUT
10) 3-pin DMX signal connector IN
Ordercode: 41532
