Infinity iB-16R

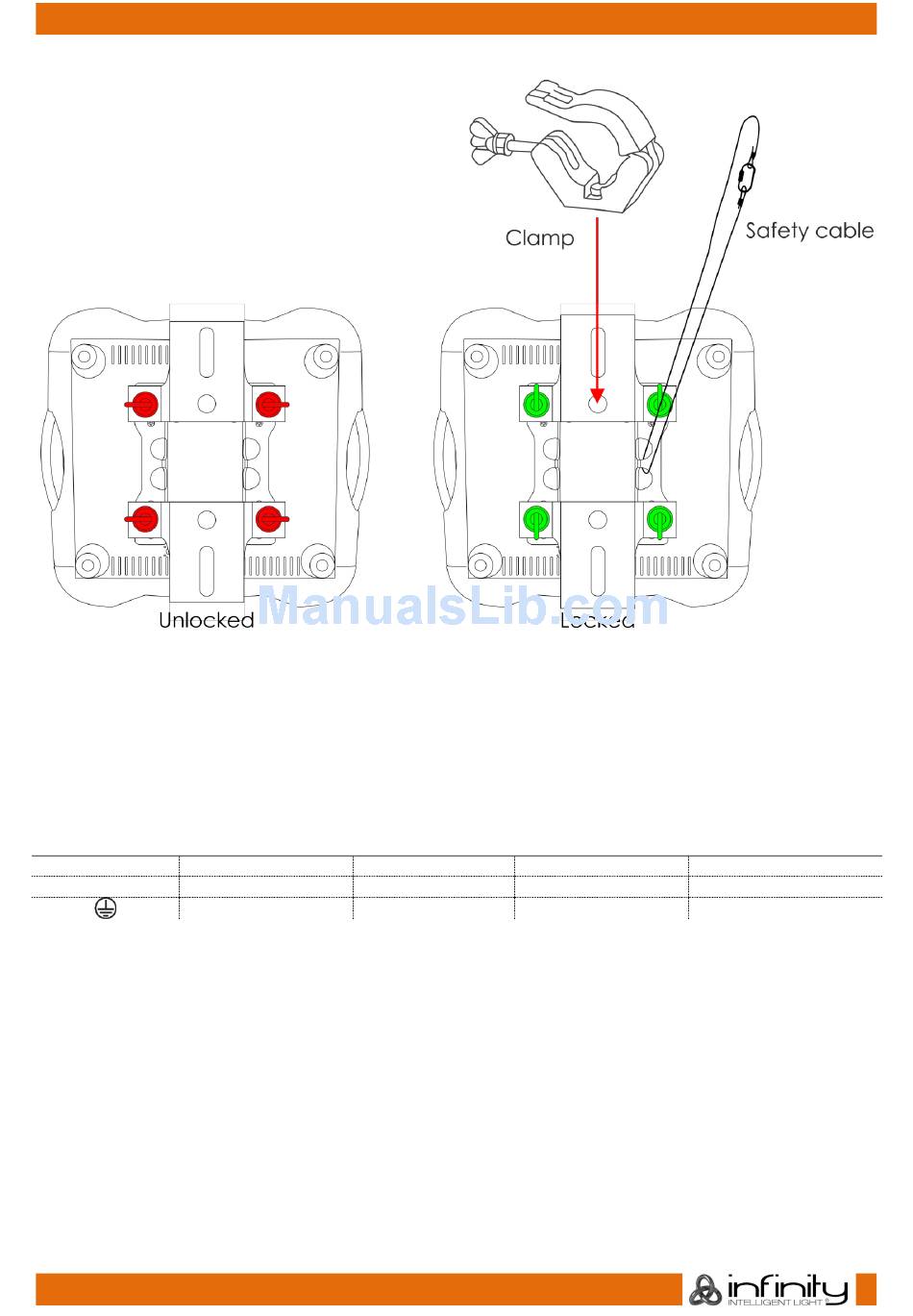

The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a mounting bracket
and a clamp.
Improper installation can cause serious injuries and/or damage of property!

Connection with the mains

Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
International EU Cable UK Cable US Cable Pin
BROWN RED YELLOW/COPPER PHASE
L
BLUE BLACK SILVER NEUTRAL
N
YELLOW/GREEN GREEN GREEN PROTECTIVE GROUND
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!
Ordercode: 41532
6
