Infinity Furion B402 Beam User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

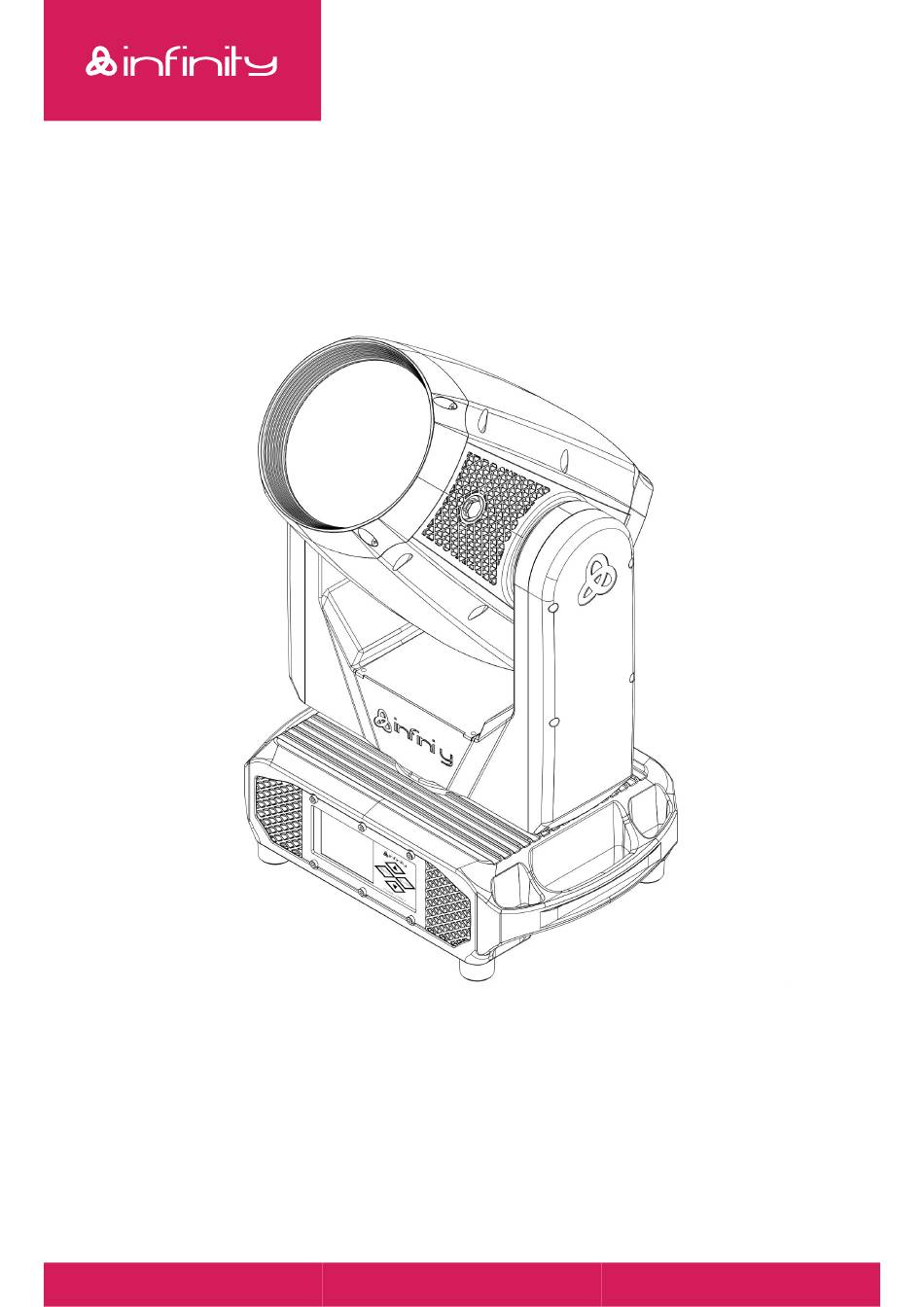

USER MANUAL
ENGLISH
V1.0
Furion B402 Beam
Product code: 41430
c
c
c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Furion B402 Beam and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infinity Furion B402 Beam

Summary of Contents for Infinity Furion B402 Beam

  • Page 1 USER MANUAL ENGLISH V1.0 Furion B402 Beam Product code: 41430...
  • Page 2 Furion B402 Beam Preface Thank you for purchasing this Infinity product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.

  • Page 3: Table Of Contents

    Furion B402 Beam Table of contents 1. Introduction ............................
  • Page 4 Furion B402 Beam 6.7.1. DMX Address ........................

  • Page 5: Introduction

    After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Infinity Furion B402 Beam • • Schuko to Power Pro True cable (1,5 m) • •...

  • Page 6: Symbols And Signal Words

    Furion B402 Beam 1.5. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury.

  • Page 7: Safety

    Furion B402 Beam Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions...
  • Page 8 Furion B402 Beam WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. WARNING Possible eye damage caused by high light intensity Possibly hazardous optical radiation emitted from this device.
  • Page 9 Furion B402 Beam Attention Risk of fire The distance between the device and the lighted object should be at least 2 m. • • Do not aim the device towards flammable materials. • • Do not cover the LEDs or lens.

  • Page 10: Requirements For The User

    Furion B402 Beam Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP65 rated. IP (Ingress Protection) 65 class means that the device is dust-tight and protected against harmful effect of water jets.

  • Page 11: Description Of The Device

    Description of the Device The Infinity Furion B402 Beam is an IP65-rated moving head with a 310 W discharge lamp, a precise 0,6° beam angle and a large front lens. This device has a color wheel with 14 colors, plus an open position, and a static gobo wheel with 17 gobos.

  • Page 12: Back View

    Furion B402 Beam 3.2. Back View Figure 3 Lamp cover Protective vent (M12x1,5) IP65-rated RJ45 connector IP65-rated RJ45 connector IP65-rated Seetronic power connector OUT IP65-rated Seetronic power connector IN Fuse (F8 AL, 250 V) IP65-rated 5-pin DMX signal connector IN...

  • Page 13: Product Specifications

    Furion B402 Beam 3.4. Product Specifications Model: Furion B402 Beam Source: Light source type Discharge  Light source quantity 1  Light source power 310 W Life expectancy 3000 h Illuminance @ 5 m 1.844.589 lx Luminous flux (total) 33344 lm 76,2  6900 K Optical: Beam angle minimum (circular) 0,6°...
  • Page 14 Furion B402 Beam Power Connector IN Power Pro True  Power Connector OUT Power Pro True  DMX Connector XLR 5P IN/OUT  DMX Connector IN XLR 5P  DMX Connector OUT XLR 5P  Data Connector etherCON IN/OUT Data Connector IN RJ45  Data Connector OUT RJ45 ...

  • Page 15: Effect Wheels

    Furion B402 Beam 3.5. Effect Wheels 3.5.1. Color Wheel Figure 5 3.5.2. Static Gobo Wheel Figure 6 Product code: 41430...

  • Page 16: Dimensions

    • 81019 Ushio NSL300 (12R) Replacement lamp for Phantom 12R, Furion B402 • • D7275 Case for 4x Furion B402 Beam • • 41549 Infinity IP Tester for Furion Contact your Highlite International dealer for more information. Product code: 41430...

  • Page 17: Installation

    Furion B402 Beam Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing.
  • Page 18 Furion B402 Beam Figure 9 Figure 10 04) Attach the device to the supporting structure. Make sure that the device cannot move freely. 05) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device.

  • Page 19: Lock/Unlock The Device

    Furion B402 Beam 4.5. Lock/Unlock the Device The device has a locking mechanism on the yoke and on the base. • • To unlock the device, slide the base locking mechanism (18) to the the right or slide the yoke locking mechanism (03) downwards.

  • Page 20: Connecting To Power Supply

    Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: • • at 100–120 V: 4 devices Furion B402 Beam • • at 200–240 V: 8 devices Furion B402 Beam Product code: 41430...

  • Page 21: Setup

    5.2. Stand-alone Setup When the Furion B402 Beam is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually via the control panel or in auto mode. For more information refer to Control Modes (see 6.2.

  • Page 22: Dmx Linking

    Furion B402 Beam Figure 12 5.3.3. DMX Linking To connect multiple devices on one DMX data link, follow the steps below: 01) Use a 5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the 1 device.

  • Page 23: Dmx Addressing

    04) Continue assigning the starting addresses of the remaining devices by adding each time 20 to the previous number. Make sure that you do not have any overlapping channels in order to control each Furion B402 Beam correctly. If two or more devices are addressed similarly, they will work similarly.

  • Page 24: Ethernet Connection

    Furion B402 Beam 5.5. Ethernet Connection 5.5.1. Art-Net/sACN Protocol Art-Net is a protocol that uses TCP/IP to transfer a large amount of DMX-512 data over an Ethernet network. Art- Net 4 can support up to 32768 universes. Art-Net™ is designed by and copyright of Artistic Licence Holdings Ltd.

  • Page 25: Art-Net/Sacn Linking

    Furion B402 Beam 5.5.3. Art-Net/sACN Linking To connect multiple devices on one Art-Net/sACN data link, follow the steps below: 01) Use a CAT-5/CAT-6 cable to connect the RJ45 connector of the computer/lighting controller to one of the RJ45 connectors of the 1 device.

  • Page 26: Operation

    Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. 6.2. Control Modes The Furion B402 Beam supports the following control modes: • • Stand-alone: Stand-alone mode (built-in programs), manual control •...

  • Page 27: Control Panel

    After the device is connected to power supply, the device will perform a reset. During the reset the display shows a splash screen with the Infinity logo and the name of the device: During the reset procedure it is possible to enter the menu to change the DMX address.

  • Page 28: Display Lock

    Furion B402 Beam I. DMX starting address of the device. • • If the DMX connection is lost or the device is not connected, the DMX starting address is red. • • If the device is receiving DMX signal, the DMX starting address is white.

  • Page 29: Unlocking Without Password

    Furion B402 Beam 6.5.2. Unlocking without Password 6.5.2.1. Option 1 Press the ENTER button to unlock the device. The display shows: 6.5.2.2. Option 2 01) Press the MENU button. 02) Press the ENTER button to unlock the device. The display shows: 6.5.3.

  • Page 30: Menu Overview

    Furion B402 Beam 6.6. Menu Overview Level 1 Level 2 Level 3 Level 4 Address (see 6.7.1. DMX Address Address Setting 001–512 page 34) Screen Reverse AUTO Pan Reverse Tilt Reverse Pan Angle Tilt Angle Auto Pan Invert Backlight Timer...
  • Page 31 Furion B402 Beam Level 1 Level 2 Level 3 Level 4 State/Power on Off Via Dmx On If Dmx On Off If Dmx Off Ignition Delay 000–255 Low Power Delay 000–255 Reset Lamp Time Interval 10–250 Special Set RESET Remain Time...
  • Page 32 Furion B402 Beam Level 1 Level 2 Level 3 Level 4 Factory Settings Stand Alone (see 6.7.3. Stand Alone Program Number 1–9 page 40) WDMX Control Mode ArtNet sACN Basic Personality Advance User NO/1~Advance Num      Pan Fine NO/1~Advance Num Tilt...
  • Page 33 Furion B402 Beam Level 1 Level 2 Level 3 Level 4 Prism1 Rotate 000–255 Prism1 Rotate Fine 000–255 Prism2 000–255 Prism2 Rotate 000–255 Prism2 Rotate Fine 000–255 Focus 000–255 Focus Fine 000–255 Frost 000–255 Control 000–255 V2. XXXXXX Running Mode...
  • Page 34 Furion B402 Beam Level 1 Level 2 Level 3 Level 4 Shutter 000–255 Color 000–255 Gobo 000–255 Prism1 000–255 Prism1 Rotate 000–255 Prism1 Rotate Fine 000–255 Prism2 000–255 Prism2 Rotate 000–255 Prism2 Rotate Fine 000–255 Focus 000–255 Focus Fine 000–255 Frost 000–255...

  • Page 35: Main Menu Options

    Furion B402 Beam 6.7. Main Menu Options The main menu has the following 6 options: DMX Address Settings Menu Stand Alone Control Mode Manual Control Information 01) Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus.

  • Page 36: Settings Menu

    Furion B402 Beam 6.7.2. Settings Menu In this menu you can adjust the settings of the device. 01) Press the UP/DOWN buttons to scroll through the 21 available options: • • Screen Reverse: Rotate the text on the display 180° when the device is mounted upside down (NO/YES/AUTO).

  • Page 37: Network Setup

    Furion B402 Beam • • BL.O. P/T Move: The device will black out the light output when Pan/Tilt are active (NO/YES) • • BL.O. Color Move: The device will black out the light output during the color wheel movement (NO/ YES) •...

  • Page 38: Lock Code

    Furion B402 Beam 6.7.2.2. Lock Code In this submenu you can set a personal lock code or change the current lock code. 01) Press the UP/DOWN buttons to insert the master code: 6468: 02) Press the ENTER button to confirm.

  • Page 39: Lamp Setting

    Furion B402 Beam 6.7.2.3. Lamp Setting In this submenu you can adjust the lamp settings. 01) Press the UP/DOWN buttons to scroll through the 8 available options: • • On/Off: Set the lamp setting at start-up (ON/OFF) • • State/Power on: The lamp turns on when the device is powered up (ON/OFF) •...

  • Page 40: Remain Time

    Furion B402 Beam 02) Press the UP/DOWN buttons to increase/decrease the values.The values are in hours. 03) Press the ENTER button to confirm the selection. 6.7.2.4.2. Remain Time In this submenu you can reset the remaining time, counting down from the Interval time.

  • Page 41: Reset Function

    Furion B402 Beam 6.7.2.6. Reset Function In this submenu you can reset the settings of the device. 01) Press the UP/DOWN buttons to scroll through the 6 available options: • • Pan/Tilt: Reset Pan/Tilt (NO/YES) • • Shutter/Prism: Reset Shutter/Prism (NO/YES) •...

  • Page 42: User Personality

    Furion B402 Beam • • Personality: Basic (15 channels), Advance (20 channels), User (up to 20 channels) • • User Personality (see 6.7.4.1. User Personality) 02) Press the ENTER button to confirm the selection. 6.7.4.1. User Personality In this menu you can customize the device by changing the order of the 20 DMX channels and/or leaving some channels out.

  • Page 43: Manual Test

    Furion B402 Beam 6.7.5.2. Manual Test In this submenu you can test each function of the device individually or as a group. It is possible to customize the device by changing the value of each function manually. These functions are the same as the 20 DMX channels in Advance personality.

  • Page 44: Fixture Info

    Furion B402 Beam 6.7.6.1. Fixture Info In this submenu you can view the currently installed firmware version, operation mode, DMX address and other parameters of the device. Press the UP/DOWN buttons to see all available parameters. • • Ver: Shows the current software version •...

  • Page 45: Error Info

    Furion B402 Beam • • FAN3 Speed: Shows the current speed of the defrost fan • • J FAN1 Speed: Shows the current speed of fan 1 • • J FAN2 Speed: Shows the current speed of fan 2 •...

  • Page 46: Dmx Channels

    Furion B402 Beam 6.8. DMX Channels 6.8.1. DMX Channels Overview Basic Advance Function Setting Default Highlight 15 CH 20 CH Value 000–255 0°–540° 000–255 Fine positioning Pan Fine 16-bit 000–255 0°–260° Tilt 000–255 Fine positioning Tilt Fine 16-bit 000–255 From fast to slow Pan/Tilt Speed 000–255 0–100 %...

  • Page 47: Basic (15 Channels), Advance (20 Channels)

    Furion B402 Beam 6.8.2. Basic (15 Channels), Advance (20 Channels) Basic Advance Function Value Setting Color Control Type 15 CH 20 CH 000–255 Pan adjustment 0°–540° 000–255 Pan adjustment, 16-bit Pan Fine 000–255 Tilt adjustment 0°–260° Tilt 000–255 Tilt adjustment, 16-bit Tilt Fine 000–255 From fast to slow...
  • Page 48 Furion B402 Beam Basic Advance Function Value Setting Color Control Type 15 CH 20 CH 159–167 Color 11 + Color 12 proportional 168–176 Color 12 + Color 13 proportional 177–185 Color 13 + Color 14 proportional 186–194 Color 14 + white proportional 195–219 Color scroll, from fast to slow...
  • Page 49 Furion B402 Beam Basic Advance Function Value Setting Color Control Type 15 CH 20 CH 190–193 Stop step 194–255 Reverse gobo scroll, from slow to fast proportional 000–004 No function Prism 1 (8-facet 005–127 Prism effect (index) step Round) 128–255 Prism effect (rotating)
  • Page 50 Furion B402 Beam Basic Advance Function Value Setting Color Control Type 15 CH 20 CH 045–049 BO Color OFF step 050–054 BO Color ON step 055–059 BO Gobo OFF step 060–064 BO Gobo ON step 065–104 Reserved 105–109 DMX Fail: Hold step 110–114 DMX Fail: Off...

  • Page 51: Rdm Information

    Furion B402 Beam 6.9. RDM Information This device supports RDM (see 6.9.2. Supported RDM PIDs (Parameter IDs)). 6.9.1. RDM Details • • Responder ID: 29B4:0E2XXXXX • • Manufacturer's ID: Infinity (Highlite International B.V.) • • Manufacturer Label: Infinity • •...

  • Page 52: Troubleshooting

    Furion B402 Beam Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.

  • Page 53: Error Messages

    Furion B402 Beam The device is not connected to • • Create a wireless connection, refer to the transmitter, when the W-DMX Wireless Connection (see 5.4. Wireless indicator on the display of the Connection) device is gray. The device is trying to connect to •...

  • Page 54: Maintenance

    Furion B402 Beam Maintenance 8.1. Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. 8.2. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: •...

  • Page 55: Corrective Maintenance

    Furion B402 Beam 8.3. Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information.
  • Page 56 Furion B402 Beam 05) Remove the lamp cover (08), as shown in Fig. 19. 06) Disconnect the 2 orange lamp connectors from the lamp terminals, as shown in Fig. 20. Figure 19 Figure 20 07) Loose the 2 screws on the right side of the lamp with an H2,5 x 100 mm Allen screwdriver, as shown in Fig. 21  ...

  • Page 57: Replacing The Fuse

    8.3.3. Draining Condensation Water The Furion B402 Beam is IP65 rated. The device can resist water jets. If the device is exposed to extreme humid conditions during use, condensation may collect inside the device. This can happen also during transportation, if the device is exposed to extreme temperature variations.

  • Page 58: Deinstallation, Transportation And Storage

    Approval Hereby, Highlite International declares that the device Furion B402 Beam, product code 41430, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available on the respective product page on the website of Highlite International (www.highlite.com).
  • Page 59 Furion B402 Beam Product code: 41430...
  • Page 60 Infinity is a brand of Highlite International B.V.
