Infinity Furion S602 Spot User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

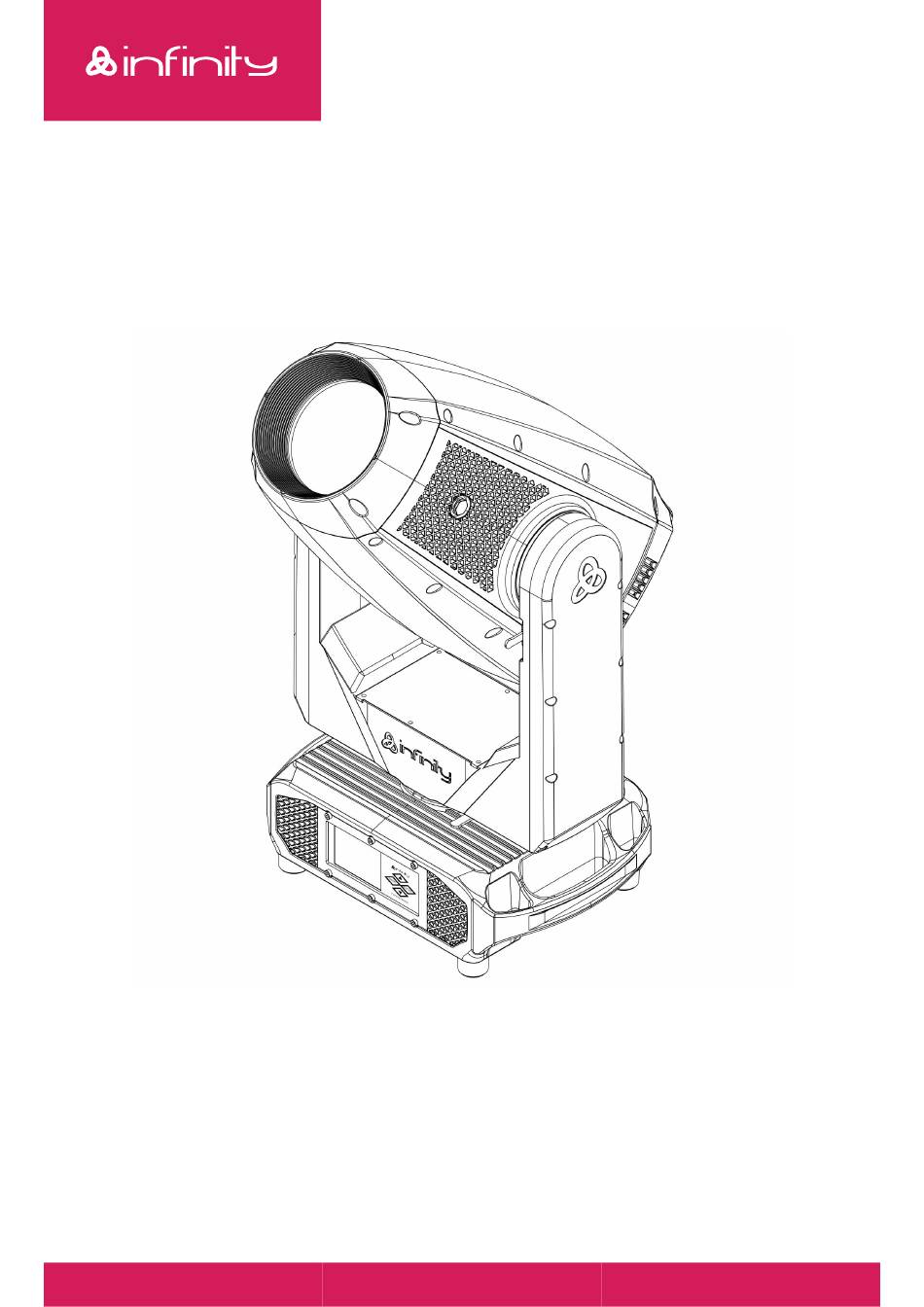

USER MANUAL
ENGLISH
V1.0
Furion S602 Spot
Product code: 41451
c
c
c

Advertisement

loading
Need help?

Need help?

Do you have a question about the Furion S602 Spot and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infinity Furion S602 Spot

Summary of Contents for Infinity Furion S602 Spot

  • Page 1 USER MANUAL ENGLISH V1.0 Furion S602 Spot Product code: 41451...
  • Page 2 Furion S602 Spot Preface Thank you for purchasing this Infinity product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.

  • Page 3: Table Of Contents

    Furion S602 Spot Table of contents 1. Introduction ............................
  • Page 4 Furion S602 Spot 6.6. Menu Overview ......................... .

  • Page 5: Introduction

    After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Infinity Furion S602 Spot • • Schuko to Power Pro True cable (1,5 m) • •...

  • Page 6: Symbols And Signal Words

    Furion S602 Spot 1.5. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury.

  • Page 7: Safety

    Furion S602 Spot Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions...
  • Page 8 Furion S602 Spot WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. WARNING Possible eye damage caused by high light intensity Possibly hazardous optical radiation emitted from this device.

  • Page 9: Requirements For The User

    Furion S602 Spot • • If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it on immediately. Let the device reach room temperature before switching it on, otherwise it may be damaged by the formed condensation.

  • Page 10: Description Of The Device

    Description of the Device The Infinity Furion S602 Spot is an IP65-rated moving head with a 600 W flat-field LED. This device has a motorized zoom that enables seamless transitions between a slender 6,3° beam and a wide 42,6° wash. This device has CMY + CTO color mixing capabilities, a color wheel with 7 colors plus an open position, a rotating gobo wheel with 7 gobos and a static gobo wheel with 9 gobos.

  • Page 11: Back View

    Furion S602 Spot 3.2. Back View Figure 3 Protective vent (M12x1,5) IP65-rated RJ45 connector IP65-rated RJ45 connector IP65-rated Seetronic power connector OUT IP65-rated Seetronic power connector IN Fuse (F15 AL, 250 V) IP65-rated 5-pin DMX signal connector IN IP65-rated 5-pin DMX signal connector OUT...

  • Page 12: Product Specifications

    Furion S602 Spot 3.4. Product Specifications Model: Furion S602 Spot Source: Light source type LED  Light source quantity 1  Light source power 600 W Refresh rate 600 Hz Refresh rate (max.) 15 kHz Luminous flux (total) 25162 lm 71,3  7400 K Optical: Beam angle minimum (circular) 6,3°...
  • Page 13 Furion S602 Spot Color system Color wheel CMY+CTO  Dichroic color wheel 1 7 + open Gobo system Glass + metal  Gobo wheel 1 7 + open Gobo wheel 2 9 + open Gobo size 25 mm Image diameter 18 mm Movement: 540° Tilt 260° Pan/Tilt resolution 16-bit ...

  • Page 14: Effect Wheels

    Furion S602 Spot 3.5. Effect Wheels 3.5.1. Color Wheel Figure 5 3.5.2. Rotating Gobo Wheel Figure 6 Product code: 41451...

  • Page 15: Static Gobo Wheel

    Furion S602 Spot 3.5.3. Static Gobo Wheel Figure 7 3.5.4. Animation Wheel Figure 8 Product code: 41451...

  • Page 16: Dimensions

    3.7. Optional Accessories You can additionally purchase the following accessory: • • D7280 Case for 2x Furion S602 Spot or P602 Profile • • 41549 Infinity IP Tester for Furion Contact your Highlite International dealer for more information. Product code: 41451...

  • Page 17: Installation

    Furion S602 Spot Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing.
  • Page 18 Furion S602 Spot Figure 11 Figure 12 04) Attach the device to the supporting structure. Make sure that the device cannot move freely. 05) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device.

  • Page 19: Lock/Unlock The Device

    Furion S602 Spot 4.5. Lock/Unlock the Device The device has a locking mechanism on the yoke and on the base. • • To unlock the device, slide the base locking mechanism (17) to the the right or slide the yoke locking mechanism (03) downwards.

  • Page 20: Connecting To Power Supply

    Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: • • at 100–120 V: 2 devices Furion S602 Spot • • at 200–240 V: 4 devices Furion S602 Spot Product code: 41451...

  • Page 21: Setup

    5.2. Stand-alone Setup When the Furion S602 Spot is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually via the control panel or in auto mode. For more information refer to Control Modes (see 6.2.

  • Page 22: Dmx Linking

    Furion S602 Spot Figure 14 5.3.3. DMX Linking To connect multiple devices on one DMX data link, follow the steps below: 01) Use a 5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the 1 device.

  • Page 23: Dmx Addressing

    04) Continue assigning the starting addresses of the remaining devices by adding each time 37 to the previous number. Make sure that you do not have any overlapping channels in order to control each Furion S602 Spot correctly. If two or more devices are addressed similarly, they will work similarly.

  • Page 24: Ethernet Connection

    Furion S602 Spot 5.5. Ethernet Connection 5.5.1. Art-Net/sACN Protocol Art-Net is a protocol that uses TCP/IP to transfer a large amount of DMX-512 data over an Ethernet network. Art- Net 4 can support up to 32768 universes. Art-Net™ is designed by and copyright of Artistic Licence Holdings Ltd.

  • Page 25: Art-Net/Sacn Linking

    Furion S602 Spot 5.5.3. Art-Net/sACN Linking To connect multiple devices on one Art-Net/sACN data link, follow the steps below: 01) Use a CAT-5/CAT-6 cable to connect the RJ45 connector of the computer/lighting controller to one of the RJ45 connectors of the 1 device.

  • Page 26: Operation

    Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. 6.2. Control Modes The Furion S602 Spot supports the following control modes: • • Stand-alone: Stand-alone mode (built-in programs), manual control •...

  • Page 27: Control Panel

    After the device is connected to power supply, the device will perform a reset. During the reset the display shows a splash screen with the Infinity logo and the name of the device: During the reset procedure it is possible to enter the menu to change the DMX address.

  • Page 28: Display Lock

    Furion S602 Spot I. DMX starting address of the device. • • If the DMX connection is lost or the device is not connected, the DMX starting address is red. • • If the device is receiving DMX signal, the DMX starting address is white.

  • Page 29: Unlocking Without Password

    Furion S602 Spot 6.5.2. Unlocking without Password 6.5.2.1. Option 1 Press the ENTER button to unlock the device. The display shows: 6.5.2.2. Option 2 01) Press the MENU button. 02) Press the ENTER button to unlock the device. The display shows: 6.5.3.

  • Page 30: Menu Overview

    Furion S602 Spot 6.6. Menu Overview Level 1 Level 2 Level 3 Level 4 Address (see 6.7. Main Menu Options Address Setting 001–512 on page 35) Screen Reverse AUTO Pan Reverse Tilt Reverse Pan Angle Tilt Angle Auto Pan Invert...
  • Page 31 Furion S602 Spot Level 1 Level 2 Level 3 Level 4 Manual IP Mode DHCP 000–255 Network Setup Universe 001–256 IP Address 002.243.075.222                 SubMask 255.000.000.000 Activate Lock Code                     Lock Code Enter Lock Code BL.O.P/T Move BL.O.Color Move BL.O.Gobo Move TILT...
  • Page 32 Furion S602 Spot Level 1 Level 2 Level 3 Level 4 Color/CMY Gobo/Gobo Rotate Frost/Animation Factory Settings Stand Alone (see 6.7.3. Stand Alone Program Number 1–9 page 41) WDMX Control Mode ArtNet sACN Basic Personality Advance User NO/1~Advance Num      Pan Fine...
  • Page 33 Furion S602 Spot Level 1 Level 2 Level 3 Level 4 Zoom Fine NO/1~Advance Num Iris NO/1~Advance Num Iris Fine NO/1~Advance Num Iris Macro NO/1~Advance Num Focus NO/1~Advance Num Focus Fine NO/1~Advance Num Focus Auto NO/1~Advance Num Frost NO/1~Advance Num...
  • Page 34 Furion S602 Spot Level 1 Level 2 Level 3 Level 4 Frost 000–255 Animation 000–255 Virtual Animation 000–255 Control 000–255 V2. XXXXXX Running Mode DMX Address Temperature Fixture Hours 00000 Fixture Information User Hours 00000 IP Address 002.243.075.222 SubMask 255.000.000.000 29B40E7XXXXX 34.29.8F.F3.4B.7F...
  • Page 35 Furion S602 Spot Level 1 Level 2 Level 3 Level 4 Gobo 000–255 Gobo Rotate 000–255 Gobo Rotate Fine 000–255 Gobo2 000–255 Prism 000–255 Prism Rotate 000–255 Prism Rotate Fine 000–255 Zoom 000–255 Zoom Fine 000–255 Iris 000–255 Iris Fine 000–255...

  • Page 36: Main Menu Options

    Furion S602 Spot 6.7. Main Menu Options The main menu has the following 6 options: DMX Address Settings Menu Stand Alone Control Mode Manual Control Information 01) Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus.

  • Page 37: Settings Menu

    Furion S602 Spot 6.7.2. Settings Menu In this menu you can adjust the settings of the device. 01) Press the UP/DOWN buttons to scroll through the 23 available options: • • Screen Reverse: Rotate the text on the display 180° when the device is mounted upside down (NO/YES/AUTO).

  • Page 38: Dimmer Curve

    Furion S602 Spot • • Wireless Unlink: Terminate the connection between the device and the transmitter (NO/YES) • • DMX Fail: Set the behavior of the device in case of a DMX failure. There are 2 options: OFF (the device will black out the light output) and HOLD (the device will use the last properly received DMX signal which ensures undisrupted performance) •...

  • Page 39: Pwm Option

    Furion S602 Spot 6.7.2.2. PWM Option In this submenu you can adjust the PWM (pulse-width modulation) frequency of the LEDs. 01) Press the UP/DOWN buttons to select one of the 6 options: • • 600 Hz • • 1200 Hz •...

  • Page 40: Lock Code

    Furion S602 Spot 6.7.2.5. Lock Code In this submenu you can set a personal lock code or change the current lock code. 01) Press the UP/DOWN buttons to insert the master code: 6468: 02) Press the ENTER button to confirm.

  • Page 41: Service Menu

    Furion S602 Spot 6.7.2.6. Service Menu In this submenu you can make fine adjustments of the home position of all moving parts or change the MAC address and the RDM identification number of the device. Note: If you forget your previously set personal lock code, you can still insert the master code: 6468 which overrides the personal code.

  • Page 42: Reset Function

    Furion S602 Spot 6.7.2.7. Reset Function In this submenu you can reset the settings of the device. 01) Press the UP/DOWN buttons to scroll through the 6 available options: • • Pan/Tilt: Reset Pan/Tilt (NO/YES) • • Iris/Prism: Reset Iris/Prism (NO/YES) •...

  • Page 43: Control Mode

    Furion S602 Spot 6.7.4. Control Mode In this menu you can set the control mode, personality and user personality. 01) Press the UP/DOWN buttons to scroll through the 3 available options: • • Control Mode: DMX, WDMX, Art-Net, sACN •...

  • Page 44: Auto Test

    Furion S602 Spot • • Manual Test (see 6.7.5.2. Manual Test) 02) Press the ENTER button to confirm the selection. 6.7.5.1. Auto Test In this submenu you can automatically run an auto test of the functions of the device. (If you have selected Auto Test in the previous menu and pressed the ENTER button) The device automatically runs an auto test of the functions of the device and the display shows: 6.7.5.2.

  • Page 45: Information

    Furion S602 Spot 6.7.6. Information In this menu you can view the parameters of the device. 01) Press the UP/DOWN buttons to scroll through the 4 available options: • • Fixture Info (see 6.7.6.1. Fixture Info) • • Fan Info (see 6.7.6.2.

  • Page 46: Fan Info

    Furion S602 Spot 6.7.6.2. Fan Info In this submenu you can view the parameters of the fans and other parameters of the device. Press the UP/DOWN buttons to see all available parameters. • • GFAN1 J26 Speed: Shows the current speed of gobo fan 1 •...

  • Page 47: Channel Info

    Furion S602 Spot 6.7.6.4. Channel Info In this submenu you can view the current value of all signal input channels. Press the UP/DOWN buttons to see all current channel values. Product code: 41451...

  • Page 48: Dmx Channels

    Furion S602 Spot 6.8. DMX Channels 6.8.1. DMX Channels Overview Basic Advance Function Setting Default Highlight 26 CH 37 CH Value 000–255 0°–540° 000–255 Fine positioning Pan Fine 16-bit 000–255 0°–260° Tilt 000–255 Fine positioning Tilt Fine 16-bit 000–255 From fast to slow Pan/Tilt Speed 000–255 0–100 %...

  • Page 49: Basic (26 Channels), Advance (37 Channels)

    Furion S602 Spot 6.8.2. Basic (26 Channels), Advance (37 Channels) Basic Advance Function Value Setting Color Control Type 26 CH 37 CH 000–255 Pan adjustment 0°–540° Pan Fine 000–255 Pan adjustment, 16-bit Tilt 000–255 Tilt adjustment 0°–260° Tilt Fine 000–255 Tilt adjustment, 16-bit Pan/Tilt Speed 000–255 From fast to slow...
  • Page 50 Furion S602 Spot Basic Advance Function Value Setting Color Control Type 26 CH 37 CH CTO-bit 000–255 Fine adjustment 000–009 No function CMY Macro 010–127 CMY preset proportional 128–255 CMY macro, fast to slow proportional 000–004 Open step 005–006 Gobo 1 (index) Astroids step 007–008 Gobo 2 (index) Psycho...
  • Page 51 Furion S602 Spot Basic Advance Function Value Setting Color Control Type 26 CH 37 CH gobo rotating selected - set by CH 13/19 000–014 No function 015–127 CW gobo rotating, fast to slow proportional Stop step 129–241 CCW gobo rotating, slow to fast proportional 242–255 Gobo swiveling, fast to slow...
  • Page 52 Furion S602 Spot Basic Advance Function Value Setting Color Control Type 26 CH 37 CH 242–255 Prism swiveling, fast to slow proportional Prism rotating 16-bit 000–255 Fine adjustment Zoom 000–255 Wide to narrow Zoom 16-bit 000–255 Fine adjustment Iris 000–255 Big to small Iris 16-bit 000–255 Fine adjustment...
  • Page 53 Furion S602 Spot Basic Advance Function Value Setting Color Control Type 26 CH 37 CH 132–255 Fade effect, slow to fast proportional 000–004 No function 005–009 Pan reverse step 010–014 Pan normal step 015–019 Tilt reverse step 020–024 Tilt normal step 025–029 Auto pan invert OFF...
  • Page 54 Furion S602 Spot Basic Advance Function Value Setting Color Control Type 26 CH 37 CH 245–249 Reserved step 250–255 No function Product code: 41451...

  • Page 55: Rdm Information

    Furion S602 Spot 6.9. RDM Information This device supports RDM (see 6.9.2. Supported RDM PIDs (Parameter IDs)). 6.9.1. RDM Details • • Responder ID: 29B4:0E7XXXXX • • Manufacturer's ID: Infinity (Highlite International B.V.) • • Manufacturer Label: Infinity • •...

  • Page 56: Troubleshooting

    Furion S602 Spot Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.

  • Page 57: Error Messages

    Furion S602 Spot 7.1. Error Messages In case one of the error messages below appears on the error information screen, discontinue the use of the device and contact your local dealer. For more information, refer to Error Info (see 6.7.6.3. Error Info on page 45).

  • Page 58: Maintenance

    Furion S602 Spot Maintenance 8.1. Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. 8.2. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: •...

  • Page 59: Corrective Maintenance

    Furion S602 Spot 8.3. Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information.

  • Page 60: Draining Condensation Water

    8.3.2. Draining Condensation Water The Furion S602 Spot is IP65 rated. The device can resist water jets. If the device is exposed to extreme humid conditions during use, condensation may collect inside the device. This can happen also during transportation, if the device is exposed to extreme temperature variations.

  • Page 61: Deinstallation, Transportation And Storage

    Approval Hereby, Highlite International declares that the device Furion S602 Spot, product code 41451, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available on the respective product page on the website of Highlite International (www.highlite.com).
