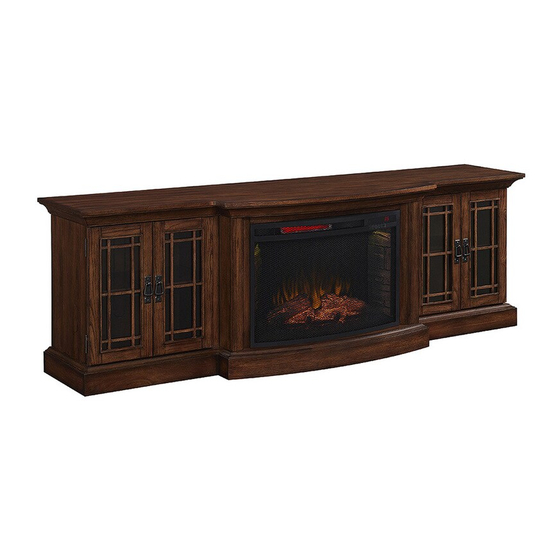

EB15216
ElECTRIC FIREPlACE
WITH MEDIA MANTEl
Purchase Date
1
ITEM #0667536
MODEL #1009FM-78-211
Français p. 18
Español p. 35
Lowes.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Style selections 1009FM-78-211
Summary of Contents for Style selections 1009FM-78-211
- Page 1 ITEM #0667536 ElECTRIC FIREPlACE WITH MEDIA MANTEl Style Selections is a registered trademark ® MODEL #1009FM-78-211 of LF, LLC. All Rights Reserved. Français p. 18 Español p. 35 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-888-8225, 8 a.m.
-
Page 2: Package Contents
Package contents PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Center Panel Left Wall Left Door Left Middle Wall Right Door Back Panel Base Right Middle Wall Insert Wood Shelf Remote Control Right Wall Lowes.com... -
Page 3: Safety Information
HARDWARE CONTENTS (shown actual size) Back Panel Hinge Screw Washer Screw Qty. 32 Qty. 17 Qty. 24 Wooden Dowel Shelf Pin Bolt Qty. 16 Qty. 8 Qty. 17 Touch-up Pen Qty. 1 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. -
Page 4: Important Instructions
SAFETY INFORMATION IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: DANGER • If the information in this manual is not followed exactly, an electric shock or fire may result causing property damage, personal injury or loss of life. - Page 5 SAFETY INFORMATION • DO NOT slide insert on top of wood to avoid scratching wood surface. • DO NOT place any objects on top of insert and top air intake vents as this will cause unit to overheat and can cause a fire. •...
- Page 6 ASSEMBLY INSTRUCTIONS 1. Insert two wooden dowels (AA) into each end of center panel (H). Position center panel (H) between left middle wall (C) and right middle wall (E). Hardware Used Wooden Dowel 2. Insert four wooden dowels (AA) into base (K). Place assembly from Step 1 onto base (K), securing with four washers (GG) and bolts (FF).
- Page 7 ASSEMBlY INSTRUCTIONS 3. Insert two wooden dowels (AA) into outer holes on left side of base (K). Attach left wall (B), securing with two washers (GG) and bolts (FF). Hardware Used Wooden Dowel Bolt Washer 4. Repeat Step 4 for right wall (G). Hardware Used Wooden Dowel Bolt...
- Page 8 ASSEMBLY INSTRUCTIONS 5. Insert two wooden dowels (AA) into the Hardware Used top outer holes on left middle wall (C) and right middle wall (E). Attach top Wooden Dowel (A), securng from underneath with five washers (GG) and bolts (FF). Then, secure left wall (B) and right wall (G) to Bolt top (A) using four washers (GG) and...
- Page 9 ASSEMBLY INSTRUCTIONS 6. Insert shelf pins (BB) at desired height, ensuring they are level. Place wood shelf (F) on top of shelf pins (BB). Repeat on the other side with remaining wood shelf (F). Hardware Used Shelf Pin Back Panel Hinge Screw Washe Screw...
- Page 10 ASSEMBLY INSTRUCTIONS 8. From behind the assembly, attach back panels (D) to shelving areas using back panel screws (CC). Hardware Used Back Panel Screw x 24 9. Still from behind the assembly, remove the preassembled insert brackets from the middle area.
- Page 11 ASSEMBLY INSTRUCTIONS Note: Before proceeding to the next step, with the help of another person, move the mantel close to the final desired location. 10. With the help of another person, position insert (L) into middle opening of mantel assembly. Note: DO NOT plug insert (L) into outlet yet.
- Page 12 OPERATING INSTRUCTIONS Remote Control Insert To use the remote control, first remove the plastic tab by gently pullling it out of remote control (M). Power Button • Press the power button to turn the main power to the unit ON or OFF. •...
- Page 13 OPERATING INSTRUCTIONS Timer Button • The timer button should be used to set the countdown for the unit's main power. • If the unit is powered OFF, you can press the timer button to power On the unit. The emberbed will glow at the lowest brightness setting unless a different setting was saved in the memory.
-
Page 14: Care And Maintenance
CARE AND MAINTENANCE • Make sure the unit is turned OFF and unplugged whenever you are cleaning the heater or fireplace. • Dust the fireplace regularly with a soft, non-lint producing cloth or household dusting product. • Clean the fireplace with a gentle non-abrasive household cleaner. Make sure to dry the fireplace immediately with a soft cloth or towel. -
Page 15: Troubleshooting
TROUBlESHOOTING PROBlEM POSSIBlE CAUSE CORRECTIvE ACTION Error E1 displayed on The overheat Unplug unit, wait 5-10 minutes, then the sensor will sensor has been reset itself. Plug the unit back in and turn on the control panel. engaged. heater. If the problem persists, call customer service. Note: The other functions will work normally excluding the heater. -
Page 16: Warranty
WARRANTY This item is warrantied by the manufacturer to be free of material and manufacturing defects for the time period of one year from the purchase date. This is subject to the following limitations and conditions: This mantel must be installed and operated in accordance with the installation instructions that were provided with the product. -
Page 17: Replacement Parts List
