Rear View - ATEN Master View CS-82A User Manual

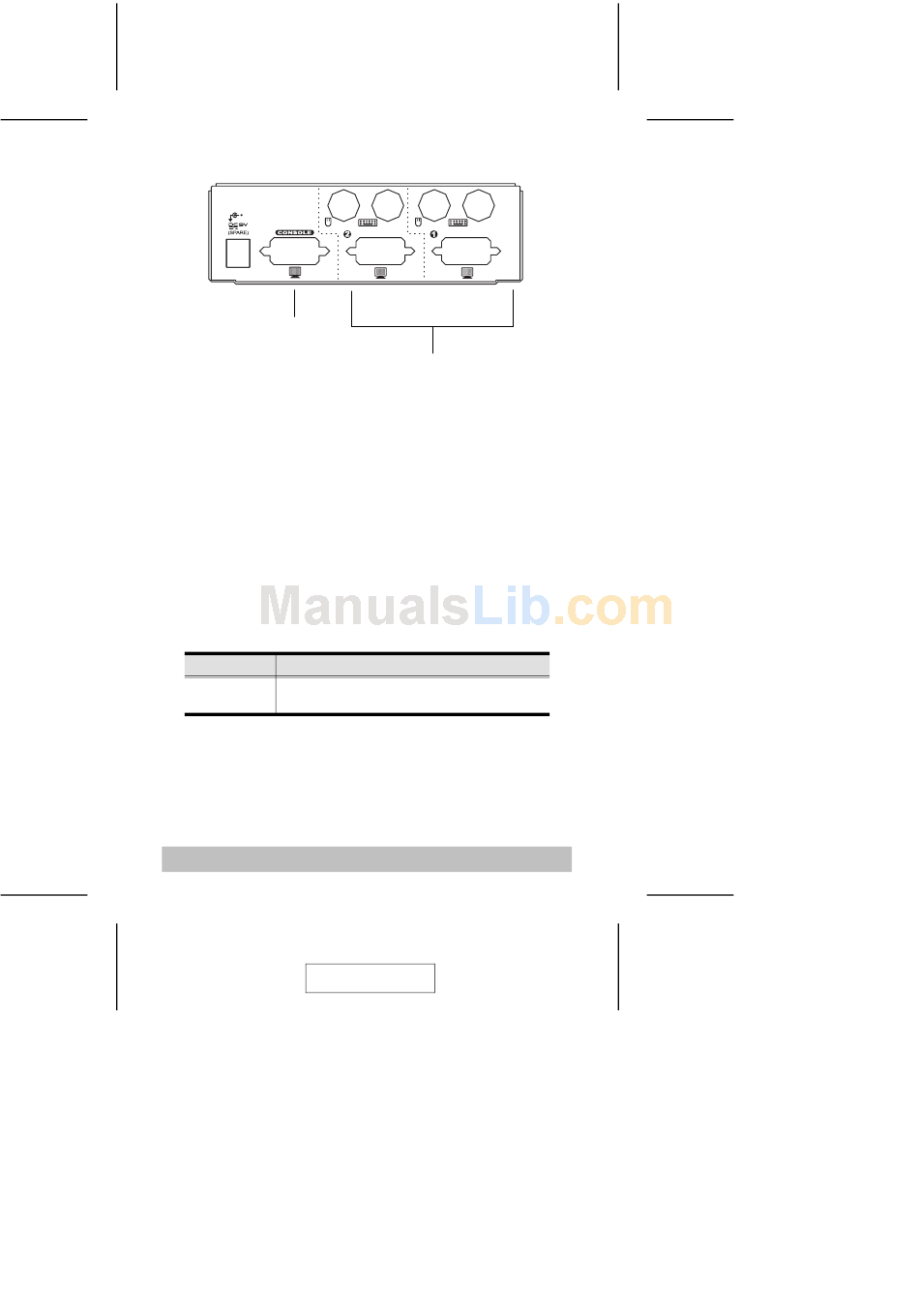

Rear View

1
1. Console Video Connector
The cable from your monitor plugs in here.
2. CPU Port Connectors
The KVM cables that connect to the computer's monitor,
keyboard and mouse ports plug in here. Each port is color
coded and identified by an appropriate icon.
Note: Since the KVM cables come with PS/2 style connectors,
certain hardware configurations (such as notebooks),
that don't have two PS/2 ports may require the use of an
adapter, as shown below:
Adapter
UC-100KM Two PS/2 ports to USB adapter for PCs,
A
Macs and Sun systems
2003-11-25
2
Purpose
- 5 -
