User Manual

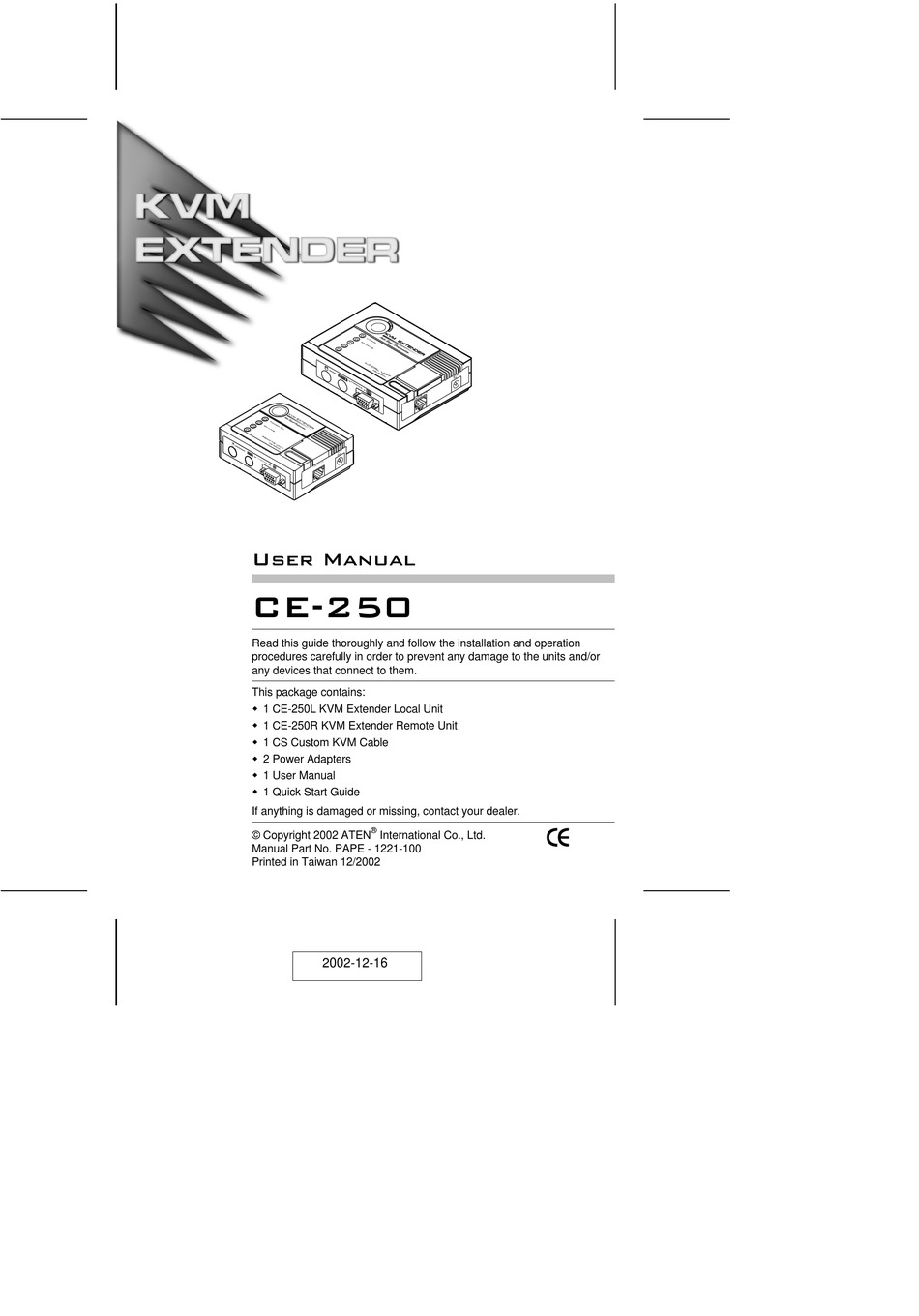

CE-250
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the units and/or
any devices that connect to them.
This package contains:
M 1 CE-250L KVM Extender Local Unit
M 1 CE-250R KVM Extender Remote Unit
M 1 CS Custom KVM Cable
M 2 Power Adapters
M 1 User Manual
M 1 Quick Start Guide
If anything is damaged or missing, contact your dealer.
®
© Copyright 2002 ATEN
International Co., Ltd.
Manual Part No. PAPE - 1221-100
Printed in Taiwan 12/2002
2002-12-16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATEN CE-250
Summary of Contents for ATEN CE-250
-
Page 1: User Manual
User Manual CE-250 Read this guide thoroughly and follow the installation and operation procedures carefully in order to prevent any damage to the units and/or any devices that connect to them. This package contains: M 1 CE-250L KVM Extender Local Unit... - Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio communications.
- Page 3 Setup is as easy as can be - simply connect the computer system box and local console to the Local CE-250 Module; run the Cat. 5 cable to the Remote CE-250 Module (up to 150 meters away); and plug the remote console into the Remote Module.
-
Page 4: System Requirements
Features M Built-in ASIC for Greater Reliability and Compatibility M Category 5 Ethernet Cable to Connect the Local and Remote Units - Up To 150 m Apart M Dual Console Operation - Control Your System From Both the Local and Remote PS/2 Keyboard, Mouse, and Monitor Consoles M Push Button Selection of the Active Console M High Resolution Video - Up To 1280 x 1024 M Supports VGA, SVGA, and Multisync Monitors... - Page 5 CS Custom KVM Cables must be used. M Category 5 cable is the minimum required to connect the local and remote CE-250 units. Cable of a lesser standard will result in degrading the video signal. For best performance, we strongly recommend Category 5 cable.
- Page 6 Components The Local Unit (CE-250L) Front View: 1. Operating Mode Selection Switch Pressing this button toggles between the operating mode choices: M Local: only the local console can control the system(s); M Auto: both consoles can control the system(s). 2. LEDs The Local Unit has two LEDs to indicate the operating status of the Local and Remote units (see p.
- Page 7 The Mouse connector of the KVM cable that connects to the computer’s Mouse port plugs into this connector. Note: If you are combining the CE-250 with a KVM switch, the KVM cable connects back to the respective ports on the Console section of the switch.
- Page 8 The Remote Unit (CE-250R) Front View: 1. LEDs The Remote Unit has two LEDs (Power and On Line) to indicate the operating status of the Local and Remote units (see p. 9, for details). 2. Mouse Port The remote PS/2 mouse plugs into this connector. 3.
-
Page 9: Installation
Installation Setting up the KVM Extender System is simply a matter of plugging in the cables: 1. Make sure that all the equipment to be connected up is powered Off. 2. Plug the cables from the local console devices (mouse, keyboard, monitor), into their ports on the Console side of the Local Unit (CE-250L). - Page 10 CE-250L FrontView CE-250L Rear View CE-250R - 8 - 2002-12-16...
-
Page 11: Operation
Operation The Local and Remote Units each have two LEDs to indicate their operating status, as shown in the tables, below: CE-250L (Local Unit): Operating Mode Local Local Lights to indicate that the 1. Lights when the local console is local console is active active (the Remote LED is out) (the Remote LED is out). -
Page 12: Troubleshooting
Troubleshooting Symptom No Video Make sure that all cables are securely plugged into their sockets. TP Wiring Diagram PAIR 3 PAIR 2 PAIR 1 PAIR 4 1 2 3 4 5 6 Bl W-Bl G W-Br Br JACK POSITIONS T568B AT&T 258A TP Pin Assignments Assignment... -
Page 13: Specifications
Specifications Function CE-250L Connectors Keyboard 2 x 6 pin mini-DIN female 6 pin mini-DIN female Mouse 2 x 6 pin mini-DIN female 6 pin mini-DIN female Monitor 1 x 15 pin HDB male 1 x 15 pin HDB female Unit To Unit LEDs 1 Local 1 Remote... - Page 14 Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
- Page 15 Notes: - 13 - 2002-12-16...
- Page 16 Notes: - 14 - 2002-12-16...
