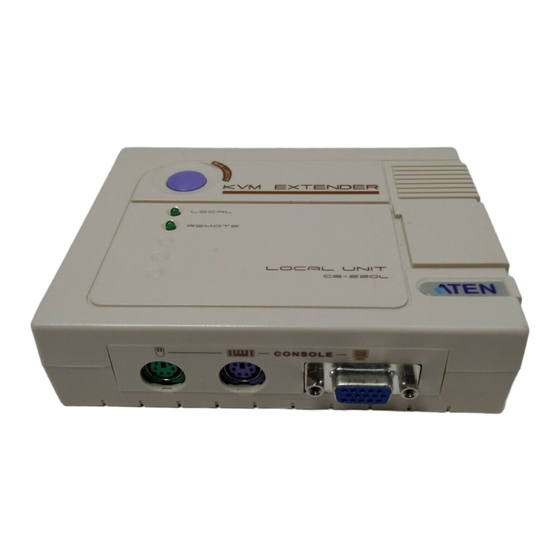

ATEN CE-220L User Manual

Aten technology kvm extender user manual
Hide thumbs Also See for CE-220L:
Table of Contents

Advertisement

Quick Links

User Manual

CE-220
Read this guide thoroughly and follow the installation and
operation procedures carefully in order to prevent any damage to
the units and/or any devices that connect to them.
This package contains:
1 CE-220L KVM Extender (Local Unit)
1 CE-220R KVM Extender (Remote Unit)
1 Custom KVM Cable
2 Power Adapters
1 User Manual
If anything is damaged or missing, contact your dealer.
Copyright © 2006 ATEN
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights
reserved. All other trademarks are the property of their respective owners.
®
International Co., Ltd.
Manual Part No. PAPE-1142-200
Printing Date: 11/2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE-220L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATEN CE-220L

Summary of Contents for ATEN CE-220L

  • Page 1: User Manual

    This package contains: 1 CE-220L KVM Extender (Local Unit) 1 CE-220R KVM Extender (Remote Unit) 1 Custom KVM Cable 2 Power Adapters 1 User Manual If anything is damaged or missing, contact your dealer.
  • Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio...
  • Page 3 Overview Because the CE-220 KVM Extender System allows access to a computer system from a remote console (keyboard, monitor, and mouse), it is perfect for factory and construction sites, or any type of installation where the console needs to be in a conveniently accessible location, but you want the system equipment to reside in a safe place - away from dust, dirt, and harsh environmental influences.

  • Page 4: System Requirements

    Features Inexpensive, reliable, Cat 5 cable to connect the local and remote units—up to 150 meters apart Dual console operation—control your system from both the local and remote PS/2 keyboard, monitor, and mouse consoles Push button selection – of the active console High resolution video –...
  • Page 5 Although it is possible to use standard KVM cables to link computers with PS/2 type keyboard and mouse ports to the CE-220L, for optimal signal integrity, and to simplify the layout, we strongly recommend that you use the high quality CS Custom KVM Cable that is provided with this package.

  • Page 6: Front View

    Local: only the local console can control the system(s) Auto: both consoles can control the system(s). The Local Unit has two LEDs to indicate the operating status of the Local and Remote units (see CE-220L (Local Unit), p. 9). The local PS/2 mouse plugs into this connector.

  • Page 7: Rear View

    The Local Unit (CE-220L) Rear View: Description Monitor Port Keyboard Port Mouse Port Note: If you are combining the CE-220 with a KVM switch, the KVM cable connects back to the respective ports on the Console section of the switch.
  • Page 8 The Remote Unit (CE-220R) Front View: Description LEDs Mouse Port Keyboard Port Monitor Port Remote I/O Power Jack Function The Remote Unit has two LEDs (Power and On Line) to indicate the operating status of the Local and Remote units (see CE-220R (Remote Unit), p. 9). The remote PS/2 mouse plugs into this connector.

  • Page 9: Installation

    Console side of the Local Unit (CE-220L). 3. Plug the appropriate connectors on the KVM cable supplied with this unit into the CPU side of the CE-220L. Each connector is marked with an appropriate icon to indicate which it is.
  • Page 10 10.Plug the second power adapter (supplied with this package) into an AC source; plug the adapter's power cable into the CE-220R's Power Jack. CE-220L FrontView CE-220L Rear View CE-220R - 8 -...

  • Page 11: Operation

    Operation The Local and Remote Units each have two LEDs to indicate their operating status, as shown in the tables, below: CE-220L (Local Unit) Local Local Lights to indicate that the local console is active (the Remote LED is out).

  • Page 12: Troubleshooting

    Troubleshooting Problem No video Poor video quality. TP Wiring Diagram TP Pin Assignments Action Make sure that all cables are securely plugged into their sockets. The video quality can be improved by reducing the refresh rate. PAIR 3 PAIR 2 PAIR 1 PAIR 4 1 2 3 4 5 6...

  • Page 13: Specifications

    Function Keys Cable Length Video Resolution Power Consumption Housing Weight Dimensions (L x W x H) CE-220L 2 x 6-pin Mini-DIN F 2 x 6-pin Mini-DIN F 1 x HDB-15 M 1 x HDB-15 F 1 x Local 1 x Remote 1 x Local/Auto Select 150m [500'] (max.)

  • Page 14: Limited Warranty

    Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
