Installation

Camera mounting
The camera is designed to be mounted upright or hang-
ing. By nature of its rugged construction the camera is
a heavy item and thus requires a substantial and stable

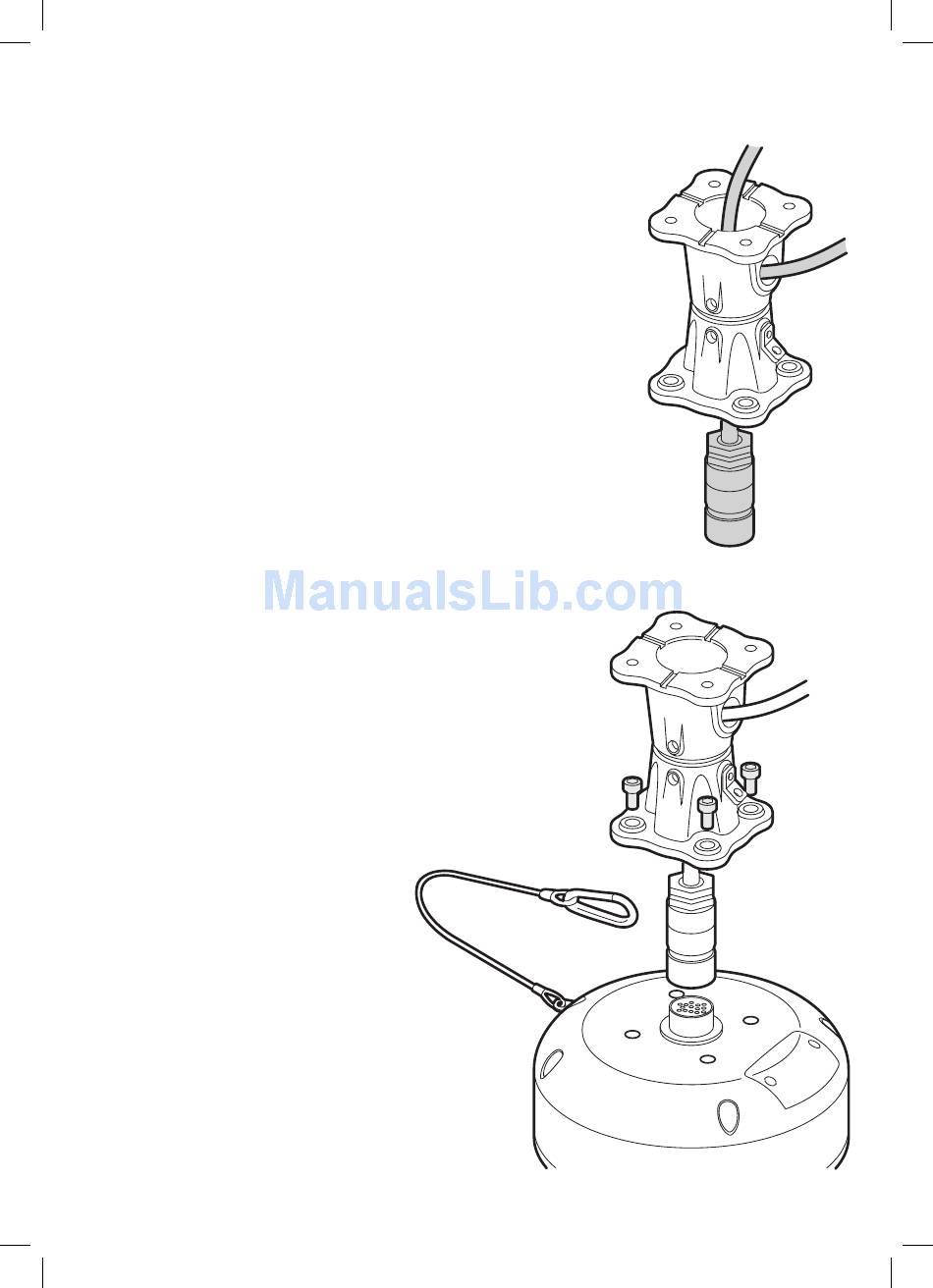

mounting. The camera is supplied with a mount adaptor to
allow fixing to industry standard brackets, towers or columns.
The mount adaptor has two cable entry points:
• A pass-through hole in the end plate to allow the com-
posite cable to enter unseen from a column, tube or
bracket type mounting, plus
• A conduit thread (M25) in the side wall to permit com-
posite cable entry via a flexible conduit attached to the adap-
tor.
To mount the camera
1 Thread the composite cable through the appropri-
ate entry hole into the mount adaptor before it is
fixed to the column or bracket.
2 To avoid placing strain upon the electrical connections,
arrange the composite cable such that approximately
25~35mm of the weatherproof connector protrudes
out from the smaller plate that will connect to the
camera.
3 Secure the mount adaptor to
the supporting structure us-
ing M8 bolts, washers and
Nyloc type nuts.
®
IMPORTANT: Always use
Nyloc nuts in order to signifi-
cantly reduce the possibility of bolts
working loose during operation due to
vibration.
