Team C Patron Instruction Manual page 8

8

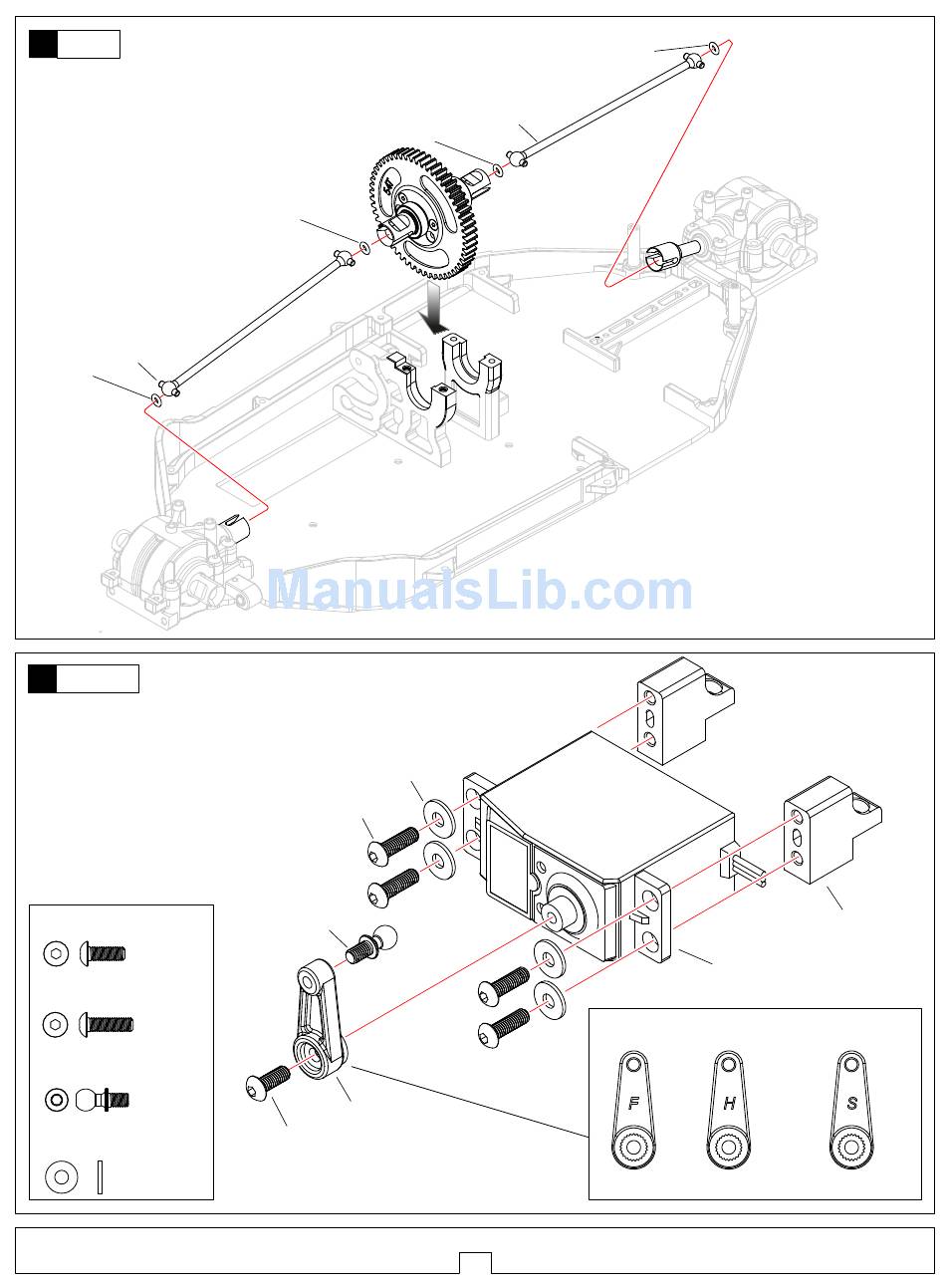

Center Diff
Mitteldiff.
TS4049
TR4063 102mm Drive shaft
102mm Welle
2.8x1.9 O-ring
2.8X1.9 O-Ring
B
-
9
Steering Servo
Bag
Lenkservo
TR4059 M3x8 Screw
M3x8 Schraube
...............1
TR4059 M3x10 Screw
M3x10 Schraube
...............4
T02060 Ball stud-Short
Kugelkopf kurz
...............1
T02081 3x7x0.8 Washer
3x7x0.8 Scheibe
..................4
TR4063
2.8x1.9 O-ring
2.8X1.9 O-Ring
TR4063
2.8x1.9 O-ring
2.8X1.9 O-Ring
T02081 3x7x0.8
TR4059 M3x10
T02060
Ball stud-short
Kugelkopf kurz
TR4015
Steering servo horn
TR4059
Servohorn - Lenkung
M3x8
TR4063
2.8x1.9 O-ring
2.8X1.9 O-Ring
TS4049
102mm Drive shaft
102mm Welle
Select the servo horn matching the servo being used.
Servohorn nach verwendetem Servo auswaehlen.
Futaba - 25t
4
TS4021
Servo Mount
Servohalter
Servo
Servo
Hitec - 24t Sanwa / JR / KO - 23t
