Team C Patron Instruction Manual page 18

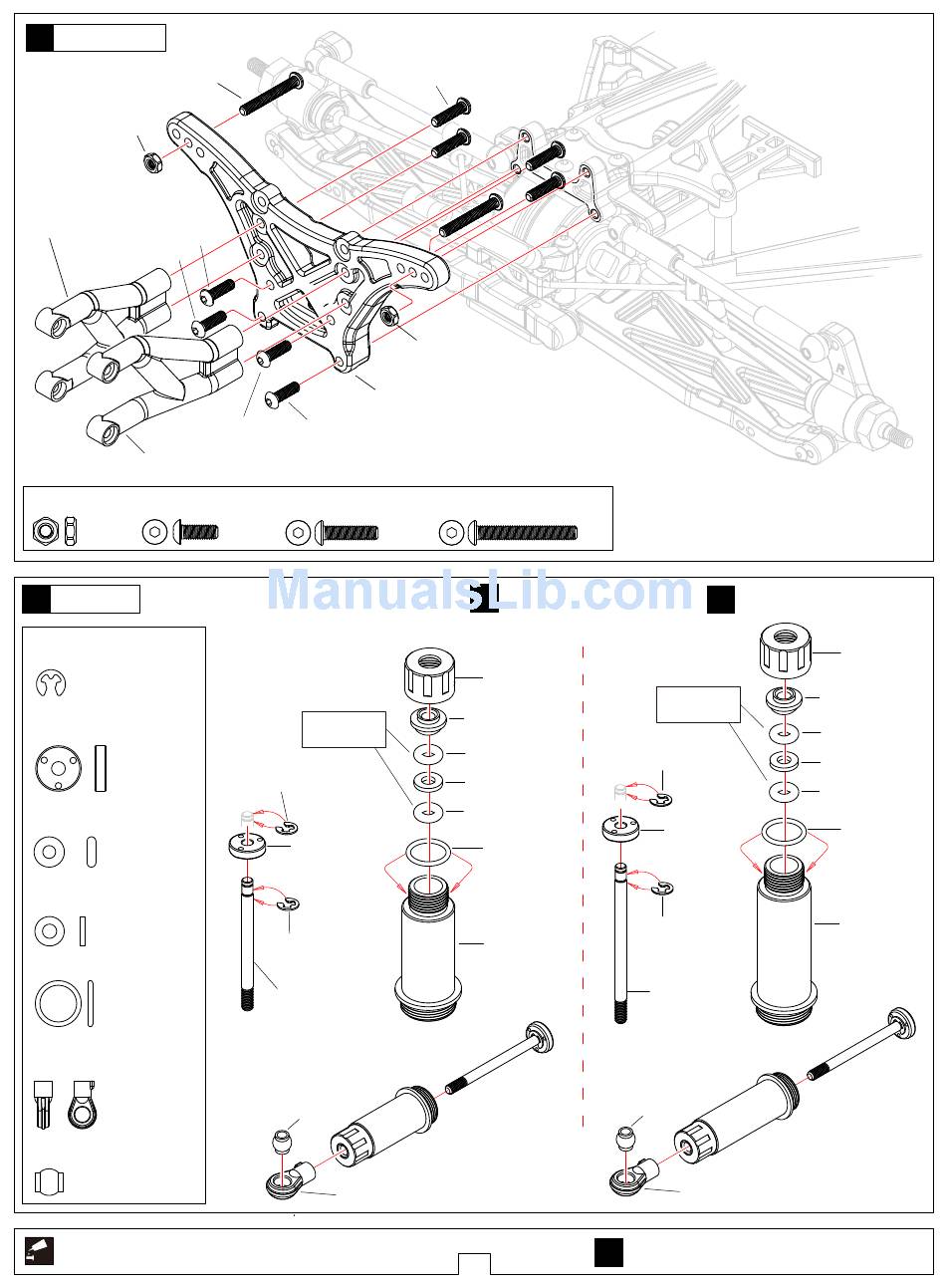

28 Rear suspension
Bag
Aufhaengung hinten
TR4059 M3x22
TR4055 M3
TS4018
TR4059
Rear bumper stick-L
M3x8
Rammerhalter hinten L
TR4059 M3x12
TR4059 M3x8
TS4018
Rear bumper stick-R
Rammerhalter hinen rechts
TR4055 M3 Nut
TR4059 M3x8 Screw
M3x8 Schraube
M3 Mutter
.........2
29 Shock Absorber -E
Bag
Daempfer
TG2040/TG2041 2.3 E-ring
2.3 E-Ring
...........................8
T02068 Shock Piston
Kolbenplatte
..................4
T02069 2.8x1.9 O-ring
2.8x1.9 O-Ring
.....................8
T02069 3.1x1 Plastic Washer
3.1x1Plastik Scheib.
........................4
TS4059/TS4060 8x1 O-ring
8x1 O-Ring
.....................4
T02114 5.8 Ball End
5.8 Kugelpfanne
.....................4
T02137 5.8x6 Ball stud
5x8x6 Kugelkopf
...........................4
Apply threadlocker(screw cement)
Verwenden sie Schraubensicherungslack
Screw
Cement
-D
TS4011
Rear Shock Tower
Daempferbruecke hinten
TR4059 M3x12
TR4059 M3x12 Screw
M3x12 Schraube
.........2 ......6
Put a little oil
Etwas oelen
TG2040
T02068
TG2040
TG2040
T02137
T02114
TR4059 M3x12
TR4055 M3
TR4059 M3x22 Screw
M3x22 Schraube
Front-Short
x2
Vorne kurz
TS4059
T02069
T02069 2.8x1.9
T02069 3.1x1
T02069 2.8x1.9
TS4059
TS4059
14
...2
Rear-Long
x2
Hinten lang
Put a little oil
Etwas oelen
TG2041
T02068
TG2041
TG2041
T02137
T02114
Assemble as many times as specified
x2
In angegebener Stueckzahl fertigen
TS4060
T02069
T02069 2.8x1.9
T02069 3.1x1
T02069 2.8x1.9
TS4060
TS4060
