Team C T4 Manual

1:10 scale 4wd electric pro racing buggy
Hide thumbs Also See for T4:

Advertisement

Quick Links

Download this manual
1:10 SCALE 4WD ELECTRIC PRO RACING BUGGY

Advertisement

loading

Related Manuals for Team C T4

Summary of Contents for Team C T4

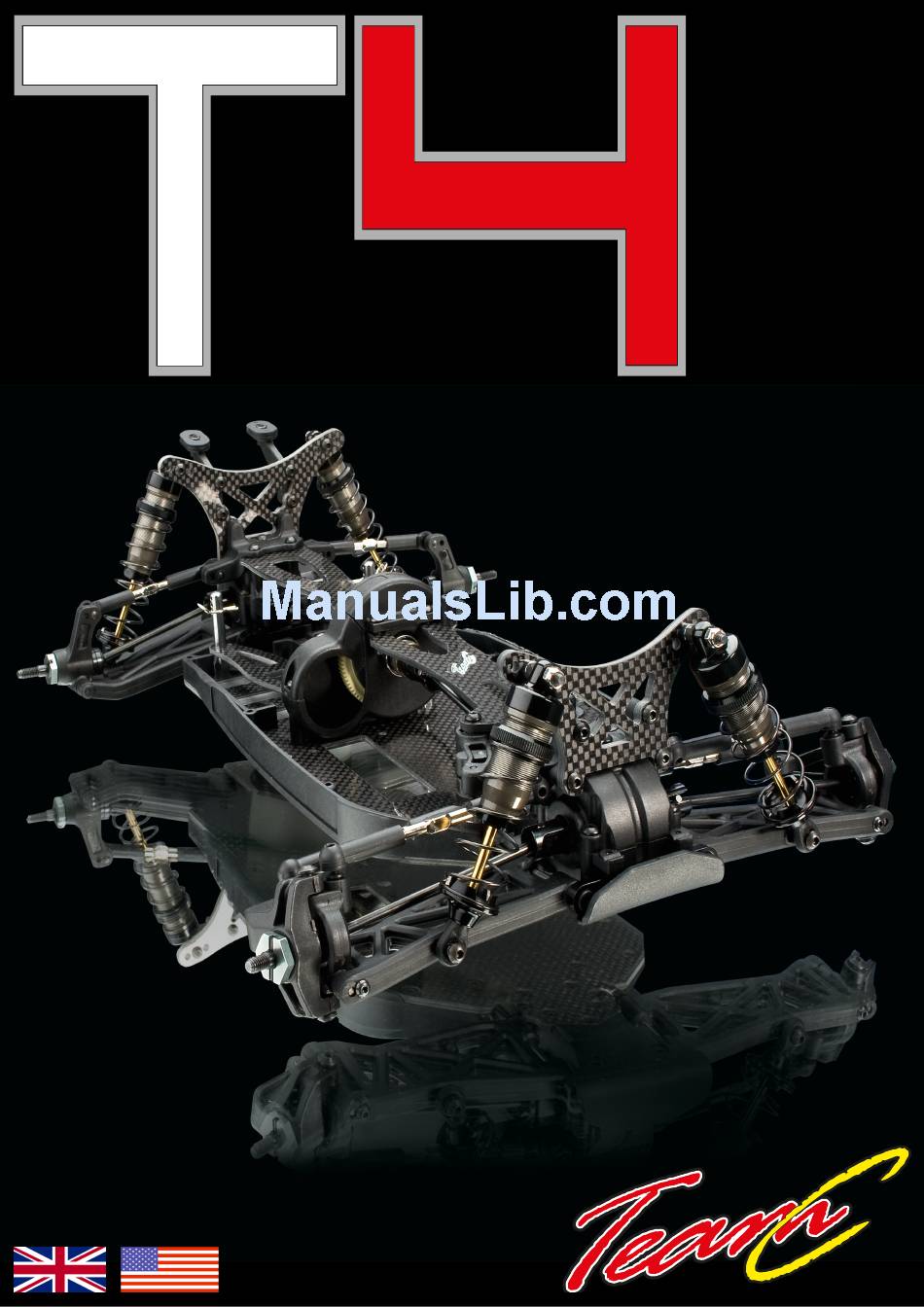

  • Page 1 1:10 SCALE 4WD ELECTRIC PRO RACING BUGGY...
  • Page 2 Notice Thank you for purchasing this T4 Competition Buggy by Team C. This manual shows instructions and tips to built and maintain your T4. Please take some time to read through to get familiar with the shown steps. We continually improve our products, due to that, actual parts my be different to the illustrations.

  • Page 3: Transmitter Preparation

    Transmitter Preparation Power Switch 27MHzTransmitter Crystal （TX） Antenna Transmitter crystal(TX) Receiver crystal(RX) Extend the antenna to the maximum Length for best performance The crystal can be replaced to change frequencies. Note : You must also change receiver crystals! Do not use AM crystals Battery Level Indicator Good Batteries Straight (neutral)

  • Page 4: Tools Required

    Transmitter Preparation A new Ni-MH battery must be charged before it is used.Refer to the charger instruction manual for charging. Set up the radio control system as indicated below. Motor Battery Electronic Speed Controller DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM Switch Transmitter Servo Receiver...
  • Page 5 T04052 TU0418 Suspension Mount/Side plate Battery Mount Rear Arm Mount-Front T04051 Side plate-Right T04051 Side plate-Left TU0416 Front Arm Mount-Rear T04050 Chassis TR4058 M3x8 TR4058 M3x8 Screw ……………14 Diff-gear Box / Motor Mount TR4016 Center Gear-box-lower TU0415 T04039 Motor Mount Rear Gear-box-lower Cut the waste material.
  • Page 6 T04037 F/R Differential Diff Nut T02099 10x15x4 Ball Bearing T02047 T04033 Differential Spring Diff connecting Cup-Long T02099 …………4 TR4057 10x12x0.2 Washer T02098 ………………4 T02050 2.6x6x3 Stop push ball bearing TR4039 ………………2 T02048 TR4028 T02050 T04037 2.6x26 Differential screw Diff Gear-39T TR4057 T04037 ………………2...
  • Page 7 F/R Gear-Box TR4059 M3x10 TR4059 M3x8 T04039 TR4059 M3x10 Rear Gear-box-cover TR4059 M3x8 TR4002 Front Gear-box-cover TR4059 M3x8 Screw TR4059 M3x10 Screw ………4 ………8 Mid Gear TR4059 M3x5 T04023 T04021 TR4027 Center Shaft Mid Connecting Hub-R Supr Gear-85T T04020 中轴 Screw Cement Slipper Hub-F...
  • Page 8 Center Gear Steering Servo T02081 TR4059 M3x10 T04005 Servo Mount T02093 TR4059 M2.6x8 Screw Steering Servo ……………1 TR4059 M3x10 Screw Select the servo horn matching the servo being used. ……………4 T02093 Ball stud-Short TR4059 M2.6x8 ……………1 T04006 T02081 3x7x0.8 Washer Futaba - 25t Hitec - 24t Sanwa / JR / KO - 23t...
  • Page 9 Steering Servo TR4058 M3x8 Screw ………………2 TR4058 M3x8 Buffer T04003 Servo Saver-left TR4049 Servo Saver Body T02092 T04003 Servo Saver-Top T04038 M3 T04004 T04003 Steering Rack T02092 Servo Saver-Bottom TR4049 T02092 Ball stud-Long Servo Saver Spring T04038 M3 …………3 T02092 TR4049 T04038 M3 Screw Servo Saver Nut...
  • Page 10 Buffer 17.5mm T04024 T04014 ▲Projection.Note direction T04014 T04057 4.1x6x2.1 Washer T04031 T04057 4.1x6x2.1 Washer …………………2 TR4058 M3x8 Screw ………………2 TR4049 T04031 4x7x2.5 Ball bearing …………………4 T04014 4.8mm Ball End-Long ……2 T04024 3x40 Turnbuckle TR4058 M3x8 …………1 Screw Cement Upper Deck-Front / Front Upper Suspension Arm Mount T04055 Antenna pipe mount TR4059 M3x10...
  • Page 11 Upper Deck-Rear / Rear Upper Suspension Arm Mount TR4059 M3x10 T04053 Upper Deck-R TR4004 Upper Suspension Arm Mount-R T02092 TR4059 M3x10 Screw …………3 TR4059 M3x12 Screw …………2 T02092 Ball stud-Long …………2 Front Shock Tower TR4059 M3x8 Screw ……………2 TR4059 M3x12 Screw …………2 TU0428 Carbon Front Shock Tower...
  • Page 12 Rear Shock Tower TR4059 M3x10 T04012 Wing Brack TU0429 TR4059 M3x10 Screw Carbon Rear Shock Tower …………4 Rear Shock Tower TR4059 M3x8 TR4059 M3x12 TR4059 M3x8 Screw …………2 TR4059 M3x12 Screw …………2...
  • Page 13 Spur Gear Cover TR4059 M3x12 TR4016 Center Gear-box-cover T04057 3.1x5.5x1.0 Washer TR4059 M3x12 Screw …………4 Front Hub Carrier TR4007 TR4007 TR4011 1.6x11 Spring Pin Front Hub Carriers Front Hub Carriers 10 Degree-Right 10 Degree-Left ……………2 TR4008 TR4008 T04028 Front bearing collar T02092 Front Hub Carriers Front Hub Carriers...
  • Page 14 < L > Front Hub Carrier TR4059 M2.5x4 Screw …………………2 TR4046 2.5x30 Arm Pin ………………2 T04007 Front Lower Arm < R > TR4059 M2.5x4 TR4046 Front Suspension Arm T04002 T04002 Brace bushing ……………2 TR4059 M3x10 Screw T04034 ……………2 TU0416 TR4058 M3x8 Screw T04009 Front Arm Mount-F Front Bumper...
  • Page 15 Front upper Rod-L Turnbuckle 23.5mm 1:1 x1 ▲Projection.Note direction 3x45 Turnbuckle Front upper Rod-R 前上拉杆-右 T04024 3x45 23.5mm T04014 ▲Projection.Note direction T04014 4.8mm Ball End-Long 3x45 Turnbuckle ……12 Steering Rod T04024 3x40 18.5mm T04024 3x40 Turnbuckle ▲Projection.Note direction 3x40 Turnbuckle …………4 Rear upper Rod T04024 3x45 Turnbuckle...
  • Page 16 Rear Hub Carrier < L > TR4011 2.5x6x1 Washer …………………4 TR4059 M2.5x4 Screw T04008 Rear Lower Arm-L …………………2 TR4011 2.5x6x1 TR4046 2.5x30 Arm Pin ………………2 < R > TR4059 M2.5x4 TR4046 Rear Suspension Arm T04035 3x51 Arm Pin ………………2 TR4058 M3x10 Screw ……………2 TU0418 Rear Arm Mount-Ball ………………………4...
  • Page 17 Rear Turnbuckle Shock Absorber TU0250-8 Spring TU0250-8 1mm Washer-Black TU0250-3 TU0250-8 Front Shock Absorber Body-Short TU0250-8 Spring 2.8x1.9 O-ring TU0250-4 ……………………4 TU0250-8 Rear Shock Absorber Body-Long 2.5mm Washer-White TU0250-8 1mm Washer-Black TU0250-8 …………………4 2.8x1.9 O-ring TU0250-8 1mm Washer-White TU0250-8 1mm Washer-White …………………4 TU0250-8 2.5mm Washer-White TU0250-8...
  • Page 18 Shock Absorber TU0250-7 Front Piston-Black Rear Piston-White TU0250-1/TU0250-2 2.3 E-ring …………………8 Front For Short Rear For Long TU0250-7 Front Shock Piston-Black TU0250-1/TU0250-2 TU0250-8 2.3 E-ring 12x1 O-ring ……………4 TU0250-7 Rear Shock Piston-White ……………4 TU0250-1/TU0250-2 2.3 E-ring TU0250-8 12x1 O-ring Front For Short Rear For Long TU0250-1 ……………4...
  • Page 19 Front Shock Absorber TU0250-6 TR4059 M3x22 T02084 M3 TR4059 M3x12 TU0250-6 Shock cap ball TU0250-6 3.1x5.5x2.0 Aluminium Washer T02084 M3 Nylon Nut TR4059 M3x12 Screw TR4059 M3x22 Screw ………………2 ………………………………2 …………2 ……2 ……2 Rear Shock Absorber TR4059 M3x22 TU0250-6 T02084 M3 TU0250-6 Shock cap ball …………………2 TU0250-6 3.1x5.5x2.0...
  • Page 20 Battery Column TR4058 M3x10 Screw ……………4 T04054 Battery Column TR4058 M3x10 Motor Motor TU0415 Motor Cam TR4059 M3x8 H481 M3x3 Screw H475 M3x3 ……………………1 H481 TR4059 M3x8 Screw 21T Pinion Gear ……………2 Must be purchased separately...
  • Page 21 H380 T04013 Motor Fan Mount T04013 M2.5x13 TR4059 M3x10 TR4059 M3x8 Screw TR4059 M3x12 ……………1 TU0415 TR4059 M3x10 Screw Motor Clamp ……………1 TR4059 M3x12 Screw ………1 Tighten the screws with one sheet of paper TR4059 M3x8 inserted between both gears. TR4016 TR4058 M3x8 Spur Gear Cover...
  • Page 22 Battery TU0426 Carbon Battery Plate T02086 Small clip T02086 ……………4 T02086 Battery Wheel < Front > < Rear > TR4035 Rear-tyre TR4034 Front-tyre TR4035 Rear sponge TR4034 After fitting wheels to tyres, Front sponge apply instant glue as shown TR4033 Rear Rim TR4032 Front Rim...
  • Page 23 Wheel T02084 M4 Flanged Nylon Nut T02084 ……………4 Wing TR4058 T04012 TR4858 M3x10 Screw T04016 Wing ……………2 T04012 Wing washer ……………2 T04012 Wing angle shim-3° T04012 Wing angle shim-3° ……………2 +3 deg 3° 3° -3 deg Assemble both Left and Right...
  • Page 24 Before you install the buttom cover, Bottom Cover you need to disassemble some parts. T04058 Bottom Cover Body T04017 Mask the windows from the inside. Paint the body shell from the inside using pc spray colors.
  • Page 25 Body-Velcro Tape TR4053 TR4053 Velcro Tape Velcro Tape 魔鬼粘 TR4053 TR4053 Velcro Tape Velcro Tape Body T02086 T02086 T02086 Small clip T02086 Small clip ……………1 ……………1...
  • Page 27 Parts list for T4 off-road buggy - 1 T04050 T04051 T04052 T04053 T04054 Front 1pcs Side plate-Left 1pcs Battery Column Rear 1pcs Battery Mount 4pcs Side plate-Right Chassis 1pcs Upper Deck 1pcs 1pcs T04055 T04056 T04057 T04058 TU0415 Mid Front CVD-Long 4.1x6x2.1 Washer...
  • Page 28 Parts list for T4 off-road buggy - 2 T04003 T04004 T04005 T04006 T04007 1mm Spacer 2mm Spacer Top - 1pcs 2pcs 1pcs 1pcs 1pcs 2pcs 2pcs Bottom Left 1pcs 1pcs Steering Rack 1pcs Front Lower Arm Servo Saver Steering Servo Horn...
  • Page 29 Parts list for T4 off-road buggy - 3 TR4007 TR4008 TR4011 TR4016 TR4027 Left - 1pcs Right - 1pcs Left - 1pcs Right - 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs Supr Gear-85T Rear Hub Carriers Front Hub Carriers 10 Degree...
  • Page 30 Parts list for T4 off-road buggy - 4 T02081 T02084 T02086 T02087 86000 Antenna pipe set cover Small clip M4 Flanged Nylon Nut Double-sided tape 1pcs 6pcs 8pcs 1pcs 5.1x8x0.2 Washer 3x7x0.8 Washer M3 Nylon Nut 6pcs 10pcs Antenna pipe...
  • Page 31 Driver Track / City Event Date SETUP SHEET for the TeamC T4 Conditions Smooth Bumpy Low traction Med traction High traction Sandy Soft dirt Grass Hard soil Clay Dusty Other Front Suspension Front Shocks Shock Mounting&Camber link Toe-in (+)/Out (-) °...
  • Page 32 Driver Track / City Event Date SETUP SHEET for the TeamC T4 Conditions Smooth Bumpy Low traction Med traction High traction Sandy Soft dirt Grass Hard soil Clay Dusty Other Front Suspension Front Shocks Shock Mounting&Camber link Toe-in (+)/Out (-) °...
  • Page 33 HOBBYPRO COMPANY LTD. Flat C-D, 5/F., Speedy Ind. BLDG., 114 How Ming Street, Kwun Tong, KLN., Hong Kong. Team C Headquarter www.teamcracing.net Team C America www.teamcamerica.com Team C Europe www.teamceurope.com...
