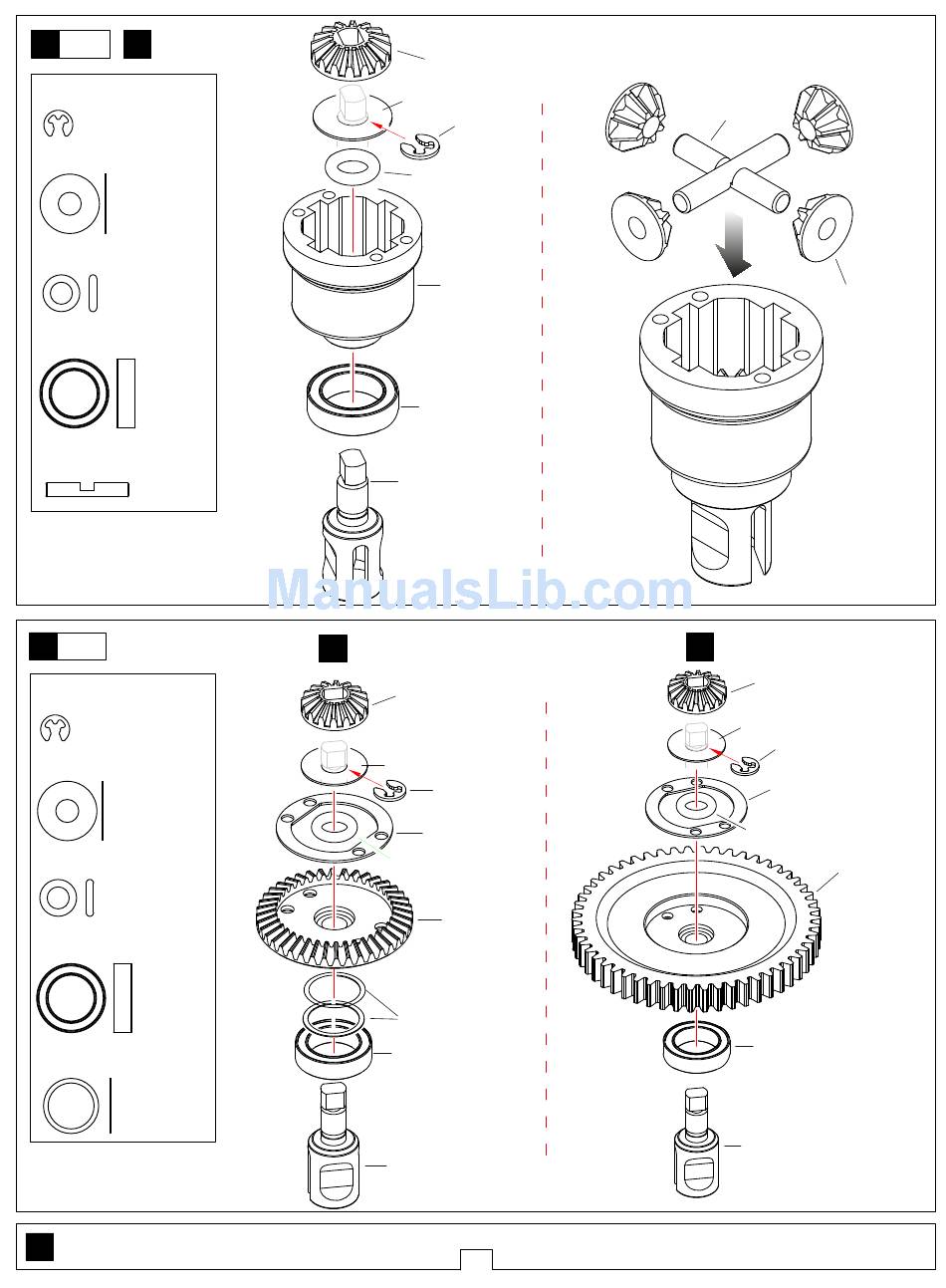

Team C Patron Instruction Manual page 6

A
-
3 x3
Diff
Bag
Diff
TS4040 3.0 E-ring
3.0 E-ring
...........................3
TS4039 5.1x13x0.2 Washer
5.1x13x0.2 Scheibe
.....................3
T04040 4.8x1.6 O-ring
4.8x1.6 O-Ring
........................3
T02099 10x15x4 Ball Bearing
10x15x4 Kugellager
...............3
TS4039 Diff shaft
Diff. Welle
...............6
A
-
4
Diff
Bag
Diff.
TS4040 3.0 E-ring
3.0 E-Ring
...........................3
TS4039 5.1x13x0.2 Washer
5.1x13x0.2 Scheibe
.....................3
T04041/TS4010 4.8x1.6 O-ring
4.8x1.6 O-Ring
........................3
T02099 10x15x4 Ball Bearing
10x15x4 Kugellager
...............3
T04041 10x12x0.2 Washer
10x12x0.2 Scheibe
..................4
Assemble as many times as specified
x3
In angebener Stueckzahl fertigen
TS4039
16T gear
16T Zahnrad
TS4039 5.1x13x0.2
TS4040 3.0
T04040 4.8x1.6
T04040
Diff housing
Diff. Gehaeuse
T02099 10x15x4
TS4040
Diff connecting cup
Diff. Mitnehmer
x2
TS4039
16T gear
16T Zahnrad
TS4039 5.1x13x0.2
TS4040 3.0
T04040
Diff pads
Dichtung
T04041 4.8x1.6
T04041
40T gear
40T Zahnrad
T04041 10x12x0.2
T02099 10x15x4
TS4040
Diff connecting cup
Diff. Mitnehmer
2
TS4039
Diff shaft
Diff. Welle
TS4039
10T gear
10T Zahnrad
x1
TS4039
16T gear
16T Zahnrad
TS4039 5.1x13x0.2
TS4040 3.0
T04040
Diff pads
Dichtung
TS4010 4.8x1.6
TS4010
54T gear
54T Zahnrad
T02099 10x15x4
TS4040
Diff connecting cup
Diff. Mitnehmer
