Team C Patron Instruction Manual page 15

C
-
22

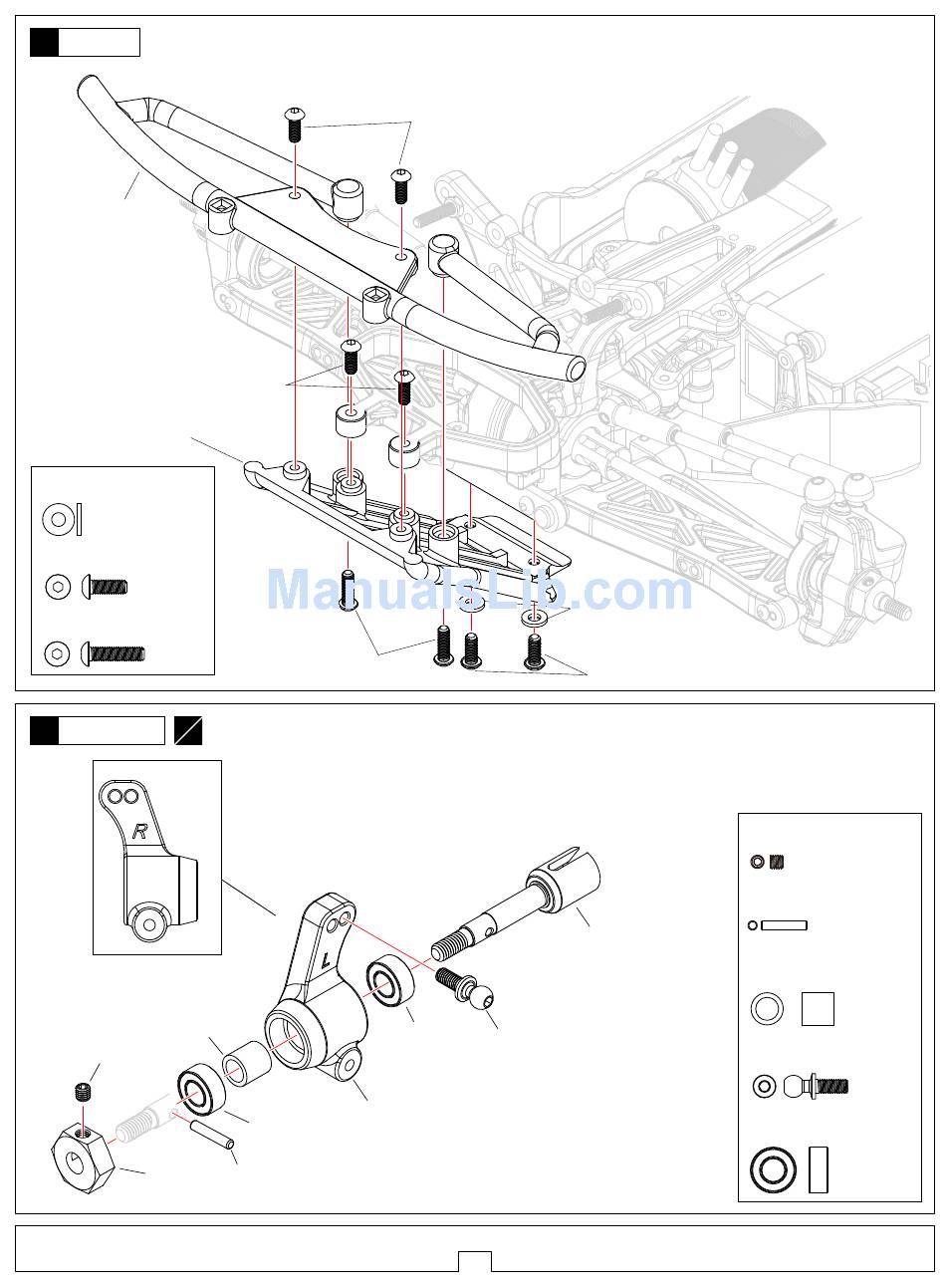

Front bumper
Bag
Rammer vorne
TS4017
Front bumper
Rammer vorne
TR4059 M3x12
TS4017
Front bumper plate
Rammer platte vorne
T02081 3x7x0.8 Washer
3x7x0.8 Scheibe
........................2
TR4059 M3x8 Screw
M3x8 Schraube
...............4
TR4059 M3x12 Screw
M3x12 Schraube
............4
Rear hub carriers
23
L
R
Radachse hinten
< R >
T04028
Rear bearing collar
Lagerbuchse
TS4027 M3x3
TS4027
Hex Mount
Radmitnehmer
TR4059 M3x12
-D
Bag
TR4011
T02100
Rear hub carriers-L
Radträger hinten
5x10x4
TS4027
2x9.8
TR4059 M3x8
T02081 3x7x0.8
T02100
T02059
5x10x4
Ball stud-Long
Kugelkopf lang
11
TR4059 M3x8
TS4027 M3x3 Screw
TS4027 2X9.8 Pin
TS4050
Rear Wheel Shaft
T04028 Rear bearing collar
Radachse hinten
T02059 Ball stud-Long
T02100 5x10x4 Ball bearing
M3x3 Schraube
......... ... ...............2
2X9.8 Pin
.....................2
Lagerbuchse
...............2
Kugelkopf lang
............2
5x10x4 Kugellager
...............4
