- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Daewoo dwc121c Owner's Manual Shop genuine replacement parts for Daewoo dwc121c Find Your Daewoo Air Conditioner Parts - Select From 15 Models -------- Manual continues below --------...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PRECAUTION................2 2. -
Page 3: Precaution
1. PRECAUTION Please observe the following instructions. 1. Turn off unit. Make sure the unit is OFF and the AC cord is unplugged before repairing or servicing. 2. In case of checking the circuit unavoidably while the unit is connected with power source, be careful not to connect with the part of electric charge. -
Page 4: General Specifications
2. GENERAL SPECIFICATIONS MODEL DWC-121C/CS DWA-150C/CS ITEM Function Cooling only Power source AC 115V, 60Hz Singte Phase AC 220V, 60Hz Singte Phase Btu/h 12,100 Btu/h 14,300 Btu/h Cooling Capacity Kcal/h 3,050 Kcal/h 3,604 Kcal/h Btu/wh 10.1 Btu/wh 9.8 Btu/wh Energy Efficiency Ratio Kcal/wh 2.55 Kcal/wh... -

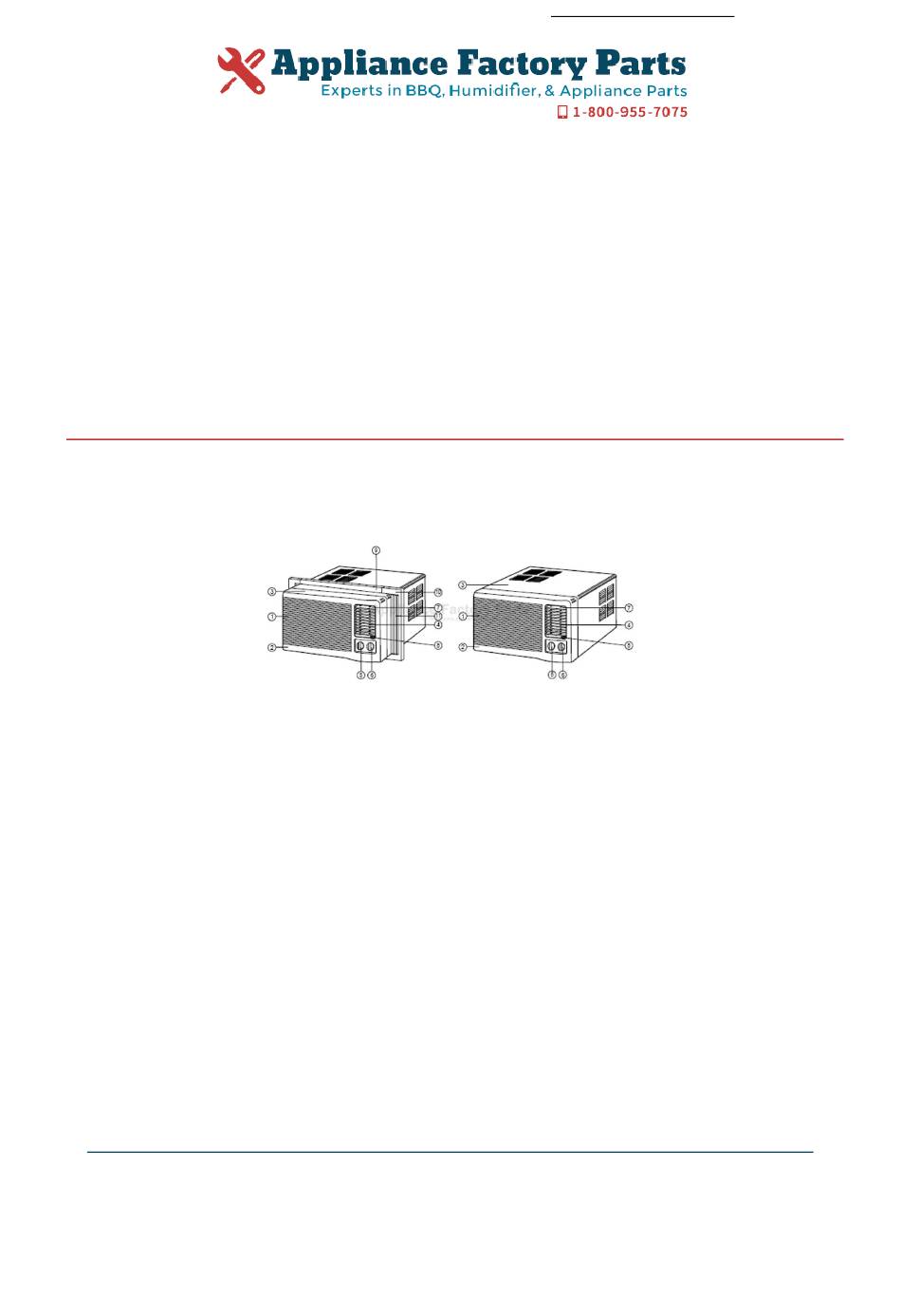

Page 5: Names Of Major Components
3.NAMES OF MAJOR COMPONENTS • DWC-121C / DWA-150C • DWC-121CS / DWA-150CS PART NAME PART NAME AIR FILTER BLADE HORIZENTAL GRILL FRONT AIR VENT CABINET PLATE WINDOW TOP BLADE VERTICAL FRAME WINDOW KIT KNOB THERMOSTAT SHUTTER WINDOW KNOB SELECTOR AUTO LOUVER S/W (DWC-121CS/DWA-150CS) -
Page 6: Function Of Main Components
4. FUNCTION OF MAIN COMPONENTS 1. ROTARY SWITCH (SELECTOR) Please refer to the part of selector in the chapter 9 (Wiring Diagram). The rotary switch (selector) controls the fan motor’s rotation speed, and has six positions. The function of the six position is as follow. OFF: This position stops all operations of the air conditioner. -
Page 7: General Informations
5. GENERAL INFORMATIONS 1. CHANGING AIR FLOW DIRECTION Air flow deflectors divert air from center flow to left or right. Adjust deflectors for desired air flow pattern. 2. AIR FLOW AROUND UNIT Check in door grill and outdoor louvers for air flow obstructions. Do not block air flow to and from unit. The outdoor coil should be checked and periodically cleaned for debris that may collect and block unit air flow. -
Page 8: Care And Maintenance
6. CARE AND MAINTENANCE 1. AIR FILTER Clean the air filter, which removes dust inside the room. It should be washed at least once every week during operation. 1. Remove the Air Filter from the front grill by pulling up. 2. -
Page 9: Trouble Shooting Guide
7. TROUBLE SHOOTING GUIDE TROUBLE SITUATION ANALYSIS CAUSE REMEDY Fan motor and 1. Power failure 1) Power plug 1) Power failure Consult your electric company compressor do not 2) Circuit breaker 2) Circuit breaker is tripped In case of a breaker, turn it on and off a few times 3) Power plug is not contacting Replace the power plug... - Page 10 TROUBLE SITUATION ANALYSIS CAUSE REMEDY The compressor runs 1) Fan Blocked by others Repair but the motor doesn’t 2) Fan motor 3) Capacitor Disconnection or burned-out Replace the fan motor 4) Fan motor circuit electric cord Failure malfunction of contact Replace Disconnection of malfunction Check the circuit...
-
Page 11: How To Disassemble
8. HOW TO DISASSEMBLE Please refer to the chapter 11 (Exploded diagram and parts list). Before service of 1. Stop the unit, remove the power cord from the receptacles. any part. 2. Move the unit to the safe location for the suitable work. Ass’y Fan Motor 1. -
Page 12: Wiring Diagram
9. WIRING DIAGRAM • DWC-121C / CS WIRING DIAGRAM SELECTOR SWITCH HIGH COOL COOL COOL WHT(BLU) THERMOSTAT O.L.P SWITCH COMP BLK(BRN) MOTOR GRN(GRN/YEL) CAPACITOR • DWC-121C / CS WIRING DIAGRAM SELECTOR SWITCH HIGH COOL COOL COOL WHT(BLU) AUTO LOUVER SWITCH... -
Page 13: Refrigerant Cycle
10. REFRIGERANT CYCLE Evaporator Blower fan MOTOR Capillary tube Accumulator Compressor Propeller fan Condenser... -
Page 14: Exploded Diagram And Parts List
11. EXPLODED DIAGRAM AND PARTS LIST DWC-121C/CS, DWA-150C/CS PART LIST CODE COMPONENTS Q’TY SPECIFICATION REMARK 3102402400 GRILL FRONT HIPS 3103400700 KNOB HIPS 3101600600 DECORATE FRONT PC FILM 3101902100 FILTER PRE HIPS 3106501800 BLADE VERTICAL HIPS 3106501700 BLADE HORIZENTAL 3108503600 SEAL GRILLE F–US... - Page 15 SPECIFICATION REMARK 5SM0101700 THERMOSTAT AS PFA 602GF 5S10405100 SWITCH ROTARY SR6B41610D 3101300100 POWER CORD 16A 250V 3109503100 CAPACITOR 40uF/370VAC DWC-121C/CS(ONLY) 3109503200 CAPACITOR – DWA-150C/CS(ONLY) 3101201600 CLAMP CAPACITOR SGCC T0.6 3108004800 MOTOR SWING 120VAC 60Hz DWC-121CS(ONLY) 3108002900 MOTOR SWING 220VAC 50/60Hz...
- Page 17 DWC-121C EXPLODED DIAGRAM...
- Page 19 DAEWOO ELECTRONICS CO., LTD. 686, AHYEON-DONG MAPO-GU SEOUL, KOREA C.P.O. BOX 8003 SEOUL, KOREA TELEX: DWELEC K28177-8 CABLE: “DAEWOOELEC” FAX: 02) 590-6291 TEL: 02) 360-7114/590-6151~5 http://www.dwe. daewoo.co.kr S/M NO.: PRINTED DATE: JAN.1999...
- Page 20 Room Air Conditioner Model: DWC-121C/121CS DWA-150C/150CS This instrument is listed by Underwriter’s Laboratories, Inc. It is designed and manufactured to meet rigid U.L. safety standards against X-radiation, LISTED fire, casualty and electrical hazards. ROOM AIR CONDITIONER 39WK DAEWOO ELECTRONICS CO., LTD.
- Page 21 VISION CREATIVE, INC. ` – ‚ ‡ † · º „ fi • ˛ 5 ¡ 526 · º ¿ ·” ø 1 6ˆ Á ⁄ ∞ ¸ ‘ · · ª ª · · T T E E L L „...
- Page 22 VISION CREATIVE, INC. ` – ‚ ‡ † · º „ fi • ˛ 5 ¡ 526 · º ¿ ·” ø 1 6ˆ Á ¿Ã ‚ ˆ ∞ ¿Â ‘ · · ª ª · · T T E E L L –...
