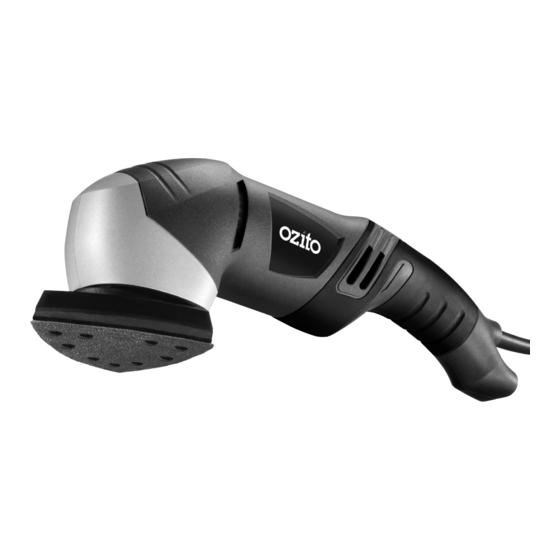

Detail Sander
280W
Instruction Manual
3 Year Replacement Warranty
OZDS280WA
! !
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
0212
www.ozito.com.au
To view the full range visit:
Advertisement
Table of Contents
Related Manuals for Ozito OZDS280WA
Summary of Contents for Ozito OZDS280WA
- Page 1 280W Instruction Manual 3 Year Replacement Warranty OZDS280WA WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
-
Page 2: Specifications
SPECIFICATIONS - MODEL NO. OZDS280WA Motor size: 280W Input: 230 - 240V ~ 50Hz No load speed: 6,000 - 10,000/min Weight: 1.4kg KNOW YOUR PRODUCT 1. ON/OFF switch 2. Variable Speed Dial 3. Hook &loop base plate 4. Sanding sheet 5. -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS……………………………………… Page 1 INTRODUCTION……………………………………….. Page 3 ELECTRICAL SAFETY…………………………………. Page 3 GENERAL SAFETY INSTRUCTIONS………………… Page 4 DETAIL SANDER SAFETY WARNINGS……………… Page 6 PREPARATION & SETUP……………………………… Page 7 TOOL OPERATION……………………………………. Page 10 MAINTENANCE………………………………………... Page 12 DESCRIPTION OF SYMBOLS………………………… Page 13 CONTENTS…………………………………………….. -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. This tool is double insulated in accordance with AS/NZS60745;... -
Page 5: General Safety Instructions
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 7: Detail Sander Safety Warnings
DETAIL SANDER SAFETY WARNINGS • Hold power tool by insulated gripping surfaces, because the sanding pad may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Recommendation that the tool always be supplied via a residual current device with a rated residual current of 30 mA or less. -
Page 8: Preparation & Setup
PREPARATION & SETUP WARNING! Failure to unplug your detail sander could result in accidental starting causing possible serious injury. Sanding Sheet Installation Your detail sander is equipped with a hook & loop base plate (3). This uses hook and loop technology, which firmly grips the sanding sheets when applied with moderate pressure. - Page 9 PREPARATION & SETUP (cont.) Sandpaper Selection Selecting the correct grit of sandpaper is an important step in achieving optimum results. Coarse grit will remove the most material. Finer grit will produce a smoother finish. The condition of the workpiece will determine the grit of the sandpaper to be used.
- Page 10 PREPARATION & SETUP (cont.) Precautions to Take When Sanding Paint CAUTION: A dust mask should be worn at all times. Any finish, such as paint or resin, may soften from frictional heat. This will cause the material to rapidly clog the sandpaper, rendering it useless. A heat gun will remove paint more effectively before sanding.
-
Page 11: Tool Operation
TOOL OPERATION CAUTION: Before attempting to use your sander, be sure to familiarise yourself with all its operating features and safety requirements. WARNING! The sander should always be disconnected from the power supply when assembling parts, making adjustments, cleaning or when the tool is not in use. - Page 12 TOOL OPERATION (cont.) Sanding WARNING! Guide the cord during sanding to prevent it being caught on the workpiece, or other tools/objects. The procedure for operating the sander is set out below: 1. This sander can be used for most sanding operations on materials such as wood, plastic, metal and painted surfaces.
-
Page 13: Maintenance
Always replace both brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 14: Description Of Symbols
DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts /min Revolutions or No load speed reciprocation per minute Double insulated Regulator compliance mark CARING FOR THE ENVIRONMENT Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. -
Page 15: Contents
CONTENTS 1 x Detail Sander OZDS280WA 3 x Sanding sheets 1 x Instruction manual 1 x Dust extraction adaptor OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au... -
Page 16: Warranty
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
