Wildgame FZ12 User Manual

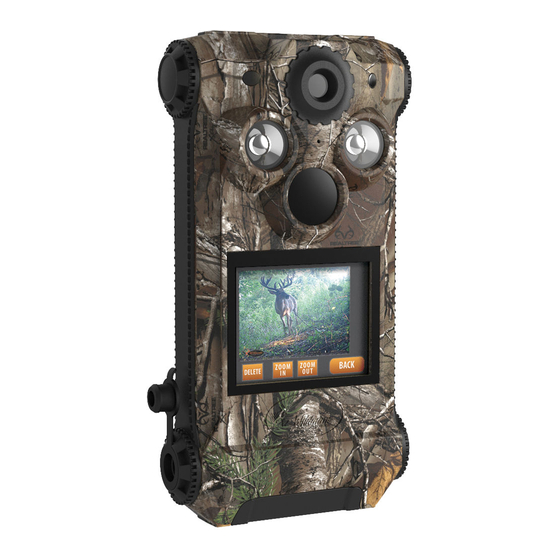

Infrared digital scouting camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Infrared Digital Scouting Camera
User's Manual
Model # FZ12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FZ12 and is the answer not in the manual?

Questions and answers

Related Manuals for Wildgame FZ12

Summary of Contents for Wildgame FZ12

  • Page 1 Infrared Digital Scouting Camera User’s Manual Model # FZ12...
  • Page 2 Includes Flextime Player User Manual USB Cable 2 - Bungee Cords Software Rechargeable Charging Base Camera Unit Battery NOTE: Flextime Player Software is optional. Flextime files can be played by using most media players. page 1...
  • Page 3 Features RESOLUTION MAX: 12 MP FLASH 2 Infrared DYNAMIC LED’s up to 60 feet FLASH RANGE SENSOR Passive Infrared Sensor (PIR) Motion and Heat SENSOR RANGE up to 60 feet IMAGE FORMAT JPEG - Digital Still / AVI - Digital Video MEMORY up to 32GB Micro SD Card (not included and required) Class 4 and above recommended...

  • Page 4: Installing Batteries

    Installing Batteries With the camera facing up, open With the bottom of the camera the battery compartment cover towards you, load the Lithium Ion by sliding the latch to the right. Rechargeable battery with the connectors facing up and away from you into the battery chamber.
  • Page 5 Close battery compartment Load Micro SD memory card (up to cover. To latch the cover simply into the SD card 32GB not included) pull the latch slightly to the right slot with the connectors facing as you push to close the battery down.

  • Page 6: Test Mode

    Test Mode Power On To turn the unit ON, press and LCD Ready Mode: The camera will release the power button. automatically enter Ready Mode if a button is not pressed for greater than 30 seconds. The status lights will illuminate for a total of 2 minutes.

  • Page 7: Power Save

    Power Save Date/Time After 30 seconds without any To change Date & Time, press buttons being pushed, the LCD the DATE TIME icon. will turn off and camera enters into Power Save or Ready Mode. DATE & TIME LOCATION IMAGE TYPE TRIGGER DATE &...
  • Page 8 Location Image Type:Still To change Image Type, press the Image Type icon. Save the location of the area the camera was installed. This is for your reference and is optional. If you do not wish to DATE & TIME LOCATION IMAGE TYPE IMAGE TYPE TRIGGER...
  • Page 9 Image Type:Video Trigger To change Image Type, press the This setting allows you to choose the mode in which the camera will be Image Type icon. capturing images. To change Trigger, press IMAGE TYPE DATE & TIME LOCATION IMAGE TYPE TRIGGER the Trigger icon.

  • Page 10: Pir Sensitivity

    PIR Sensitivity Active Time To change PIR Sensitivity, To change the Active Time, press the PIR Sensitivity icon. press the Active Time icon. DATE & TIME LOCATION IMAGE TYPE TRIGGER DATE & TIME LOCATION IMAGE TYPE TRIGGER PIR SENSITIVITY ACTIVE TIME FLEXTIME ™...
  • Page 11 FLEXTIME selected Flextime period: Camera is inactive before and after Flextime periods. Flextime is active twice a day. 1. 15 min before Sunrise 15 MINUTES 15 MINUTES AFTER BEFORE to 1 hour after Sunrise. FLEX FLEX SUNSET SUNRISE INACTIVE TIME TIME INACTIVE 2.
  • Page 12 Delay Flextime +™ To change Flextime™, press the To change the Delay, press the Flextime™ icon. Delay icon. DATE & TIME LOCATION IMAGE TYPE TRIGGER DATE & TIME LOCATION IMAGE TYPE TRIGGER FLEXTIME ™ PIR SENSITIVITY ACTIVE TIME FLEXTIME ™ DELAY PIR SENSITIVITY ACTIVE TIME...

  • Page 13: Playback: Videos

    Playback: Stills Playback: Videos To view your videos, press the To view your images, press the Playback icon. Playback icon. DATE & TIME LOCATION IMAGE TYPE TRIGGER DATE & TIME LOCATION IMAGE TYPE TRIGGER PIR SENSITIVITY ACTIVE TIME FLEXTIME ™ DELAY PIR SENSITIVITY ACTIVE TIME...
  • Page 14 View Assist TP Calibrate To use View Assist, press the View To change TP Calibrate, press the TP Calibrate icon. Assist icon. DATE & TIME LOCATION IMAGE TYPE TRIGGER DATE & TIME LOCATION IMAGE TYPE TRIGGER PIR SENSITIVITY ACTIVE TIME FLEXTIME ™...

  • Page 15: Power Off

    You must wake up the LCD screen open the weather resistant cover and then depress and and use a Wildgame Innovations hold the power button 6 Volt camera battery accessory. until the LCD turns off. Image Stamp...
  • Page 16 Mounting Attach the mounting bracket by screwing When mounting to a tree, the screws into the back of the camera. first latch the 2 bungee cords through the mounting holes on the left or right side of the camera. Then, stretch the cords around the tree and latch the other ends of the bungee cords through the...
  • Page 17 Important Once you connect the camera to your computer via the USB cable/ports, the camera will then draw power from the computer. When completing the viewing, transferring, copying or deletion of images, please make sure that you DISCONNECT THE USB CABLE FROM BOTH THE CAMERA AND THE COMPUTER, as you will not be able to power the camera OFF until you do so.

  • Page 18: Retrieving Images

    Retrieving Images (SD Card in Camera) Method 1: Leave SD card in camera Please select Removable Disk from this menu (or double click on the graphical A. First, make sure that the camera is icon). powered OFF. Next, plug the USB cable into F.
  • Page 19 Retrieving Images (SD Card reader) Method 2: Remove SD card and use card left of your screen and select “Com- puter”. The summary view will then be reader illustrated on the right hand side of the A. First, remove the SD Card from the window where by the “Devices with camera unit itself by pressing on it to where Removable Storage”...

  • Page 20: Warranty

    Warranty DISCLAIMERS WGI Innovations, LTD is not responsible for damage, expense or injury caused by the unauthorized use of, alterations to, improper connection of and abuse or neglect of the WGI Innovations™ products. WARRANTY You must register your product warranty online at www.wildgameinnovations.com. Follow the on screen directions to complete the process.
  • Page 21 FCC CE FCC STATEMENT Product Name: Game Trail Camera Trade Name: Wildgame Innovations Model# FZ12 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two criteria: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 22 602 Fountain Parkway Grand Prairie, TX 75050 800.847.8269 “Wildgame Innovations” and the “Button Logo” are TM trademarks of Wildgame Innovations, LLC. “Sport Responsible” , “Redux” and “Flextime” are TM trademarks of WGI Innovations, LTD.
