Trojan IGNITE 360 User Manual

Hide thumbs Also See for IGNITE 360:
Table of Contents

Advertisement

Quick Links

IGNITE 360
TREADMILL
USER MANUAL
Visit facebook.com/trojanhealth
www.trojanhealth.co.za
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS IN THIS MANUAL
BEFORE USING THIS EQUIPMENT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGNITE 360 and is the answer not in the manual?

Questions and answers

Stanley
March 18, 2025

Panel light does not come on. Treadmill stop working

0
1 comments:
Mr. Anderson
March 18, 2025

The panel light may not come on and the treadmill may stop working if the safety key is not in position. The Trojan Ignite 360 Treadmill will not power on without the safety key. Ensure the safety key is properly inserted to restore power.

This answer is automatically generated

0
Stanley
March 18, 2025

Where iscthe reset pin situated

0

Related Manuals for Trojan IGNITE 360

Summary of Contents for Trojan IGNITE 360

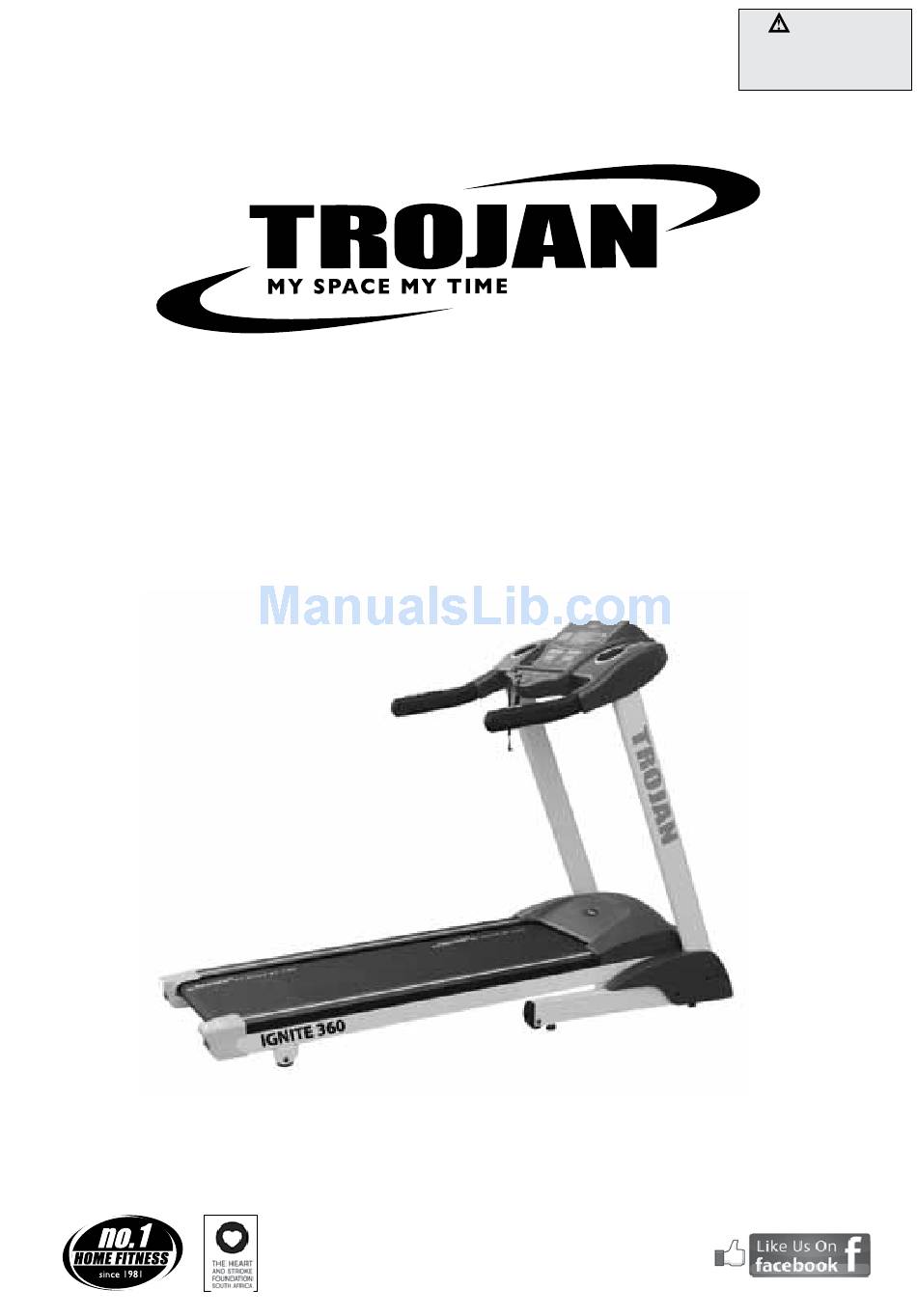

  • Page 1 CAUTION READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE USING THIS EQUIPMENT. KEEP THIS MANUAL FOR FUTURE REFERENCE. IGNITE 360 TREADMILL USER MANUAL Visit facebook.com/trojanhealth www.trojanhealth.co.za...

  • Page 2: Table Of Contents

    index • 1. Important Safety Instructions _______________________________________ 3 • 1.1 Important Electrical Information ____________________________________ 3 • 1.2 Important Operation Instructions _ __________________________________ 4 • 2. Brief Description _________________________________________________ 7 • 3.1 Console Keys __________________________________________________ 8 • 3.2 Getting Started _________________________________________________ 9 • 3.3 Self-Checking __________________________________________________ 9 • 3.4 Quick-Start Operation ___________________________________________ 9 • 3.5 Incline Feature _ _________________________________________________ 9 • 3.6 400 Metre Track ________________________________________________ 9 • 3.7 Pulse Grip Feature ______________________________________________ 9 • 3.8 Calorie Display ________________________________________________ 10 • 3.9 Folding And Unfolding Treadmill ___________________________________ 10...

  • Page 3: Important Electrical Information

    IMPORTANT SAFETY INSTRUCTIONS WARNING Read all instructions before using this treadmill. It is important your treadmill receives regular maintenance to prolong its useful life. Failing to regularly maintain your treadmill may void your warranty. DANGER To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to cleaning and/ or service work.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS away from any moving parts of the treadmill including the elevation mechanism and transport wheels. • Never remove any cover without first disconnecting AC power. • Never expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors, near a pool, or in any other high humidity environment.
  • Page 5 SAFETY INSTRUCTIONS It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest is important. If any of these instructions or warnings are unclear, please contact our Trojan Call Centre on 0861 TROJAN (0861 876526), within the Republic of South Africa.
  • Page 6 INSPECTION • Do not use or permit use of any equipment that is damaged or has worn or broken parts. For all Trojan equipment use only replacement parts supplied by Trojan. • Always make sure that all nuts and bolts are tightened prior to each use.
  • Page 7 GROUNDING INSTRUCTIONS This product must be grounded. If a malfunction or breakdown occurs, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 8 OPERATION INSTRUCTIONS Incline & decline Speed Music Clear Start/Stop Mode   1. MODE 4. CLEAR Pressing MODE when the treadmill is on, gives you the Pressing CLEAR while the treadmill is on will option to choose one of the preset programs P1-P25. allowed to clear the selected Time, Distance or Press CLEAR to exit.

  • Page 9: Getting Started

    OPERATION INSTRUCTIONS 8. SPEED UP switch located at the front of the While running, pressing SPEED UP will increased the treadmill below the motor shield. Ensure speed by 0.5 km/h. that the safety key is installed, as the treadmill will not power on without 9.

  • Page 10: Pulse Grip Feature

    OPERATION INSTRUCTIONS • Incline can’t be adjusted if the safety key has been ending of the program there will be a removed. three beep warning that the program has • To reset the Incline, the treadmill will need to be come to an end and the running belt will restarted.
  • Page 11 LIST OF 25 PROGRAMS 1. WALKING AND jOGGING 1.1 START 1 1 min 2-5 min 6-25 min 26-28 min 29-30 min 30 min 1 km/h 2 km/h 3 km/h 2 km/h 1 km/h STOP 1.2 START 2 1 min 2-5 min 6-25 min 26-28 min 29-30 min 30 min...
  • Page 12 LIST OF 25 PROGRAMS 3. MEDIUM DISTANCE RUN 3.1 COuRSe 1 wiTh iNCliNe 1 min 2-8 min 9-15 min 16-22 min 23-28 min 29-30 min 30 min 2 km/h 6 km/h / 5 % 4 km/h / 5 % 5 km/h / 5 % 3 km/h / 5 % 1 km/h STOP...
  • Page 13 LIST OF 25 PROGRAMS 4.5 COuRSe 5 1 min 2-8 min 9-15 min 16-22 min 23-28 min 29-30 min 30 min 3 km/h 4 km/h 7 km/h 12 km/h 12 km/h 4 km/h STOP 5. RUNNING 5.1 COuRSe 1 1 min 2-8 min 9-15 min 16-22 min 23-28 min...
  • Page 14 PRE ASSEMBLY CHECK LIST Thank you for choosing the Trojan Ignite 360 Treadmill. We take great pride in producing this product and hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its fullest. Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health.
  • Page 15 PARTS LIST Factory P/N eNgliSh NAMe SPeCiFiCATiON. B00824500 Bottom Frame 1 B00724500 Bottom Frame 2 B01024500 Incline Frame 1 B01124500 Incline Frame 2 B00535000 Left Upright B00635000 Right Upright B03035000 Left Upright Connector Steel B03135000 Right Upright Connector Steel B00224500 Meter Frame B00945000 Motor Mounting Steel B01425000...
  • Page 16 PARTS LIST Factory P/N eNgliSh NAMe SPeCiFiCATiON. 3280005 Speed Sensor Wire 2P x 1100 mm 4243007 Binder 3210070 Console Master Wire 4P x 900 mm 3210023 Base Connect Wire 4P x 1900 mm 3210071 Speaker Cable 2P x 700 mm 3210025 Speaker Cable 2P x 270 mm 4020006...
  • Page 17 PARTS LIST Factory P/N eNgliSh NAMe SPeCiFiCATiON. 3370002 Switch 5990001 Rubber Stopper 3500012 Transformer 3110010 Controller 0000274 EVA Pastern T1.0 x 8 x 1200 mm 0000124 EVA Pastern T2.0 x 20 x 1200 mm 4064001 Safety Key 2100001 Flat Washer Ø8 2130001 M8 Flat Washer Ø8...
  • Page 18 PARTS LIST 2060002 M4 x 8 Cross Screw M4 x 8 mm 2050012 M5 x 10 Cross Screw M5 x 10 mm 2070015 ST4.2 x 13 Cross Screw ST4.2 x 13 mm 2110002 M10 Flat Washer Ø10 2080001 ST4.2 x 13 Cross Screw ST4.2 x 13 mm 2070003 ST4.2 x 13 Cross Screw...
  • Page 19 EXPLODED DRAWING 10292...
  • Page 20 ASSEMBLY STEPS • Unpack the carton and place all the parts on the floor, carefully removing all packaging. • Check that all the required parts are in the box. • When assembling, first assemble all nuts and bolts loosely, then tighten them up once the entire treadmill is assembled.

  • Page 21: Workout Guidelines

    WARM UP & COOL DOWN WORKOUT GUIDELINES Each workout should include the following three parts: A warm-up: 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise. Training zone exercise: 20 to 30 minutes of exercising with your heart rate in your training zone. (Note: During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes).

  • Page 22: Folding

    MAINTENANCE Reasonable cleaning/lubricating should be made to extend the life time of this unit. Performance is maximized when the belt and mat are kept as clean as possible. WARNING: THE MAT/DECK FRICTION MAY PLAY A MAJOR ROLE IN THE FUNCTION AND LIFE OF YOUR TREADMILL AND THAT IS WHY WE RECOMMEND YOU CONSTANTLY LUBRICATE THIS FRIC- TION POINT TO PROLONG THE SERVICEABLE LIFE OF YOUR TREADMILL.

  • Page 23: Maintenance

    MAINTENANCE We recommend you use a silicone based spray to lubricate your Life-span Treadmill. This Can be purchased from your local sports Retailer or a local hardware store. 4.5 BELT ADjUSTMENT Belt Tension Adjustment-It is very important for joggers and runners in order to provide a smooth, steady running surface.
  • Page 24 MAINTENANCE Check that the speed sensor and magnet are in correct alignment and that there are no obstructions on the magnet. (The magnet can be found on the front roller near the motor belt). If the running belt moves then displays the E1 error after 10 seconds, replace the speed sensor. If the running belt does not move, replace the controller.
  • Page 25 The Consumer does not need to return the product to the store. The Consumer should call the Trojan Call Centre on 0861 TROJAN (0861 876526) and the Manufacturer’s authorised agent will at its discretion either repair the item at the Consumer’s residence or collect and repair the item at their premises.
  • Page 26 Do not return the product to the store.* • Call the Trojan Call Centre on 0861 TROJAN (0861 876526) to log the faulty product (under warranty or out of warranty). • The operator or technical advisor will try identify the fault, and will book a service team call out.
  • Page 27 10292...
