Trojan IGNITE 350 Care Instructions And Assembly Manual

Hide thumbs Also See for IGNITE 350:

Advertisement

Table of Contents

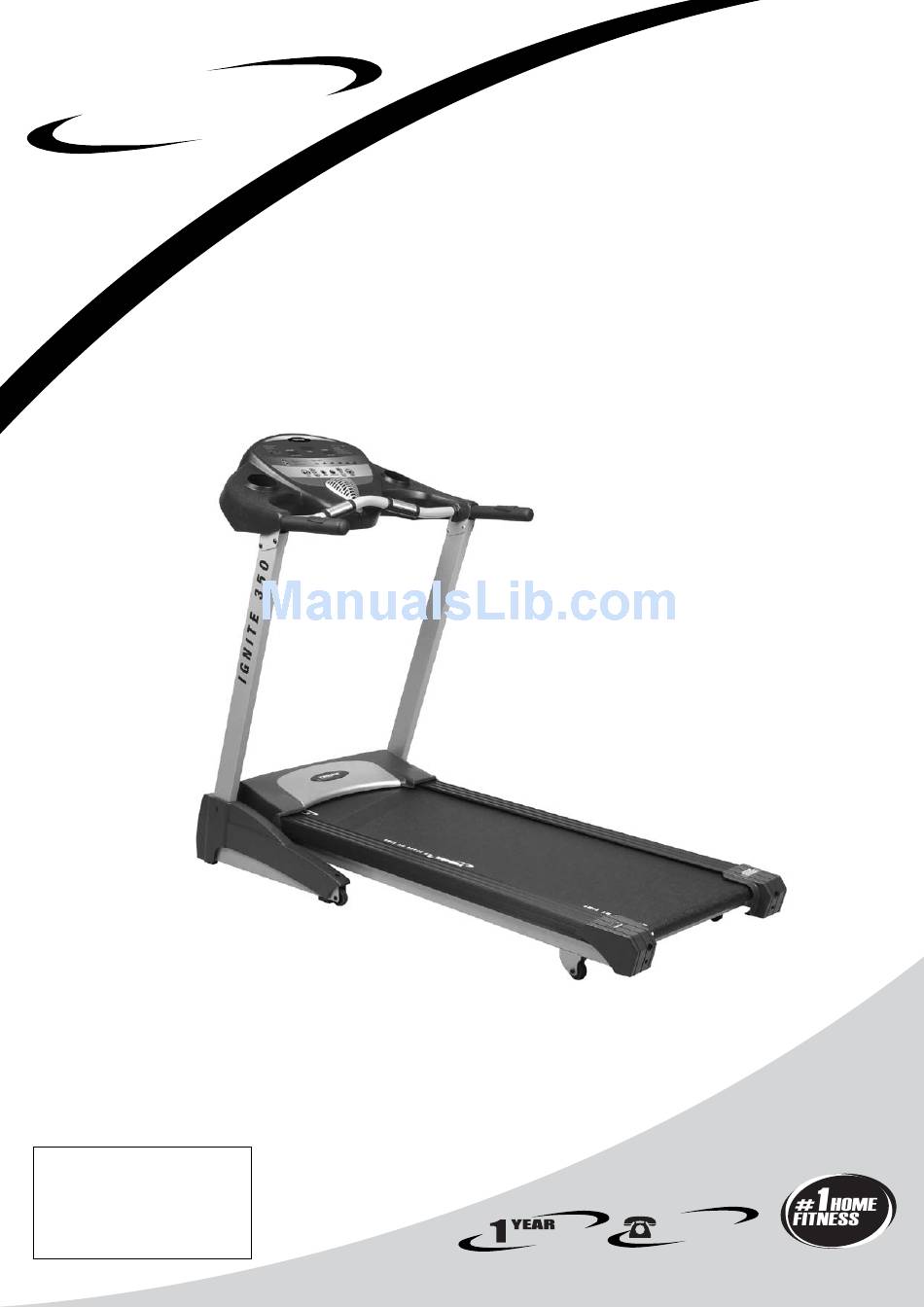

TROJAN
®
IGNITE 350
MY SPACE MY TIME
TREADMILL
TREADMILL
CARE INSTRUCTION AND ASSEMBLY MANUAL
CAUTION
READ ALL PRECAUTIONS AND
INSTRUCTIONS IN THIS MANUAL
BEFORE USING THIS EQUIPMENT
0861 876 526
KEEP THIS MANUAL FOR
0861 TROJAN
WARRANTY
FUTURE REFERENCE
www.trojanhealth.co.za

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGNITE 350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trojan IGNITE 350

Summary of Contents for Trojan IGNITE 350

  • Page 1 TROJAN ® IGNITE 350 MY SPACE MY TIME TREADMILL TREADMILL CARE INSTRUCTION AND ASSEMBLY MANUAL CAUTION READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE USING THIS EQUIPMENT 0861 876 526 KEEP THIS MANUAL FOR 0861 TROJAN WARRANTY FUTURE REFERENCE...

  • Page 2: Table Of Contents

    INDEX PAGE SAFETY INSTRUCTIONS PRE ASSEMBLY CHECK LIST HARDWARE LIST ASSEMBLY STEPS 5.. FOLDING INSTRUCTIONS MAINTENANCE GROUNDING INSTRUCTIONS COMPUTER FUNCTIONS FREQUENTLY ASKED QUESTIONS 10. PARTS LIST 11. EXPLODED DRAWING 12 TROJAN 1 YEAR LIMITED WARRANTY 13. TROJAN REPAIRS PROCEDURE...

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS It is the sole responsibility of the purchaser of TROJAN products to read the owner’s manual, warning labels and instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on 0861 876526 (0861 Trojan), within the Republic of South Africa.
  • Page 4 SAFETY INSTRUCTIONS INSPECTION • Do not use or permit use of any equipment that is damaged or has worn or broken parts. For all TROJAN equipment use only replacement parts supplied by TROJAN. • Always make sure that all nuts and bolts are tightened prior to each use.

  • Page 5: Pre Assembly Check List

    2. PRE ASSEMBLY CHECK LIST Thank you for choosing the TROJAN IGNITE 350 TREADMILL.We take great pride in producing this quality product and hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its fullest.

  • Page 6: Hardware List

    3. HARDWARE LIST ITEM Description ITEM Description Frame Truss Hex Screw M8 x P1.25 x 40 (SAEK242) 102 Safety Key/Clip Hex Wrench + Screwdriver 5mm (70mm x 70mm) 112 Left Decoration Cover Hex Wrench 6mm (80mm x 80mm) 113 Right Decoration Cover Silicon 105 Truss Hex Screw M8 x P1.25 x 15 Bottle...

  • Page 7: Assembly Steps

    4. ASSEMBLY STEPS Two persons are required to assemble the treadmill. Caution! Please follow the assembly steps to avoid injury. STEP 1 Simultaneously raise both Handrail Tubes of the Computer Consol on Frame (1) as shown and secure with 2 Hex Screws (95). CAUTION: Ensure that cables are not damaged during assembly or when tightening screws.
  • Page 8 5. UNFOLDING / FOLDING / TRANSPORT UNFOLDING Hold the treadmill running board with your left hand. Pull the locking knob with your right hand and slowly lower the treadmill running board. Remove your right hand as you slowly lower the running board to the floor. (Figure 1) FOLDING Ensure the incline angle of the treadmill is at its lowest position.

  • Page 9: Maintenance

    6. MAINTENANCE Your treadmill should require little maintenance other than periodically applying lubricant. Lubricating under the treadbelt will ensure superior performance and extend the treadmill’s life expectancy. HOW TO CHECK TREADBELT FOR PROPER LUBRICATION Lift one side of the treadbelt and feel the top surface of the treadboard.

  • Page 10: Grounding Instructions

    7. GROUNDING INSTRUCTIONS This product must be grounded. If malfunction or breakdown occurs, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

  • Page 11: Computer Functions

    8. COMPUTER FUNCTIONS I. GENERAL OPERATION 1. Turn on the treadmill (the On/Off switch is located on the back of the motor cover). 2. Put the Safety Key into the recess of the consol. 3. The consol will now sound a warning beep and the consol window will display 00:00. This means the treadmill has entered the Start/Ready mode.
  • Page 12 8. COMPUTER FUNCTIONS ** When the SAFETY KEY is taken off and then replaced, the treadmill will not reposition itself to the start position (flat).You need to press the START key to reposition the treadmill. ** When the power is on, the treadmill will not reposition itself from any operating position it is in. You will need to press the START key to reposition the treadmill.
  • Page 13 8. COMPUTER FUNCTIONS: PRESET PROGRAMMES 3.4. Press and the treadmill runs according to the preset values of the program. The speed and inclination (of the program’s 12 stages) will change continually according to the preset values. The first segment will last 2 minutes and the following segments will each last for 1 minute.
  • Page 14 8. COMPUTER FUNCTIONS: PRESET PROGRAMMES 10154-14...

  • Page 15: Frequently Asked Questions

    3. If the error continues, turn off computer, unplug, leave for 30 seconds, then restart the treadmill. 4. If the error persists, please contact our call centre on 0861 876526 (0861 Trojan) Q5. The consol cannot read the hand pulse signal 1.

  • Page 16: Parts List

    10. PARTS LIST No. Description No. Description Frame 32 Drive Belt End Cap use with 25x50x3.0t 33 Running Board Power Cord Clip 34 Rubber Cushion Pad Power Cord 35 Socket Philips Screw Round Head Philips Screw M5xP0.8x8(Bronze) 36 Counter Sink Hex Screw Power Switch 37 Foam Sticker Circuit Breaker...
  • Page 17 10. PARTS LIST No. Description No. Description Base Computer Tube Foam Grip Wheel PBK495215 Truss End Cap Truss Hex Screw M8xP1.25x40 100 Hand Pulse Set (10mm) End Cap use with 30x60x2.0t 101 Computer Foot Pad 102 Safety Key Washer Drilling Philips Self Tapping 103 Truss Hex Screw M8xP1.25x25 Screw Ø4x20 (SAE812525) End round and spiky...

  • Page 18: Exploded Drawing

    11. EXPLODED DRAWING 10154-18...

  • Page 19: Trojan 1 Year Limited Warranty

    The Consumer does not need to return the product to the store. The Consumer shall phone the Trojan hotline on 0861 Trojan (0861 876 526) and the Manufacturer’s authorized agent will at its discretion either repair the item at the Consumer’s residence or collect and repair the item at their premises.

  • Page 20: Trojan Repairs Procedure

    13. TROJAN REPAIRS PROCEDURE 1. Procedure for repairs Should you experience any faults or breakdowns on your Trojan equipment, please adhere to the following procedure to have the fault rectified speedily and professionally. • Do not return the product to the store* Call 0861 876526 (0861 Trojan) to log the faulty product (under warranty or out of warranty) •...
