Summary of Contents for Agria 5556 111

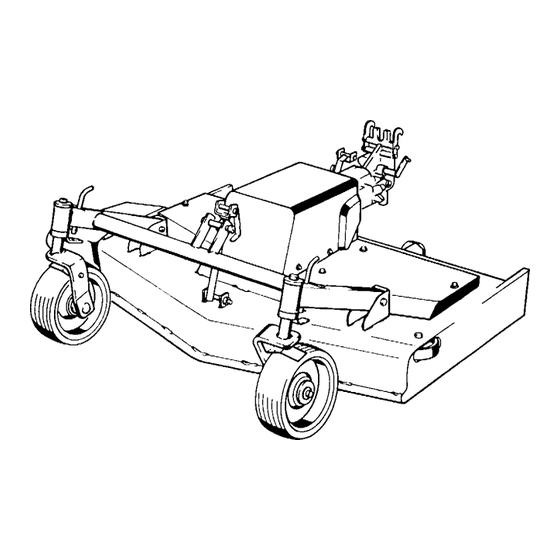

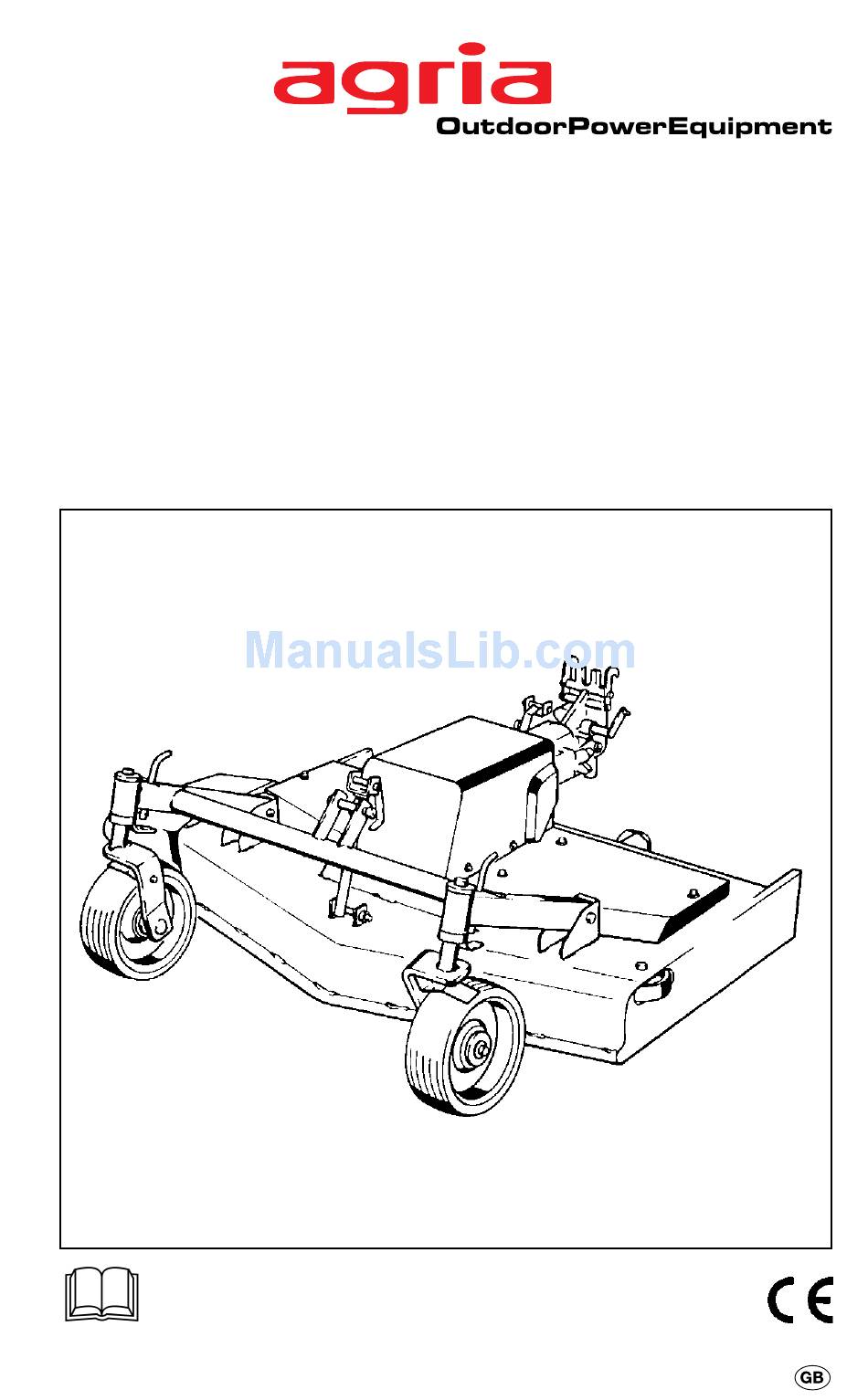

- Page 1 Operating Instructions ® for agria Mounted Twin Sickle Mower 5556 111 for agria types 3400 and 5500 4018 Before commissioning the machine, read operating instructions and observe warnings and safety instructions. Operating Instructions No. 998 755 06.97...
-
Page 2: Table Of Contents
Lubricants, Varnishes, Wear Parts ... 17 Recommendations ......17 Recommendations, Lubricants, Mainte- Symbols nance ..........17 Inspection and Maintenance Chart ... 18 Warning – Danger 6. Troubleshooting ......18 Important information Conformity Declaration ..... 19 Mounted Twin Sickle Mower 5556 111 Edition 06.97... -
Page 3: Safety Instructions
When transporting the sickle mower on vehicles or trailers outside the area to be cultivated, ensure that the engine is shut off. Careful with rotating tools – keep at a safe distance! Edition 06.97 Mounted Twin Sickle Mower 5556 111... -
Page 4: Starting The Engine
(jumper cable). Danger of explosion. Be careful when mowing; ensure that the sickle knife does not seize obstacles such as border stones, enclosures, roots etc. Mounted Twin Sickle Mower 5556 111 Edition 06.97... - Page 5 Secure power mower against unauthor- ized use and rolling off when you leave If possible, always work across the slope. the machine. If necessary, install trans- port or security devices and secure. Edition 06.97 Mounted Twin Sickle Mower 5556 111...
- Page 6 Make sure oil used is of specified quality. Storage is in approved cans only. Dispose of oil, greases, and filters seperately and properly. Only use original agria spare parts. All other commercial spare parts must cor- respond to quality and technical require- ments specified by agria.
-
Page 7: Designation Of Parts
11 Connection flange 12 Catch hook 13 Shifting lever 14 Sensing roller for ground irregularities 15 Belt cover left 16 Bearing clips for safety lever 17 Safety lever for engine brake. Edition 06.97 Mounted Twin Sickle Mower 5556 111... -
Page 8: Devices And Operating Elements First Mounting
– see illustration. Insert the 2 bearing shells (3) for steer- ing tubes of Ø 25 (agria Type 3400). Pass the electrical line (4) through the free space between steering tube and fastening screw and make sure that the electrical line is not caught and damaged. -
Page 9: Mounting To The Base Machine
The steering handle is already in the correct position. agria 3400 and 5500 Mounting and dismantling to/from the agria base machines Type 3400 or 5500 is made with the agria quick-coupling system as described in the operating instructions for the base machines. -
Page 10: Adjusting The Cutting Height
(b) of the rear adjusting spindle upwards and turn crank, until measure Y (clearance to the ground, rear) is identical to measure X (clearance to the ground, front). Mounted Twin Sickle Mower 5556 111 Edition 06.97... -
Page 11: Rigid Position
Introduce connector (1) downwards into the fixing hole at the wheel fork (con- nector in 90°position) and introduce R- clip (2) into the cross hole at the connector 1 Connector 2 R-clip Edition 06.97 Mounted Twin Sickle Mower 5556 111... -
Page 12: Commissioning And Operation Mowing
When leaving the machine and during working breaks, shut down the engine. Base machine and sickle mower must absolutely be secured against unauthor- ized use and rolling off. Mounted Twin Sickle Mower 5556 111 Edition 06.97... - Page 13 When having touched obstacles, check the sickle knife. Edition 06.97 Mounted Twin Sickle Mower 5556 111...
-
Page 14: Maintenance
When installing the sickle knife, ensure the correct position of the blades (see picture); use new retaining discs (3), screw in bolts (4) and tighten them, tightening torque 76 Nm. Wear protective goggles and protective gloves. Mounted Twin Sickle Mower 5556 111 Edition 06.97... -
Page 15: Floating Bearing
2 Grease nipple for Displace transmission block forwards universal joint (direction of arrow). Tighten hexagon screws (4) and mount hood again. 1 Protective hood 2 Washer 3 Hexagon screw 4 Hexagon screw Edition 06.97 Mounted Twin Sickle Mower 5556 111... -
Page 16: General, Cleaning
At the bearing point, a grease collar shall form protecting the bearing point against the entrance of dirt, plant saps and water. Mounted Twin Sickle Mower 5556 111 Edition 06.97... -
Page 17: Lubricants, Varnishes, Wear Parts
997 083 Implements for 3400, 5500 Recommendations: Maintenance and Repair The trained mechanics of your agria workshop carry out expert maintenance and repair. You should only carry out major maintenance work and repairs on your own, if you have the proper tools and knowledge of machines and internal combustion engines. -
Page 18: Inspection And Maintenance Chart
A = Each time before you take up operation B = After every cleaning with a high-pressure cleaner K = Checks and maintenance to be executed by operator W = Maintenance to be executed by professional workshop Mounted Twin Sickle Mower 5556 111 Edition 06.97... -
Page 19: Conformity Declaration
EC directive agria-Werke, GmbH D-74215 Möckmühl/Württ. herewith declare in sole responsibility that the product Mounted Twin Sickle Mower, Type 5556 111 to which this declaration refers, corresponds to the standard fundamental safety and health requirements as stipulated in EC directive 98/37/EC. - Page 20 Phone +49 6298 39-0 Fax +49 6298 39-111 e-mail: info@agria.de Internet: http://www.agria.de THE WINNING TEAM Power Hoe One-Wheel Hoe Hobby Two-Wheeler AllShredd Cutterbar Mower Lawn Mower Verticutter Multi-Purpose Machine Contact your authorised agria dealer for service and prompt delivery of spare parts...
