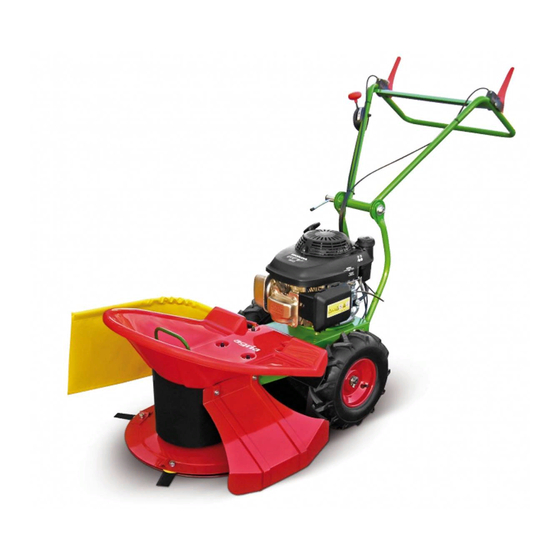

Agria 8000 611 Operating Instructions Manual

Shrub clearing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating Instructions
Operating Instructions
Operating Instructions
Operating Instructions
Operating Instructions
Translation of the original operating instructions
Translation of the original operating instructions
Translation of the original operating instructions
Translation of the original operating instructions
Translation of the original operating instructions
Shrub clearing machine
Shrub clearing machine
Shrub clearing machine
Shrub clearing machine
Shrub clearing machine
8000
8000
8000
8000
8000
- 8000 611 58 cm
- 8000 621 64 cm
6098_0, 6098_1
Before commissioning the machine, read operating
instructions and observe warnings and safety instructions.
Operating Instructions No. 998 795-B 11.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8000 611 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Agria 8000 611

Summary of Contents for Agria 8000 611

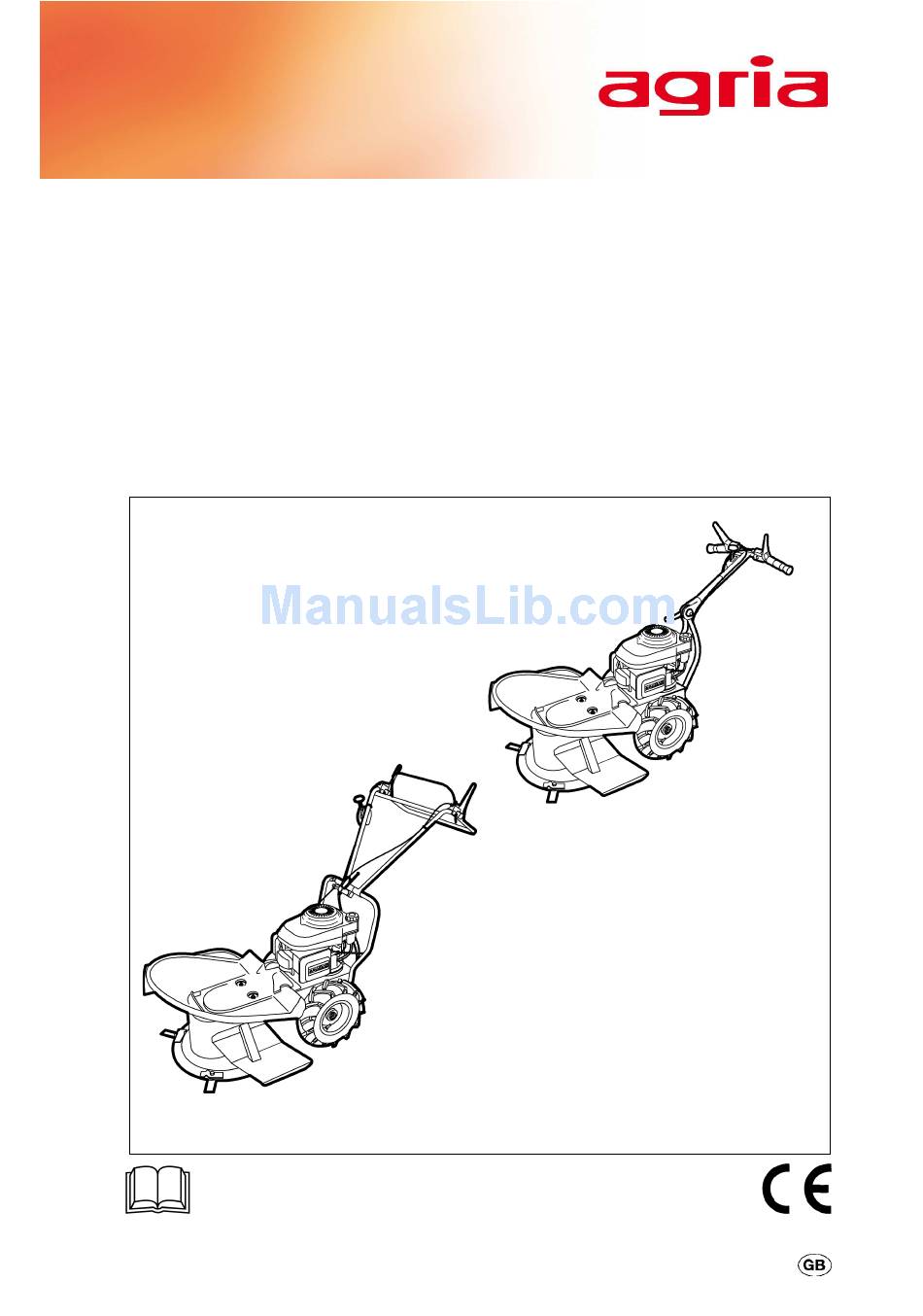

  • Page 1 Shrub clearing machine Shrub clearing machine 8000 8000 8000 8000 8000 - 8000 611 58 cm - 8000 621 64 cm 6098_0, 6098_1 Before commissioning the machine, read operating instructions and observe warnings and safety instructions. Operating Instructions No. 998 795-B 11.11...

  • Page 2: Wheel

    Please state these data when order- Engine Stop ing spare parts to avoid wrong deliv- eries. Air filter Only use original agria spare parts! Specifications, figures and dimen- Visual check sions stated in these instructions are not binding. No claims can be derived from them.
  • Page 3 5.2 Locking screw 6 Engine 7 Front cover (protective cover) 8 Swath curtain (protective cover) 9 Mowing rotor 10 Mowing knife 11 Wheel 12 Name plate/ Identification No. 13 Shifting yoke 14 Rear protection liner (protective cover) agria Shrub clearing machine 8000...

  • Page 4: Maintenance And Repair

    Using ecologically safe Bio-lubricants and Bio- anti-corrosives, you con- tribute to environmental protection and to the well- being of humans, animals and plants. agria Shrub clearing machine 8000...

  • Page 5: Speed Control Lever

    5.15 Changing V-belt ....32 3.8 Shifting Yoke, vers. 8000 621 ... 17 5.16 General Maintenance ... 33 3.9 Steering Handle, vers. 8000 611 ..18 5.17 Cleaning ........ 33 3.10 Transport. Position, vers. 8000 611 . 18 5.18 Disposal ........ 33 3.11 Steering Handle, vers.
  • Page 6 Cut open the 4 sides of the packaging box and fold them down Set the steering bar (A/4) to working height vers. 8000 611 page 18 vers. 8000 621 page 19 Thread the swath curtain (A/8) onto the swath curtain rod Place the swath curtain rod...
  • Page 7 Read and note the HONDA engine operating instructions Fill in engine oil see operating instructions for HONDA engine Check engine oil level see operating instructions for HONDA engine Fill in fuel see operating instructions for HONDA engine agria Shrub clearing machine 8000...
  • Page 8 Any unauthorized changes to the shrub engine is turned off. clearing machine render manufacturer liability null and void. Careful with rotating tools – keep at a safe distance! agria Shrub clearing machine 8000...
  • Page 9 Never adjust the operating handles dur- and remove them in time. ing work – danger! For operation in enclosed areas, ensure that a safety distance is kept to enclo- sures to prevent damage to tools. agria Shrub clearing machine 8000...

  • Page 10: Mowing Knife

    For all other versions, tive devices and adjust them properly. remove spark plug connector. Only use original agria spare parts. All other commercial spare parts must cor- respond to quality and technical require- ments specified by agria.

  • Page 11: Electrical System

    Make sure fuel is of specified quality. Store fuel in approved cans only. Store anti-corrosive agents and stabi- lizing liquids out of reach of children. If sickness and vomiting occur, see a doc- tor. If fuel has contacted eyes, rinse agria Shrub clearing machine 8000...
  • Page 12 (e.g. engine esp. exhaust). Only touch them when they have cooled down. Wear protective gloves. During operation keep at a safe di- stance from mowing knives. Wait until all machine components have completely stopped before touching them. agria Shrub clearing machine 8000...

  • Page 13: Wheel:

    2. Specifications 2.1 Shrub clearing machine: ............ Type 8000 611 Working width : ................... 58 cm Engine: 4-stroke petrol ohv engine ........Honda GCV160 Max. output: at 3,600 rpm ........4.1 kW (5.5 PS) Torque: ..........max. 11.4 Nm at 2,500 rpm Lowest no-load speed: ........

  • Page 14: Specifications

    Vibration value in accordance with ISO 5349: ......... 3.4 m/s Cutting range: ........Grass stalks to thin, non-wooden scrub Weight: ....................62 kg Dimensions: ................... l = 1400 mm ..................b = 660 mm .................. h = 1150 mm agria Shrub clearing machine 8000...
  • Page 15 Cooling System The cooling system is fan-cooled. There- fore keep screen at recoil starter and Fuel tap cooling fins of cylinder clean and free The fuel tap (B/11) is on the from sucked-in plant trash. carburetor. agria Shrub clearing machine 8000...
  • Page 16 Switching is carried out using the clutch lever (A/2) on the steering bar. The driving wheels are fitted with a ball-bearing overriding clutch, so that turning when operating the mower is easier. agria Shrub clearing machine 8000...

  • Page 17: Shifting Yoke 9

    Both drives can be switched on together using the shifting yoke (A/13). Before switching on press the locking strap on the clutch lever (A/1) for mowing drive. On releasing the shifting yoke (A/13) the mowing and travelling drives will be switched off. agria Shrub clearing machine 8000...
  • Page 18 3. Devices and Operating Elements 3.9 Steering Handle vers. 8000 611 Adjusting the steering: - Turn the tommy bar nut (A/5) (in an anti- clockwise direction) until its catches are free - Swing the steering (A/4) to the required height...
  • Page 19 Wear protective gloves. The steering (A/4) can be swung into a spa- ce-saving position for transportation Steering handle Kap. 3.11 Only operate the shrub clearing machine if the steering is fixed in the working position! agria Shrub clearing machine 8000...
  • Page 20 Only use fully functional loa- ding straps! Never walk or remain under moving loads. Danger! Do not lift the shrub clearing machine by the front cover (A/7)! agria Shrub clearing machine 8000...
  • Page 21 Note: For reasons of transport, the machine is not filled with engine oil! Before you operate the engine the first time, fill in engine oil Please observe the references of the engine operating instructions! agria Shrub clearing machine 8000...
  • Page 22 Caution with hot engine parts! The exhaust and other engine parts become very hot, if the engine runs and immediately after turning off. Hold for sufficient distance from hot surfaces and keep children away from the running engine. agria Shrub clearing machine 8000...
  • Page 23 This is to ensure the carburetor is empty and to avoid resin deposits. speed control lever also serves to shut off the engine in an emer- gency situation. If necessary, move this lever to position “STOP” to shut off the engine. agria Shrub clearing machine 8000...
  • Page 24 - pull the clutch lever (A/2) up to the handle Operate the speed control lever according to the travelling speed 4.5 Stopping Disengage travelling drive - Release the clutch lever (A/2) Set speed control lever (A/3) to "min" agria Shrub clearing machine 8000...
  • Page 25 After mowing or in case of clogging: Disengage travelling drive - the mower comes to a stop, the mowing rotor still continues to move and cuts itself free, afterwards switch off mowing drive Shut off the engine agria Shrub clearing machine 8000...
  • Page 26 This person must be located at 20° a higher position than the vehicle and at a safe distance from the attachment at work! For operation on banks, always turn Mowing on Mowing on machine towards the slope! slopes plain surfaces agria Shrub clearing machine 8000...
  • Page 27 However, if the space between the mowing rotor and the expelling area is blocked, both the travelling and the mowing drive must be switched off, the motor brought to rest and the space cleaned. agria Shrub clearing machine 8000...
  • Page 28 Careful, do not touch the muffler! This is very hot after Devices for actuating engine speed engine operation. must be adjusted correctly to start, op- erate and switch off the engine at cor- rect speed rates. - Service agria Shrub clearing machine 8000...
  • Page 29 (A/14 or D/11) every time before starting up and replace any damaged parts. Only operate the machine if all protective coverings and safety fittings have been placed into the safety position and are in working order! agria Shrub clearing machine 8000...
  • Page 30 The manufacturer's original design must be 3 Cutter used for all replacement parts. 4 Safety plate 5 Knife damping washer agria Order No. see page 36 5.11 Re-grinding the Mowing Knives Wear safety goggles and protective gloves agria Shrub clearing machine 8000...
  • Page 31 Bowden cable screw (H/1) and safety fittings have been and the adjusting screw on the clutch lever (A/2). placed into the safety position Replace the plastic cover (A/7) once more. and are in working order! agria Shrub clearing machine 8000...
  • Page 32 (D/5) Do not use commercial V-belts. Only use original agria V-belts! Only operate the machine if all protective coverings and safety fittings have been placed into the safety position and are in working order! agria Shrub clearing machine 8000...
  • Page 33 If the machine is no longer to be used, both the remaining fuel and any oil must be drained into sealable containers. The equipment, including the drained liquids, must then be passed on to a re-cycling company for disposal. agria Shrub clearing machine 8000...

  • Page 34: Troubleshooting

    6. Troubleshooting Observe safety instructions! Have all serious malfunctions on the machine or engine repaired by your agria workshop. They have the proper tools. Improper repairs can only add to the damage. Problem Possible cause Possible solution Page Engine - Spark plug connector not connected...
  • Page 35 - Mowing knife loosened, warped or Immediately turn off engine! incorrectly adjusted Check all screws and nuts for tightness, exchange damaged parts, adjust V-belt tension 30, 33 = For this purpose contact your agria workshop. BM = Engine operating instructions agria Shrub clearing machine 8000...
  • Page 36 400 ml Wear Parts: 76199 Air filter element set 75999 Spark plug NGK BPR6ES; Bosch WR7DC 479005 Mowing knife 58 cm (vers. 8000 611) 479045 Mowing knife 64 cm (vers. 8000 621) 479004 Knife screw 479046 Knife damping washer 77310...
  • Page 37 = Each time before you take up operation = After each cleaning BM = see engine operating instructions = Checks and maintenance to be executed by operator = Maintenance to be executed by professional workshop = after 2 years agria Shrub clearing machine 8000...

  • Page 38: Designation Of Parts

    5 Air filter 6 Carburetor, speed control device 7 Engine model ID No. 8 Spark plug, spark plug connector 9 Exhaust with exhaust guard 10 Fuel tank 11 Fuel tap 12 Fan housing agria Shrub clearing machine 8000...

  • Page 39: Conformity Declaration

    Conformity Declaration agria Shrub clearing machine 8000...
  • Page 40 GmbH Bittelbronner Straße 42 D-74219 Möckmühl Tel. +49/ (0)6298 /39-0 Fax +49/ (0)6298/39-111 e-mail: info@agria.de Internet: www.agria.de Your local agria specialist dealer:...
