Operating Instructions
Operating Instructions
Operating Instructions
Operating Instructions
Operating Instructions

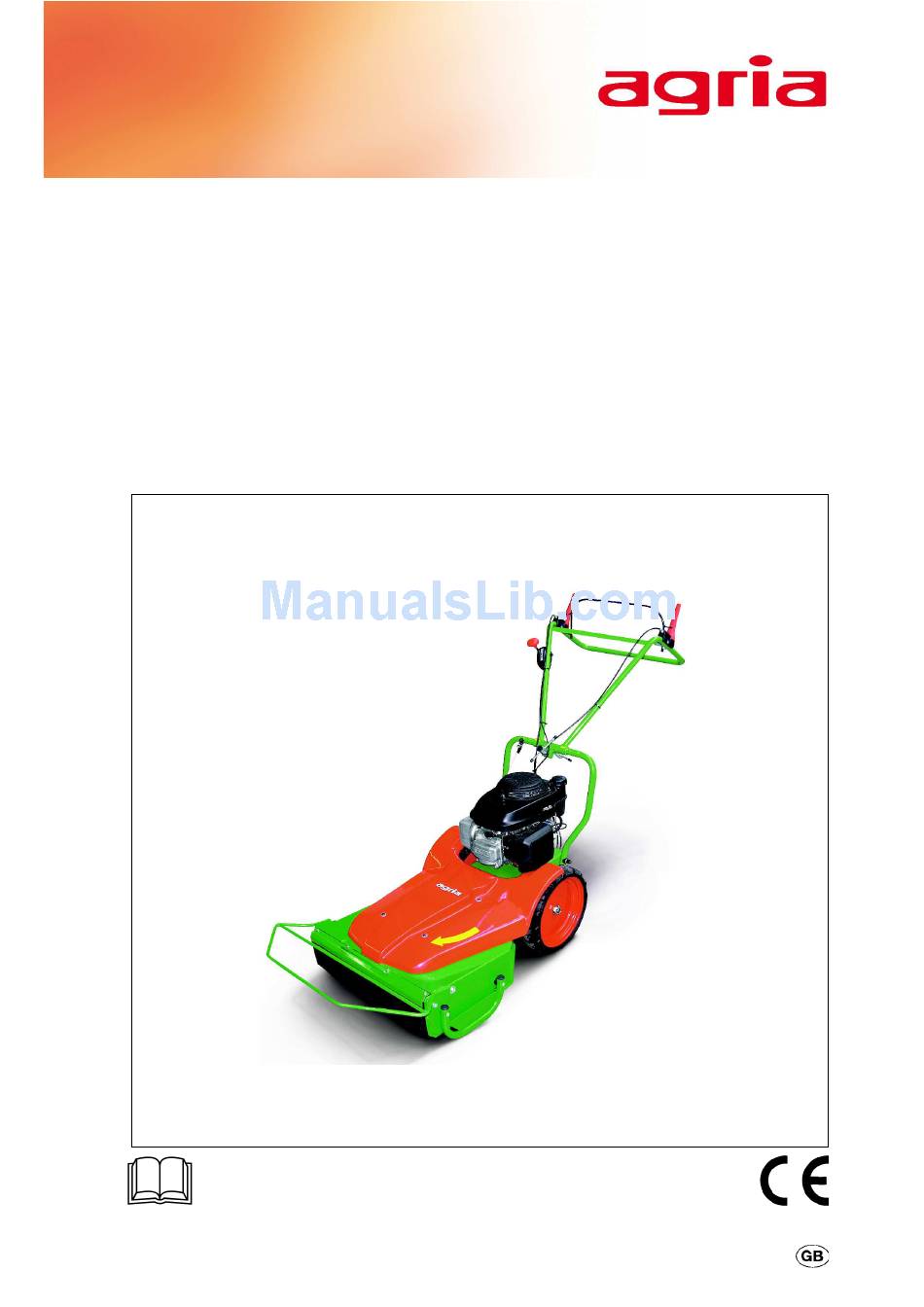

Translation of the original operating instructions
Translation of the original operating instructions
Translation of the original operating instructions
Translation of the original operating instructions
Translation of the original operating instructions
Brush Cutter
Brush Cutter
Brush Cutter
Brush Cutter
Brush Cutter
8000
8000
8000
8000
8000
- 8000 511 53 cm
.
Before commissioning the machine, read operating
instructions and observe warnings and safety instructions.
Operating Instructions No. 998 793-A 11.11
Advertisement
Table of Contents
Related Manuals for Agria 8000 511
Summary of Contents for Agria 8000 511
- Page 1 Translation of the original operating instructions Brush Cutter Brush Cutter Brush Cutter Brush Cutter Brush Cutter 8000 8000 8000 8000 8000 - 8000 511 53 cm Before commissioning the machine, read operating instructions and observe warnings and safety instructions. Operating Instructions No. 998 793-A 11.11...
-
Page 2: Amount Of Delivery
Please state these data when order- Engine Stop ing spare parts to avoid wrong deliv- eries. Air filter Only use original agria spare parts! Specifications, figures and dimen- Visual check sions stated in these instructions are not binding. No claims can be derived from them. -
Page 3: Designation Of Parts Fig. A
8 Engine 9 Front cover (protective cover) 10 Guide (protective cover) 11 Front protection liner (protective cover) 12 Cutter blade 13 Runner 14 Mower housing 15 Wheel 16 Rear protection liner (protective cover) 17 Name plate/ID No. agria Brush Cutter 8000... -
Page 4: Recommendations
Repair: This engine runs smooth- Agents: ly on commercial un- The trained mechanics of leaded regular and su- your agria workshop ex- lubricants pergrade petrol (inclu- per tly carry out any specified for engine and ding E10). maintenance and repair gearbox (see “Specifica-... -
Page 5: Table Of Contents
Note fold-out pages! 4.6 Mowing ........23 Fig. A, Machine ......3 4.7 Stopping ........23 Fig. B, Engine ......38 4.8 Danger Zone ......24 4.9 Mowing on Slopes ....25 4.10 Notes for Mowing/Mulching ..26 agria Brush Cutter 8000... -
Page 6: Instructions For Unpacking And Assembly
1 Mower housing 2 Guide 3 Disk 8,4x25x1,6 4 Screw M8x25 5 Plastic disk 8,4x25x5 6 Locking nut M8 7 Securing disk 8 8 Screw M8x12 agria Brush Cutter 8000... - Page 7 Read and note the HONDA engine operating instructions Fill in engine oil see operating instructions for HONDA engine Check engine oil level see operating instructions for HONDA engine Fill in fuel see operating instructions for HONDA engine agria Brush Cutter 8000...
-
Page 8: Safety Instructions
Compliance is for your own safety. When transporting the brush cutter on vehicles or trailers outside the area to be mowed, ensure that the engine is turned off. Careful with rotating tools – keep at a safe distance! agria Brush Cutter 8000... - Page 9 Never adjust the operating handles dur- For operation in enclosed areas, ensure ing work – danger! that a safety distance is kept to enclo- sures to prevent damage to tools. agria Brush Cutter 8000...
- Page 10 Only use original agria spare parts. All other commercial spare parts must cor- respond to quality and technical require- ments specified by agria.
- Page 11 Make sure fuel is of specified quality. Store fuel in approved cans only. Store anti-corrosive agents and stabi- lizing liquids out of reach of children. If sickness and vomiting occur, see a doc- tor. If fuel has contacted eyes, rinse agria Brush Cutter 8000...
- Page 12 (e.g. engine esp. exhaust). Only touch them when they have cooled down. Wear protective gloves. During operation keep at a safe di- stance from mowing knives. Wait until all machine components have completely stopped before touching them. agria Brush Cutter 8000...
-
Page 13: Specifications
2. Specifications Brush cutter: Type 8000 511 Working width : ..................53 cm Engine: 4-stroke petrol ohv engine ........Honda GCV190 Max. output: at 3,600 rpm ........4.8 kW (6.5 PS) Torque: ..........max. 13.7 Nm at 2,500 rpm Lowest no-load speed ........1,550 - 1,850 rpm Top no-load speed .......... -
Page 14: Devices And Operating Elements
3. Devices and Operating Elements Idle running speed The brush cutter agria type 8000 is suited for the cutting of grass and similar Always ensure that idling-speed is ad- plants as well as thin non-woody scrub justed correcty. With the speed control... -
Page 15: Speed Control Lever
Switching is carried out using the clutch lever (A/2) on the steering bar. The driving wheels are fitted with a ball-bearing overriding clutch, so that turning when operating the mower is easier. agria Brush Cutter 8000... -
Page 16: Travelling Drive
Both drives can be switched on together using the shifting yoke (A/3). Before switching on press the locking strap on the clutch lever (A/1) for mowing drive. On releasing the shifting yoke (A/13) the mowing and travelling drives will be switched off. agria Brush Cutter 8000... -
Page 17: Steering Handle
Wear protective gloves. The steering (A/4) can be swung into a spa- ce-saving position for transportation Steering handle Kap. 3.9 Only operate the brush cutter if the steering is fixed in the working position! agria Brush Cutter 8000... -
Page 18: Cutting Height
The grasping points A and B are in- tended for lifting and loading of the machine and for attaching the holding rope when working on slopes. Only use fully functional loading straps! Never walk or remain under moving loads. Danger! agria Brush Cutter 8000... -
Page 19: Commissioning And Operation
Note: For reasons of transport, the machine is not filled with engine oil! Before you operate the engine the first time, fill in engine oil Please observe the references of the engine operating instructions! agria Brush Cutter 8000... -
Page 20: Starting The Engine
Caution with hot engine parts! The exhaust and other engine parts become very hot, if the engine runs and immediately after turning off. Hold for sufficient distance from hot surfaces and keep children away from the running engine. agria Brush Cutter 8000... -
Page 21: Shutting Off The Engine
This is to ensure the carburetor is empty and to avoid resin deposits. speed control lever also serves to shut off the engine in an emer- gency situation. If necessary, move this lever to po- sition “STOP” to shut off the engine. agria Brush Cutter 8000... -
Page 22: Driving
- pull the clutch lever (A/2) up to the handle Operate the speed control lever according to the travelling speed 4.5 Stopping Disengage travelling drive - Release the clutch lever (A/2) Set speed control lever (A/3) to "min" agria Brush Cutter 8000... -
Page 23: Mowing
After mowing or in case of clogging: Disengage travelling drive - the mower comes to a stop, the mowing rotor still continues to move and cuts itself free, afterwards switch off mowing drive Shut off the engine agria Brush Cutter 8000... -
Page 24: Danger Zone
Before starting work any foreign objects must be removed from the area to be worked upon. Look out for any objects during operation. Before starting up check the immediate area (for children). Terrain to be mowed Safety area Warning signs agria Brush Cutter 8000... -
Page 25: Mowing On Slopes
This person must be located at 20° a higher position than the vehicle and at a safe distance from the attachment at work! For operation on banks, always turn Mowing on Mowing on machine towards the slope! slopes plain surfaces agria Brush Cutter 8000... -
Page 26: Notes For Mowing/Mulching
It can therefore happen that when mowing highly uneven areas the cutting height in the whole field is inconsistent. When mowing please ensure that the runners are always touching the ground. agria Brush Cutter 8000... -
Page 27: Maintenance
5.5 Speed Actuating Devices muffler! This is very hot after Devices for actuating engine speed engine operation. must be adjusted correctly to start, op- erate and switch off the engine at cor- rect speed rates. - Service agria Brush Cutter 8000... -
Page 28: Gearbox
Secure the nut with a new split-pin. Check the tyre air pressure (0.8 bar) regu- larly. For smooth driving, make sure that there is the same pressure in both tyres. 5.8 Bowden Cables Thoroughly lubricate the Bowden cables with Silicone oil. agria Brush Cutter 8000... -
Page 29: Protection Liners
5.11 Re-grinding the Mowing Knife 2 Safety plate 3 Centring plate Wear safety goggles and 4 Spring washer protective gloves 5 Cutter blade 6 Cutter boss After re-grinding re-balance the mowing knife agria Order No. see page 36 - Service agria Brush Cutter 8000... -
Page 30: V-Belt Tension For Travelling Drive
Bowden cable screw (H/1) and safety fittings have been and the adjusting screw on the clutch lever (A/2). placed into the safety position Replace the plastic cover (A/9) once more. and are in working order! agria Brush Cutter 8000... -
Page 31: Changing V-Belt
The brake belt is located behind the pulley working order! (G/2). Remove the front plastic cover (A/9) Replace the brake belt Replace the front plastic cover (A/9) Check the coast-down time of the cutter blade once more. agria Brush Cutter 8000... -
Page 32: General Maintenance
If the machine is no longer to be used, both the remaining fuel and any oil must be drained into sealable containers. The equipment, including the drained liquids, must then be passed on to a re-cycling company for disposal. agria Brush Cutter 8000... - Page 33 Brush Cutter 8000...
-
Page 34: Troubleshooting
6. Troubleshooting Observe safety instructions! Have all serious malfunctions on the machine or engine repaired by your agria workshop. They have the proper tools. Improper repairs can only add to the damage. Problem Possible cause Possible solution Page Engine - Spark plug connector not connected... - Page 35 Check all screws and nuts for tightness, exchange damaged parts, adjust V-belt tension 29, 30, 32 - Unbalanced mowing knife Balance mowing knife = For this purpose contact your agria workshop. BM = Engine operating instructions00 agria Brush Cutter 8000...
-
Page 36: Varnishes, Wear Parts
M12x1,5x30 Qual. 8.8 77312 Securing disk SKM12 (for knife screw) 479074 V-belt for mowing drive 13x1400 Li 479073 V-belt for travelling drive 10x475 Li 479080 Front protection liner 479003 Rear protection liner Note: Only use original agria V-belts! agria Brush Cutter 8000... -
Page 37: Inspection And Maintenance Chart
= Each time before you take up operation = After each cleaning BM = see engine operating instructions = Checks and maintenance to be executed by operator = Maintenance to be executed by professional workshop = after 2 years agria Brush Cutter 8000... -
Page 38: Designation Of Parts Fig. B
4 Oil filler plug, dip stick 5 Air filter 6 Carburetor, speed control device 7 Engine model ID No. 8 Spark plug, spark plug connector 9 Exhaust with exhaust guard 10 Fuel tank 11 Fuel tap 12 Fan housing agria Brush Cutter 8000... -
Page 39: Conformity Declaration
Conformity Declaration agria Brush Cutter 8000... - Page 40 GmbH Bittelbronner Straße 42 D-74219 Möckmühl Tel. +49/ (0)6298 /39-0 Fax +49/ (0)6298/39-111 e-mail: info@agria.de Internet: www.agria.de Your local agria specialist dealer:...
