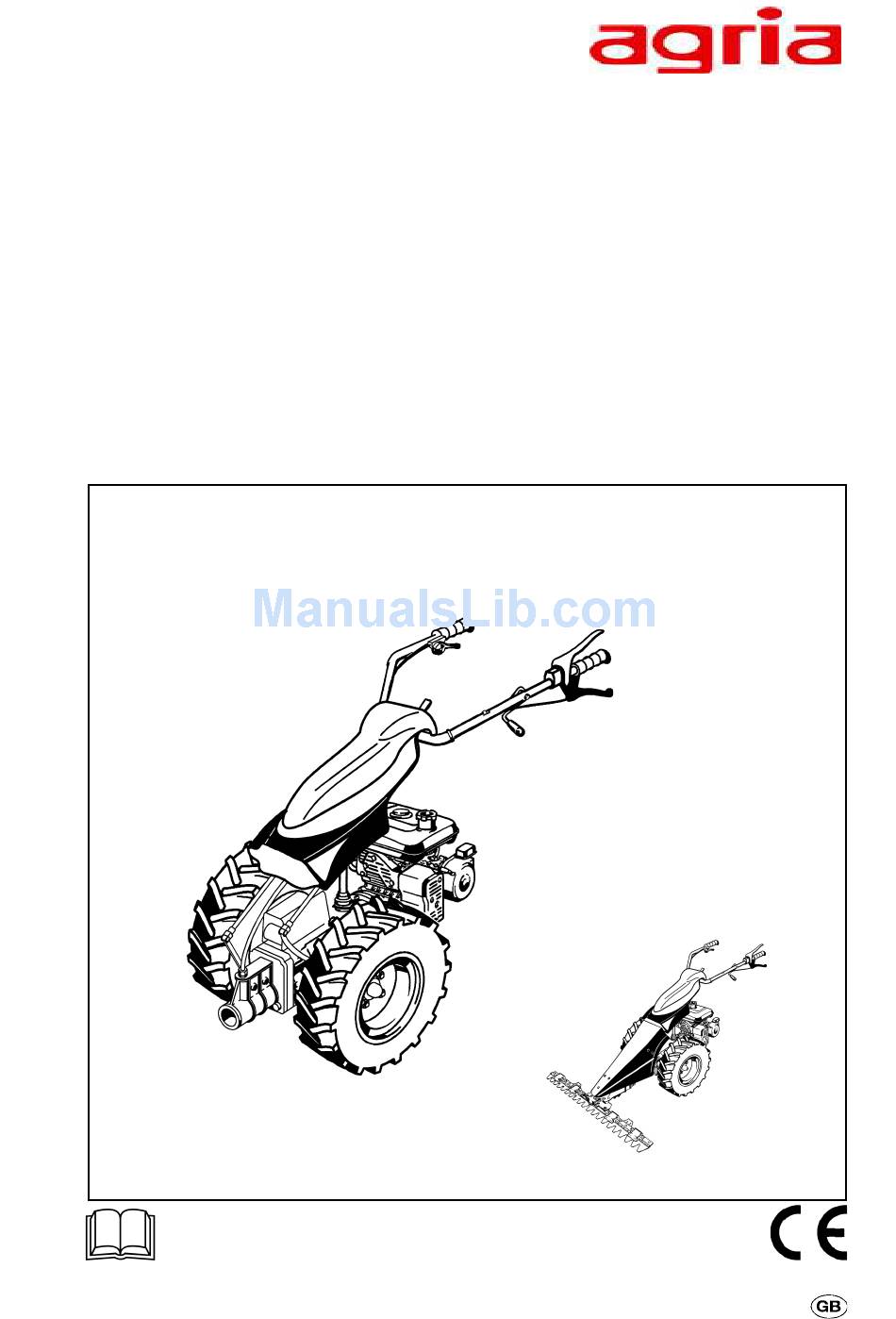

Operating Instructions
Translation of the original operating instructions
Tool Carrier
3600 Unihamster
3600 911, 921 compact 2 + 2
3600 931, 941 comfort 3 + 3
3600 961, 971 premium 3 + 3 + Brake
Engine: EH 17 D
Before commissioning the machine, read operating
instructions and observe warnings and safety instructions.
Operating Instructions No. 998 762-A 04.12
- compact
- comfort
- premium
Advertisement
Table of Contents
Related Manuals for Agria 3600 UNIHAMSTER compact
Summary of Contents for Agria 3600 UNIHAMSTER compact
-
Page 1: Operating Instructions
Operating Instructions Translation of the original operating instructions Tool Carrier 3600 Unihamster - compact - comfort - premium 3600 911, 921 compact 2 + 2 3600 931, 941 comfort 3 + 3 3600 961, 971 premium 3 + 3 + Brake Engine: EH 17 D Before commissioning the machine, read operating instructions and observe warnings and safety instructions. -
Page 2: Symbols, Name Plate
Air cooling Please state these data when Transmission oil level ordering spare parts to avoid wrong deliveries. Visual check Only use original agria spare parts! Clutch Specifications, figures and dimen- Mowing drive sions stated in these instructions are not bind-ing. No claims can be Wheel drive derived from them. -
Page 3: Designation Of Parts
Designation of Parts Compact Version Comfort, premium Version agria Tool Carrier Unihamster... -
Page 4: 12 Engine
10 Locking lever for steering handle height adjustment 11 Speed control lever 12 Hand lever for forfard and reverse 13 Hand lever for operation brake, park brake - only premium version 14 Pawl for park brake - only premium version agria Tool Carrier Unihamster... -
Page 5: Table Of Contents
Note fold-out pages! Snow Chains ........24 Fig. A + B ........3 Twin-Wheels ........24 Strake Wheels ........ 24 Fig. C ........50 4. Commissioning and Operation Commissioning the Machine ..26 Starting the Engine ......28 agria Tool Carrier Unihamster... -
Page 6: Recommendations
Recommendations Lubricants and Anti- Maintenance and Repair: Corrosive Agents: The trained mechanics of your agria workshop carry out expert mainte- Use the specified lubricants for engine nance and repair. and gearbox (see “Specifications”). You should only carry out major mai-... -
Page 7: Safety Instructions
Careful with rotating tools – keep at a tractor unit without implements. safe distance! Due use includes compliance with manufacturer’s instructions on opera- tion, maintenance and repair. Any unauthorized changes to the mower render manufacturer liability null and void. agria Tool Carrier Unihamster... - Page 8 – danger! that a safety distance is kept to enclo- During operation the operator must sures to prevent damage to tools. keep at a distance as defined by the steering handle, especially when turn- ing the machine. agria Tool Carrier Unihamster...
- Page 9 Secure finger tor. bars additionally with tension springs. Do not transport the dismounted cutter bar without protective strips. Before fitting and dismounting the cut- ter bar, make sure all blades are pro- tected by the protective strip. agria Tool Carrier Unihamster...
- Page 10 For grinding the mowing knives, always wear safety goggles and gloves. Only use original agria spare parts. Weights All other commercial spare parts must correspond to quality and technical re- Always fit weights onto appropriate quirements specified by agria.
-
Page 11: Electrical System
Read and observe enclosed instruc- tions. Before you dispose of opened and seemingly empty pressurised tins (e.g. of assist-starting liquids) make sure they are completely empty. Empty them agria Tool Carrier Unihamster... - Page 12 Wear protective gloves. Do not work without protective devices! Do not start the engine without having the protective devices positioned to provide protection. Wear solid shoes. With engine running, keep a safe dis- tance to cutting tools! agria Tool Carrier Unihamster...
-
Page 13: Specifications
Vibration acceleration value: Vibration acceleration value: on handlebar grip ..a = 31,2 m/s in accordance with 2002/44/EG; EN 12733:2001 on handlebar grip ..a = 13,68 m/s in accordance with 2002/44/EG; EN 12733:2001 agria Tool Carrier Unihamster... -
Page 14: Gearbox Premium
1,35 2,16 3,02 (e. g. BP Energear Hypo) Travel Speeds: Steering handle: ..rubber mounted height adjustable without tools. Vibration acceleration value: on handlebar grip ..a = 13,68 m/s in accordance with 2002/44/EG; EN 12733:2001 agria Tool Carrier Unihamster... -
Page 15: Dimensions
Centrally driven oil bath rocker arm mowing drive for universal, municipal cutter bar and cutting bar Stroke: ........76 mm Stroke speed: ..... 943 min Transmission oil for mowing drive: ........ SAE 90-API GL5 Filling quantity approx. 0,5 l. agria Tool Carrier Unihamster... -
Page 16: Engine
Outlet ......0,08 - 0,11 mm Starter: ......Recoil starter Noise level: In accordance with EN 12733 and EN ISO 11201: Noise level at operator’s ear ..........L = 84,5 dB(A) Acoustic power level: ............L = 103,3 dB(A) agria Tool Carrier Unihamster... -
Page 17: Devices And Operating Elements Engine
3. Devices and Operating Elements Cooling system The agria tool carrier 3600 is a basic mtorised unit and is always used with Cooling system is fan-cooled. Therefore an implement. Therefore it is most suit- keep grille at recoil starter and cooling... -
Page 18: Safety Circuit
(pawl is locked into place), oth- erwise clutch problems may occur due to corrosion. Brake only premium version Brake unlocked Operation brake - Pull hand lever (B/13) Park brake - Pull hand lever (B/13) - lock with pawl (B/14) agria Tool Carrier Unihamster... -
Page 19: Gearbox
Shifter (B/7) is for turning on/off the mowing drive or the PTO driven implement. Move shifter forward = off; Move shifter backward = on. Steering Handle Compact Version Steering Handle Height Adjustment Loosen the locking bolts (B/9). Adjust handlebar to desired height. Fasten the locking bolts. agria Tool Carrier Unihamster... -
Page 20: Steering Handle Adjustment
Steering Handle Height Adjustment Press down locking lever (B/10) until notches B/10 are free. djust handlebar to desired height. Release locking lever and fit handle-bar into proper notch, so that locking lever wivels back into its original position. agria Tool Carrier Unihamster... -
Page 21: Coupling Attachments
(eccentric lever com- pletely pushed forward), if not, twist attachment slightly to the left and right. Removing attachments: Pull eccentric lever backward (inter-locking lever is opened). Remove attachment from coupling. Cover attachment coupling pin with protective cap. agria Tool Carrier Unihamster... -
Page 22: Mowing Attachment
(8) to the cutter bar. Finger cutter bar Mount the knife driver (16) to the knife. Finger Cutter Bar Coupling plate not necessary. Mount the knife driver with the long attachment bolts (supplied) (14a) to the mowing knife. agria Tool Carrier Unihamster... - Page 23 Reverse the above order. Exchanging Mowing Knifes Turn off the engine, remove Finger cutter bar the spark plug connector! Wear safety gloves! Fit knife guard before You re- move mowing knife! Keep clear off mowing knife! Mounting and Dismounting agria Tool Carrier Unihamster...
-
Page 24: Drive-Wheels
After each wheel change or after fitting strake wheels and twin wheel hubs, re-tighten wheel bolts and nuts at approx. 50 Nm af- ter the first 2 operating hours. Oth- 50 Nm erwise, always re-tighten when do- ing maintenance work. agria Tool Carrier Unihamster... - Page 25 To fit strake wheels, remove wheel (3) and washers (2). Fit strake wheel flanges (1) with bolts and washers and tighten wheel nuts at 50 Nm. 50 Nm Slide strake wheels onto square piv- ots and tighten with tommy screws (5). agria Tool Carrier Unihamster...
-
Page 26: Commissioning And Operation Commissioning The Machine
Check transmission oil level (see page 36) Note: For reasons of transport, the engine is not filled completey with engin oil! Before you operate the engine the first time, fill in engine oil (see page 32)! agria Tool Carrier Unihamster... - Page 27 Do not touch the hot engine – dan- ger of burns! Do not touch or remove the ig- nition line and spark plug connec- tor while the engine is running. agria Tool Carrier Unihamster...
-
Page 28: Starting The Engine
After the start, let the rope glide back. Do not let it snap back. As soon as the engine has warmed up, move the CHOKE back to the operating position (if it was operated). agria Tool Carrier Unihamster... -
Page 29: Switching Off The Engine
This is to ensure the carburetor is empty and to avoid resin deposits. Transport (with Cutter Bar) Before transportating the machine, turn off the engine, wait until the cutting tools stopps and fit knife guard! agria Tool Carrier Unihamster... -
Page 30: Mowing
Re-tighten all nuts and screws of the mowing drive and the cutter bar after commissioning and when changing the knife after about 15 - 30 operating minutes and than every 4 operating hours (particu- larly of the cutter bar carrier and the knife driver). agria Tool Carrier Unihamster... - Page 31 (stones etc.). Height adjustment: Loosen hexagonal nuts (1). Slightly lift cutter bar and adjust the slid- ing skids (2). Re-tighten hexagonal nuts (1). Adjust all sliding skids to the same height. agria Tool Carrier Unihamster...
-
Page 32: Working On Slopes
Starting the engine on slopes Keep the PTO shaft and the travel- ling drive in engaged mode; braking ef- fect. Version premium: pull the park brake. Move the hand clutch lever and emergency-off-switch into "Start" posi- tion. Start the engine. agria Tool Carrier Unihamster... -
Page 33: Maintenance
Clean filling- and drain plug and sur- rounding parts. Change the oil and dispose of prop- erly. Check sealing washer for good condition and ex- change, if necessary! - For engine oil quality refer to “Specifi- cations”. agria Tool Carrier Unihamster... -
Page 34: Air Filter
Do not clean the foamed pre- liminary filter and the filter element using compressed air and do not soak it in oil! Reinstall the filter element and the foamed preliminary filter. Reposition the filter cap. Replace immediately damaged filter elements. agria Tool Carrier Unihamster... - Page 35 Remove the fuel strainer and and remove the impuri- ties, replace if damaged. Rinse the strainer container in fuel. Then screw it back on correctly, to avoid fuel leakage. Fuel Hoses Exchange after every 2 years, Exchange leaking fuel hoses immediately. agria Tool Carrier Unihamster...
- Page 36 Keep governor spring, lever and link- Governor spring in hole 2 ages free from dirt and plant trash at all times. agria Tool Carrier Unihamster...
-
Page 37: Machine
50 Nm Coupling Attachments 50 h After every 50 operating hours and each time you clean the machine, lubricate the nipples with Bio- lubricating grease. Additionally, grease the PTO each time before you couple an attachment. agria Tool Carrier Unihamster... -
Page 38: Safety Circuit
When you release lever (B/2) and engaged clutch the engine must auto- matically come to a stop. Check electric conductors and con- nections for good condition, exchange, if necessary. - Service agria Tool Carrier Unihamster... -
Page 39: Mowing Drive
Inspect the condition of the sealing rings, re- place if necessary. Tighten the drain and the fill- ing plug! For oil quality refer to "Specifi- cations". agria Tool Carrier Unihamster... -
Page 40: Mowing Attachment
A, 2 h When changing the knife driver attachment bolts only use original bolts from agria to avoid knife fractures. Adjustment of the knife driver Before each mowing and every 8 operatiing hours check the play be- tween the adjustment bolts and the driver pin is 0,10 mm. -
Page 41: Re-Grinding Mowing Knives
(glowed grinding out and soft). Do not round-off the tips of the blades (P). Do not grind the blades in a bow (P) Remove any burr with a hand grind- ing stone. Correct - Service grinding agria Tool Carrier Unihamster... -
Page 42: General Maintenance, Cleaning
After each mow- ing, clean cutter bar thoroughly with water. Re- move the knife and remove dirt collected tween knife blades. After cleaning, apply Bio-lubricating oil or Bio-lubricating grease to all gliding parts. Fit knife guard! agria Tool Carrier Unihamster... -
Page 43: Storage
Drain the fuel completely from the system or fill the fuel tank, add fuel sta- e) Clutch bilizer (agria No. 799 09) to the fuel tank - Observe instructions Always park mower with hand clutch le- Operate the engine for approx. 1 ver pulled (pawl minute. -
Page 44: Varnishes, Wear Parts
O-ring 14 x 18 x 1,5 (drain plug gear box housing) 009 17 O-ring 16 x 22 x 1,5 (drain plug gear box housing) Spare Part Lists: 997 095 Tool carrier 3600 Unihamster 997 077 Robin Engines agria Tool Carrier Unihamster... -
Page 45: Lubrication Chart
Once a year A, 50 h, B Municipal cutter bar 8 h; B A; 8 h; B (25 h) 50 h (50) 300 h 50 h, B (50 h) 300 h A, 8 h 25 h agria Tool Carrier Unihamster... -
Page 46: Troubleshooting
- Incorrect idle mix Adjust carburetor Engine frequently - Firing interval too long, Adjust or replace spark plug stalls in idle Defective spark plug - Carburetor misadjusted Re-adjust carburetor 6 6 6 - Air filter clogged Clean air filter agria Tool Carrier Unihamster... - Page 47 Blades are not on - Bent blades or knives, Check whether knives are straight, top of each other twisted knife back re-align, if necessary, until blades align as well = Contact your agria workshop! agria Tool Carrier Unihamster...
-
Page 48: Inspection And Maintenance Chart
K = Checks and maintenance to be executed by operator W = Maintenance to be executed by professional workshop F = Maintenance to be executed by agria workshop * = after 2 years BM = Refer to cutter bar operating instructions... - Page 49 7 Cooling screen 8 Spark plug / spark plug connector 9 Exhaust with protecting device 10 Engine oil filling plug with dip stick 12 Engine oil drain plug 13 Engine designation and engine no. 14 Carburetor agria Tool Carrier Unihamster...
- Page 50 Designation of Parts 4-Stroke Petrol Engine, Robin EH 17 D Figure C agria Tool Carrier Unihamster...
-
Page 51: Conformity Declaration
Conformity Declaration agria Tool Carrier Unihamster... - Page 52 GmbH Bittelbronner Straße 42 D-74219 Möckmühl Tel. +49/ (0)6298 /39-0 Fax +49/ (0)6298/39-111 e-mail: info@agria.de Internet: www.agria.de Your local agria specialist dealer:...
