BodyCraft 5042 Assembly Instructions Manual

The jones strength training system
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

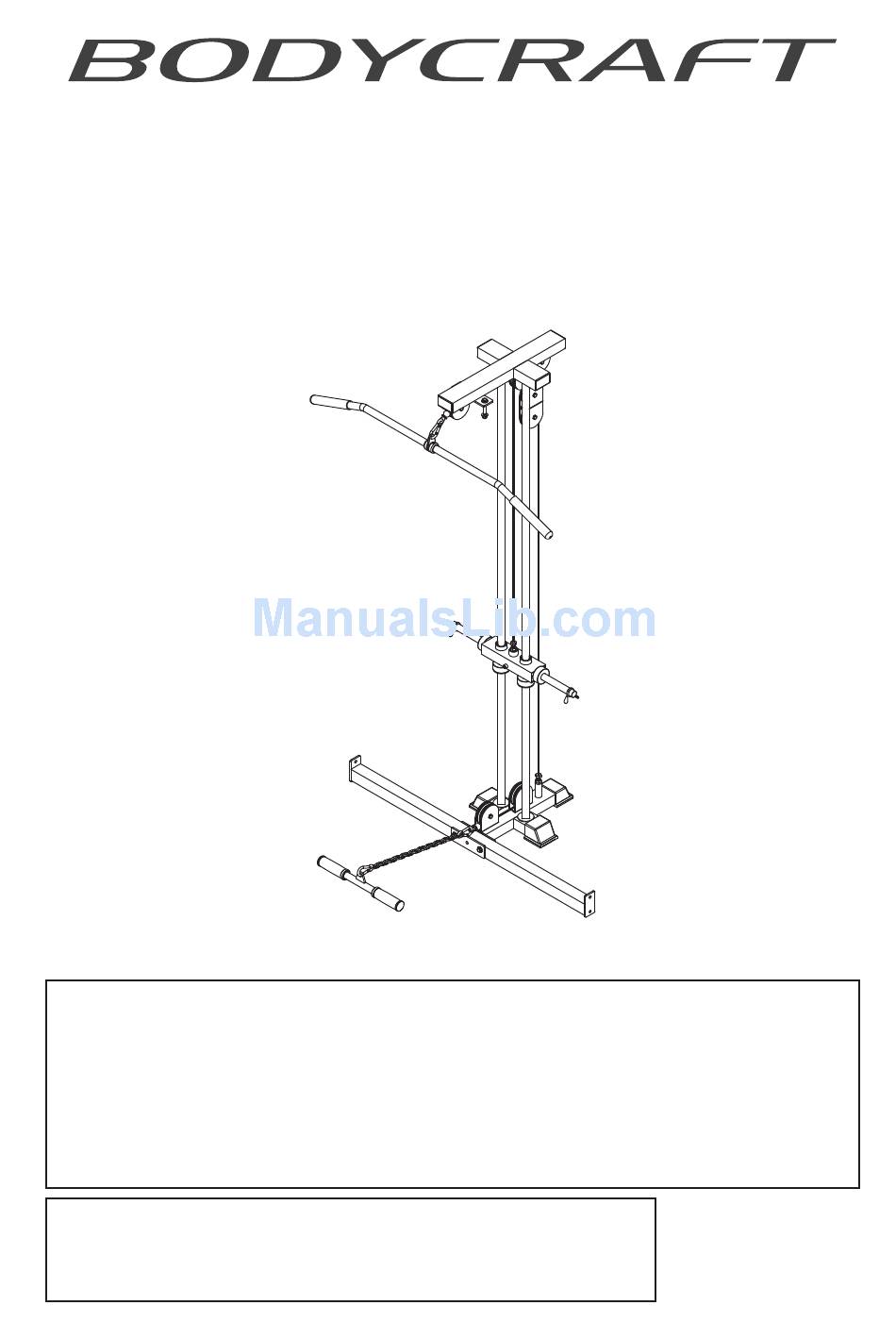

THE JONES STRENGTH TRAINING SYSTEM

ASSEMBLY INSTRUCTION

OPTIONAL：LAT & LOW PULL ATTACHMENT
QUESTION?
As a quality home gym supplier we are committed to your complete satisfaction. If you have
questions, or find missing or damaged parts, we will guarantee your complete satisfaction through
our authorized dealer service centers or our home office customer service department. Please call
your local dealer for assistance or BodyCraft at 800-990-5556 (9:00 AM - 5:00 PM). Our trained
technicians will provide immediate assistance to you, free of charge.
Bodycraft is a division of Recreation Supply Inc.
P.O. BOX 181
Sunbury, OH 43074
5042

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5042 and is the answer not in the manual?

Questions and answers

Related Manuals for BodyCraft 5042

Summary of Contents for BodyCraft 5042

  • Page 1: Assembly Instruction

    Please call your local dealer for assistance or BodyCraft at 800-990-5556 (9:00 AM - 5:00 PM). Our trained technicians will provide immediate assistance to you, free of charge.

  • Page 2: Before You Begin

    BEFORE YOU BEGIN Congratulations and thank you for selecting the JONES MACHINE strength training system. The JONES MACHINE offers an impressive array of strength training exercises to develop every major muscle group of the body. Whether your goal is cardiovascular fitness, a shapely, toned body or dramatic muscle size and strength, the JONES MACHINE will help you achieve the specific results you want.
  • Page 3 OVERVIEW...

  • Page 4: Parts Chart

    PARTS CHART NO. DESCRIPTION QTY. REAR STABILIZER WEIGHT BASE TOP FRAME STACK SPACER GUIDE ROD TOP PLATE DOUBLE PULLEY BLOCK TOP CABLE LOCKER 90mm PULLEY 45 X 75mm CAP 45 X 75mm PLUG 1" BUSHING (pre-assembled on Top Plate) RUBBER CUSHION 1"...
  • Page 5 STEP 1 To ease assemble , do NOT tighten any bolt until instructed. Remove the flat Base Connector (4) on your Jones Smith and replace it with your new square Rear Stabilizer (201). Reuse the hardware.
  • Page 6 STEP 2 Weight Base Assembly 1. Attach the Weight Base (202) to the Square Rear Stabilizer (201), using two 3/8" X 3" Head Bolts (222), four 3/8" Washers (224) and two 3/8" Nylon Nuts (225). 2. Attach three 45 X 75mm Caps (210) to the Weight Base (202).
  • Page 7 STEP 3 Top Frame Assembly 1. Slide the Top Frame (203) over top of the Guide Rod (205) and attach it to the Rear Top Frame (7) of The Jones, using two 3/8" X 2-3/4" Hex Bolts (233), four 3/8" Washers (224) and two 3/8" Nylon Nuts (225). Tighten all Bolts.
  • Page 8 STEP 4 Top Cable & Low Cable Assembly TOP CABLE (220) LOW CABLE (234) Assemble cables and pulleys simultaneously Low Cable Top Cable. Route the ball end of the Low Cable (234) under 1. Insert the screw end of the Top Cable (220) two pulleys on Weight Base (202) as shown Figs into the slot in the front of the Top Frame (203).
  • Page 9 For better performance, apply a household lubricant (such as silicone) to GUIDE RODS(205). Enjoy many years of a Fit Lifestyle. Thank you for purchasing the Jones Machine System. If You have any questions, please call your local BodyCraft dealer or call our customer service department at 800-990-5556...
