BodyCraft 5046 Assembly Instructions Manual

Optional:lat & low pull attachment with shroud
Hide thumbs

Advertisement

Table of Contents

THE JONES STRENGTH TRAINING SYSTEM

ASSEMBLY INSTRUCTION

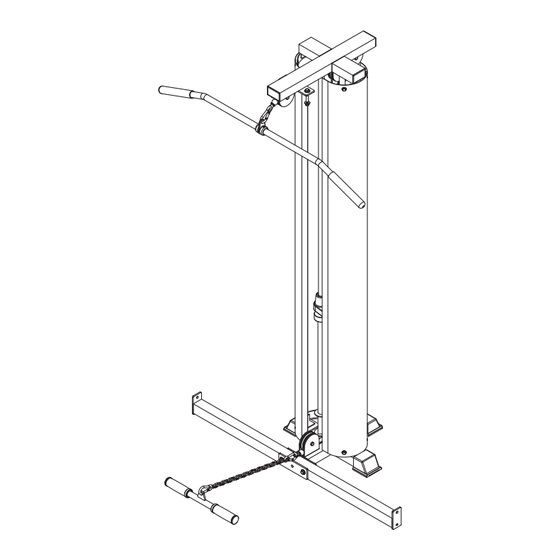

OPTIONAL:LAT & LOW PULL ATTACHMENT WITH SHROUD
QUESTION?
As a quality home gym supplier we are committed to your complete satisfaction. If you have
questions, or find missing or damaged parts, we will guarantee your complete satisfaction through
our authorized dealer service centers or our home office customer service department. Please call
your local dealer for assistance or BodyCraft at 800-990-5556 (9:00 AM - 5:00 PM). Our trained
technicians will provide immediate assistance to you, free of charge.
Bodycraft is a division of Recreation Supply Inc.
P.O. BOX 181
Sunbury, OH 43074
5046

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5046 and is the answer not in the manual?

Questions and answers

Related Manuals for BodyCraft 5046

Summary of Contents for BodyCraft 5046

  • Page 1: Assembly Instruction

    Please call your local dealer for assistance or BodyCraft at 800-990-5556 (9:00 AM - 5:00 PM). Our trained technicians will provide immediate assistance to you, free of charge.

  • Page 2: Before You Begin

    BEFORE YOU BEGIN Congratulations and thank you for selecting the JONES MACHINE strength training system. The JONES MACHINE offers an impressive array of strength training exercises to develop every major muscle group of the body. Whether your goal is cardiovascular fitness, a shapely, toned body or dramatic muscle size and strength, the JONES MACHINE will help you achieve the specific results you want.
  • Page 3 OVERVIEW 635 636 636 635 635 636 636 635...

  • Page 4: Table Of Contents

    PARTS CHART NO. DESCRIPTION QTY. REAR STABILIZER WEIGHT BASE TOP FRAME STACK SPACER GUIDE ROD TOP PLATE DOUBLE PULLEY BLOCK WEIGHT PLATE 90mm PULLEY 45 X 75mm CAP 45 X 75mm PLUG SELECT ROD RUBBER CUSHION WEIGHT SHROUD 1-1/4" HAND GRIP (pre-assembled on Curl Bar) 1-1/4"...

  • Page 5: Rear Stabilizer

    STEP 1 To ease assemble , do NOT tighten any bolt until instructed. Remove the rear flat Base Connector (4) on your Jones Smith and replace it with your new square Rear Stabilizer (601). Reuse the hardware.

  • Page 6: Weight Base

    STEP 2 Weight Base Assembly 1. Attach the Weight Base (602) to the Square Rear Stabilizer (601), using two 3/8" X 3" Hex Head Bolts (622), four 3/8" Washers (624) and two 3/8" Nylon Nuts (625). 2. Attach three 45 X 75mm Caps (610) to the Weight Base (602).

  • Page 7: Top Frame

    STEP 3 Top Frame Assembly 1. Slide the Top Frame (603) over top of the Guide Rod (605) and attach it to the Rear Top Frame (7) of The Jones, using two 3/8" X 2-3/4" Hex Bolts (633), four 3/8" Washers (624) and two 3/8"...

  • Page 8: Top Plate

    STEP 4 Top Cable & Low Cable Assembly TOP CABLE (620) LOW CABLE (634) Assemble cables and pulleys simultaneously Low Cable Top Cable. 1. Insert the threaded end of the Low cable (634) 1. Insert the screw end of the Top Cable (620) under the two pulleys on the Weight Base as into the slot in the front of the Top Frame (603).

  • Page 9: Washer

    STEP 5 Attach Shrouds 1. Attach two Weight Shrouds (614) to Weight Base (602) and Top Frame (603), using eight 5/16" X 1/2" Hex Threaded Bolts (635) and eight 5/16" Washers (636). Attach the Trim (638) to the Right and Left Weight Shrouds (614). Tighten all Bolts.
  • Page 10 2.For better performance, apply a household lubricant (such as silicone) to VERTICAL GUIDE RODS(605). 3.Enjoy many years of a Fit Lifestyle. Thank you for purchasing the Jones Machine System. If You have any questions, please call your local BodyCraft dealer or call our customer service department at 800-990-5556...
