Summary of Contents for BodyCraft MA2141

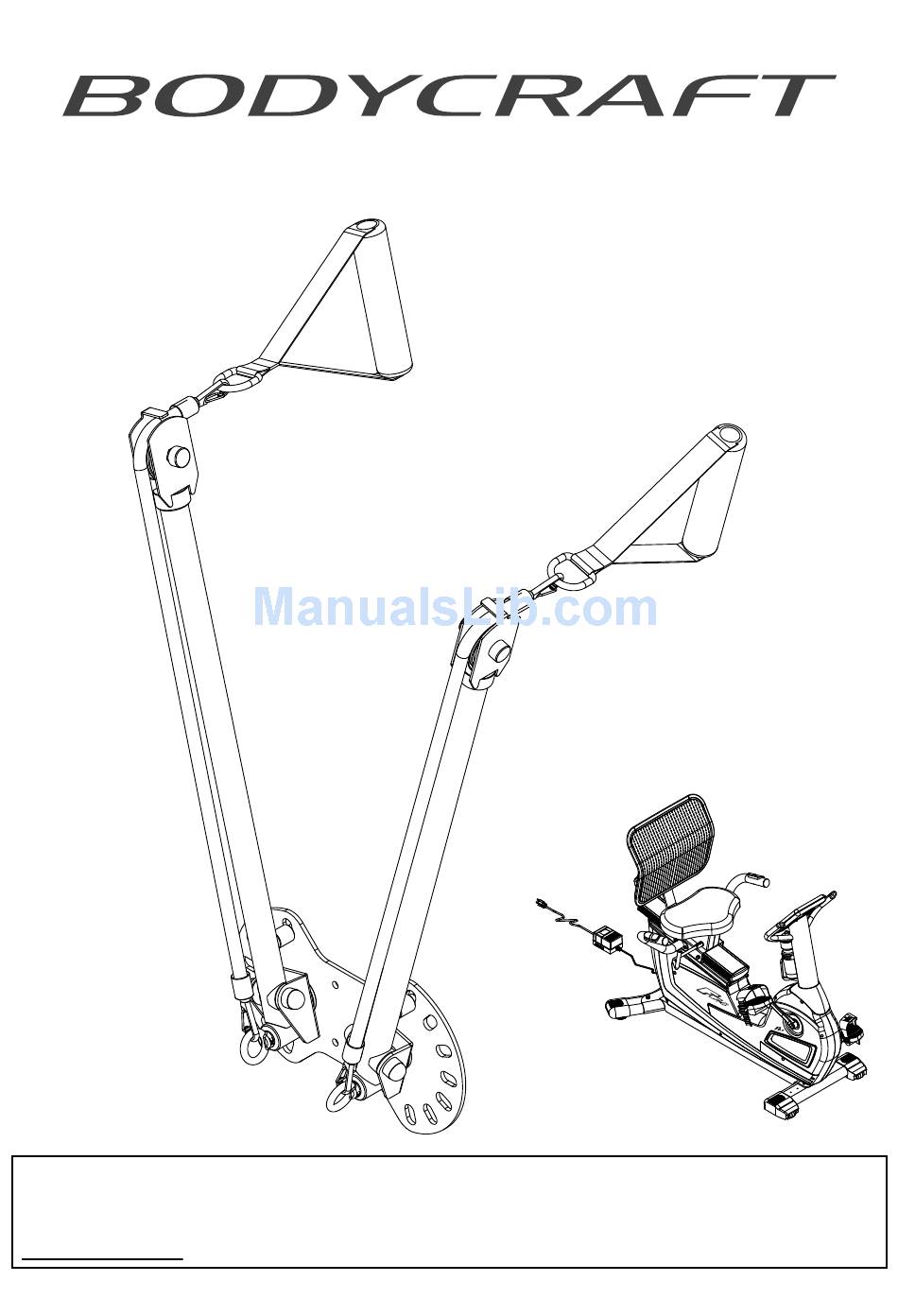

- Page 1 Progressive Power Arm OWNER'S MANUAL Recreation Supply Inc. MA2141 P.O. BOX 181 Model No. Sunbury, OH 43074 BODYCRAFT is a division of Recreation Supply 800-990-5556 info@bodycraft.com or www.bodycraft.com...
- Page 2 EXPLODED 22 13...
-
Page 3: Parts List
PARTS LIST NO. DESCRIPTION QTY. ADJUSTABLE PLATE CABLE ARM CONNECTOR FRAME PULLEY BLOCK SINGLE HANDLE POWER CORD PULLEY SPRING BRACKET BEARING CABIN HOOK 3/8" X 1-1/2" HEX HEAD BOLT M8 X 2" HEX HEAD BOLT 5/16" X 5/8" INNER HEX BOLT 1/2"... - Page 4 ASSEMBLY The Progressive Power Arm has been assembly at the factory. 1. Please remove the four 1/4" X 1" Screws (89) on the Back Frame (8) and attach the Progressive Power Arm on the Back Frame . Tighten by 4 bolts again. Please align the holes of the Progressive Power Arm and the hole of Back Frame, insert the thread end of the bolt by hand first.
