Initial Start-Up - MULTIQUIP HPHA36C5H Operation And Parts Manual

CAUTION CAUTION
CAUTION CAUTION CAUTION
The trowel is heavy and awkward to move around. Use
proper heavy lifting procedures and DO NOT lift the trowel
by the guard rings.
LIFTING THE TROWEL ONTO THE SLAB.
Auxiliary Lifting Tube
Remove the auxiliary lifting tube located on top of the main handle.
Insert the tube into the socket located on the opposite side of the
gearbox (Figure 20) from the handle.
Make sure that the hole in the tube engages with the pin in the
socket. With one person lifting from the main handle, and another
lifting from the auxiliary lifting tube pick up the machine to move
onto a slab.

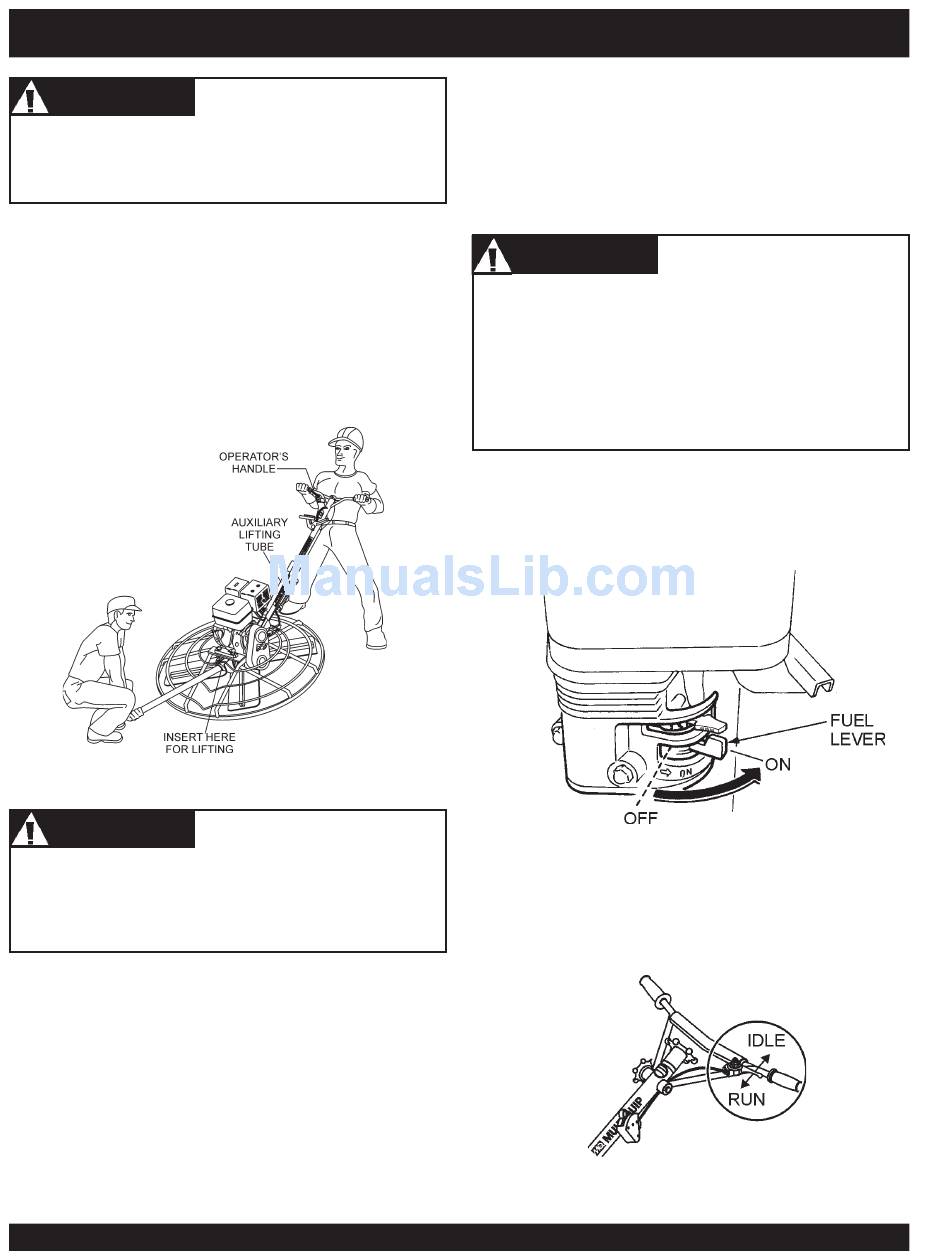

Figure 20. Lifting the Trowel
CAUTION CAUTION
CAUTION CAUTION CAUTION
The trowel must be stabilized by the person carrying the
operator's handle (Figure 20). If it is not stabilized properly
the handle may swing around and flip the trowel, thus causing
damage to the trowel and bodily injury.
Lifting Bail (Option)
The lift bail is optional on new trowels. It provides an optimal lift
point for moving the trowel. Lift bails can be used to lift a trowel
up onto a building with a crane. See " Optional Equipment "
section in this manual for ordering information.
Using a crane to move a machine with a lift bail is highly
recommended, and is safe for the machine. Extra care should be
taken when lifting the machine off the ground, though. Serious
damage to the machine or personal injury could be caused by
dropping a trowel.
PAGE 24 — HPHA36C5H WALK-BEHIND TROWEL— OPERATION AND PARTS MANUAL — REV. #3 (07/06/10 )
HPHA36C5H TROWEL — INITIAL START-UP
This section is intended to assist the operator with the initial
start-up of the walk-behind trowel. It is extremely important that
this section be read carefully before attempting to use the trowel
in the field.
DO NOT use your trowel until this section is thoroughly
understood.
CAUTION CAUTION CAUTION
CAUTION CAUTION
DO NOT attempt to operate the trowel until the Safety,
General Information and Inspection sections of this manual
have been read and thoroughly understood. Depending
on engine manufacturer, operating steps may vary. See
engine manufactures operating manual. The following start-
up procedure makes reference to a HONDA 5.5 HP Engine
(Manual Start).
Starting the Engine
1. Place the engine fuel valve lever (Figure 21) to the "ON"
position.
2. Move the throttle lever (Figure 22) to the "idle" position.
Figure 21. Engine Fuel Valve Lever
Figure 22. Throttle (Idle Position)
