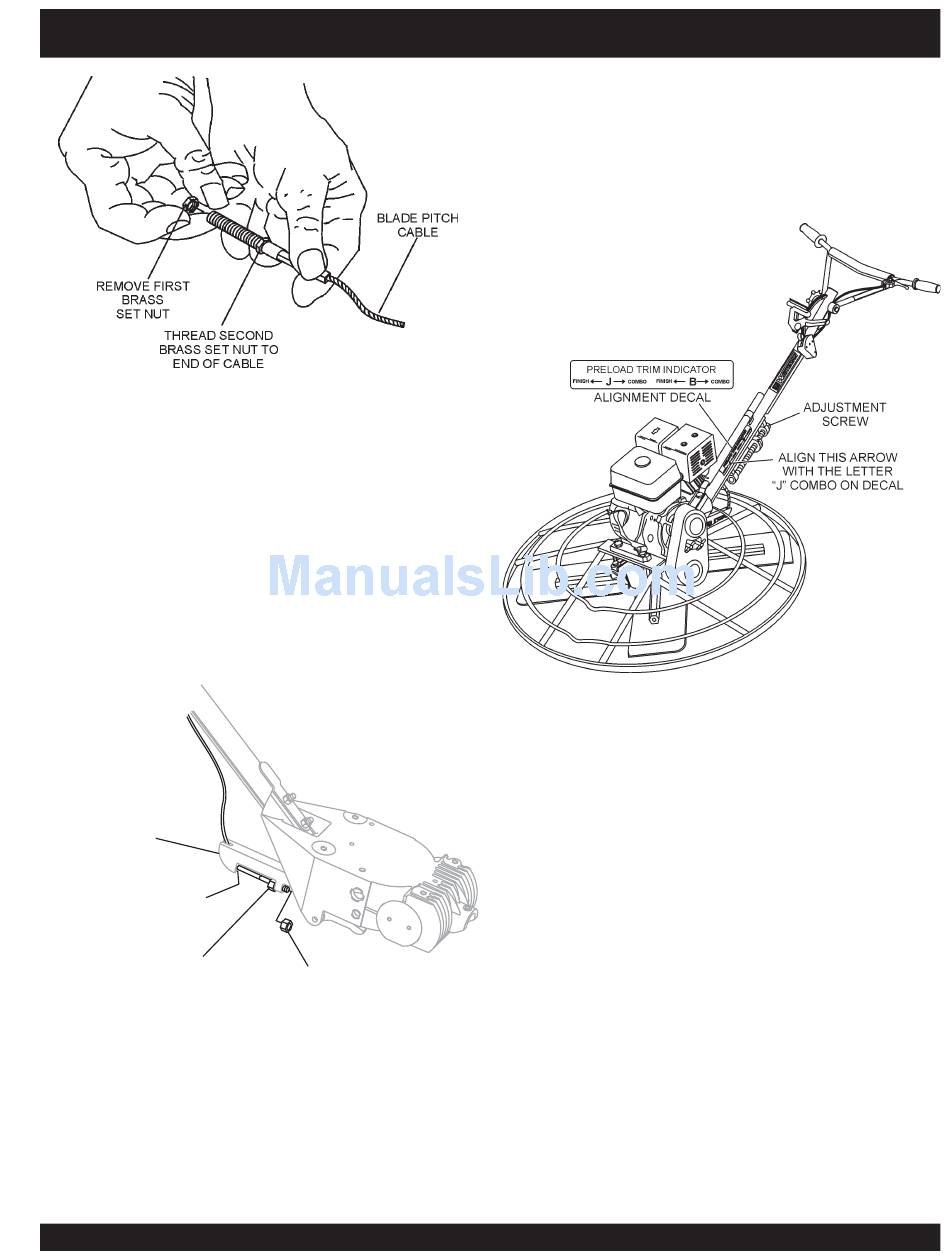

Figure 13. Blade Pitch Cable
5. Insert the cable end through the yoke eyelet (Figure 14)
Tighten the first brass set nut by hand to remove all the
slack from the cable.
6 Using a wrench, tighten the second brass set nut up against
the yoke boss. This will lock the cable in place.
7. Use a wrench and finish tightening the first brass set nut up
against the yoke boss.
YOKE
THREAD CABLE END
THROUGH YOKE EYELET
TIGHTEN SECOND
BRASS SET NUT
AGAINST YOKE BOSS
Figure 14. Cable Yoke Attachment
HPHA36C5H WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #3 (07/06/10) — PAGE 21
HPHA36C5H TROWEL — ASSEMBLY AND INSTALLATION
USE A WRENCH TO
TIGHTEN FIRST BRASS
SET NUT AGAINST YOKE BOSS
Pre-load Adjustment (Quick-Pitch™ Models Only)
1. After the Quick-Pitch™ handle has been installed on the
trowel, spring pre-load adjustment will be required.
2. Locate the adjustment screw on the underside of the handle
tube (Figure 15).
Figure 15. Pre-load Adjustment
3. A decal has been placed on the side of the handle tube to
assist the user in the adjustment of the spring.
4. Align the arrow on the adjustment screw with the letter "J"
COMBO on the decal .
5. Test the pitch control operation and adjust if necessary.
