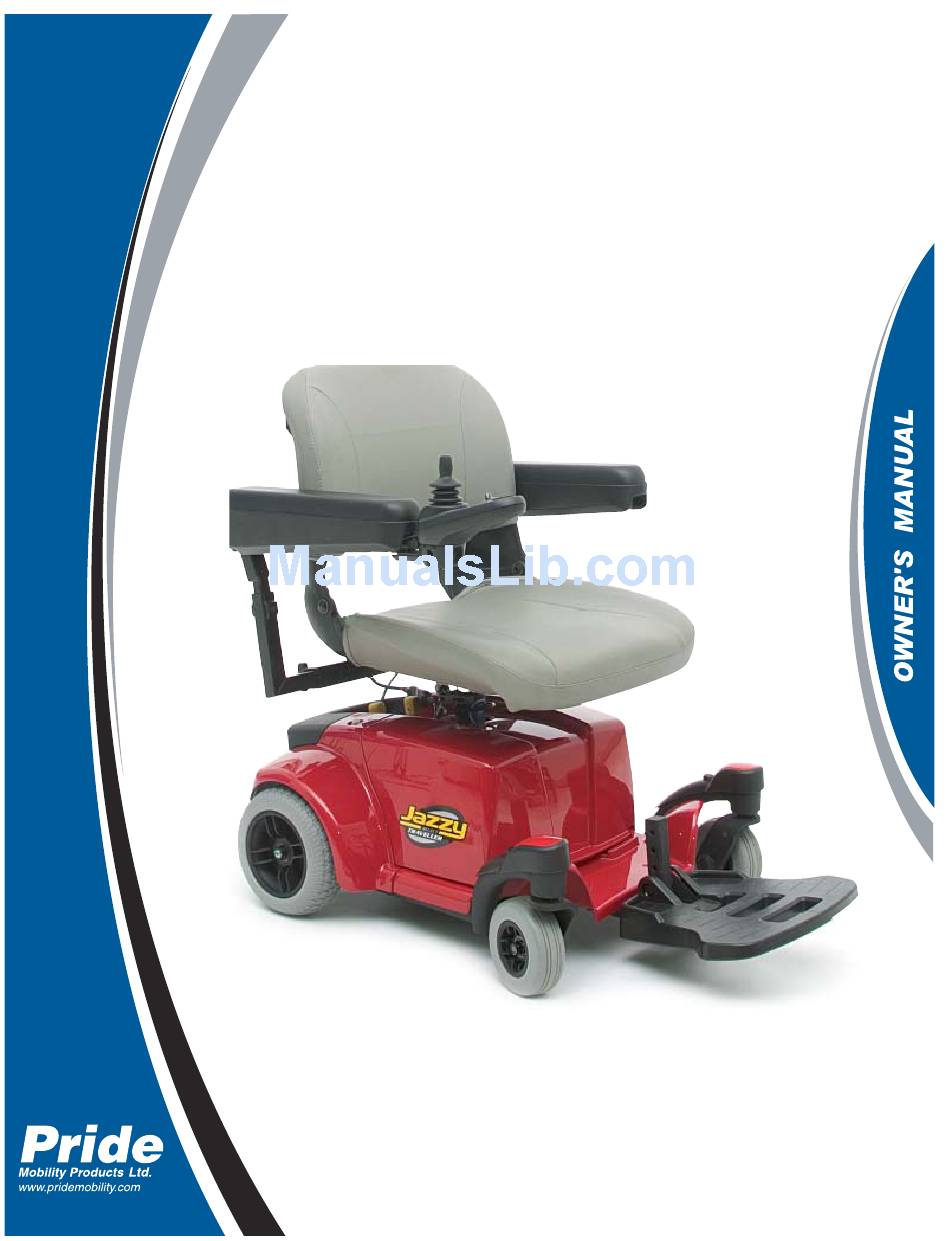

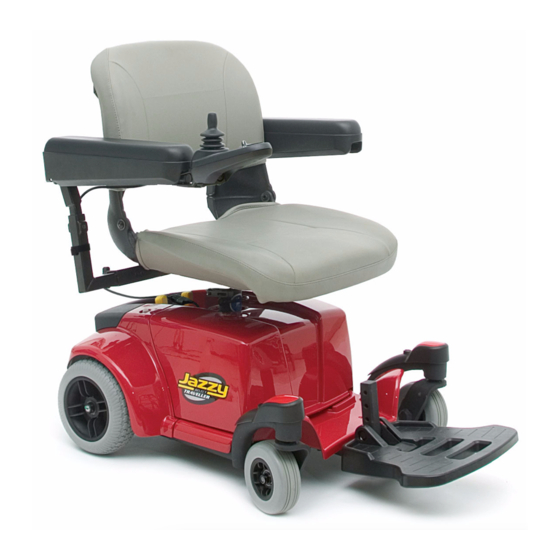

  • Page 1 JAZZY S E L E C T S E R I E S Including Model: Jazzy Select Traveller 1-800-800-8586 (US) 1-888-570-1113 (Canada)
  • Page 2 The latest/current version of this manual is available on our website. 088 609 661 Copyright © 2008 Pride Mobility Products Corp. INFMANU3339/Rev D/May 2008...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION............................ 4 SAFETY ..............................5 III. YOUR POWER CHAIR ........................17 IV. ASSEMBLY............................20 COMFORT ADJUSTMENTS......................22 VI. BATTERIES AND CHARGING ....................... 25 VII. CARE AND MAINTENANCE ......................29 VIII. WARRANTY............................34 IX.

  • Page 4: Introduction

    I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of- the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities.

  • Page 5: Safety

    I I . S A F E T Y PRODUCT SAFETY SYMBOLS The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions. It is very important for you to read and understand them completely. Read and follow the information in the owner’s manual.
  • Page 6 I I . S A F E T Y Do not lift the mobility vehicle while seated in it. Do not lift the mobility vehicle while seated in it. Do not connect an extension cord to the AC/DC converter or the battery charger. Removal of grounding prong can create electrical hazard.
  • Page 7 I I . S A F E T Y EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m. Explosive conditions exist! Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions.
  • Page 8 I I . S A F E T Y Battery charger for indoor use only. Disposal and recycling - Contact your authorized Pride Provider for information on proper disposal and recycling of your Pride product and its packaging. Unlocked and in freewheel mode. Place unit on level ground and stand to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode.

  • Page 9: General Guidelines

    I I . S A F E T Y GENERAL GUIDELINES MANDATORY! Do not operate your new power chair for the first time without completely reading and understanding this owner’s manual. Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive variety of products to best fit the individual needs of the power chair user.
  • Page 10 I I . S A F E T Y Weight Limitations Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty.
  • Page 11 I I . S A F E T Y WARNING! Never travel down an incline backward. Doing so may cause the power chair to tip. Always exercise extreme caution when negotiating an incline. WARNING! Even though your power chair is capable of climbing slopes greater than those illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any other specifications presented in this manual.
  • Page 12 I I . S A F E T Y Public Streets and Roadways WARNING! You should not operate your power chair on public streets and roadways. Be aware that it may be difficult for traffic to see you when you are seated on your power chair. Obey all local pedestrian traffic rules.
  • Page 13 I I . S A F E T Y Stairs and Escalators Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator. WARNING! Never use your power chair to negotiate steps or escalators. Doors ! Determine if the door opens toward or away from you.
  • Page 14 I I . S A F E T Y Batteries In addition to following the warnings below, be sure to comply with all other battery handling information. For more information about your power chair’s batteries, see VI. “Batteries and Charging.” WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.

  • Page 15: Iii. "Your Power Chair

    I I . S A F E T Y Transfers Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or health- care professional present while learning to properly transfer yourself. To eliminate the possibility of injury, Pride recommends that you or a trained attendant perform the following tasks be- fore attempting a transfer: ! Turn off the power to the controller.
  • Page 16 I I . S A F E T Y Alcohol/Smoking The power chair user must exercise care and common sense when operating his/her power chair. This includes awareness of safety issues while under the influence of alcohol or while smoking. WARNING! Do not operate your power chair while you are under the influence of alcohol, as this may impair your ability to operate your power chair in a safe manner.
  • Page 17 I I I . Y O U R P O W E R C H A I R THE SELECT TRAVELLER The Select Traveller has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat assembly includes the armrests, seatback, and seat base.
  • Page 18 I I I . Y O U R P O W E R C H A I R CONTROLLER CONNECTOR SEAT PEDESTAL OFF-BOARD CHARGER PORT CONNECTOR BATTERY COVER FREEWHEEL LEVERS CIRCUIT BREAKER Figure 6. The Select Traveller Power Base Electrical Components The electrical components are located on the power base.
  • Page 19 I I I . Y O U R P O W E R C H A I R Manual Freewheel Levers The power chair has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage the drive motors in order to push the chair.

  • Page 20: Assembly

    I V . A S S E M B L Y INITIAL ASSEMBLY Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly to make some comfort adjustments. Figure 8 details those parts of the power chair that are designed to be disassembled and assembled by an end user or by a qualified caregiver before using the product or making comfort adjustments.
  • Page 21 I V . A S S E M B L Y Seat Installation It may be necessary to install the seat either prior to initial operation or after transporting your power chair. The seat is attached to the power base by a height-adjustable seat pedestal.

  • Page 22: Comfort Adjustments

    C O M F O R T A D J U S T M E N T S COMFORT ADJUSTMENTS After becoming familiar with your power chair’s operation, you may find the need to make some adjustments to increase your comfort, such as seat height, armrest width, foot platform depth, and controller position. Use the steps below to make comfort adjustments.
  • Page 23 C O M F O R T A D J U S T M E N T S Armrest Width Adjustment You can change each armrest’s width independently of the other. NOTE: Changing the armrest width may increase the overall width of your power chair. To change the armrest width: 1.
  • Page 24 C O M F O R T A D J U S T M E N T S Controller Position You can move the controller in toward or out away from the armrest, or change the position of the controller for either left- hand or right-hand use.

  • Page 25: Batteries And Charging

    V I . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING Your power chair uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level.
  • Page 26 V I . B A T T E R I E S A N D C H A R G I N G To charge the batteries with the off-board charger: 1. Position your power chair next to a standard electrical outlet. See figure 15.
  • Page 27 V I . B A T T E R I E S A N D C H A R G I N G How often must I charge the batteries? Many factors come into play when deciding how often to charge the batteries. You may use your power chair all day on a daily basis or you may not use it for weeks at a time.
  • Page 28 V I . B A T T E R I E S A N D C H A R G I N G What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes.

  • Page 29: Care And Maintenance

    V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Select Traveller is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from an authorized Pride Provider.
  • Page 30 V I I . C A R E A N D M A I N T E N A N C E ! Check all electrical connections. Make sure they are tight and are not corroded. Batteries must sit flat within the battery tray, with the battery terminals facing inward, toward each other.
  • Page 31 V I I . C A R E A N D M A I N T E N A N C E WARNING! If you fail to store the unit properly, the frame can rust and the electronics can be damaged.
  • Page 32 V I I . C A R E A N D M A I N T E N A N C E To replace the wheel: 1. Turn off the power to the controller. AXLE KEY 2. Set the power chair up on blocks. DRIVE WHEEL NUT 3.
  • Page 33 V I I . C A R E A N D M A I N T E N A N C E To replace the batteries: 1. Lift up on the battery cover and slide the tabs out as shown in figure 17. 2.

  • Page 34: Warranty

    ! Circumstances beyond the control of Pride ! Labor, service calls, shipping and other charges incurred for repair of the product, unless specifically authorized by Pride Mobility Products Corp. ! Repairs and/or modifications made to any part without specific consent from Pride...
  • Page 35 V I I I . W A R R A N T Y SERVICE CHECKS AND WARRANTY SERVICE Warranty service must be performed by an authorized Pride Provider. Do not return faulty parts to Pride without prior written authorization. All transportation costs and shipping damage incurred while submitting parts for repair or replace- ment are the responsibility of the purchaser.

  • Page 36: Appendix I - Specifications

    A P P E N D I X S P E C I F I C A T I O N S SPECIFICATIONS Suspension: Standard Limited Drive Wheels: 8 in. (20.32 cm), solid Front Caster Wheels: 5 in. (12.7 cm), solid Maximum Speed: Up to 3.5 mph (5.63 km/h) Brakes:...
  • Page 37 A P P E N D I X S P E C I F I C A T I O N S LENGTH WIDTH 27 in. (68.58 cm) 21.5 in. (54.61 cm) 1.75 in. (4.45 cm) GROUND CLEARANCE TURNING RADIUS Figure 19.
  • Page 38 N O T E S www.pridemobility.com Select Traveller...
  • Page 39 Quality Control - Jazzy Select Traveller Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected...
