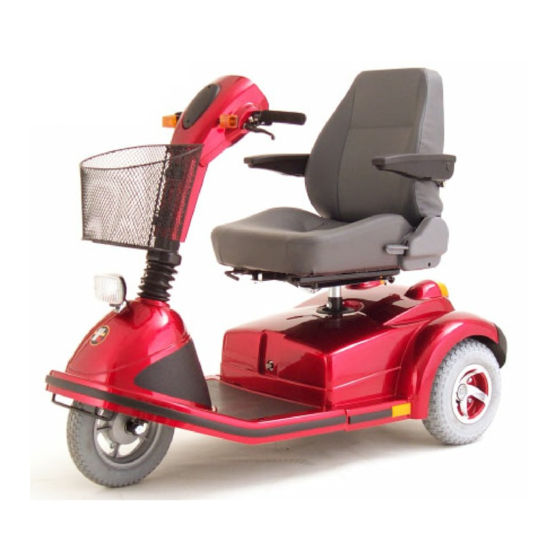

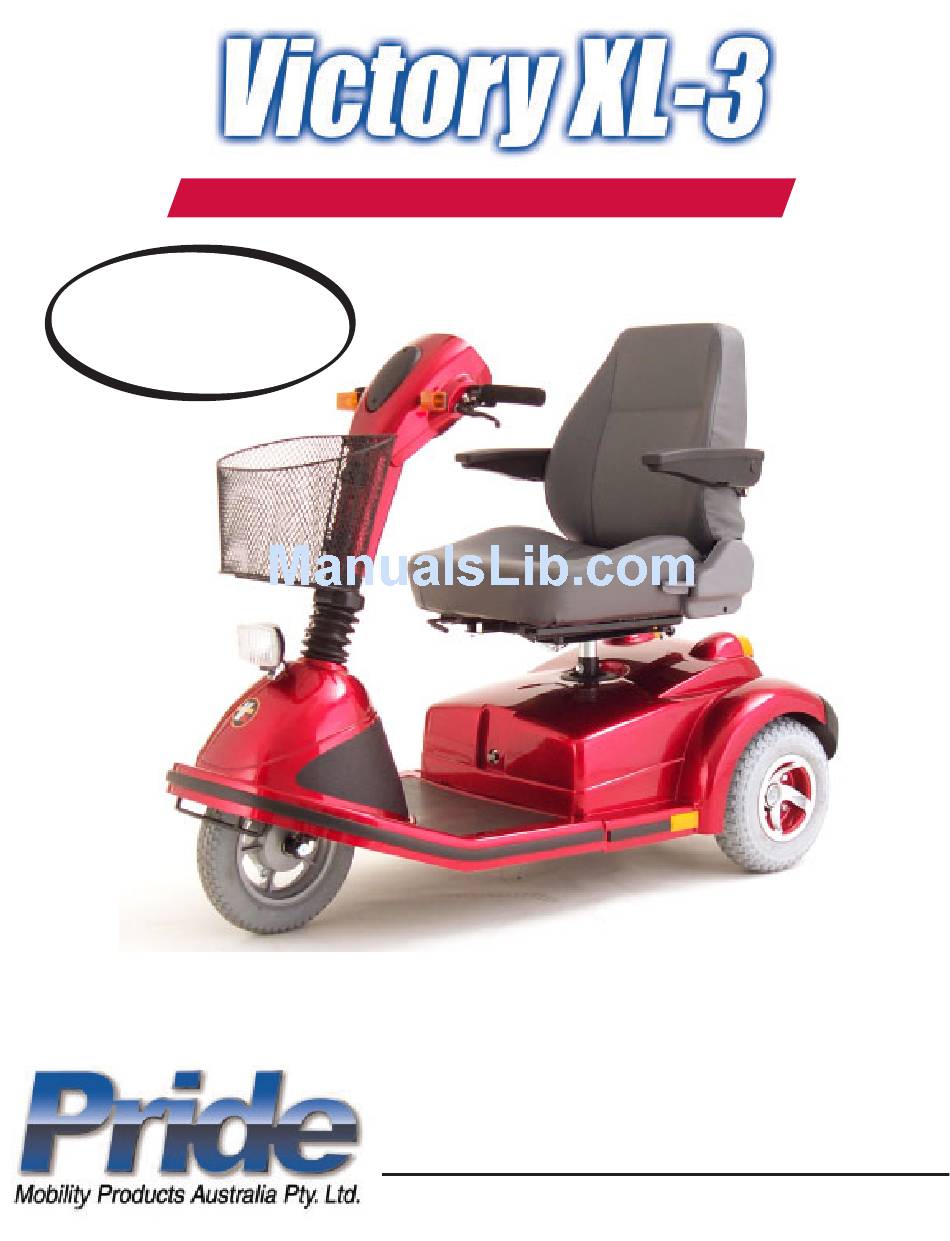

- Page 1 Owner’s Manual ATTENTION: Please read the content of your owner’s manual before operating your scooter. The Ultimate In Style & Performance ® 21 Healey Road Dandenong, 3175 Victoria, Australia ACN # 088 609 661 www.pridemobility.com...
- Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your Scooter. Copyright © 2002 Pride Mobility Products Australia Pty. Ltd. INFMANU1778/REV C/OCTOBER 2002...
-
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION ........................4 SAFETY ............................6 III. SPECIFICATIONS ........................15 IV. YOUR VICTORY XL-3......................17 BATTERIES AND CHARGING ................... 23 VI. OPERATION ..........................27 VII. COMFORT ADJUSTMENTS ....................29 VIII.TROUBLESHOOTING ......................33 IX. -
Page 4: Introduction
Pride provider for assistance. Once you understand how to operate and take care of your Victory XL-3, we are certain that it will give you years of trouble-free service and enjoyment. - Page 5 Serial Number:__________________________________________________________________________ Purchase Date:________________________________________________________________________ NOTE: If you ever lose or misplace your product registration card or your copy of this manual, call or write to us and we will be glad to send you a new one immediately. Victory XL-3...
- Page 6 Your Victory XL-3 is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive variety of products to best fit the individual needs of the Victory XL-3 user. Please be aware that the final selection and purchasing decision regarding the type of scooter to be used is the responsibility of the scooter user who is capable of making such a decision and his/her healthcare professional (i.e.,...
-
Page 7: Weight Limitations
Take wide swings with your Victory XL-3’s front wheel around any tight corners. If you do that, the Victory XL-3’s rear wheels will follow a wide arc, not cut the corner short, and not bump into or get hung up on any railing corners. -
Page 8: Safety
S A F E T Y When climbing an incline, try to keep your Victory XL-3 moving. If you must stop, start up again slowly, and then accelerate cautiously. When driving down an incline, do so by setting the speed adjustment dial to the slowest setting and driving in the forward direction only. - Page 9 When you approach an incline, it is best to lean forward. See figures 2 and 3. This shifts the center of gravity of you and your Victory XL-3 toward the front of the scooter for improved stability. WARNING! Do not exceed the incline guidelines or any other specifications presented in this manual.
- Page 10 However, Pride recognises that there will be times when you will encounter other surface types. For this reason, your Victory XL-3 is designed to perform admirably on packed soil, grass, and gravel. Feel free to use your Victory XL-3 safely on lawns and in park areas.
-
Page 11: Public Streets And Roadways
WARNING! You should not operate your Victory XL-3 on public streets and roadways. Be aware that it may be difficult for traffic to see you when you are seated on your Victory XL-3. Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with extreme caution. - Page 12 LIFT/ELEVATION PRODUCTS If you will be traveling with your Victory XL-3, you may find it necessary to use a lift/elevation product to aid in transportation. Pride recommends that you closely review the instructions, specifications, and safety information set forth by the manufacturer of the lift/elevation product before using that product.
-
Page 13: Positioning Belts
Victory XL-3. Although your Victory XL-3 may be equipped with a positioning belt, this belt is not designed to provide proper restraint during motor vehicle transport. Anyone traveling in a motor vehicle should be properly secured in the motor vehicle seat with safety belts fastened securely. -
Page 14: Removable Parts
Avoid reaching or bending while driving your Victory XL-3. When reaching, bending, or leaning while seated on your Victory XL-3, it is important to maintain a stable center of gravity and keep the Victory XL- 3 from tipping. Pride recommends that the scooter user determine his/her personal limitations and practice bending and reaching in the presence of a qualified healthcare professional. -
Page 15: Specifications
I I I . S P E C I F I C A T I O N S 51 cm 46 cm - 51 cm 13 cm FIGURE 4. VICTORY XL-3 DIMENSIONS 52 cm 140 cm 50 cm 120 cm... - Page 16 Pneumatic: 10 cm x 33 cm Battery Requirements (not included) Two 12V, 60 AH, sealed lead-acid Battery Charger Guest 3-amp, 230V Warranty Two year limited *Varies with user weight, terrain type, battery charge, battery condition, and tyre pressure Victory XL-3...
-
Page 17: Your Victory Xl-3
See figure 6. CAUTION! Do not expose the control console assembly to moisture. In the event it does become exposed to moisture, do not attempt to operate your Victory XL-3 until it has dried thoroughly. BATTERY CONDITION METER... - Page 18 2. Push the switch again in the same direction to turn off the light. Handbrake Lever Your Victory XL-3 is equipped with a handbrake lever, located on the tiller handle. This lever provides you with additional stopping power. See figure 8.
- Page 19 NOTE: If a fuse must be replaced (see figures 10 and 11), use only the specified amp fuse. For more information, see IX. “Care and Maintenance.” FIGURE 10. WORKING FUSE FIGURE 11. BLOWN FUSE (REPLACE) WARNING! Failure to use properly rated fuses may cause damage to the electrical system and may result in personal injury. Victory XL-3...
- Page 20 WARNING! Do not remove the anti-tip wheels or modify your scooter in any way that is not authorised by Pride. WARNING! The anti-tip wheels may interfere with the smooth transition of your scooter when climbing up or down a kerb. Victory XL-3...
- Page 21 V I C T O R Y X L - 3 Batteries The batteries store the electrical energy that powers your Victory XL-3. For instructions on charging your batteries, see V. “Batteries and Charging.” Electronic Controller Module This module is located behind the batteries and at the forward left corner of the rear section. The electronic controller module receives electrical signals from the console controls and sends power to the motor, the brakes, and the lighting system.
-
Page 22: Main Circuit Breaker
If the breaker trips frequently, you may need to charge the batteries more often or have your authorised Pride provider perform a load test on the batteries. MAIN CIRCUIT BREAKER (RESET BUTTON) AMMETER CHARGER LEAD PORT FIGURE 13. REAR SECTION Victory XL-3... -
Page 23: Batteries And Charging
WARNING! Never use an extension lead to plug in your battery charger. Plug the charger directly into a properly wired standard wall outlet. NOTE: There is a charger inhibit on your Victory XL-3. The Victory XL-3 will not run and the battery condition meter will not operate while the batteries are charging. - Page 24 Plan your route to avoid as many hills, cracked, broken, or soft surfaces as possible. n Limit your baggage weight to essential items. n Try to maintain an even speed while your scooter is in motion. n Avoid stop-and-go driving. Victory XL-3...
-
Page 25: Battery Replacement
During shipping, the batteries may encounter temperature extremes that can influence their initial performance. Heat diminishes the charge on the battery; cold slows the available power and extends the time needed to recharge the battery. Victory XL-3... - Page 26 How should I store my Victory XL-3 and its batteries? If you plan on not using your scooter for an extended period of time, it is best to: n Fully charge its batteries prior to storage.
-
Page 27: Operation
Have you fully charged the batteries? See V. “Batteries and Charging.” n Is the manual freewheel lever in the drive (down) position? See IV. “Your Victory XL-3.” Never leave the manual freewheel lever pulled up unless you are manually pushing your scooter. - Page 28 AUTO SHUTOFF FEATURE Your Victory XL-3 is equipped with an energy saving auto shutoff feature designed to preserve your scooter’s battery life. If you mistakenly leave the key in the key switch but do not use your scooter for approximately 20 minutes, the scooter shuts down automatically.
-
Page 29: Comfort Adjustments
4. When the tiller reaches its lowest point, turn the tiller adjustment lever clockwise until it is tight to lock the tiller in place. TILLER BOOT TILLER ADJUSTMENT LEVER FIGURE 16. TILLER ANGLE ADJUSTMENT FIGURE 17. LOWERING THE TILLER Victory XL-3... - Page 30 2. Lean forward or backward to adjust the seatback to a comfortable position. 3. Release the seat recline lever to lock the seat securely in place. WARNING! Always keep your back pressed firmly against the seatback while adjusting the angle. Victory XL-3...
-
Page 31: Armrest Angle Adjustment
4. Insert the bolt through the appropriate end of the positioning belt and then through the seat mounting strap for each side of the scooter seat. 5. Tighten the bolts. SEAT MOUNTING STRAP REMOVE BOLTS REMOVE BOLTS POSITIONING BELT SEAT LOCK LEVER SEAT SLIDING LEVER FIGURE 19. POSITIONING BELT INSTALLATION FIGURE 20. POSITIONING BELT Victory XL-3... - Page 32 2. Pull the strap on the right side of the belt until it is secure, but not so tight as to cause discomfort. POWER SEAT (OPTIONAL) Your Victory XL-3 may be equipped with a power seat. The power seat actuator is designed to raise or lower the seat automatically with minimal effort on the part of the operator. See figure 21.
-
Page 33: Viii.troubleshooting
Obtain a battery load tester at most any automotive parts store; follow the directions supplied with the load tester. If you experience any problems with your scooter that you are not able to solve, immediately contact your authorised Pride provider for information, maintenance, and service. Victory XL-3... -
Page 34: Care And Maintenance
ABS PLASTIC SHROUDS n Apply a light coat of car wax to the shrouds to help retain their high gloss; the shrouds are formed from durable ABS plastic and are coated with an advanced formula urethane paint. Victory XL-3... - Page 35 Before operating your scooter, allow any of these areas to dry thoroughly if they have been exposed to moisture. STORAGE n Refer to “How should I store my Victory XL-3 and its batteries?” in V. “Batteries and Charging.” FUSES In the event a fuse should blow (cease to work): 1.
-
Page 36: Warranty
SERVICE CHECKS AND WARRANTY SERVICE Warranty service can be performed by an authorised Pride Provider. Please contact your authorised Pride rovider for advice on the current cost affecting the service visit. Victory XL-3...
