Summary of Contents for Pride Mobility Jazzy 600

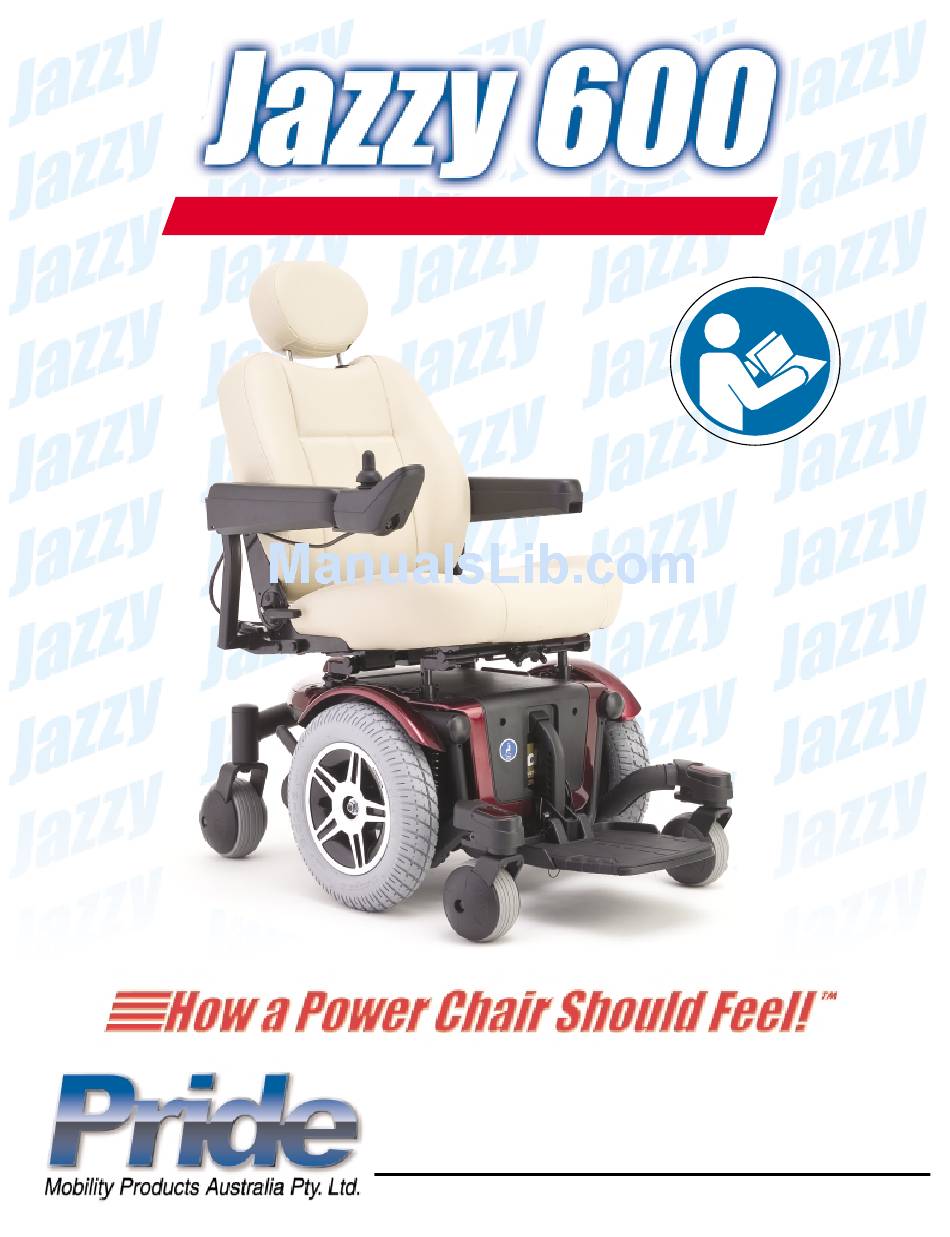

- Page 1 Owner’s Manual 21 Healey Road Dandenong, 3175 Victoria, Australia ACN#088 609 661 www.pridemobility.com...
- Page 2 Performing a prohibited action can cause injury to personnel and/ or damage to equipment (black symbol with red circle and red slash). 088 609 661 Copyright © 2005 This product is manufactured by: Pride Mobility Products Corporation 182 Susquehanna Avenue Exeter, PA 18643 INFMANU3039/RevA/May05 www.pridemobility.com...
-
Page 3: Table Of Contents
This owner’s manual is compiled from the latest specifications and product information available at the time of publication. We reserve the right to make changes as they become necessary. Any changes to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased. Jazzy 600 www.pridemobility.com... -
Page 4: Introduction
I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of- the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities. - Page 5 Place unit on level ground and stand behind or to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode. Unlocked and in freewheel mode. Battery Configuration: T = Terminal Post Connect Red wire to T with + Connect Black wire to T with – Jazzy 600 www.pridemobility.com...
- Page 6 3-pronged adapter to an electrical outlet having 2-pronged plug access. Failure to heed could result in personal injury and/or property damage. Prevent personal injury and equipment damage. Do not connect an extension lead to the AC/DC converter or the battery charger. www.pridemobility.com Jazzy 600...
-
Page 7: Safety
Check all controller connections to the power base. Make sure they are secured properly. n Check the brakes. See VIII. “Care and Maintenance.” n Check battery charge. See VI. “Batteries and Charging.” NOTE: If you discover a problem, contact your authorised Pride Provider for assistance. Jazzy 600 www.pridemobility.com... -
Page 8: Your Power Chair
WARNING! When on any sort of an incline or decline, never place the power chair in freewheel mode while seated on it or standing next to it. Doing so may result in personal injury and/or damage to your power chair. WARNING! Never travel down an incline rearwards. This may result in personal injury. www.pridemobility.com Jazzy 600... -
Page 9: Removable Parts
Wait until your path is clear of traffic, and then proceed with extreme caution. Removable Parts WARNING! Do not attempt to lift or move a power chair by any of its removable parts. Personal injury and/or damage to the power chair may result. Jazzy 600 www.pridemobility.com... - Page 10 Power chairs are not designed to travel up or down stairs or escalators. Always use a lift. WARNING! Never use your power chair to negotiate steps or escalators. You may cause injury to yourself and to others and/or damage your power chair. www.pridemobility.com Jazzy 600...
- Page 11 If you will be traveling with your power chair, you may find it necessary to use a lift/elevation product to aid in transportation. Pride recommends that you closely review the instructions, specifications, and safety information set forth by the manufacturer of the lift/elevation product before using that product. Jazzy 600 www.pridemobility.com...
-
Page 12: Positioning Belts
WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that much weight, be sure to get help. Lifting beyond your capacity can result in personal injury. WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds. Wash hands after handling. www.pridemobility.com Jazzy 600... - Page 13 NOTE: For further information on EMI/RFI, go to the Resource Centre on www.pridemobility.com. If unintended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Contact your authorised Pride Provider to report the incident. Jazzy 600 www.pridemobility.com...
- Page 14 THE JAZZY 600 The Jazzy 600 has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake assemblies, two drive wheels, four caster wheels, two batteries, and wiring harnesses.
- Page 15 I I I . Y O U R P O W E R C H A I R JAZZY 600 SPECIFICATIONS Class of Use: Maximum Safe Slope: 8.7% (5°) Maximum Climbing Ability: 8.7% (5°) Maximum Obstacle Climbing Ability: 5 cm...
- Page 16 FRONT COVER MOTOR/BRAKE ASSEMBLY Figure 6. The Jazzy 600 Power Base ELECTRICAL COMPONENTS The electrical components are located inside the power base. The main circuit breaker is located on the front of the battery tray. The controller connector(s) are located inside the power base. See figure 7.
- Page 17 If the main circuit breaker continues to trip repeat- edly, contact your authorised Pride Provider. POWER MODULE BATTERY CONNECTOR MOTOR CONNECTOR MOTOR CONNECTOR MAIN CIRCUIT BREAKER Figure 7. Jazzy 600 Electrical Components Jazzy 600 www.pridemobility.com...
- Page 18 C H A I R MANUAL FREEWHEEL LEVERS The Jazzy 600 has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage the drive motors from the gearboxes and maneuver the chair manually. WARNING! Do not use the power chair while the drive motors are disengaged! Do not disengage...
-
Page 19: Assembly
ARMREST WIDTH ADJUSTMENT SEAT INSTALLATION ARMREST ANGLE ADJUSTMENT SEAT HEIGHT/ANGLE ADJUSTMENT CONTROLLER POSITION TYRE/TUBE REPLACEMENT FOOT PLATFORM ANGLE ADJUSTMENT FOOT PLATFORM HEIGHT/DEPTH ADJUSTMENT Figure 10. Jazzy 600 Assembly View Jazzy 600 www.pridemobility.com... - Page 20 10. Route the controller cable so that it cannot be pinched in the seat hinge. 11. Secure the controller cable to the armrest receiver with one or more wire ties. Figure 11a. Seat Installation (Seat Latch Safety) www.pridemobility.com Jazzy 600...
-
Page 21: Comfort Adjustments
See figure 13. 9. Move the trapeze bars up or down to the desired height. NOTE: Change the seat dump by raising or lowering only one set of towers (front or back). Figure 13. Trapeze Bar Adjustment Jazzy 600 www.pridemobility.com... -
Page 22: Reclining Seat
The lever is located on the right side of the seat base. See figure 5. Figure 15. Seatback Angle Adjustment To adjust the recline angle: 1. Push down on the seatback release lever. 2. Lean forward or rearwards to the desired position. 3. Release the lever. www.pridemobility.com Jazzy 600... -
Page 23: Armrest Width Adjustment
The quick release fastener has two states: clamped and unclamped. When the lever is open, the quick release fastener is unclamped. When the lever is closed, the quick release fastener is clamped. Jazzy 600 www.pridemobility.com... -
Page 24: Controller Position
10. Use a wire tie to secure the controller cable to the arm- SCREWS rest. 11. Plug the controller connector into the power base. 12. Reinstall the rear shroud and tighten the fasteners. Figure 20. Elevating Leg Rests www.pridemobility.com Jazzy 600... - Page 25 1. Remove the adjustment screws from the leg rest extension. 2. Slide the leg rest up or down to the desired length. 3. Align the adjustment holes in the leg rest extension and reinstall the adjustment screws. Jazzy 600 www.pridemobility.com...
- Page 26 3. Tighten the hardware. To change foot plate angle (D): 1. Turn the setscrew clockwise to decrease the angle. 2. Turn the setscrew anticlockwise to increase the angle. SETSCREW LOCATION Figure 22. Multi-Axis Foot Plate (ELR Shown) www.pridemobility.com Jazzy 600...
-
Page 27: Batteries And Charging
BATTERIES AND CHARGING The Jazzy 600 uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level. Deep-cycle batteries are designed to handle a longer and deeper discharge. - Page 28 Deep-cycle batteries are specifically designed to provide power, drain down their charge, and then accept a relatively quick recharge. AGM and Gel-Cell batteries should be charged as often as possible. They do not have a “memory” like nickel-cadmium batteries. www.pridemobility.com Jazzy 600...
- Page 29 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. Jazzy 600 www.pridemobility.com...
-
Page 30: Operation
Keypad Figure 23. FLIGHT Controller The keypad is located in front of the joystick. It contains keys necessary to operate your power chair. See figure 24. Horn Key The horn key activates the horn. www.pridemobility.com Jazzy 600... -
Page 31: Lock Mode
1. While the FLIGHT is locked, press the on/off key to turn on the FLIGHT. All LEDs will flash briefly. The LEDs will then slowly ripple from right to left. 2. Press the Horn Key twice before the LED ripple has completed, approximately 10 seconds. The FLIGHT is now unlocked. Jazzy 600 www.pridemobility.com... -
Page 32: Error Codes
Check that the battery wiring is secure. •••••••—•••••••— CANL Fault See your authorised Pride Provider. •••••••—•••••••— CANA Fault See your authorised Pride Provider. •••••••—•••••••— Stall Timeout Turn unit off, then on. •••••••—•••••••— Module Mismatch See your authorised Pride Provider. www.pridemobility.com Jazzy 600... -
Page 33: Care And Maintenance
M A I N T E N A N C E CARE AND MAINTENANCE Your Jazzy 600 is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your authorised Pride Provider. Preventive maintenance is very important. -
Page 34: Weekly Checks
Keep your power chair clean and free of foreign material, such as mud, dirt, hair, food, drink, etc. Yearly Checks Take your power chair to your authorised Pride Provider for yearly maintenance. This helps ensure that your power chair is functioning properly and helps prevent future complications. www.pridemobility.com Jazzy 600... -
Page 35: Cleaning Instructions
FRONT RIM HALF 10. Reinstall the drive wheel nut onto the wheel hub and tighten. Figure 25. Jazzy 600 Drive Wheel 11. Inflate the pneumatic tyre to 2.4 bar. 12. Remove the power chair from the blocks. Jazzy 600... -
Page 36: Battery Replacement
14. Slide the battery tray back into the power base. 15. Connect the battery harness to the rear battery. 16. Reinstall the front cover. 17. Reinstall the rear shroud. 18. Charge the batteries. See VI. “Batteries and Charging.” www.pridemobility.com Jazzy 600... - Page 37 V I I I . C A R E A N D M A I N T E N A N C E REAR SHROUD FASTENERS REAR SHROUD BATTERY WIRING DIAGRAM LABEL FRONT BATTERY REAR BATTERY Figure 26. Battery Installation Jazzy 600 www.pridemobility.com...
- Page 38 Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your authorised Pride Provider. www.pridemobility.com Jazzy 600...
- Page 39 REPLACEMENT UNITS The availability of replacement units is subject to the discretion of the provider, not the manufacturer. For more information regarding replacement units, contact your authorised Pride Provider. Jazzy 600 www.pridemobility.com...
- Page 40 N O T E S www.pridemobility.com Jazzy 600...
- Page 41 N O T E S Jazzy 600 www.pridemobility.com...
- Page 42 N O T E S www.pridemobility.com Jazzy 600...
- Page 43 Quality Control - Jazzy 600 Thank you for making the Jazzy 600 your choice in power chairs. Q u a l i t y C o n t r o l - M o d e l 1 400 We have thoroughly inspected your power chair. The following checkmarks indicate that it has been test driven and inspected.
