Summary of Contents for Pride Mobility SilverStar Exterior Lift System
- Page 1 Exterior Lift System Exterior Lift System Exterior Lift System Exterior Lift System Exterior Lift System...
-
Page 2: Safety Guidelines
Performing a prohibited action can cause injury to personnel and/or damage to equipment (black symbol with red circle and red slash). Copyright © 2006 Pride Mobility Products Corp. INFMANU3279/Rev A/April 2006 This product is manufactured by:... -
Page 3: Table Of Contents
INTRODUCTION... 4 SAFETY ... 6 III. INSTALLATION ... 9 IV. OPERATION ... 12 BATTERY CHARGING... 14 VI. CARE AND MAINTENANCE ... 15 VII. TROUBLESHOOTING ... 16 VIII. SPECIFICATIONS ... 17 IX. WARRANTY... 18 NOTE: This owner’s manual is compiled from the latest specifications and product information avail- able at the time of publication. -
Page 4: Introduction
I N T R O D U C T I O N Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Exterior Lift System. The Exterior Lift System design combines the most advanced state-of-the-art components with modern, attractive styling. - Page 5 I N T R O D U C T I O N PRIDE OWNERS CLUB As an owner of a Pride product, you are encouraged to enroll in the Pride Owners Club. Complete and return your enclosed product registration card or visit Pride’s web site at www.pridemobility.com. As a registered member, each time you visit our site, you have access to the most interactive, educational venue available today for people with mobility needs, their families, and friends.
-
Page 6: Product Safety Symbols

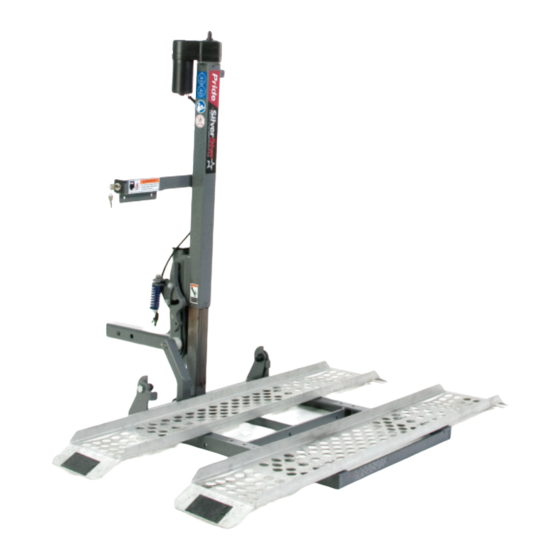

PRODUCT SAFETY SYMBOLS The symbols below are used on the lift system to identify warnings, mandatory actions, and prohibited actions. It is very important for you to read and understand them completely. Crush Hazard—Pinch/crush points created during assembly and operation. Keep hands clear. - Page 7 LIFTING CAPABILITIES The Exterior Lift System is an electromechanical device designed to lift various types of mobility devices for the purpose of vehicle transport. The Exterior Lift System is designed for a maximum Class 2 hitch allowance of 190 lbs. (86 kg) and a maximum Class 3 hitch allowance of 325 lbs. (147 kg). Under no circumstances should the Exterior Lift System be made to exceed this weight limit.
- Page 8 HITCH CLASS INFORMATION Pride would like to pass along the following important information about choosing the correct vehicle hitch system for use with various mobility-vehicle exterior lift systems. After choosing a particular exterior lift system, it is important to fit it with the correct hitch receiver. Hitches come in a variety of sizes and are designated by class.
-
Page 9: I I I . I N S T A L L A T I O N
I I I . EXTERIOR LIFT SYSTEM INSTALLATION The Exterior Lift System is designed to be easily installed into any vehicle equipped with a Class 2 or Class 3 hitch receiver. The hitch receiver should be installed no higher than 21 in. (53 cm) from the bottom of the hitch tube to the ground. - Page 10 I I I . NOTE: Make sure the hitch bolt is tightened firmly before securing the nut to the hitch assembly to minimize the chance that the lift will tilt during transport. NOTE: Make sure the hitch tube and lift platform are parallel to the ground before operating the lift system.
- Page 11 I I I . 2. Conceal the harness behind or under the interior panels of the vehicle (there should be existing holes). Be certain that the harness is protected with a rubber grommet when passing it through the metal panels and into the engine compartment.
-
Page 12: I V . O P E R A T I O N
I V . EXTERIOR LIFT SYSTEM OPERATION WARNING! The Exterior Lift System is intended for the transport of mobility devices only. The mobility device must be unoccupied before operating the lift. WARNING! Prevent vehicle damage! Do not exceed the load limits of your vehicle or hitch system as specified by the vehicle manufacturer. - Page 13 I V . WARNING! For lift systems equipped with the automatic lock-down arm, do not attempt to adjust the pressure of the arm. This feature has been configured by your authorized Pride Provider to meet your needs and requires no further adjustment. WARNING! If your scooter is equipped with pneumatic drive tires, make sure the tires are inflated to the recommended pressure labeled on the tire sidewall.
-
Page 14: Battery Charging
B A T T E R Y BATTERY CHARGING Follow these steps to charge the onboard battery: 1. Remove the onboard battery from the battery case and place it near a standard electrical wall outlet. 2. Plug the charger cord into the mating socket located on the bottom of the battery case, then connect the charger cord to a standard electrical outlet. -
Page 15: Care And Maintenance
V I . C A R E CARE AND MAINTENANCE Your lift system requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorized Pride Provider. -
Page 16: Troubleshooting
V I I . T R O U B L E S H O O T I N G TROUBLESHOOTING Any electromechanical device occasionally requires some troubleshooting. However, most of the problems that may arise can usually be solved with a bit of thought and common sense. Many of these problems occur because the battery is not fully charged or because the battery is worn down and can no longer hold a charge. -
Page 17: Specifications
V I I I . Lift System Dimensions: Overall Height: 58 in. (147 cm) Overall Width: 41–44 in. (104–112 cm) from hitch with platform down Platform Width:28 in. (71 cm) Maximum Lift Capacity: 190 lbs. (86 kg) with Class 2 hitch 325 lbs. -
Page 18: I X . W A R R A N T Y
THREE-YEAR TRANSFERABLE LIMITED WARRANTY For three (3) years from the date of purchase, Pride Mobility Products will repair or replace at our option, free of charge, any mechanical or electrical component found upon examination by an authorized representative of Pride to be defective in material and/or workmanship.
