Summary of Contents for Pride Mobility PURSUIT

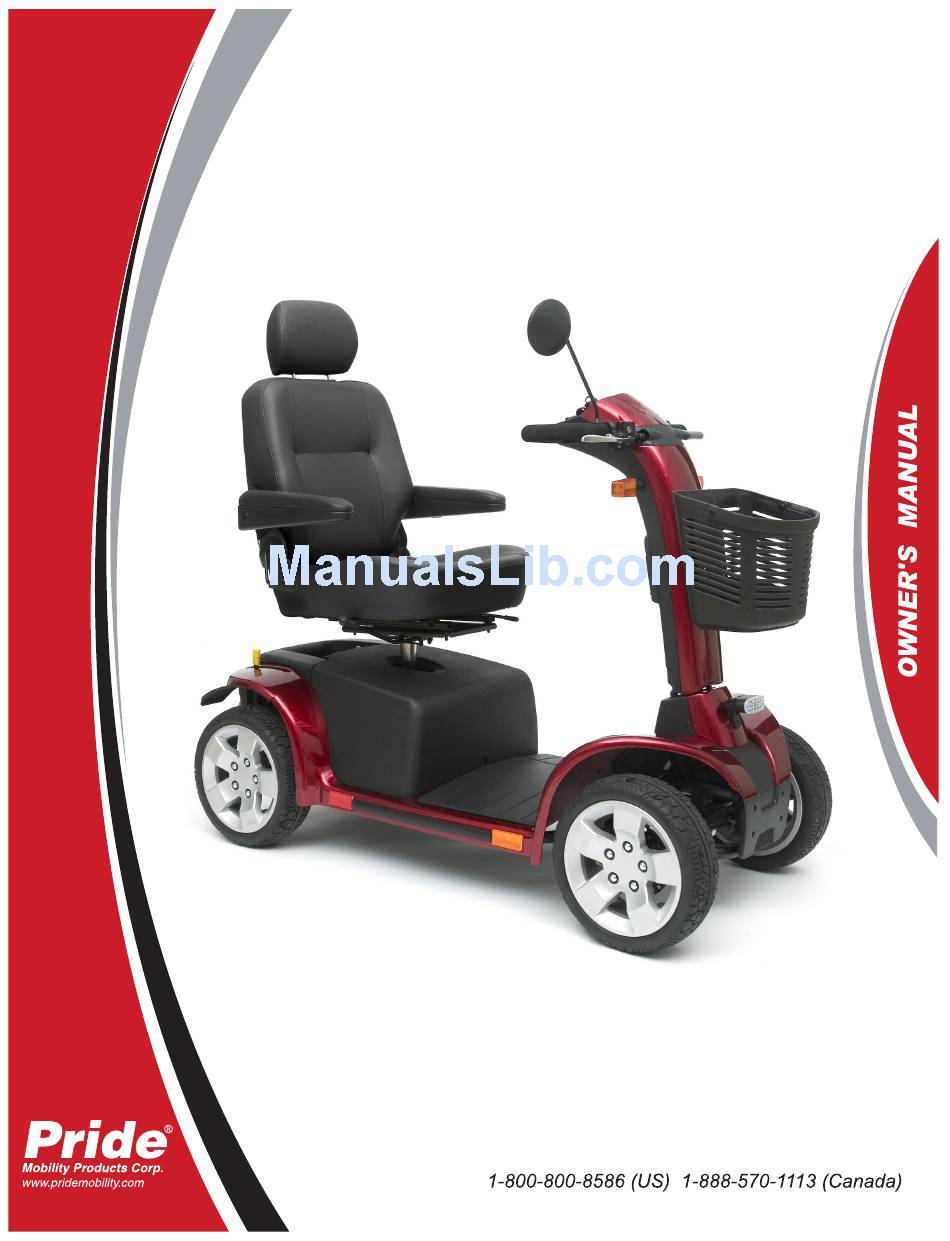

  • Page 1 PURSUIT...
  • Page 2 NTENDED The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated position that have the capability of operating a powered scooter. Please fill out the following information for quick reference:...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION ........................4 SAFETY ............................5 III. YOUR SCOOTER ........................19 IV. BATTERIES AND CHARGING ..................24 OPERATION ..........................29 VI. COMFORT ADJUSTMENTS ....................31 VII. DISASSEMBLY AND ASSEMBLY ...................33 VIII.BASIC TROUBLESHOOTING ...................35 IX. CARE AND MAINTENANCE ....................37 APPENDIX I - SPECIFICATIONS ....................40 Pursuit www.pridemobility.com...

  • Page 4: Www.pridemobility.com

    I . I N T R O D U C T I O N SAFETY Welcome to Pride Mobility Products Corporation (Pride). The product you have purchased combines state-of the-art components with safety, comfort, and styling in mind. We are confident the design features will provide you with the conveniences you expect during your daily activities.
  • Page 5 Pinch/Crush points created during assembly. Corrosive chemicals contained in battery. EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m. Explosive conditions exist! Read and follow the information in the owner’s manual. Maximum seating weight. Pursuit www.pridemobility.com...

  • Page 6: Ii. Safety

    Do not remove anti-tip wheels. Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while operating. Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain and store in a clean and dry condition. www.pridemobility.com Pursuit...
  • Page 7 Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new batteries. Always replace both batteries at the same time. Do not place the scooter in freewheel mode when on an incline or decline. Pursuit www.pridemobility.com...
  • Page 8 I I . S A F E T Y Battery charger for indoor use only. Disposal and recycling - Contact your authorized Pride Provider for information on proper disposal and recycling of your Pride product and its packaging. Contains Lead. www.pridemobility.com Pursuit...
  • Page 9 PRE-RIDE SAFETY CHECK Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check before each use to make sure your scooter operates smoothly and safely. Pursuit www.pridemobility.com...
  • Page 10 When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. Avoid sudden stops and starts. www.pridemobility.com Pursuit...
  • Page 11 WARNING! Never carry an oxygen tank weighing more than 15 lbs. (6.8 kg). Never fill the front or rear basket with contents exceeding 15 lbs. (6.8 kg). Pursuit www.pridemobility.com...
  • Page 12 Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the center/stop position. Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop, or when power is removed from the system for any reason. www.pridemobility.com Pursuit...
  • Page 13 Pride recommends that you do not attempt to negotiate a curb that has a height greater than 2 in. (5 cm). Doing so could cause instability in your scooter. Figure 3. Correct Curb Approach Figure 3A. Incorrect Curb Approach Pursuit www.pridemobility.com...
  • Page 14 Use your hand to turn the knob or push the handle or push-bar. Drive your scooter gently and slowly forward to push the door open. Or drive your scooter gently and slowly backwards to pull the door open. www.pridemobility.com Pursuit...
  • Page 15 PREVENTING UNINTENDED MOVEMENT WARNING! If you anticipate being seated in a stationary position for an extended period of time, turn off the power. This will prevent unexpected motion from inadvertent throttle control lever contact. Pursuit www.pridemobility.com...
  • Page 16 PROHIBITED! Keep your hands away from the tires when driving. Be aware that loose fitting clothing can become caught in drive tires. www.pridemobility.com Pursuit...
  • Page 17 You must adhere to the following safety guidelines if you decide to smoke cigarettes while seated in your scooter. Do not leave lit cigarettes unattended. Keep ashtrays a safe distance from the seat cushions. Always make sure cigarettes are completely extinguished before disposal. Pursuit www.pridemobility.com...
  • Page 18 NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If unintended motion or brake release occurs, turn your scooter off as soon as it is safe to do so. Contact your authorized Pride Provider to report the incident. www.pridemobility.com Pursuit...
  • Page 19 Battery Condition Meter When the key is fully inserted and turned clockwise to power up your scooter, this meter indicates the approximate battery voltage strength. For further information on battery charging, see IV. “Batteries and Charging.” Pursuit www.pridemobility.com...

  • Page 20: Iii. Your Scooter

    Release the throttle control lever and allow your scooter to come to a complete stop before engaging the other side of the lever. When the throttle control lever is completely released, it automatically returns to the center “stop” position and engages your scooter’s brakes. www.pridemobility.com Pursuit...
  • Page 21 See figure 6. KEY SWITCH (5A) NOTE: Keep all electrical areas clean and free of LOWER HEADLIGHT (1A) moisture and foreign material. REAR TAIL LIGHTS (1A) LEFT TURN SIGNAL (1A) RIGHT TURN SIGNAL (1A) Figure 6. Tiller Console Fuses Pursuit www.pridemobility.com...
  • Page 22 2. Push forward on the manual freewheel lever to disable the drive system and the brake system. This will enable you to push the scooter. 3. Pull back on the manual freewheel lever to reengage the drive and the brake systems and take your scooter out of freewheel mode. www.pridemobility.com Pursuit...
  • Page 23 Scooters that are not properly secured can become a hazard to the user and to other vehicle passengers in the event of a crash, sudden stopping, or swerving, as the scooter could tip or slide out of place. FRONT SECUREMENT POINTS REAR SECUREMENT POINT Figure 9. Rear Section Figure 8. Front Section Pursuit www.pridemobility.com...
  • Page 24 Refer to the manual supplied with the battery charger for more information. www.pridemobility.com Pursuit...

  • Page 25: Iv. Batteries And Charging

    Ensure the red (+) and black (-) battery cables are connected properly to the battery terminals. Ensure both battery harnesses that extend from the batteries are plugged into their mating harness. Ensure both ends of the charger power cord are inserted fully. Pursuit www.pridemobility.com...
  • Page 26 Do not use wet-cell batteries, which have removable caps. WARNING! Corrosive chemicals are contained in batteries. Use only AGM or Gel- Cell batteries to reduce the risk of leakage or explosive conditions. NOTE: Sealed batteries are not serviceable. Do not remove the caps. www.pridemobility.com Pursuit...
  • Page 27 NOTE: If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag. Contact your local waste disposal agency or your authorized Pride Provider for instructions on disposal and battery recycling, which is our recommended course of action. Pursuit www.pridemobility.com...
  • Page 28 What about public transportation? If you intend to use public transportation with your scooter, you must contact the transportation provider in advance to determine their specific requirements. www.pridemobility.com Pursuit...
  • Page 29 The electromechanical disc park brake automatically disengages and the scooter accelerates smoothly to the speed you preselected with the speed adjustment dial. Pull on the left handgrip to steer your scooter to the left. Pull on the right handgrip to steer your scooter to the right. Pursuit www.pridemobility.com...

  • Page 30: V. Operation

    Although the controller is shut down, power will still be supplied to the scooter’s lighting system. If the power down timer feature takes effect, perform the following steps to resume normal operation: 1. Remove the key from the key switch. 2. Reinsert the key and power up your scooter. www.pridemobility.com Pursuit...
  • Page 31 ADJUSTMENT forward or rearward to adjust the seatback angle. LEVER 2. Release the seatback adjustment lever once the seat is in a comfortable riding position. Figure 16. Seatback Adjustment Pursuit www.pridemobility.com...

  • Page 32: Vi. Comfort Adjustments

    SEAT HEIGHT posts. ADJUSTMENT 6. Reinstall the nut onto the seat height adjustment BOLT LOWER bolt and tighten. SEAT 7. Reinstall the rear shroud and the seat. POST Figure 18. Seat Height Adjustment www.pridemobility.com Pursuit...
  • Page 33 See figure 23. WARNING! Failure to unplug both battery harnesses and the front- to-rear cable prior to separating the front and rear sections could result in permanent damage to the scooter. Pursuit www.pridemobility.com...

  • Page 34: Vii. Disassembly And Assembly

    7. Reinstall the batteries to the battery wells. 8 Connect both battery harnesses. See figure 20. 9. Secure the battery tie-down strap. 10. Reinstall the battery shroud. 11. Reinstall the seat and rotate it into place. BATTERY SPACERS Figure 23. Battery Spacers www.pridemobility.com Pursuit...
  • Page 35 Push in the main circuit breaker reset button. See III. “Your Scooter.” Make certain that both battery harnesses and the front-to-rear harness are firmly connected. See VII. “Disassembly and Assembly.” Be sure the power down timer feature has not been activated. See V. “Operation.” Pursuit www.pridemobility.com...

  • Page 36: Viii.basic Troubleshooting

    Have your authorized Pride Provider load test each battery. See the previous troubleshooting question for load testing the batteries yourself. If you experience any problems with your scooter that you are not able to solve, immediately contact your authorized Pride Provider for information, maintenance, and service. www.pridemobility.com Pursuit...
  • Page 37 4. Pull the wheel off of the axle. 5. Slide the new wheel onto the axle. 6. Reinstall the lug nuts and ensure they are tight- ened properly. 7. Remove the blocks from beneath the scooter. LUG NUTS Figure 24. Solid Tire Wheel Removal Pursuit www.pridemobility.com...

  • Page 38: Ix. Care And Maintenance

    The motor brushes are housed inside of the motor transaxle/assembly. They should be inspected periodi- cally for wear by your authorized Pride Provider. CONSOLE, CHARGER, AND REAR ELECTRONICS Keep these areas free of moisture. Allow these areas to dry thoroughly if they have been exposed to moisture before operating your scooter again. www.pridemobility.com Pursuit...
  • Page 39 Your scooter must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorized Pride Provider for information on proper disposal of packaging, metal frame components, plastic components, electronics, batteries, neoprene, silicone, and polyurethane materials. Pursuit www.pridemobility.com...
  • Page 40 Test conducted at maximum weight capacity. Inludes standard seat. Battery weight may vary based on manufacturer. NOTE: This product conforms to all applicable ANSI/RESNA testing requirements and ISO 7176 series EN12184 standards. All specifications subject to change without notice. www.pridemobility.com Pursuit...

  • Page 41: Appendix I - Specifications

    18.5 in. (47 cm) 3.56 in. (9 cm) 53.25 in. (135.25 cm) 18 in. (45 cm) 18 in. (45 cm) Turning Radius Turning Radius 66.75 in. 67.75 in. (169.5 cm) (172 cm) 25.25 in. (64.13cm) Figure 26. Dimensions Pursuit www.pridemobility.com...
  • Page 42 N O T E S www.pridemobility.com Pursuit...
  • Page 44 *INFMANU3890*...
