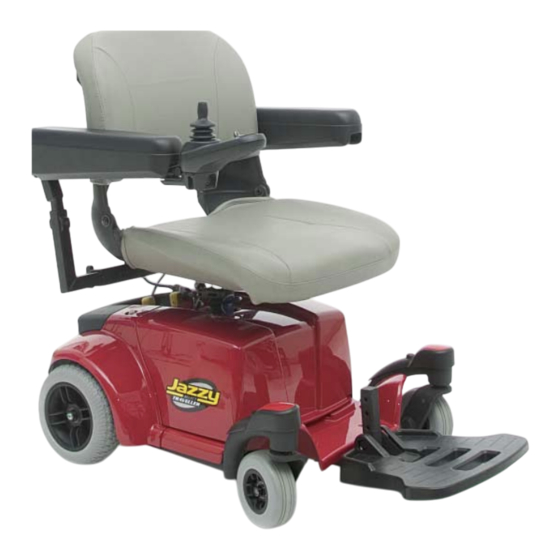

Pride Mobility Jazzy Select Traveller Owner's Manual

Jazzy select series
Hide thumbs Also See for Jazzy Select Traveller:
Table of Contents

Advertisement

Quick Links

JAZZY
S E L E C T S E R I E S
How a Power Chair should FEEL!
™
Including Model: Jazzy Select Traveller
1-800-800-8586 (US) 1-888-570-1113 (Canada)

Advertisement

Table of Contents
loading

Related Manuals for Pride Mobility Jazzy Select Traveller

Summary of Contents for Pride Mobility Jazzy Select Traveller

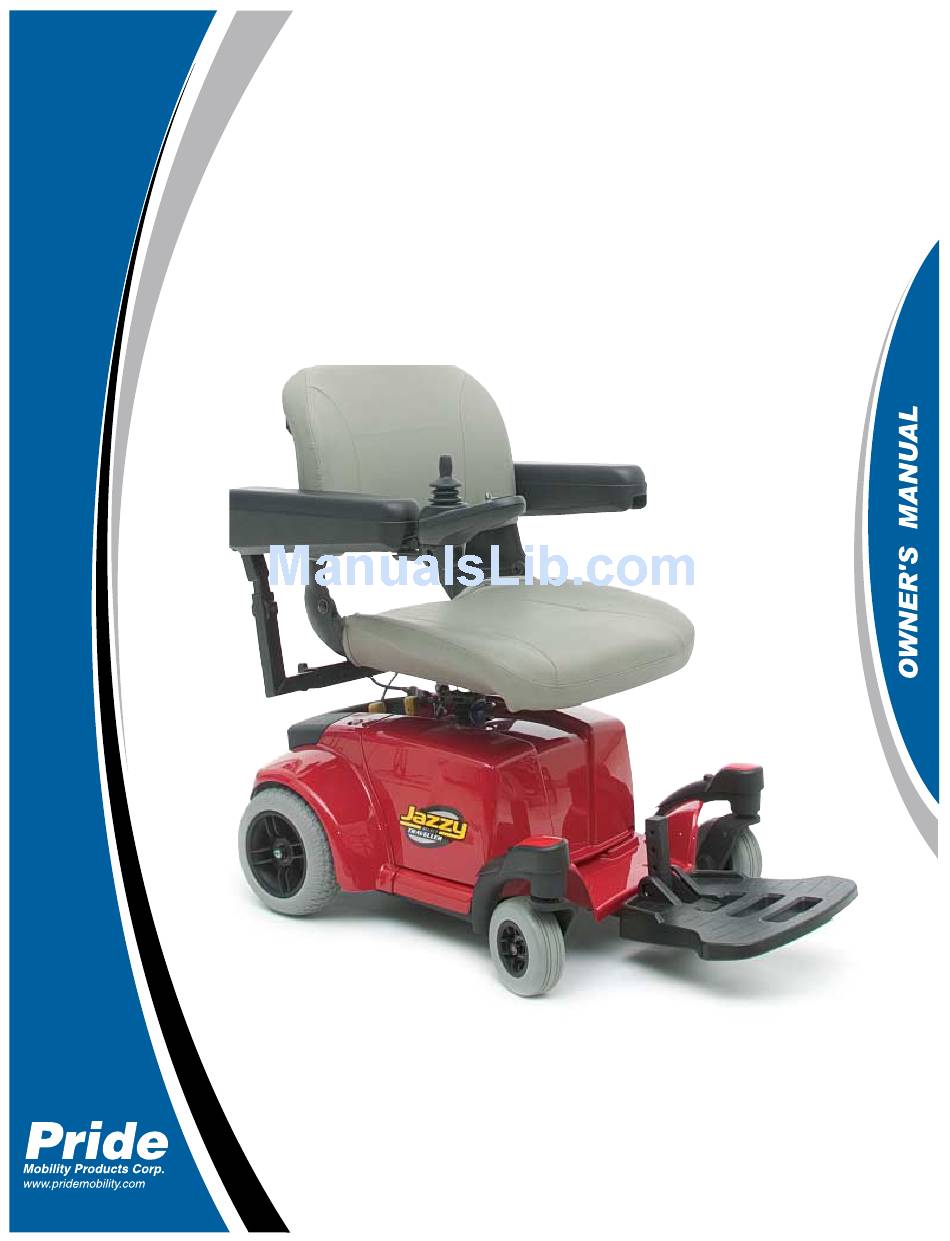

  • Page 1 JAZZY S E L E C T S E R I E S How a Power Chair should FEEL! ™ Including Model: Jazzy Select Traveller 1-800-800-8586 (US) 1-888-570-1113 (Canada)
  • Page 2 The latest/current version of this manual is available on our website. 088 609 661 Copyright © 2007 Pride Mobility Products Corp. INFMANU3339/Rev C/May 07...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION............................ 4 SAFETY ..............................6 III. YOUR POWER CHAIR ........................18 IV. ASSEMBLY............................22 COMFORT ADJUSTMENTS......................24 VI. BATTERIES AND CHARGING ....................... 27 VII. CARE AND MAINTENANCE ......................31 VIII. WARRANTY............................36 Select Traveller www.pridemobility.com...

  • Page 4: Introduction

    I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of- the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities.

  • Page 5: I. Introduction

    I N T R O D U C T I O N PRIDE OWNERS CLUB As an owner of a Pride product, you are encouraged to enroll in the Pride Owners Club. Complete and return your enclosed product registration card or visit Pride’s web site at www.pridemobility.com. From our home page, select “Owners Club”...
  • Page 6 I I . S A F E T Y PRODUCT SAFETY SYMBOLS The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions. It is very important for you to read and understand them completely. Read and follow the information in the owner’s manual.

  • Page 7: Ii. Safety

    I I . S A F E T Y Do not lift the mobility vehicle while seated in it. Do not lift the mobility vehicle while seated in it. Do not connect an extension cord to the AC/DC converter or the battery charger. Removal of grounding prong can create electrical hazard.

  • Page 8: Safety

    I I . S A F E T Y EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m. Explosive conditions exist! Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions.
  • Page 9 I I . S A F E T Y Battery charger for indoor use only. Disposal and recycling - Contact your authorized Pride Provider for information on proper disposal and recycling of your Pride product and its packaging. Disposal and recycling - Contact your authorized Pride Provider for information on proper disposal and recycling of your Pride product and its packaging.

  • Page 10: General Guidelines

    I I . S A F E T Y GENERAL GUIDELINES MANDATORY! Do not operate your new power chair for the first time without completely reading and understanding this owner’s manual. Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive variety of products to best fit the individual needs of the power chair user.
  • Page 11 I I . S A F E T Y Weight Limitations Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty.
  • Page 12 I I . S A F E T Y WARNING! Even though your power chair is capable of climbing slopes greater than those illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any other specifications presented in this manual. Doing so could cause instability in your power chair. In compliance with the Americans with Disabilities Act of 1990, all handicap public access ramps are required to have a maximum slope of 5°...
  • Page 13 I I . S A F E T Y Public Streets and Roadways WARNING! You should not operate your power chair on public streets and roadways. Be aware that it may be difficult for traffic to see you when you are seated on your power chair. Obey all local pedestrian traffic rules.
  • Page 14 I I . S A F E T Y Stairs and Escalators Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator. WARNING! Never use your power chair to negotiate steps or escalators. Doors ! Determine if the door opens toward or away from you.
  • Page 15 I I . S A F E T Y Batteries In addition to following the warnings below, be sure to comply with all other battery handling information. For more information about your power chair’s batteries, see VI. “Batteries and Charging.” WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.

  • Page 16: Iii. "Your Power Chair

    I I . S A F E T Y Transfers Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or health- care professional present while learning to properly transfer yourself. To eliminate the possibility of injury, Pride recommends that you or a trained attendant perform the following tasks be- fore attempting a transfer: ! Turn off the power to the controller.
  • Page 17 I I . S A F E T Y WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in your power chair, although the power chair has passed the necessary testing requirements for cigarette smoking. You must adhere to the following safety guidelines if you decide to smoke cigarettes while seated in your power chair.
  • Page 18 I I I . Y O U R P O W E R C H A I R THE SELECT TRAVELLER The Select Traveller has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat assembly includes the armrests, seatback, and seat base.
  • Page 19 I I I . Y O U R P O W E R C H A I R SELECT TRAVELLER SPECIFICATIONS Suspension: Limited Drive Wheels: 8 in. (20.32 cm), solid Front Caster Wheels: 5 in. (12.7 cm), solid Rear Anti-tip Wheels: 3 in.
  • Page 20 I I I . Y O U R P O W E R C H A I R CONTROLLER CONNECTOR SEAT PEDESTAL OFF-BOARD CHARGER CONNECTOR BATTERY COVER SHROUD FREEWHEEL LEVERS CIRCUIT BREAKER Figure 6. The Select Traveller Power Base Electrical Components The electrical components are located on the power base.
  • Page 21 I I I . Y O U R P O W E R C H A I R Manual Freewheel Levers The power chair has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage the drive motors in order to push the chair.
  • Page 22 I V . A S S E M B L Y INITIAL ASSEMBLY Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly to make some comfort adjustments. Figure 8 details those parts of the power chair that are designed to be disassembled and assembled by an end user or by a qualified caregiver before using the product or making comfort adjustments.

  • Page 23: Iv. Assembly

    I V . A S S E M B L Y Seat Installation It may be necessary to install the seat either prior to initial operation or after transporting your power chair. The seat is attached to the power base by a height-adjustable seat pedestal.

  • Page 24: Comfort Adjustments

    C O M F O R T A D J U S T M E N T S COMFORT ADJUSTMENTS After becoming familiar with your power chair’s operation, you may find the need to make some adjustments to increase your comfort, such as seat height, armrest width, foot platform depth, and controller position. Use the steps below to make comfort adjustments.
  • Page 25 C O M F O R T A D J U S T M E N T S Controller Position You can move the controller in toward or out away from the armrest, or change the position the controller for either left- hand or right-hand use.
  • Page 26 C O M F O R T A D J U S T M E N T S Armrest Angle Adjustment To change the armrest angle: 1. Lift the armrest straight up so that it is perpendicular to the floor. See figure 13. 2.

  • Page 27: Batteries And Charging

    V I . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING Your power chair uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level.
  • Page 28 V I . B A T T E R I E S A N D C H A R G I N G To charge the batteries with the off-board charger: 1. Position your power chair next to a standard electrical outlet. See figure 15.
  • Page 29 V I . B A T T E R I E S A N D C H A R G I N G ! Daily Use If you use your power chair on a daily basis, charge the batteries as soon as you are finished using your power chair. Your power chair will be ready each morning to give you a full day’s service.
  • Page 30 V I . B A T T E R I E S A N D C H A R G I N G How can I ensure maximum battery life? A fully charged deep-cycle battery will provide reliable performance and extended battery life. Keep your power chair’s batteries fully charged whenever possible.

  • Page 31: Care And Maintenance

    V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your power chair is a sophisticated travel mobility vehicle. Like any motorized vehicle, it requires routine maintenance checks.
  • Page 32 V I I . C A R E A N D M A I N T E N A N C E WARNING! Even though the power chair has passed the necessary testing requirements for ingress of liquids, you should keep electrical connections away from sources of dampness, including direct exposure to water or bodily fluids and incontinence.
  • Page 33 V I I . C A R E A N D M A I N T E N A N C E WARNING! If you fail to store the unit properly, the frame can rust and the electronics can be damaged.
  • Page 34 V I I . C A R E A N D M A I N T E N A N C E 5. Slide the new wheel back onto the shaft. Make sure AXLE KEY that the key is in the axle slot. 6.
  • Page 35 V I I . C A R E A N D M A I N T E N A N C E 6. Reconnect the two (2) battery leads to the battery terminals. Make sure the red lead is connected to the (+) positive terminal and the black lead is connected to the (-) negative terminal.
  • Page 36 ! Circumstances beyond the control of Pride ! Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized by Pride Mobility Products Corporation ! Repairs and/or modifications made to any part without specific consent from Pride...

  • Page 37: Viii. Warranty

    V I I I . W A R R A N T Y SERVICE CHECKS AND WARRANTY SERVICE Warranty service must be performed by an authorized Pride Provider. Do not return faulty parts to Pride without prior written authorization. All transportation costs and shipping damage incurred while submitting parts for repair or replace- ment are the responsibility of the purchaser.
  • Page 38 N O T E S www.pridemobility.com Select Traveller...
  • Page 39 Quality Control - Jazzy Select Traveller Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected...
