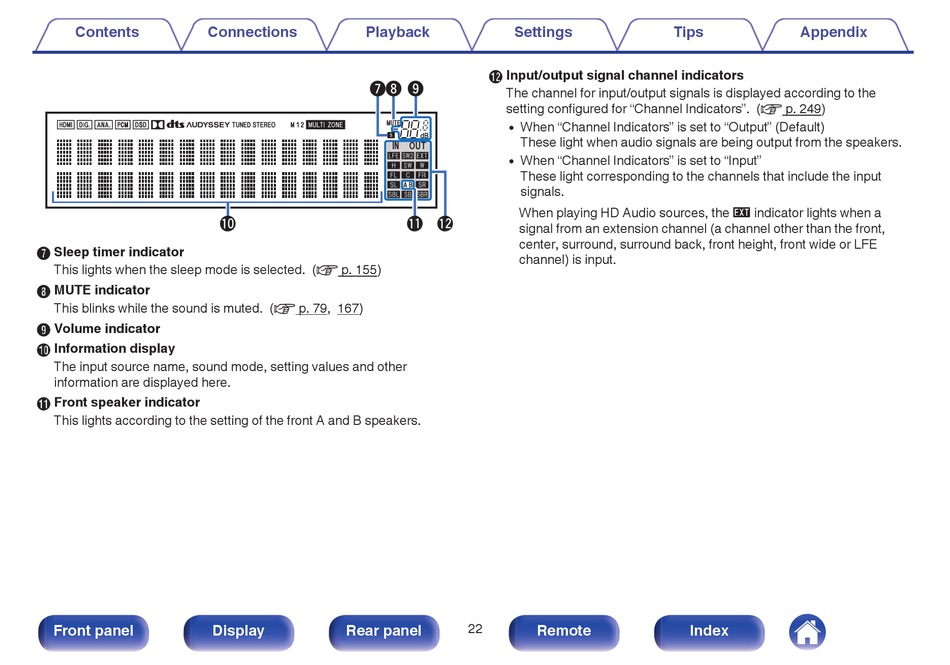

G Sleep timer indicator
This lights when the sleep mode is selected. (v p. 155)
H MUTE indicator
This blinks while the sound is muted. (v p. 79, 167)
I Volume indicator
J Information display
The input source name, sound mode, setting values and other
information are displayed here.
K Front speaker indicator
This lights according to the setting of the front A and B speakers.
Front panel Display
Playback
u i
Q0
Rear panel
Settings
L Input/output signal channel indicators
o
The channel for input/output signals is displayed according to the
setting configured for "Channel Indicators". (v p. 249)
When "Channel Indicators" is set to "Output" (Default)
0
These light when audio signals are being output from the speakers.
When "Channel Indicators" is set to "Input"
0
These light corresponding to the channels that include the input
signals.
When playing HD Audio sources, the A indicator lights when a
Q1 Q2
signal from an extension channel (a channel other than the front,
center, surround, surround back, front height, front wide or LFE
channel) is input.
