Santos 60 User And Maintenance Manual

Bar espresso coffee grinder
Hide thumbs Also See for 60:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Use and Maintenance Manual
SANTOS SAS:
140-150 AVENUE ROGER SALENGRO
SANTOS : User and maintenance manual
69120 VAULX-EN-VELIN (LYON) - FRANCE
TÉL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 -
TELECOPIE 33 (0) 478 26 58 21
E-Mail :santos@santos.fr
USER AND MAINTENANCE MANUAL
!
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs mélangeurs - Pétrin - Râpes à fromage -
Broyeurs à glaçons - Hache-viande - Coupe-légumes
98160 EN 2.2 - 11 2013
www.santos.fr

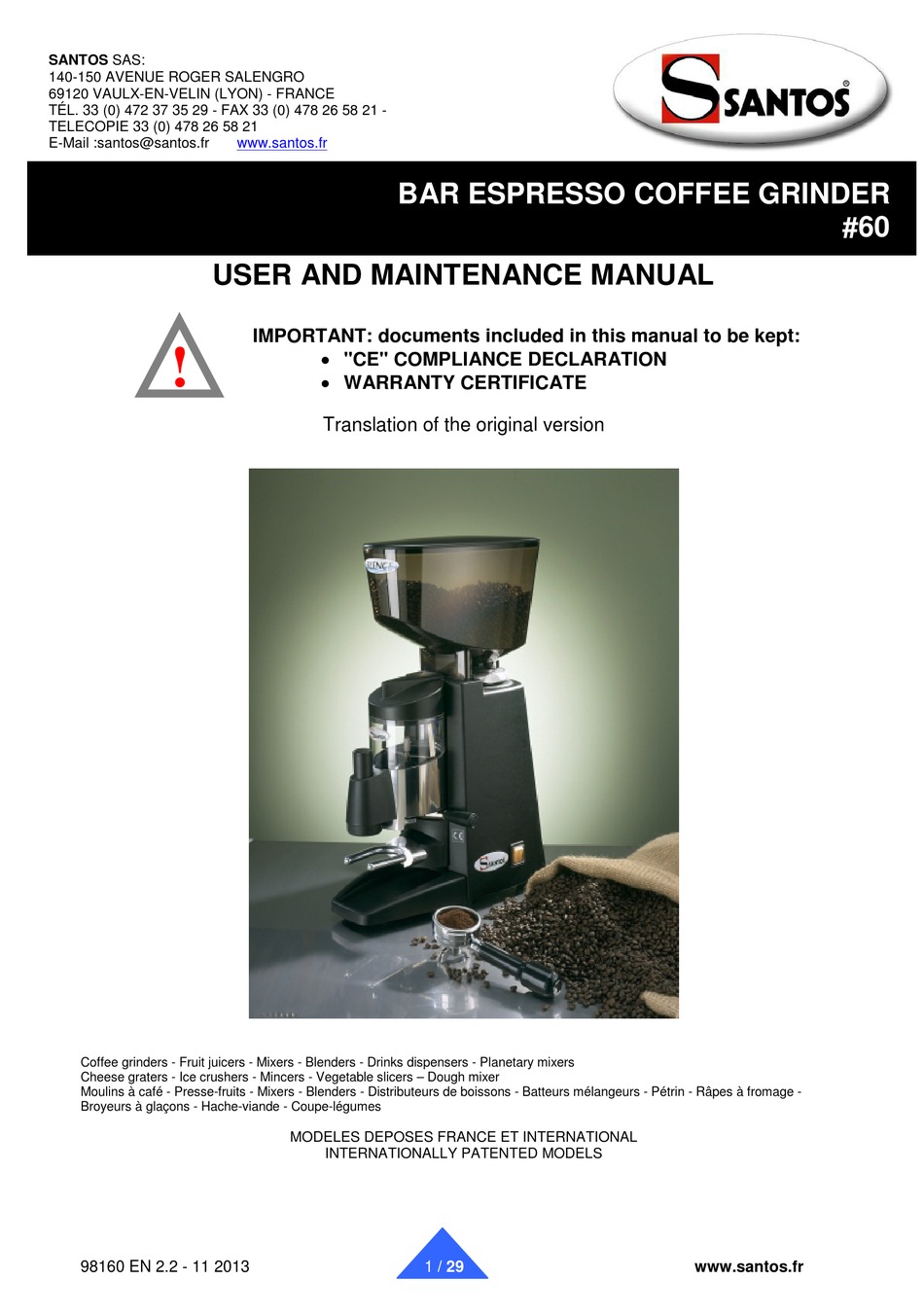

BAR ESPRESSO COFFEE GRINDER
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION

• WARRANTY CERTIFICATE

Translation of the original version
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS
1 / 29
#60
