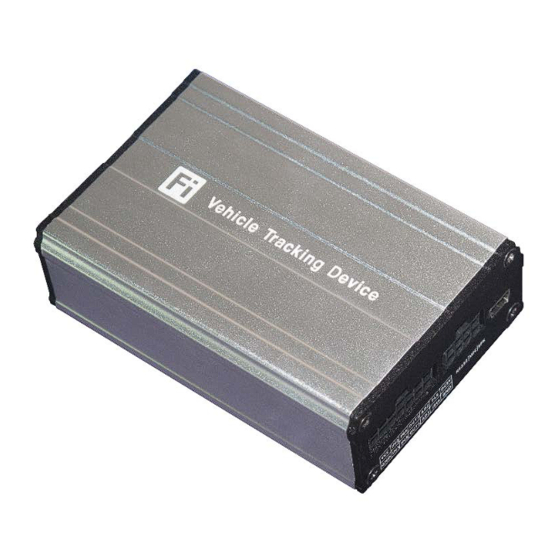

- Page 1 FIFOTRACK VEHICLE GPS TRACKER Model: A300 Version: V1.1 www.fifotrack.com...
-
Page 2: Copyright And Disclaimer
A300 USER GUIDE Copyright and Disclaimer All copyrights belong to Shenzhen fifotrack Solution Co., Ltd. You are not allowed to revise, copy or spread this file in any form without consent of fifotrack. is trademark of fifotrack, protected by law. -
Page 3: Table Of Contents
9 Device Installation ....................14 9.1 I/O Installation ....................... 14 9.2 Power/Ground Cable ..................... 16 9.3 Positive/Negative Digital Input (IN1/IN2/IN3) ............... 17 9.4 Analog Input( AD) ......................17 9.5 Output control (OUT1/OUT2) ..................18 Copyright © fifotrack 2015 All rights reserved... -
Page 4: Product Overview
Wire protocol, this enables A300 to have powerful functions such as taking pictures, driver identification and management, impulse detection and temperature monitoring. Besides the advanced functions, A300 has full functions to cover the normal demands of vehicle tracking. Not only has fuel monitoring, harsh acceleration/braking alarm, driving behavior analysis, but also has custom digital input, jamming detection, two-way calling and OTA functions. -
Page 5: Other Functions
Fuel sensor (Optional) Temperature sensor (Optional) Two-way Calling And Monitoring (Optional) Impulse detection (Default speedometer detection) 3 Product and Accessories 3.1 Standard Packing Box Main Unit Wire GPS Antenna GSM Antenna Copyright © fifotrack 2015 All rights reserved... -
Page 6: Optional Accessories
A300 USER GUIDE 3.2 Optional Accessories USB Cable Relay Microphone Speaker Fuel Sensor Calibrator RFID reader Camera i-Button 4 Product Appearance Copyright © fifotrack 2015 All rights reserved... -
Page 7: Pcb Overview And Hardware Design
Our product supports voltage 11V-36V. When the external power supply is below 10.5V, with low voltage detection, it will be automatically cut. When external power supply is over 36V or has high voltage peak, the product will trigger high-voltage Copyright © fifotrack 2015 All rights reserved... -
Page 8: Led Light
Flash 0.1s on and 3s off GSM available Flash every 0.1s Device is initialing Flash 2s on and 2s off No GSM External Power Light (Red) External power cut Flash every 0.1s External power low External power normal Copyright © fifotrack 2015 All rights reserved... -
Page 9: Specification
1-Wire protocol (Temperature sensor/i-Button) 1 Impulse detection (Default speedometer detection) 1 USB port 8 First Use 8.1 Charging First time use A300, please connect positive wire(+ Red) and ground wire(-black) to 12V or 24V Copyright © fifotrack 2015 All rights reserved... -
Page 10: Installing The Sim Card
Screw off and open the front cover Insert SIM card into SIM card slot Make sure the chip is facing to PCB. Pay attention to the cutaway angle direction of SIM card. Close front cover and lock the screw Copyright © fifotrack 2015 All rights reserved... -
Page 11: Installing Gsm/Gps Antenna
Don’t install the GPS antenna where shielded by metal. For example, inside a metal can. 8.4 Tracking by Calling Call the SIM card number inside A300, you will get a SMS reply with Google map link. Click it for specific map location. -
Page 12: Sms Reply Content Example
Google map link, latitude in the Google map link with latitude and com/maps front of longitude after ”Loc”. longitude, which can be opened directly ?f=q&hl=en&q=loc: Unit degree on smart phone. 22.546510,114.079 Latitude=22.546510° Longitude=114.079403° Copyright © fifotrack 2015 All rights reserved... -
Page 13: Tracking By Sms Command - C01
USB cable driver and install it before using parameter tool. Refer to <USB CABLE DRIVER INSTALLATION GUIDE> if need. Connect A300 to PC with USB cable. Run “fifotrack Parameter Tool” software which will identify port automatically and read all of the current parameters. -
Page 14: Platform Tracking
A300 USER GUIDE Please read <FIFOTRACK PARAMETER TOOL USER GUIDE> for more details. 8.8 Platform Tracking You can use SMS commands B00, B01, B02, B03 to set server IP, port, APN and GPRS uploading interval. You can also set those parameters via parameter tool software on PC. - Page 15 Blue 12 bits analog input, supports voltage range 0-30V. Connect to external sensor, eg, fuel sensor. Brown Impulse detection, 0~100kHz Black 1-Wire protocol port for i-Button or temperature sensor DC5V Orange iBtn Purple Copyright © fifotrack 2015 All rights reserved...
-
Page 16: Power/Ground Cable
RS232 Port DC5V MCU_RS232_TX MIC+ SPK+ MCU_RS232_RX MIC- SPK- Function DC5V RS232 port for camera/RFID Reader or other RS232 protocol devices. MCU_RS232_TX MCU_RS232_RX MIC+ Microphone port MIC- SPK+ Speaker port SPK- 9.2 Power/Ground Cable Copyright © fifotrack 2015 All rights reserved... -
Page 17: Positive/Negative Digital Input (In1/In2/In3)
A300 USER GUIDE 9.3 Positive/Negative Digital Input (IN1/IN2/IN3) 9.4 Analog Input( AD) Calculation formula: AD Voltage=(AD)*3300*11/4096 Note：Original AD value is in hexadecimal. Convert it to decimal first, then use the formula. Copyright © fifotrack 2015 All rights reserved... -
Page 18: Output Control (Out1/Out2)
A300 USER GUIDE 9.5 Output control (OUT1/OUT2) Please e-mail us at info@fifotrack.com if any question or feedback. Copyright © fifotrack 2015 All rights reserved...
