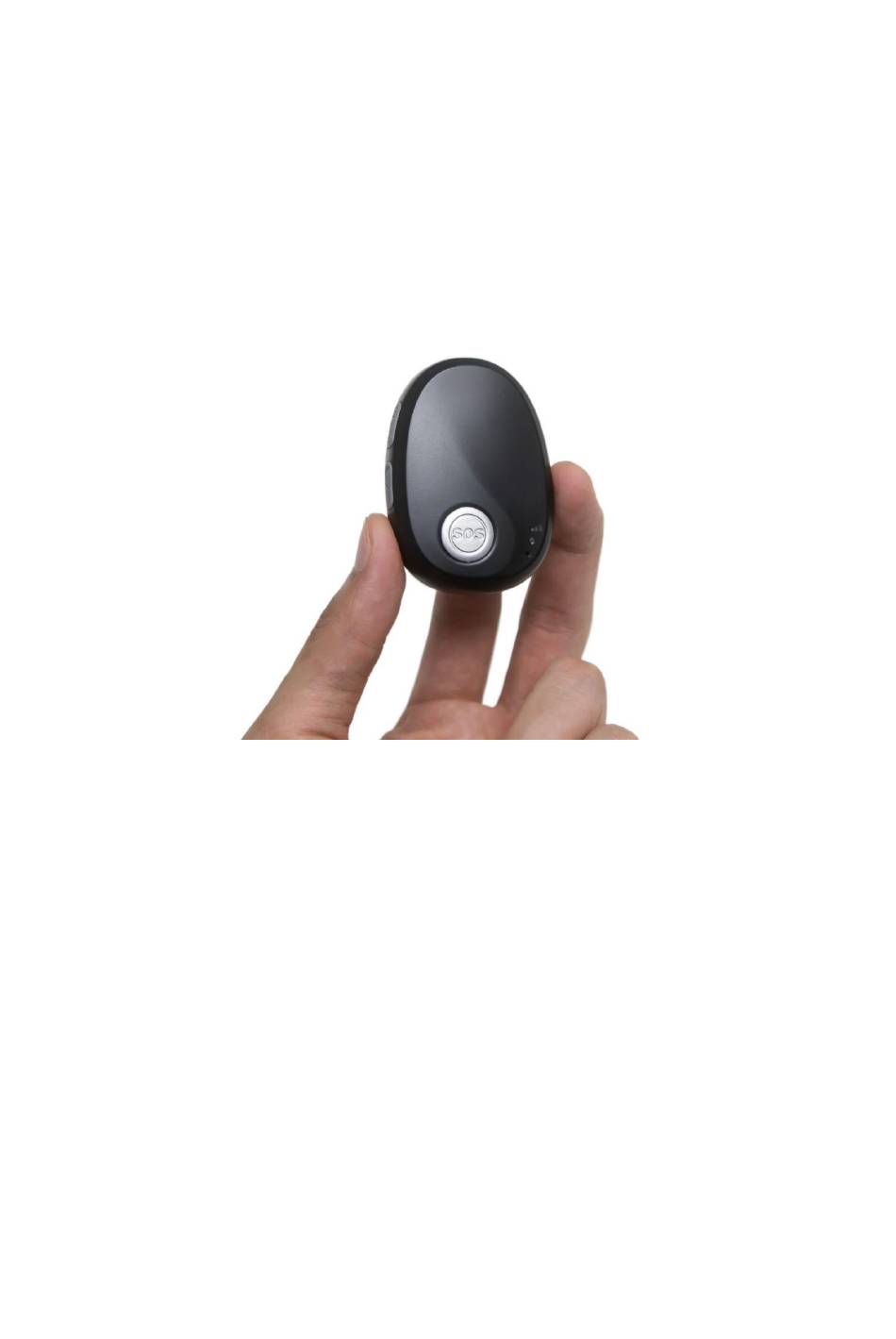

- Page 1 FIFOTRACK 4G PERSONAL GPS TRACKER Model: Q3 Version: V1.2 www.fifotrack.com...
- Page 2 Q3 USER GUIDE Copyright and Disclaimer All copyrights belong to Shenzhen fifotrack Solution Co., Ltd. You are not allowed to revise, copy or spread this file in any form without consent of fifotrack. is trademark of fifotrack, protected by law.
- Page 3 Q3 USER GUIDE Revision History Version Author Revision Date Description of change V1.1 Cici Wu Aug 16, 2022 Initial revision V1.2 Cici Wu Oct 25, 2022 Update battery working time Add button hang up and Bluetooth description Add chapter 13 about loud speaker Modify chapter 14 about power saving, add deep sleep mode description.
- Page 4 Q3 USER GUIDE Related Files Version File Remarks V1.2 <fifotrack A03 GPRS Protocol > GPRS protocol between terminal and server V1.2 <fifotrack Q3 Command List> Command details of GPRS/SMS/COM V1.1 <USB Cable Driver Installation Guide> How to install USB cable driver V1.1...
-
Page 5: Table Of Contents
Q3 USER GUIDE Content 1. Product Overview ..................... 6 2. Product Main Functions..................6 3. Product Appearance ..................7 4. Specification ..................... 8 5. Battery Working Time..................9 6. LED Light ......................9 7. Insert the SIM Card ..................10 8. -
Page 6: Product Overview
SOS phone guardian. Powered by the built-in 3-axis motion sensor and excellent firmware algorithm, the Q3 device is able to detect the fall down event accurately. Q3 uses original simple and professional FIFOTRACK A03 GPRS PROTOCOL, the programmers can integrate this protocol in their own platform and develop APP efficiently. -
Page 7: Product Appearance
Q3 USER GUIDE 3. Product Appearance Button Description SOS Button Press SOS button for 2 seconds and feel the SOS alarm triggered motor vibration Short press SOS button Hang up calling Short press SOS button Cancel fall down alarm Power Button... -
Page 8: Specification
Q3 USER GUIDE 4. Specification Item Specification Dimension 65*46*17mm Weight GSM Module Quectel EG915U, Cat 1 type GPS Chipset ZKW AT6558R Charging Voltage DC 5V/1A Internal Battery 1000mAh/3.7V Lithium-ion battery Full charging time <2 hours 10 minutes Power Consumption Average 2.4mA standby current Working hours Refer to chapter 5 for details. -
Page 9: Battery Working Time
Q3 USER GUIDE 5. Battery Working Time Q3 has a built-in 1000mAh rechargeable lithium-ion battery. Longer battery working time is one of our core design goals from the beginning. After hard efforts on the firmware and hardware development, now we can achieve below excellent results:... -
Page 10: Insert The Sim Card
Q3 USER GUIDE 7. Insert the SIM Card ⚫ The SIM card type is Nano SIM card ⚫ Ensure the SIM card has GPRS data plan ⚫ Ensure the PIN code has been closed. ⚫ Power off device before Insert SIM card Screw out the back case then you will find the SIM card slot, insert the Nano SIM card correctly. -
Page 11: Tracking By Phone
Q3 USER GUIDE Turn on device Press power button for 2 seconds to turn on/turn off device 9. Tracking by phone 9.1 Setting SOS Number – B11 SMS Command: 000000,B11,<number1>,<number2>,<number3> SMS Reply: B11,OK For example: 000000,B11,134209566,134209677,138290708 Authorize 134209566 as first SOS number, 134209677 as second SOS number, 138290708 as third SOS number. -
Page 12: Tracking By Calling
Q3 USER GUIDE 9.3 Tracking by Calling Call the SIM card number inside the device by authorized SOS number, you will get a SMS reply with Google map link. Click it to check the location. 9.4 Tracking by SMS Command - C01 SMS Command：000000,C01... -
Page 13: Sms Reply Content Example
Q3 USER GUIDE 9.5 SMS Reply Content Example 2021-08-13 10:49:59,A,http://maps.google.com/maps?q=22.643300,114.018346&t=m SMS Reply Format: Field Detail Remarks 2021-08-13 Date time, format Date and time 10:49:59 YYYYMMDD hh:mm:ss GPS valid GPS Status，”A” means GPS valid, “V” means GPS invalid. http://maps.googl Google map link, latitude in front Google map link with latitude and e.com/maps?q=22. -
Page 14: Platform Tracking
Q3 USER GUIDE 11. Platform Tracking Adding device to the tracking platform or APP, the user needs to configure the device as below steps. Step 1: Setting IP and port Command: 000000,B00,<IP>,<Port> For example: 000000,B00,47.88.35.165,10502 Note: 000000 is device SMS command password, default 000000 B00 is command IP: server IP or domain, 47.88.35.165 is server IP... -
Page 15: Fall Down Detection
Powered by the Q3 model built-in 3-axis motion sensor and our excellent algorithm in firmware, The Q3 device can detect the fall down event with higher accuracy, and reduce the false alerts to minimum. Please refer to B36 command for details. -
Page 16: Deep Sleep Mode Power Saving
The users also can’t configure the device remotely. In this deep sleep mode, the device standby time is up to 29 days. In order to avoid misuse, the deep sleep mode command is not public, please contact us for details if you are interested. Please e-mail us at info@fifotrack.com if any questions or feedback.
