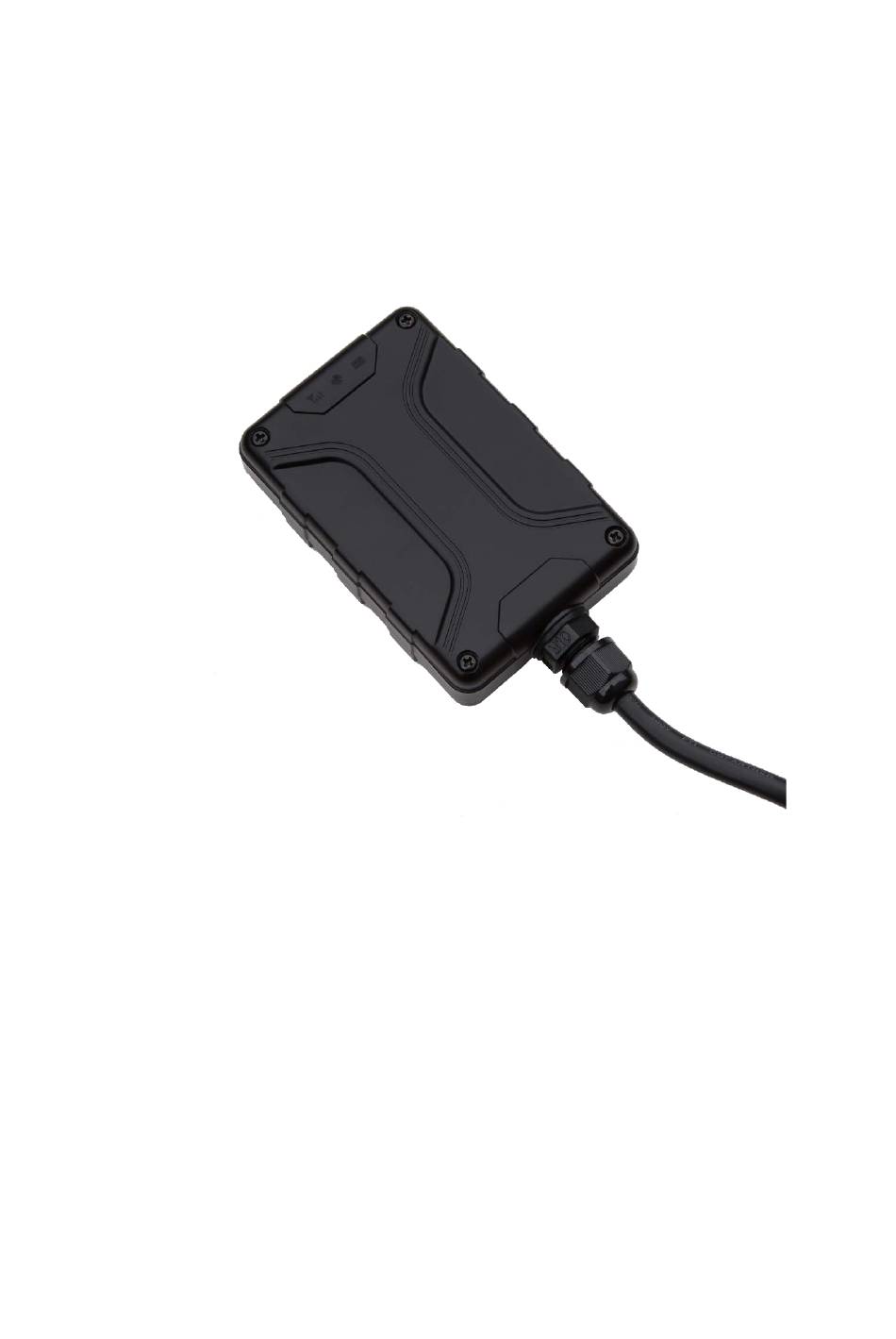

- Page 1 FIFOTRACK MOTORCYCLE/VEHICLE GPS TRACKER Model: S20 Version: V1.2 www.fifotrack.com...
- Page 2 S20 USER GUIDE Copyright and Disclaimer All copyrights belong to Shenzhen fifotrack Solution Co., Ltd. You are not allowed to revise, copy or spread this file in any form without consent of fifotrack. is trademark of fifotrack, protected by law.
- Page 3 S20 USER GUIDE Revision History Version Author Revision Date Details V1.1 Cici Wu Sep 25, 2017 Initial revision V1.2 Cici Wu Dec 9, 2019 1.Quectel L70-R GPS module replacing U-blox 7q. 2.Input 1 wire color changed to green color. 3. Cable sticker removed...
- Page 4 S20 USER GUIDE Related Files Version File Remarks V1.1 <fifotrack S20 Command List> Command details of GPRS/SMS/COM V1.1 <fifotrack A01 GPRS Protocol> GPRS communication protocol between tracker and server V1.1 <fifotrack Parameter Tool User Guide> PC software tool for parameters configuration V1.1...
-
Page 5: Table Of Contents
S20 USER GUIDE Contents 1 Product Overview ....................6 2 Product Functions ....................6 2.1 Tracking Functions ......................6 2.2 Alarms ..........................6 2.3 Other Functions ....................... 7 3 Product and Accessories ..................7 3.1 Standard Packing Box ....................... 7 3.2 Optional Accessories ...................... -
Page 6: Product Overview
S20 USER GUIDE 1 Product Overview S20 is a light model which is suitable for motorcycle, vehicle, boat, asset tracking, etc. Power input range is 8-92V with industrial design. The Core features of S20 include internal GPS/GSM antennas, IP66 waterproof, 2 digital input, 1 analog input and 1 output. -
Page 7: Other Functions
S20 USER GUIDE External Battery Low Alarm Fuel Theft Alarm Fuel Filling Alarm Low Fuel Level Alarm High Fuel Level Alarm 2.3 Other Functions Waterproof IP66 8 MB Flash Memory Custom Digital Input (input1) ... -
Page 8: Product Appearance
S20 USER GUIDE 4 Product Appearance Front View Overview Rear View Side View... -
Page 9: Pcb Overview
S20 USER GUIDE 5 PCB Overview 6 LED Light GPS Light (Green) Power off or sleep Flash 0.1s on and 3S off GPS valid Flash every 0.1s GPS antenna cut Flash 2s on and 2s off No GPS signal Solid On... -
Page 10: Specification
1 Analog input, voltage range is 0-12V 1 Output 1 USB port (inside case) 8 First Use 8.1 Installing the SIM Card S20 is 2G tracker. Make sure the SIM card is compatible with 2G. SIM card is Micro type, 15*12mm. ... - Page 11 S20 USER GUIDE Ensure the SIM card has enough balance. SIM card should have GPRS data plan for platform tracking. Ensure PIN code has been closed. Authorization SOS numbers can’t work well if SIM card doesn’t have caller ID service. E.g.: ...
-
Page 12: Gps Antenna
Don’t install the Device where shielded by metal. For example, inside a metal can. 8.3 Tracking by Calling Call the SIM card number inside S20, you will get a SMS reply with Google map link. Click it for specific map location. -
Page 13: Sms Reply Content Example
S20 USER GUIDE 8.4 SMS Reply Content Example 2015-09-04 07:44:28, 0km/h, Disconnect, A, EXPW:ON,http://maps.google.com/maps ?f=q&hl=en&q=loc:22.546510,114.079403... -
Page 14: Tracking By Sms Command - C01
22.546510,114.079 Latitude=22.546510° Longitude=114.079403° 8.5 Tracking by SMS Command - C01 SMS Command：000000,C01 SMS Reply: Current location Note：Default SMS password is “000000”, set new SMS password with B10 command. Please refer to < fifotrack S20 Command List > for more details. -
Page 15: Configuration On Pc
USB cable driver and install it before using parameter tool. Refer to <USB CABLE DRIVER INSTALLATION GUIDE> if need. Connect S20 to PC with USB cable. Run “fifotrack Parameter Tool” software which will identify port automatically and read all of the current parameters. -
Page 16: Platform Tracking
S20 USER GUIDE 8.7 Platform Tracking You can use SMS commands B00, B01, B02, B03 to set server IP, port, APN and GPRS uploading interval. Sales will send specific guide file to you for sample trial. You can also configure those parameters via parameter tool software on PC. -
Page 17: Power/Ground Cable
S20 USER GUIDE detection. Blue 12 bits analog input, voltage range 0-12V. Connect to external sensor. For example, fuel sensor. OUT1 Yellow Output1 Output active: low level (0V) Output inactive: open drain (OD) Max open-drain (inactive) voltage: 45V Max current for output low voltage (valid): 500mA 9.2 Power/Ground Cable... -
Page 18: Analog Input( Ad1)
S20 USER GUIDE 9.4 Analog Input( AD1) 9.5 Output control (OUT1) Please e-mail us at info@fifotrack.com if any question or feedback.
