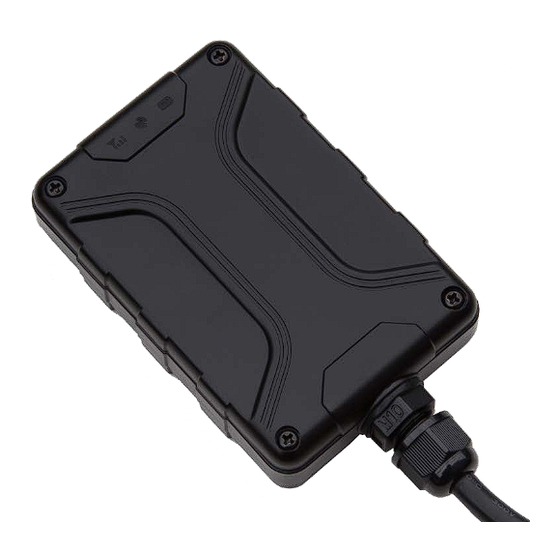

- Page 1 FIFOTRACK MOTORCYCLE/VEHICLE GPS TRACKER 3G VERSION Model: S50 Version: V1.1 www.fifotrack.com...
- Page 2 S50 USER GUIDE Copyright and Disclaimer All copyrights belong to Shenzhen fifotrack Solution Co., Ltd. You are not allowed to revise, copy or spread this file in any form without consent of fifotrack. is trademark of fifotrack, protected by law.
- Page 3 S50 USER GUIDE Revision History Version Author Revision Date Details V1.1 Cici Wu July 22, 2019 Initial revision Copyright © fifotrack 2015 All rights reserved First in first out 2...
- Page 4 Tool for firmware upgrade V1.0 < GPRS Command Generator> Generating GPRS commands for FIMS tracking software Download link: http://www.fifotrack.com/Support/Userguide/ Video Guide Link http://www.fifotrack.com/Support/video.html Marketing Materials Download Link http://www.fifotrack.com/Support/marketing.html Copyright © fifotrack 2015 All rights reserved First in first out 3...
-
Page 5: Table Of Contents
9.1 I/O Installation ....................... 15 9.2 Power/Ground Cable ..................... 16 9.3 Positive/Negative Digital Input (IN1/IN2) ..............16 9.4 Analog Input( AD1) ......................17 9.5 Output control (OUT1) ....................17 Copyright © fifotrack 2015 All rights reserved First in first out 4... -
Page 6: Product Overview
S50 USER GUIDE 1 Product Overview S50 is a light model which is suitable for vehicle, motorcycle, boat, asset tracking, etc. Power input range is 8-92V with industrial design. The core features of S50 include internal GPS/GSM antennas, IP66 waterproof, 1 digital input, 1 analog input and 1 output. -
Page 7: Other Functions
Stop Car Remotely (optional, with relay) 3 Product and Accessories 3.1 Standard Packing Box Main Unit 3.2 Optional Accessories USB Cable Relay AS10 Fuel sensor Copyright © fifotrack 2015 All rights reserved First in first out 6... -
Page 8: Product Appearance
S50 USER GUIDE 4 Product Appearance Front View Overview Rear View Side View Copyright © fifotrack 2015 All rights reserved First in first out 7... -
Page 9: Pcb Overview
Device is initialing Flash 2s on and 2s off No GSM External Power Light (Red) External power cut Flash every 0.1s External power low Solid On External power normal Copyright © fifotrack 2015 All rights reserved First in first out 8... -
Page 10: Specification
Hot start 1s Position Accuracy I/O Port 1 Digital input, positive, default for ACC detection. 1 Analog input, voltage range is 0-36V. 1 Output 1 USB port (inside case) Copyright © fifotrack 2015 All rights reserved First in first out 9... -
Page 11: First Use
S50 USER GUIDE 8 First Use 8.1 Installing the SIM Card S50 is 3G tracker. Make sure the SIM card is compatible with 3G. SIM card is Micro type, 15*12mm. Ensure the SIM card has enough balance. ... -
Page 12: Gps Antenna
Don’t install the Device where is shielded by metal. For example, inside a metal can. 8.3 Tracking by Calling Call the SIM card number inside S50, you will get a SMS reply with Google map link. Click it for specific map location. -
Page 13: Sms Reply Content Example
S50 USER GUIDE 8.4 SMS Reply Content Example 2019-05-29 09:41:01, 0km/h, Disconnect, A, EXPW: OFF, http://maps.google.com/maps?q=22.643105,114.018258&t=m Copyright © fifotrack 2015 All rights reserved First in first out 12... -
Page 14: Tracking By Sms Command - C01
SMS Command：000000,C01 SMS Reply: Current location Note：Default SMS password is “000000”, set new SMS password with B10 command. Please refer to <fifotrack S50 Command List > for more details. Copyright © fifotrack 2015 All rights reserved First in first out 13... -
Page 15: Configuration On Pc
Refer to <USB Cable Driver Installation Guide> if need. Connect S50 to PC with USB cable. Run “Parameter Tool” software which will identify port automatically and read all of the current parameters. -
Page 16: Device Installation
Blue 12 bits analog input, voltage range 0-36V, adjustable, default 0-5V range. Connect to external sensor. For example, fuel sensor. AD1 is reserved to convert to input1 Copyright © fifotrack 2015 All rights reserved First in first out 15... -
Page 17: Power/Ground Cable
Output inactive: open drain (OD) Max open-drain (inactive) voltage: 45V Max current for output low voltage (valid): 500mA RS232 Port Orange Not available in S50 model, the RS232 port is reserved for future models. Black Green Purple 9.2 Power/Ground Cable 9.3 Positive/Negative Digital Input (IN1/IN2) -
Page 18: Analog Input( Ad1)
2. Raw data is in Hex, need convert to decimal, range is 0~4096. 0 means empty, 4096 means full. 9.5 Output control (OUT1) Please e-mail us at info@fifotrack.com if any question or feedback. Copyright © fifotrack 2015 All rights reserved...
